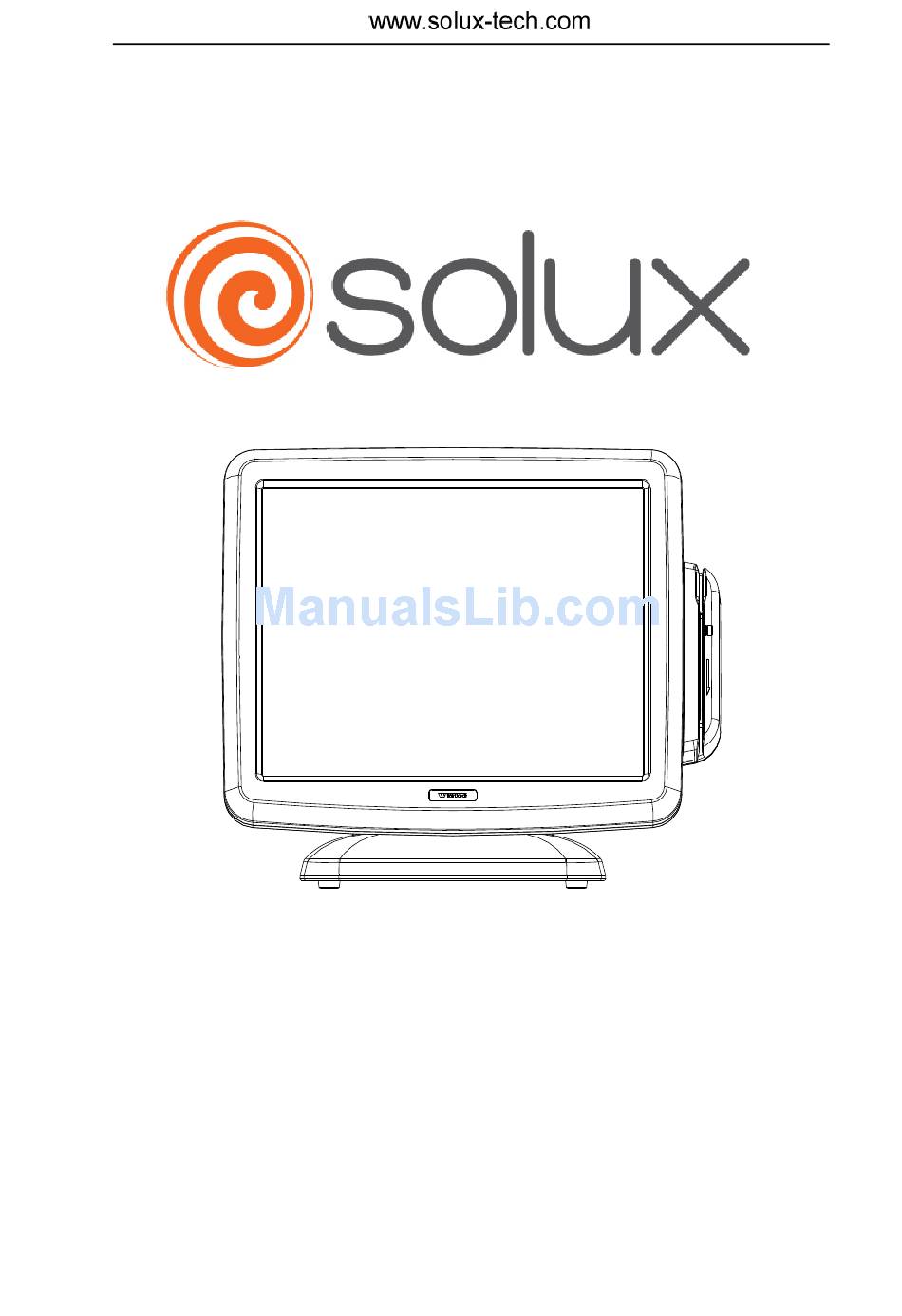

  • Page 1 Maintenance Manual...

  • Page 2: Table Of Contents

    Catalogue introduction................1 1.1 The technical specifications:............2 1.2 Product description ..............3 1.2.1 Appearance ..............3 1.2.2 IO ports ................5 2 Machine Assembly ................6 2.1 Disassembling machine .............6 2.2 Dismantle the HDD ..............9 2.3 Install the MSR ................10 2.4 Install the Customer Display............11 2.4.1 Mounting the VFD Customer Display ......11 2.4.2 Mounting the 2nd Display..........11 2.5 Wall Mounting .................12...
  • Page 3 4.3.7 Setup the touch screen............36 4.3.8 Setup the MSR ...............38...

  • Page 4: Introduction

    introduction , developed by with ten years experience of commercial POS systems, is an innovation of traditional POS and KIOSK design. It contains the full functions which a mainstream product has and can satisfy the demands of commercial and related industry, for example, cashing function in retail business, catering industry and self-service.

  • Page 5: The Technical Specifications

    1.1 The technical specifications: Model D525 1.8GHz D425 1.8GHz Chipset Intel NM10, with max TDP 2.1W 4GB DDR3 2GB DDR3 Memory Integrate Intel GMA 3150 graphic core， Graphic support DX9.0c Interface 1*LVDS, 1*VGA Storage 2.5'' HD, SATAII; SSD optional 15'' TFT 1024*768 resolution Touch Screen 5 wires resistive Realtek ALC662 5.1 Channel HD Audio...

  • Page 6: Product Description

    1.2 Product description 1.2.1 Appearance Front view DESCRIPTION 15-inch TFT LCD and Touch screen Magnet Stripe Reader（Optional） Power LED and HDD LED...
  • Page 7 Rear view DESCRIPTION Cable Cover HDD Cover Hinge Cover Base The hole for cables Power Switch Speaker（Optional）...

  • Page 8: Io Ports

    1.2.2 IO ports DESCRIPTION MARK AC adapter jack PS2 KB PS2 MS Parallel port (LPT1) VGA port USB 1&2&3&4 Power USB 1 Power USB 2 (Optional) RJ-45 LAN port Microphone Line-out +12V Output jack OUT 12V COM1 port COM1 COM2 port COM2 COM3 port COM3...

  • Page 9: Machine Assembly

    2 Machine Assembly 2.1 Disassembling machine Step 1, Remove the cable cover Step 2; Open the hard disk cover, uninstall screws, pull out hard disk.
  • Page 10 Step 3, Unload eight screws which fixed the shell. Step 4; Open two buckles on the right side, then dismantling the front shell and the touch screen...

  • Page 12: Dismantle The Hdd

    2.2 Dismantle the HDD 1、Dismantle the HDD cover, and find the HDD bracket. 2 、 Remove the screw HDD bracket. 3 、 Pull out the HDD bracket.

  • Page 13: Install The Msr

    2.3 Install the MSR 1、Put the MSR into the slot and move down to fix. 2、Fix the MSR with 2 M3*8 supplied screws. 3、Connect the data wire of MSR to the port under the HDD bracket. Then cover it.

  • Page 14: Install The Customer Display

    2.4 Install the Customer Display 2.4.1 Mounting the VFD Customer Display 1、 Fix the display with 4 M4*8.5 supplied screws. 2、Connect the customer display to customer display port COM4 on the machine. 2.4.2 Mounting the 2nd Display 1、 Fix the display with 4 M4*8.5 supplied screws.

  • Page 15: Wall Mounting

    2.5 Wall Mounting 1、Fix the holder on the rear of the machine with 4 M4*8.5 screws. 2、Mounting the bracket on the wall or other place with 4 screws. Our bracket meet the standard VESA. The specification is 100 * 100 （mm）.

  • Page 16: Installation Of Mini Pci-E Equipment

    2.6 Installation of Mini PCI-E Equipment Step1, move the equipment into the Mini PCI-E socket. Step2, Use screws column fix equipment.

  • Page 17: Main Component Technical Specifications

    3 Main Component Technical Specifications 3.1 Motherboard The motherboard AX1 AX2 use is SV1-D5216 and SV1-D4216. The component No. of SV1-D5216 is 12110328 The component No. of SV1-D4216 is 12110329 Model SV1-D5216 SV1-D4216 Intel Atom D525 Intel Atom D425 1.8GHz BGA CPU 1.8GHz BGA CPU...
  • Page 19 The mother board pins definition [1] PS/2 Keyboard and Mouse Header（6*1 Pin 2.00 mm） [2] Single Channel LVDS Interface (1.25 mm) [3] Control J20.1 ~ J20.4 (3*1Pin 2.00 mm) [4] LVDS Backlight Control Header（5*1 Pin 2.00 mm） [5] Control JP4.4 (3*1 Pin 2.00mm) [6] CPU Fan (2.00 mm)
  • Page 20 [7] System Fan (2.00 mm) [8] Amplifier Header（5*2 Pin 2.54 mm） [9] Front Panel Header（5*2 Pin 2.54 mm） [10] SATA Power Supply Connector (2.54 mm) [11] SATA Power Supply Connector (2.00 mm) [12] CMOS Control Jumper (3*1Pin 2.54 mm) [13] Serial Port 2 Header（5*2 Pin 2.0 mm）...
  • Page 21 [14] Serial Port 3 Header（5*2 Pin 2.0 mm） [15] Serial Port 4 Header（5*2 Pin 2.0 mm） [16] Serial Port 5 Header（5*2 Pin 2.0 mm） [17] Serial Port 6 Header（TTL，4*1 Pin 2.0 mm） [18] Serial Port 6 Header（RS232，4*1 Pin 2.0 mm） [19] USB Header（5*2 Pin 2.54 mm）...
  • Page 22 [20] GPIO Header（6*2 Pin 2.00 mm） [21] Audio Header（5*2 Pin 2.54 mm） [22]SIM Header (1*5 Pin 2.00 mm) [23]FPC_USB Extended Connector（20Pin）...
  • Page 23 [24]VGA Header（2*8 Pin 2.00 mm） [25]LPC Debug Header（1*9 Pin 2.00 mm）...

  • Page 24: Lcd

    3.2 LCD The LCD of AX1 AX2 is TMS150XG1-10TB. The component No. of the LCD is 12111940. Display area 304.128（W）x228.096（H）mm Display diagonal 15 inches(38CM) size Driver a-Si TFT Active matrix way Color number 16777216(6bit+FRC) Pixel 1024（H）*768(V) Bitmap 0.099（W）*0.297（H）mm Size 326.5（L）x253.5（W）x11.3（H）mm...

  • Page 25: Touch Screen

    3.3 Touch Screen AX1 AX2 uses 5-wire resistive touch screen. The component No. of the touch screen is 12111943. Basic specifications Mechanical properties:  structure： Top： ITO film; Bottom： ITO glass; thickness (2.2mmm)  Qualify way: FFC  Operating mode: Touching pen or fingers ≦...

  • Page 26: Power Adapter

    3.4 Power Adapter The Power adapter AX1 AX2 uses is KPA-060F. The component No. of the adapter is 12111208. Name Power adapter Model KPA-060F Input voltage 100~240Vac Input frequency 50~60Hz Efficiency When the input voltage is between 115 and 240Vac，the minimum efficiency is 85%.

  • Page 27: Module

    3.5 3G module The 3G module of AX1 AX2 uses is Mini PCI-E interface. Users can access the Internet through wireless way. The module support HSDPA&HSUPA, also WCDMA (UMTS) and GSM/GPRS/EDGE. Software support data, voice and text messaging function, support the 850MHz 1900MHz and 2100MHz of WCDMA, and also support 850MHz, 900MHz, 1800MHz&1900MHz of...
  • Page 28 Appearance: Project AD3812V2 Note Size 50.95×30×4.4mm Weight 0×FFEB 0×19D2 42 Pin, Support LED Shows display driver PCI Express Mini Card Interface 52 Pin interface Structure:...

  • Page 29: Msr

    3.6 MSR The MSR AX1 AX2 uses is M90U. The component No. of the MSR is 12112212. 3 tracks data can be read, and the data Via HID-USB and RS232C, you can select the interface according your application software. The Serial data communication default parameter is: 9600 8 N 1.

  • Page 30: Wifi

    3.7 WIFI The WIFI of AX1 AX2 is Mini PCI-E interface. The WIFI can meet IEEE802.11n wireless network international standards. It can communicate with any WIFI device compatible with IEEE802.11n and is compatile with the standard of IEEE802.11b and IEEE802.11g downward. The wireless local area network transmission speed can be up to 600 Mbps highest in theory.

  • Page 31: Internal Cables

    3.8 Internal Cables 3.8.1 LVDS cable Component No.: 12113028 3.8.2 SATA cable Component No.: 12113025 3.8.3 Inverter cable Component No.: 12113029 3.8.4 MSR cable Component No.: 12113027...

  • Page 32: Serial Port Cable

    3.8.5 Serial port cable Component No.: 12113031 3.8.6 Touch screen USB cable Component No.: 12113026 3.8.7 Interface board FPC cable Component No.: 12115314 3.8.8 Switch cable Component No.: 12113023...

  • Page 33: Indicator Cable

    3.8.9 Indicator cable Component No.: 12113030...

  • Page 34: System Setting

    4 System Setting 4.1 System diagram LVDS MOTHER LCD Panel Inverter BOARD Touch Screen 5 wire resistive Controller touch panel SATA 2.5” HDD Magnetic Stripe Reader Interface RS232 AC Adapter Powered USB I/O Interface Cash Drawer Board +12V DDR3 Memory KB/MS Interfaces 4*COM...

  • Page 35: The Bios Descriptions And Settings

    4.2 The BIOS Descriptions and Settings The BIOS of AX1 AX2 is Phoenix. Users can enter the BIOS by press Del or F2. In this window, users can see eight options: Main, Advanced, Intel, Security, HW Monitor, Power, Boot and Exit.
  • Page 36 3. Intel In this option, users can do some settings about the Intel CPU, such as Video, LCD, and I/O. 4. HW Monitor In this option, users can see the voltage and the CPU temperature of the mother board also can see the speed of the system fan if you install it.
  • Page 37 5. Power In this option, users can do some settings about the power, such as power off delay 4 second; also can set the voltage of COM3 to 12V or...
  • Page 38 6. Boot In this option, users can choose the boot from DVD, U disk or hard disk, especially when install the system. 7. Exit In this option, users can save the changes, load setup default.

  • Page 39: Software Installation And Settings

    4.3 Software Installation and Settings 4.3.1 Chipset driver The chipset driver is in the folder of E:\DRIVERS\Chipset. 4.3.2 VGA driver The VGA driver is in the folder of E:\DRIVERS\Vga. 4.3.3 LAN driver The LAN driver is in the folder of E:\DRIVERS\Lan. 4.3.4 Audio driver The Audio driver is in the folder of E:\DRIVERS\Audio.
  • Page 40 3、Click the “Tools” button, then click the “Linearization” button. 4、A new window will pop-up to guide the user to calibrate. User should click the red symbol in the calibration window and keeping until it fully into blue. Repeat the previous calibration action until finish all the symbols.
  • Page 41 4.3.8 Setup the MSR The MSR of AX1 AX2 supports the modes of USB and RS232. The MSRDEMO.exe can be found in the folder of E:\TOOLS\ENU\MSR. 1、 Open the program and select connection motherboard interface. “USB_HID” means connecting the USB port, “COM Port” means connecting the COM Port.
  • Page 42 2、 Under the test interface, first choose USB port or COM port of reading data, the default COM port is COM6, then click “Test MSR” to begin testing.
