Summary of Contents for Solux SX-MPT100-A

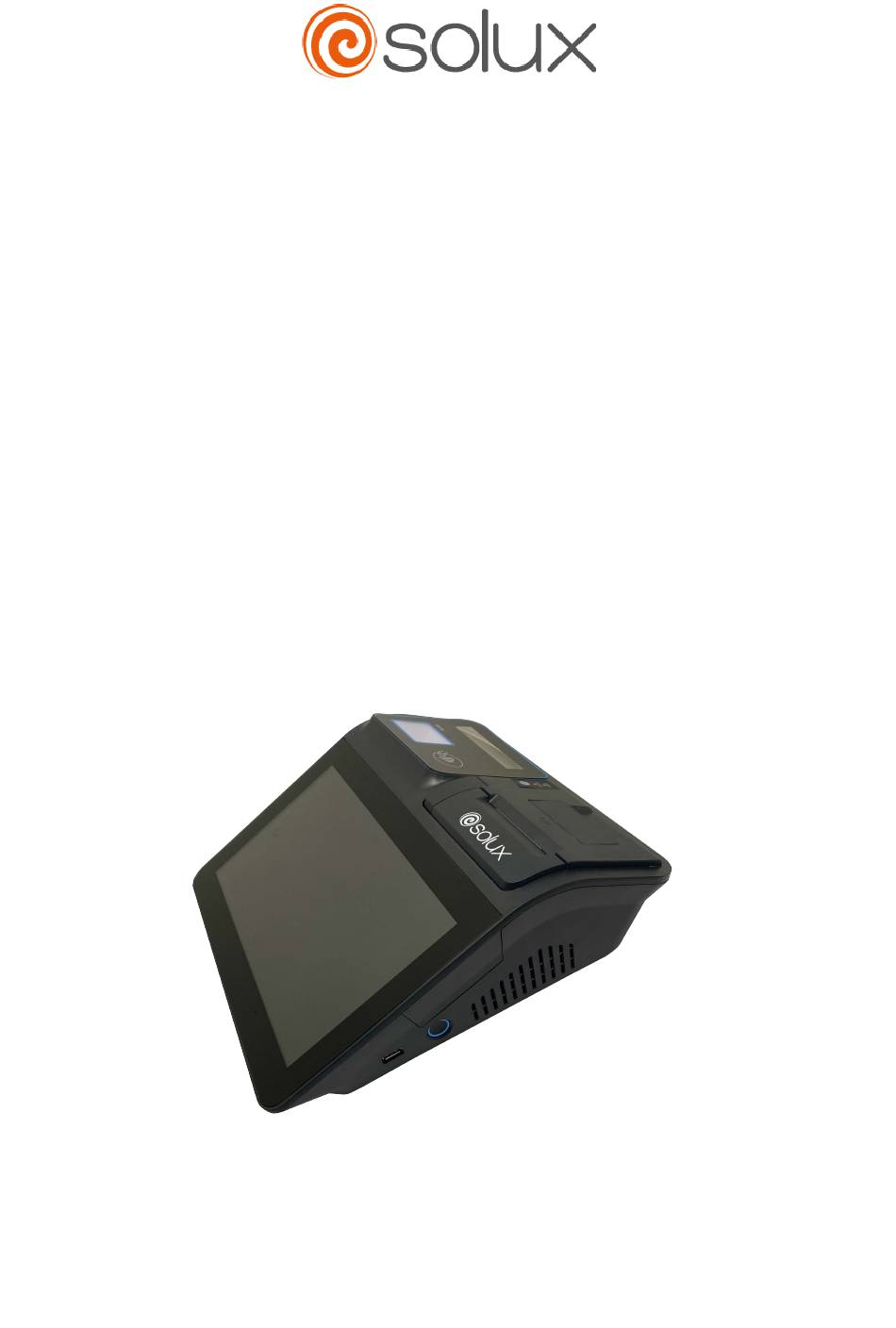

- Page 1 SX-MPT100-A Android POS Terminal User Manual v1.1...
- Page 2 Copyright statement Solux. All rights reserved. All the trademarks and names mentioned in this manual are owned by the legally registered company. The product specifications and related information mentioned in this manual are subject to change without prior notice. This manual shall not be copied, modified, reproduced, disseminated or published in any form without the prior written permission of warehouse.
-
Page 3: Packing List
If the appearance is damaged or the accessories are missing, please contact your dealers. • SX-MPT100-A Terminal • Power adapter x 1 • Power cable x 1 * The above attached parts are for reference only. - Page 5 Detailed introduction I Switch on 1. Open the box, then connect the power adapter to “DC-IN” port. 2. Long push “Power button” 1-2 second, then turn on. 3. If you bought the built-in battery version, you can skip the first step.
- Page 6 Ⅱ Print ① Replace the printing paper 1. Push “printer cover button”，Open the paper bin Put the new printing paper in and leave 2~3cm paper outside the printer 2. Turn off the printer cover. ② Printing test 1. Install and test APP（PrintDemo-usb） 2. Open APP 3. Connecting USB 4. Printing test page...
- Page 7 Ⅲ Scanning 1. Scan test 2. Randomly select an input box in the system 3.Place the barcode or QR code at a distance of 10cm from the scanning window and adjust the position up and down to read, and the read content will appear in the selected input box...
- Page 8 Ⅳ Swipe RFID test 1. Install and test software （MFR0111HID） 2Open the software and select the test function as shown in the figure below Place the test card near the antenna area, click the searchCard button, the information window will print the ID number of the test card, and the information window will prompt "Search Card Successful";...
- Page 9 MSR test 1. Select an input box in the system 2.Use the magnetic stripe card to swipe the card on the MSR, the read content will appear in the selected input box Ⅴ Customer Display VFD/LCD test 1. Install serial port assistant software（SerialPort） 2. Open the APP and select according to the figure below (interface: ttys3, baud rate: 9600)
- Page 10 2. Dimension ：...
- Page 11 3. Appearance display ：...
- Page 13 Safety precautions: • before installation, please do not tear the serial number on the motherboard and warranty stickers of agents, or it will affect the identification standard of product warranty period. • be sure to turn off the power supply and remove the socket from the power cord before installing or adding other hardware.
- Page 14 1.Warranty: Your purchase of touch-screen products (including accessories) means that you can obtain 12 months of return of basic parts and labor warranty; 2.No warranty ： 1. Failure or damage caused by incorrect installation, storage or use of non-compliant products (including peripheral equipment);...
