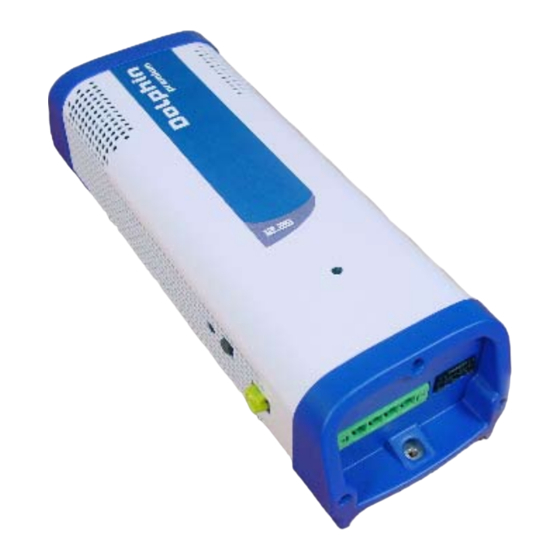

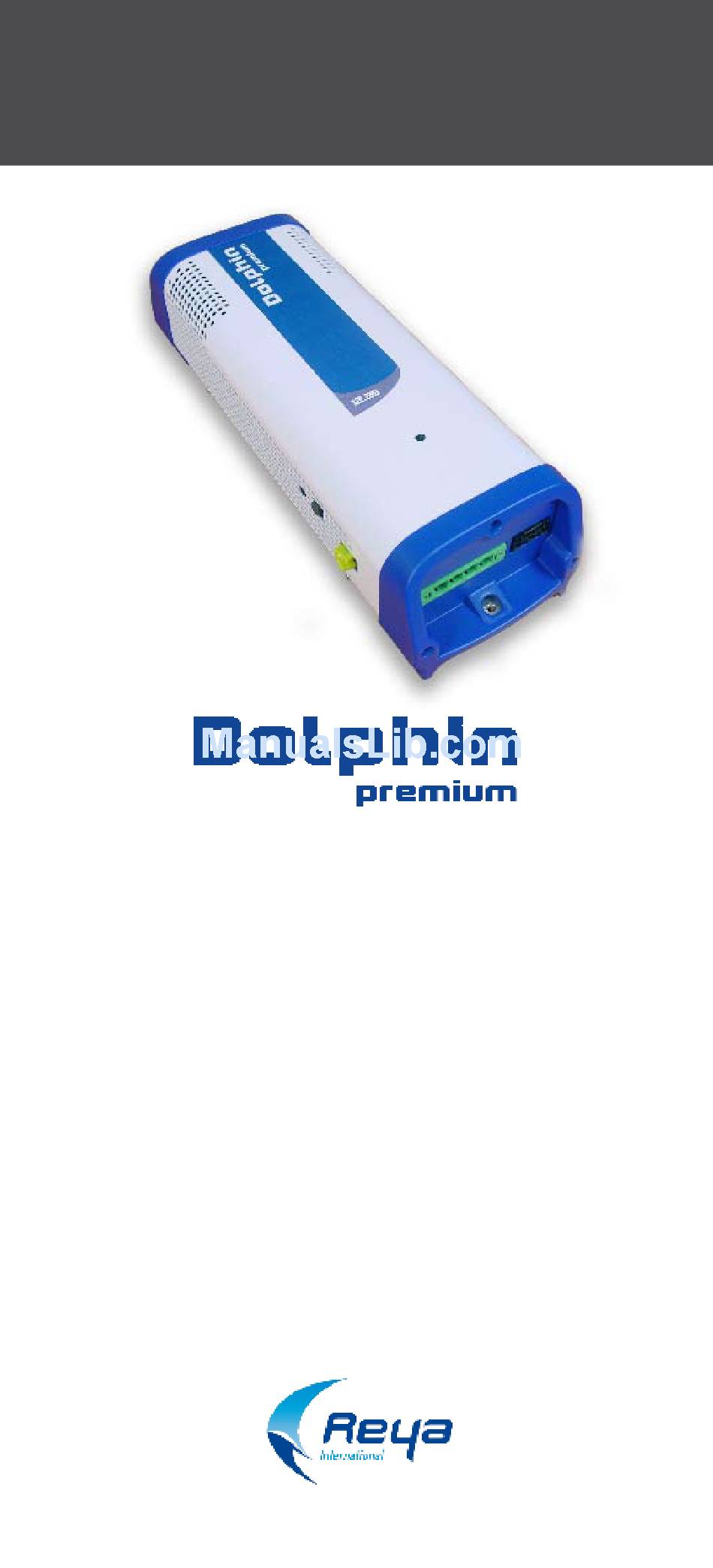

- Page 1 OPERATING AND USERS MANUAL Automatic battery chargers 12V10A Code REYA : 399000 12V15A Code REYA : 399010 12V25A Code REYA : 399020 12V40A Code REYA : 399030 24V20A Code REYA : 399040 Developed by mdp electronics...
- Page 2 THE OWNER SHOULD READ AND UNDERS- TAND THIS IMPORTANT DOCUMENT BEFORE OPERATING THE CHARGER. Contact REYA if you do not understand a state- ment. This device is not intended for use by persons (in- cluding children) with physical, sensory or men-...
- Page 3 NOT-PREMIUM rev 02 4This system should not be exposed to water or dust. 4It is strictly forbidden to tamper with the system casing in any way. 4This device is not a toy and must be kept out of the reach of children. Connecting the Device.
- Page 4 WARNING NOT-PREMIUM rev 02 Start up precautions. In order to avoid all risk of electric shock or irrever- sible damage to the device, please follow very carefully the following recommendations. 4Do not dismantle the device. The housing (pro- tection against fire) must be correctly mounted. 4This device complies with enforced standards;...
- Page 5 NOT-PREMIUM rev 02 NB: Choosing the charging curve. It is extremely important to choose the correct charging curve, one which is appropriate for the battery’s technology. An incorrect choice could cause irreversible damage. 4This is particularly true for charging curves where the charging voltage is higher than the manufac- turers’...
- Page 6 WARNING NOT-PREMIUM rev 02 12V 10A 12V 15A 12V 25A 12V 40A 24V 20A Charging Battery type: Lead open curve 1 V.boost = 14.2V = 28,4V Lead open = 26,4V V.float = 13.2V Charging curve 2 Battery type: GEL, AGM, Spiral V.boost = 14,2V = 28,4 V.float = 13,7V...
-
Page 7: Technical Specifications
TECHNICAL SPECIFICATIONS NOT-PREMIUM rev 02 12V 10A 12V 15A 12V 25A 12V 40A 24V 20A Input 230V +/- 15% 115V - 230V Tension 115V please (+/- 15%) consult us Frequency 50Hz - 60Hz (+/- 10%) Cos phi 0.6 typ 0.9 typ Efficiency 80% typ Mains consumption... -
Page 8: Led Status
OPERATING INSTRUCTIONS NOT-PREMIUM rev 02 STATUS MODE The batteries are charging. Time Absorption Steady required to complete Absorption yellow mode varies depending on the initial status of the batteries, but is limited to 6 hours. The batteries are coming to the end of Equalisation Yellow the charging cycle. - Page 9 RACCORDEMENTS NOT-PREMIUM rev 02 Mounting (4mm screws) Program selector 12V-10A Battery Fuse 12V-15A Program selector Night mode selector button 12V-25A Battery Fuse 12V-40A 24V-20A Recommended Recommended cable size cable size 12V10A : 2.5 mm / 12 AWG 12V10A : 3 x 0.75 mm / 18 AWG 12V15A : 2.5 mm / 12 AWG...
-
Page 10: Wiring Diagram
CONNECTION NOT-PREMIUM rev 02 Wiring diagram Dispatching Assembling the shore power connector 7STEP 1: Remove approx 2 cm of the outer sheath Remove approx 8 mm of the inner wires’ sheaths Tinplate the bare copper ends 7STEP 2: Remove the security cap using an utility knife 7STEP 3: Pull the conductor through the pre latched strain relief housing... - Page 11 DIMENSIONS NOT-PREMIUM rev 02 Dimensions 12V-10A / 12V-15A. 120mm 20mm [4.74inch] [0.79inch] x2 ø5mm 95,6mm [3.76inch] Dimensions 12V-25A / 12V-40A / 24V-20A 20mm [0.79inch] x2 ø5mm 120mm 95,6mm [4.74inch] [3.76inch]...
-
Page 12: Warranty
WARRANTY NOT-PREMIUM rev 02 IN ORDER TO PREVENT ALL RISkS ARISING DUE TO THE INCORRECT USE OF THIS DEVICE, PLEASE CAREFULLY READ THE LIST OF POSSIBLE SITUA- TIONS OR FAULTS THAT ARE NOT COVERED BY THE WARRANTY. 4If the mechanical components of the device are not protected by the casing and fall, irreversi- ble damage of the ventilation system and certain electrical components may result. - Page 13 WARRANTY NOT-PREMIUM rev 02 NB: Choosing the charging curve. It is extremely important to choose the correct charging curve one which is appropriate for the battery technology. An incorrect choice could cause irreversible damage. 4This is particularly true for charging curves where the charging voltage is higher than the manufac- turers’...
- Page 14 For further information or assistance, please contact: REYA SAS 2599 Route de la Fènerie 06580 Pégomas FRANCE Tél : (33) 0 493 904 700 Fax : (33)0 493 902 440 e-mail : export@reya.com www.reya.com...
