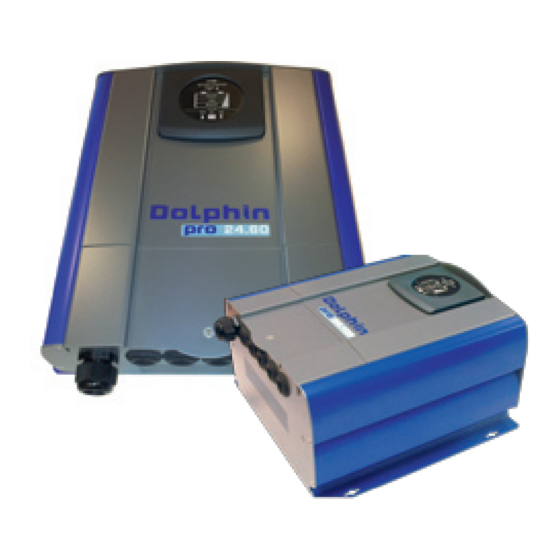

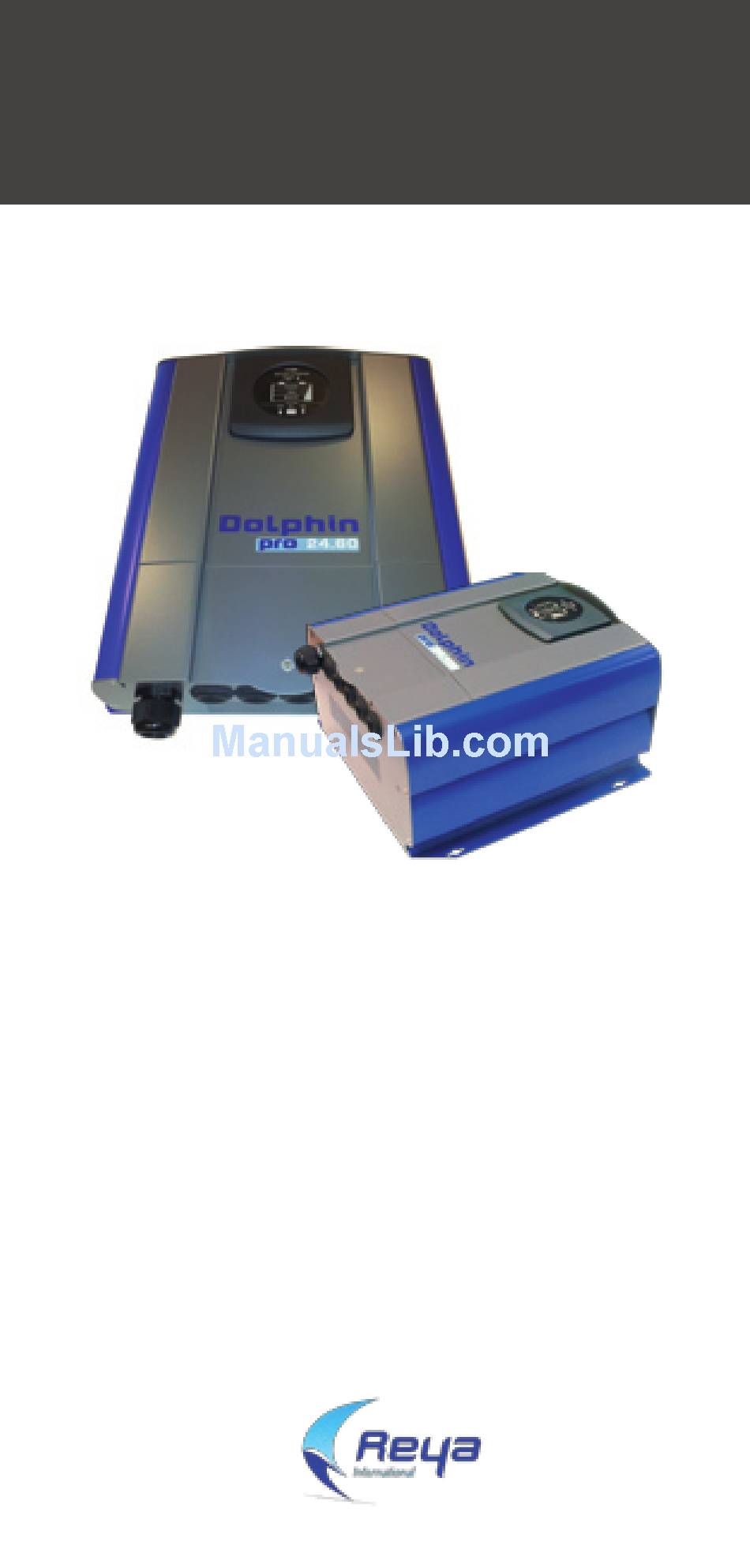

- Page 1 OPERATING AND USERS MANUAL DOLPHIN PRO Battery charger 24V40A REYA Code : 399160 24V60A REYA Code : 399170 24V100A REYA Code : 399180 12V60A REYA Code : 399140 12V90A REYA Code : 399150...
-
Page 2: Safety Precautions
In the event of any problems or misunderstan- dings, please contact REYA. 4You are formally prohibited from making mechanical alterations to the housing, including This equipment is not designed for use by people making additional holes, for example. - Page 3 SAFETY PRECAUTIONS SAFETY PRECAUTIONS NOT-DOLPROREYA-03 NOT-DOLPROREYA-03 4Prior to commencing connection, the mains ca- In other respects, this device transmits conducted ble gland in the packaging must be assembled and radiated interference at levels that comply and correctly attached to the housing (using the with the applicable regulations.
-
Page 4: General Characteristics
CONTENTS of the BOX GENERAL CHARACTERISTICS NOT-DOLPROREYA-03 NOT-DOLPROREYA-03 Maintenance precautions RECEIPT OF THE PRODUCT To prevent any risk of electric shock Contents of the packaging during maintenance operations, ensure that the following recommendations are scrupulously observed before performing any maintenance 4The charger. - Page 5 CONNECTIONS CONNECTIONS NOT-DOLPROREYA-03 NOT-DOLPROREYA-03 Ventilation direction DETAILS OF CONNECTIONS warm cool CONNECTIONS To gain access to the charger’s connections, the front hatch must be removed. To do this, simply unscrew the screw on the front hatch. The hatch is removed by rotating it. Prior to commencing connection, the mains cable gland must be positioned and attached to the housing in the hole designed for this purpose...
- Page 6 CONNECTIONS CONNECTIONS NOT-DOLPROREYA-03 NOT-DOLPROREYA-03 Example of connection on the basis of 3 distinct Marking Functionalities sets of batteries AC mains phase, 10mm2 max (wire colour code: brown or black) AC mains neutral, 10mm2 max (wire colour code: blue, white or red) AC mains earth, 10mm2 max (wire colour code: green &...
- Page 7 CONNECTIONS CONNECTIONS NOT-DOLPROREYA-03 NOT-DOLPROREYA-03 AC CABLES AND CIRCUIT BREAKER DC CABLES AND FUSES AC wiring DC wiring Check the quality of connections and proper Check the quality of connections and proper tightening of connections. tightening of connections. For mains power, preferably use a HO7RNF-type Battery cables must be as direct and short industrial cable.
- Page 8 CONNECTIONS CONNECTIONS NOT-DOLPROREYA-03 NOT-DOLPROREYA-03 AC CABLES AND CIRCUIT BREAKER The performance and usable life of batteries are thereby maximised. DC fuses By virtue of fully automated charging cycles, the batteries are protected against surges, providing When maintaining the charger’s internal fuses, a permanent connection for the charger.
- Page 9 SETTINGS SETTINGS NOT-DOLPROREYA-03 NOT-DOLPROREYA-03 PROGRAMME PHASE Winte- ring V. BOOST 14,2V 28,4V Open V. BOOST 14,4V 28,8V Airtight V. FLOAT 13,6V 27,2V lead V. FLOAT 13,2V 26,4V lead Airtight V. BOOST 14,2V 28,4V lead V. FLOAT 13,6V 27,2V Lead V. BOOST 14,8V 29,6V calcium...
-
Page 10: Operation
OPERATION OPERATION NOT-DOLPROREYA-03 NOT-DOLPROREYA-03 LED DISPLAY BATTERY TEMPERATURE SENSOR The PRO charger is equipped with a local The temperature sensor allows the charging multifunction LED display, which, among other voltage to be adjusted depending on the things, shows the details of the key stages of the battery temperature. - Page 11 OPERATION OPERATION NOT-DOLPROREYA-03 NOT-DOLPROREYA-03 Modes and display scenarios FLASHING FLASHING MODE MEANING SOLID LED MODE MEANING SOLID LED Charger powered Excessive battery All LEDs on and/or Chan- temperature fault INITIALIZATION for 3 ge of charging seconds cycle BATTERY Automatic restart TEMPERATURE after a min delay TEMP...
-
Page 12: Technical Specifications
TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS NOT-DOLPROREYA-03 NOT-DOLPROREYA-03 Technical specifications 12V 60A 12V 90A 24V 40A 24V 60A 24V 100A 12V 60A 12V 90A 24V 40A 24V 60A 24V 100A MAINS POWER CHARACTERISTICS Winte- ring V.BOOST = 14.2V V.BOOST = 28.4V Mains 100V-120V 60Hz and/or 220-240V 50Hz 220-240V... - Page 13 TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS NOT-DOLPROREYA-03 NOT-DOLPROREYA-03 12V 60A - 12V 90A 24V 100A 24V 40A - 24V 60A Dimensions GENERALITES “Shutdown” type with automatic restart temperature once the fault has disappeared sensor General mains supply Mains fuse fault General battery supply Output fuses on –DC supply fault Climatic Tropicalised (specially coated)
-
Page 14: Warranty
WARRANTY WARRANTY NOT-DOLPROREYA-03 NOT-DOLPROREYA-03 Warranty 4Water spray or running water inside the device TO PREVENT ANY RISK OF INCORRECT that could result in irreversible electronic USE OF THE DEVICE, CAREFULLY READ THE LIST malfunctions. OF POTENTIAL EVENTS OR FAULTS NOT COVERED BY THE PRODUCT WARRANTY 4This device is not protected against battery Precautions for scrapping... - Page 15 For further information or assistance, please contact: REYA SAS 2599 Route de la Fènerie 06580 Pégomas Tel : (33) 0 493 904 700 Fax : (33) 0 493 474 257 e-mail : reya@reya.com www.reya.com...
