Page 1: Quick Start Guide
DC60Xu High-definition Digital Transport Adapter Quick Start Guide BRINGING TECHNOLOGY HOME www.pace.com... -
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Before you install or use the apparatus, you must read and understand these Important Safety Instructions. At all times when using the apparatus you must follow these Important Safety Instructions to reduce the risk of fire, electrical shock and injury to persons. -
Page 3: Instructions Importantes Sur La Sécurité
INSTRUCTIONS IMPORTANTES SUR LA SÉCURITÉ Avant d’installer et d’utiliser cet appareil, il est important de lire et de comprendre les instructions concernant la sécurité. Ces instructions doivent en tout temps être observées lors de l’utilisation de l’appareil afin de réduire les risques d’incendie, de choc électrique et de blessures. -
Page 4: Safety Information
SAFETY and pose a fire hazard. Risk of fire or scorching INFORMATION Never place naked flame sources, such as lighted To ensure you use this product safely, candles, on or adjacent to your digital adapter. please read all the safety information Ambient temperature included in this document. -
Page 5: Regulatory Information
REGULATORY CONNECTING TO THE INFORMATION AC POWER SUPPLY You must not plug your digital adapter into NOTE the power supply until you have connected your digital adapter to the other equipment in Your digital adapter has been tested and your system. found to comply with the limits for a Class B digital device, pursuant to Part 15 of Your digital adapter itself is designed for use... -
Page 6: Warnings On The Power Supply Unit
HDMI, the HDMI Logo, and High-Definition Multimedia Interface are ® trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. Pace and are trademarks and/or registered trademarks of Pace plc. Copyright © 2012 Pace plc. All rights reserved. - Page 7 WELCOME Introducing the Pace High-definition Digital Transport Adapter Your new Pace digital adapter allows you to receive your channels in full digital and high-definition (HD) format, which improves both the overall sound and picture quality. You should connect your digital adapter to any television that has cable service connected but does not have a digital cable box.
-
Page 8: Package Contents
WHAT’S IN THE BOX? Digital Adapter (exact model may differ slightly from that shown) Adhesive Fasteners CABLE POWER HDMI Cable ® GUIDE MENU Coaxial RF Cable INFO EXIT PAGE MUTE AA Batteries LAST (for your remote control) External 5V Remote Control Power Supply Unit (exact model may differ slightly from that shown) -
Page 9: Front & Rear Panel Overview

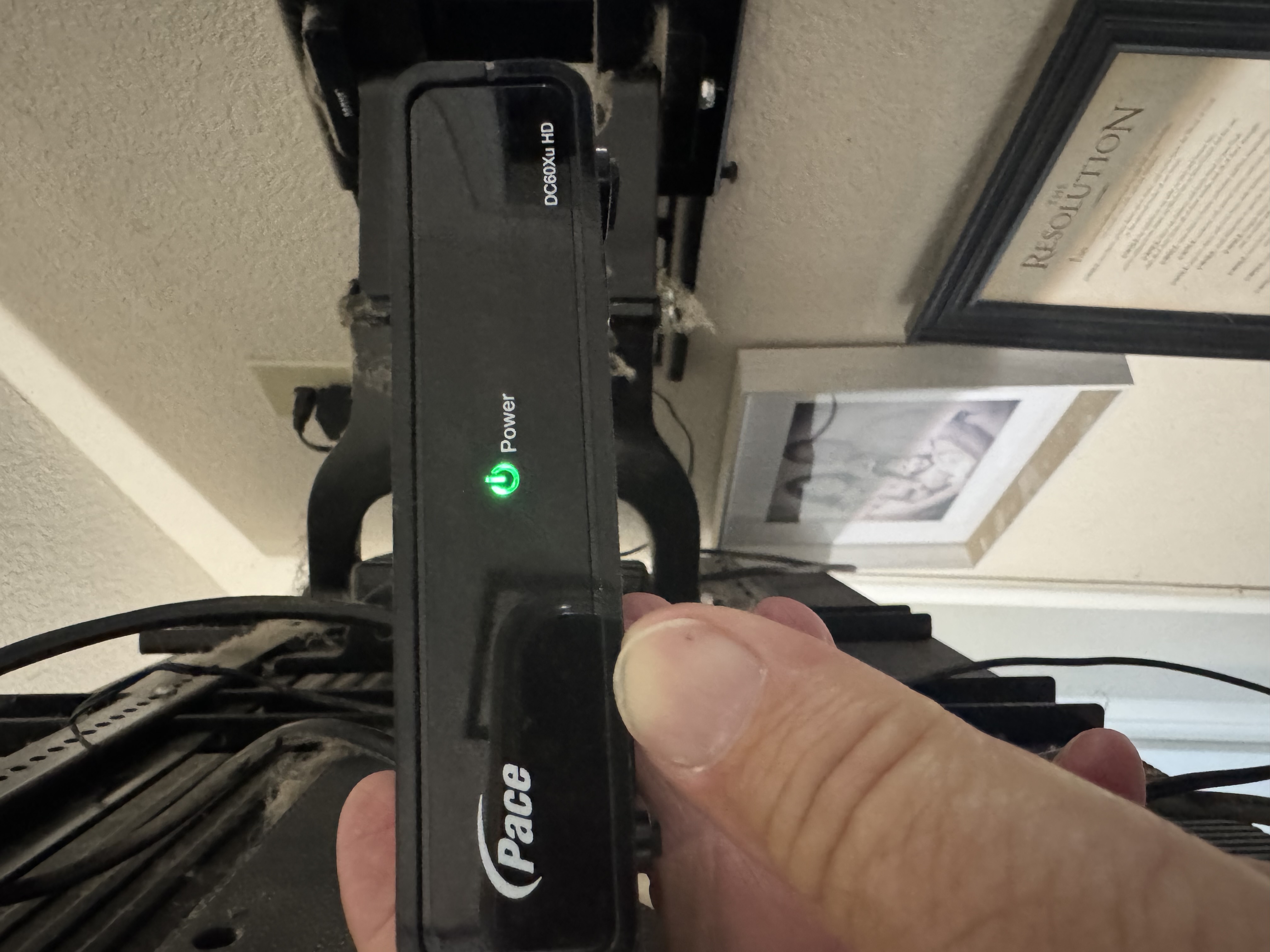

ABOUT YOUR DIGITAL ADAPTER Front Panel S POWER LED Lights when your digital adapter is fully on Power DC60Xu HD Rear Panel CABLE IN TO TV HDMI From cable RF output to Video and audio output service provider the TV... -
Page 10: High-Definition Connection
HIGH-DEFINITION CONNECTION 1. Connect the supplied coxial RF cable from the cable service to the connector marked CABLE IN on your digital adapter, as shown below. 2. Connect the supplied HMDI cable between the HDMI connector on your digital adapter and the HDMI connector on your HDTV. 3. - Page 11 STANDARD-DEFINITION CONNECTION 1. Connect the supplied coxial RF cable from the cable service to the connector marked CABLE IN on your digital adapter, as shown below. 2. Connect another coxial RF cable between the TO TV connector on your digital adapter and the ANTENNA IN/RF IN connector on your SDTV. 3.
- Page 12 For more information, consult the instructions supplied with your remote control. • You can place your digital adapter below or beside your TV. Power DC60Xu HD • Once the remote control and digital adapter are “paired”, you can use the adhesive fasteners (supplied) to attach your...
-
Page 13: Using Remote Control
ENJOY DIGITAL TV! Following Installation If you have followed the steps and have picture and sound, congratulations, you have successfully installed your Pace high- definition digital adapter. If you are experiencing problems, please consult the “Solving Problems” guide located to the right. -
Page 14: Troubleshooting
SOLVING PROBLEMS If the installed system does not seem to be working properly, first make sure that all the cables are securely connected, then carry out the following checks, in the order shown. Problem Suggested solution Further checks, if there is still a problem There is nothing Power may not be reaching your digital adapter.
