Lightspeed AccessLink User Manual

Wireless audio hub
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Wireless Audio Hub
MICROPHONE
AUDIO IN
TONE
POWER
1
2
MIN
MAX
MIN
MAX
TREBLE
BASS
U s e r M a n u a l

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AccessLink and is the answer not in the manual?

Questions and answers

Related Manuals for Lightspeed AccessLink

Summary of Contents for Lightspeed AccessLink

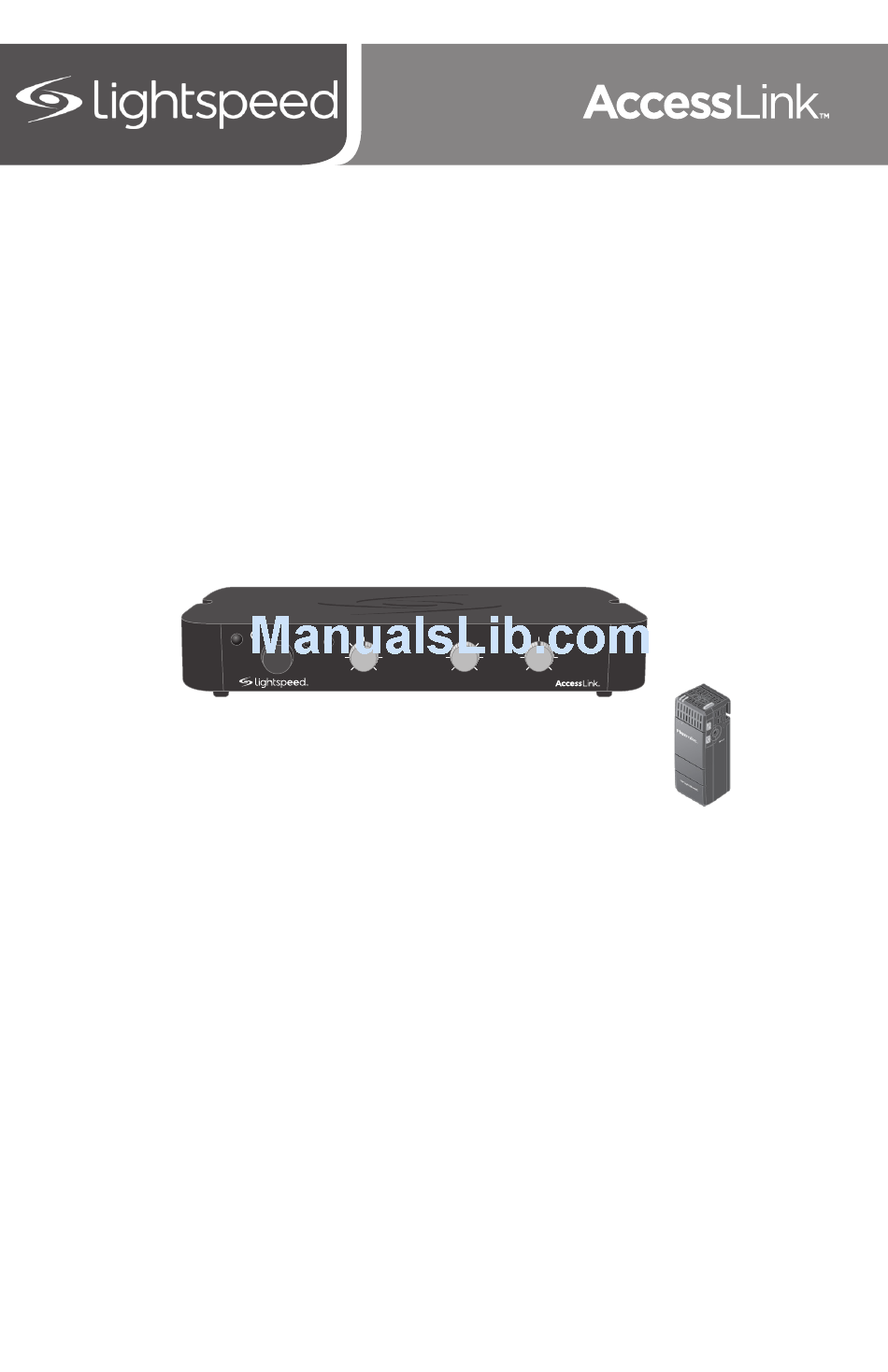

  • Page 1 Wireless Audio Hub MICROPHONE AUDIO IN TONE POWER TREBLE BASS U s e r M a n u a l...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SECTION 1: Important safety instructions Overview System components and unpacking Standard components & Optional accessories Front panel controls & indicators Rear panel controls & connections Flexmike controls and connections SECTION 2: 1. Determine set-up location Set-up & Use 2A.

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Read these instructions. 13. Unplug this apparatus during lightning storms or when unused Keep these instructions. for long periods of time. Heed all warnings. 14. Refer all servicing to qualified Follow all instructions. service personnel. Servicing is required when the apparatus Do not use the apparatus near has been damaged in any way,...

  • Page 5: Overview

    SECTION 1: OVERVIEW SYSTEM COMPONENTS AND UNPACKING The standard configuration of the Access Link will contain: Access Link and USB Power Supply MICROPHONE AUDIO IN TONE POWER TREBLE BASS Flexmike Classroom Microphone Wall Charger & Charging Cable PLEASE NOTE: The Access Link and any wireless components (microphones, Media Connector, pods) are registered together at the factory and are labeled as such with ID numbers.
  • Page 6 Transmitter wall charger, power supply, U.S. and Canada USB-MCB USB Type A-Micro B power cable for Media Connector USB3DC International transmitter charging adaptor 5V-1.0-_ 5V charging power supply *For further information on Flexcat for small group instruction, please visit www.lightspeed-tek.com...

  • Page 7: Front Panel Controls & Indicators

    FRONT PANEL CONTROLS & INDICATORS MICROPHONE AUDIO IN TONE POWER TREBLE BASS 1. POWER LIGHT: This light will turn blue when power is on. 2. POWER BUTTON: Press and hold this push button to turn the system power on or off. 3.
  • Page 8 7. AUDIO OUT/DC IN: This RJ- 4. BALANCED AUDIO OUTPUT: 45 jack allows for a Cat 5 cable This output sends the audio from connection to a Lightspeed Access Link to a balanced input on 855/885 amplifier. This connection an amplifier. (Recommended for...

  • Page 9: Flexmike Controls And Connections

    FLEXMIKE CONTROLS AND CONNECTIONS POWER/MUTE SWITCH: press and hold to power on, press to mute, press and hold to power off. MIC 1 STATUS: lighted to indicate microphone is registered as MIC 1 • Blue: solid = normal operation; Blue: flashing = linking in progress •...

  • Page 10: Set-Up & Use

    SECTION 2: SET-UP & USE 1. DETERMINE SET-UP LOCATION The Access Link is generally located near the amplifier. This minimizes the length of cable runs, reducing cost and labor and minimizing the possibility of unwanted EMI noise in the system. If cable runs longer than 12 feet are required, we recommend using the balanced audio output with balanced audio cable.

  • Page 11: A. Connect Access Link To Amplifier

    2A. CONNECT ACCESS LINK TO AMPLIFIER STANDARD UNBALANCED CONNECTION 1. Plug one end of the included 3.5mm cable into the AUDIO OUTPUT connection on the Access Link. 2. Plug the other end into a microphone USB POWER 5V/0.2A or audio input connection on an REGISTER LINE amplifier.

  • Page 12: B. Connect The Power Supply

    2C. OPTIONAL CONNECTION TO LIGHTSPEED 855/885 AMPLIFIER If you are connecting into a new or existing Lightspeed Cat 855 or Cat 885 amplifier, you can use use Cat 5 cabling to integrate the two components (a 2’ cable is included with the system). This connection will send the audio from Access Link to the Cat 855/885 as well as provide power for the Access Link (no need for an additional AC power connection).

  • Page 13: Audio Integration

    3. AUDIO INTEGRATION Various classroom multimedia audio sources would typically be connected directly into the audio amplifier to then be played through the classroom speakers. However, there is an additional 3.5mm audio input directly on the Access Link. That audio is passed through the Access Link and back out to the amplifier.

  • Page 14: Charging The Flexmike

    A green light indicates that charging is complete and a full charge has been reached. See Troubleshooting section for more information. Replacement NiMH battery packs may only be purchased through Lightspeed Technologies (part # NH2.4V). Do not attempt to charge with other battery packs.

  • Page 15: Operating The Flexmike

    5. OPERATING THE FLEXMIKE Once the Flexmike is charged, follow these steps to set it up for use. 1. Remove the Flexmike from the charging cable and put it on by connecting the magnetic clasps behind your neck. The Flexmike will automatically power on and mute when it is removed from the charger.
  • Page 16 6. USING FLEXMIKE AS WIRELESS AUDIO LINK The Flexmike includes a 3.5mm audio input jack to connect to an audio source like a laptop or MP3 player. The Flexmike will transmit the audio signal to be played through the system. If your system includes two Flexmikes, you can use one mic for instruction and the second mic to transmit audio through the system.
  • Page 17 DAILY OPERATION INSTRUCTIONS At start of day, unplug the microphone from the charging cable and put on. Power / • The microphone will default to the Mute position, Mute the status will turn to red. • Place the microphone around your neck. •...

  • Page 18: Section 3

    SECTION 3: OPTIONAL ACCESSORIES SHAREMIKE: CONTROLS & CONNECTIONS 1. POWER BUTTON 2. MIC 2 LIGHT: This light indicates operation status when Sharemike is registed as MIC 2 (Standard) • Blue: solid = normal operation; blinking - link in process • Red: solid = muted 3.

  • Page 19: Sharemike: Charging

    SHAREMIKE: CHARGING 1. Make sure the charger is plugged 4. Leave the Sharemike plugged in into a wall outlet. Connect one overnight (8-10 hours) to obtain end of the charging cable into a full charge. The light will turn the jack labeled CHARGE on the green when charging is complete.

  • Page 20: Section 4

    SHAREMIKE: INITIAL SET-UP 1. Ensure the Access Link is on. The blue light on the front of the Access Link will glow. 2. Turn on the Sharemike by pressing and holding the power button until the LED lights. 3. Grip the barrel in the center section.
  • Page 21 MEDIA CONNECTOR CONTROLS AND CONNECTIONS MICROPHONE AUDIO IN AUDIO OUT LINK POWER 1. POWER LIGHT: This light will turn blue when power is on. 2. POWER BUTTON: Press and hold this pushbutton to turn the system power on or off. 3.
  • Page 22 USB end of the power cable recorder or an assistive listening into this USB port. device like Lightspeed’s 370 3. REGISTRATION PUSHBUTTON Personal FM System. & LIGHT: Pushing the registration 5. FOUR AUDIO INPUTS: Connect...

  • Page 23: Using The Media Connector

    USING THE MEDIA CONNECTOR The Media Connector, when paired together with the system, becomes the primary volume control for the microphones and audio sources you’ve connected. 1. Plug the micro USB end of the power cable into the USB port on the back of the Media Connector.

  • Page 24: Flexcat Audio Pods For Small Group Instruction

    FLEXCAT AUDIO PODS FOR SMALL GROUP INSTRUCTION Flexcat is a flexible two-way communication system that can be seamlessly added to the Access Link wireless audio hub to foster and facilitate small group instruction. With the small group audio pods and remote, Flexcat opens up communication and interactoin between the teacher and student groups, including: •...

  • Page 25: Maintenance And

    SECTION 4: MAINTENANCE & TROUBLESHOOTING BATTERY REPLACEMENT Replacement of battery pack in Flexmike. (Part # NH2.4V) Slide the battery door open. Carefully pull the battery pack away from the Flexmike and disconnect the cable. Connect the cable of the new battery pack as shown and insert the battery pack into the Teacher...
  • Page 26 BATTERY REPLACEMENT, CONT’D Replacement of battery pack in Sharemike. (Part # NH2APK) Slide the battery door open. Carefully remove the battery pack from the Sharemike. Insert the new battery pack into the compartment. Ensure proper polarity is observed. Slide the cover back on and snap into place.
  • Page 27 • Confirm batteries are charged each night. A blinking red light on the power button indicates a low battery. • Confirm proper batteries are used. The Flexmike requires the Lightspeed NH2.4V rechargeable battery pack. The Sharemike requires the Lightspeed BA-NH2APK rechargeable pattery pack.
  • Page 28 TROUBLESHOOTING CONT’D PROBLEM: No Sound From Access Link and wireless components. SOLUTION: Follow these steps to produce sound from Access Link. • Confirm that the blue POWER light located on the front panel of the Access Link is on. • Confirm the microphone is powered on and linked to the Access Link. The mic 1 status light will be green on the Access Link indicating the microphone is linked.

  • Page 29: Specifications

    1. Warranty on Access microphones is FIVE (5) YEARS. 2. Warranty on Lightspeed NiMH rechargeable batteries is one (1) year. 3. A prepaid shipping label will be provided by Lightspeed for warranty repairs within the United States. Customers outside the U.S. should refer to the Lightspeed website (www.lightspeed-tek.com) for warranty repair instructions.

  • Page 30: Safety Warnings And Certifications

    European Union Directives: 2004/108/EC Electromagnetic Compatibility (EMC) and 2006/95/EC Low Voltage Directive (LVD). Lightspeed Technologies launched a formal product recycle program in Europe that complies with the European Union Directive 2002/96/EC on Waste Electrical and Electronic Equipment (“WEEE Directive”).
  • Page 31 Européenne suivantes : 2004/108/EC Electromagnetic Compatibility (EMC) and 2006/95/EC Low Voltage Directive (LVD). Lightspeed Technologies a lancé un programme de recyclage de produits en Europe conformément à la directive de l’Union Européenne 2002/96/CE relative aux déchets d’équipements électriques et électroniques (directive «...

  • Page 32: Rf Radiation Exposure Statement

    FCC Notice to user This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 33 NOTICE FOR USB NOTE: Lightspeed is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. Such modifications could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

  • Page 34: System Specifications

    SYSTEM SPECIFICATIONS ACCESS LINK Audio output level (Nominal): Line Mode: 316 mV RMS (2V RMS max) Mic Mode: -40 dB of line mode Frequency response: 120 Hz - 8 kHz DC power Input: 5V/250mA micro-B USB connector Total harmonic distortion <1% @ 10W Wireless communication: Access Technology (1.9 GHz + RF4CE)
  • Page 35 SHAREMIKE Description: Handheld microphone Wireless communication: Access Technology (1.9 GHz) Audio distortion: <1% Integrated microphone: uni-directional dynamic Audio input: 3.5mm Battery power: 2 AA NiMH battery pack Battery life: 8 hours (fully charged) Charging: 5V charging jack Power: on/off button Registration: push button for registration with Access Link...
  • Page 36 L IG HTSP EE D T EC H N OL OG I ES 11 509 S W HERM AN R O A D / TU AL AT IN , O R 9 7 062 T OLL F REE : 8 00. 7 3 2 . 8 9 9 9 / PH ON E : 5 0 3 .6 8 4 .5 5 38 / FAX : 503.6 84.3 197 LI GHTSP EED - TEK.
