NYSW
. Introduction
Congratulations on your recent purchase of the NYSW Radio Controlled Atomic Time Watch. Be sure to read
the "Quick Set Up" manual before using the watch for the first time. The following instructions have more
detailed information about our watches than the "Quick Set Up Guide". Please keep this manual in a safe place
for future reference.
Your Atomic (Radio Controlled) Watch is a Multi-Band Radio Control Watch.
It incorporates a highly sensitive radio receiver that receives time signals from USA, UK, Germany or Japan
automatically according to your Time Zone setting on the Watch.
**. Your Radio Controlled Watch even changes automatically for Daylight Saving Time (when applicable).
Automatic Time Setting
Your Atomic Time (radio controlled) Watch recalls the available Atomic Clock signal automatically at 3:00AM
every night according to your Time Zone setting (go to Time Zone setting for details). After the signal from the
tower is received it will show the official local time on the watch. Everything is done automatically.

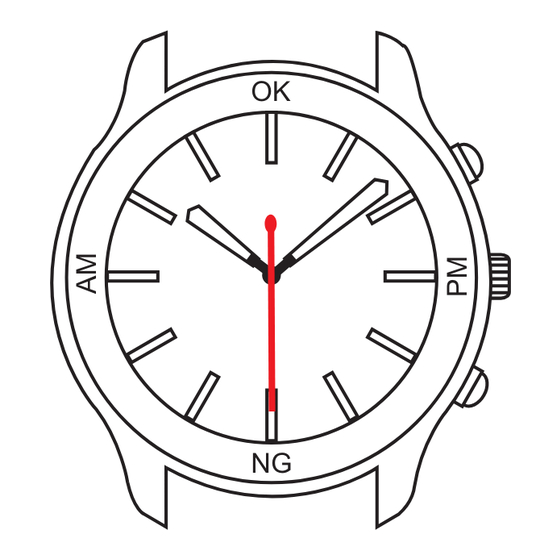

. Button Functions

OK
NG
New York Standard Watch Company
Instruction Manual
Fifth Avenue Series - 1310L-021GN
(3 hands Analog-Digital Atomic Watch)
S1 (is the upper button):
● Holding S1 to manually search for the radio signal.
S1
S2 (is the middle button):
● Press S2 once to show the signal reception Succeed
S2
(OK at 12 O'clock) or Failed (NG at 6 O'clock)
● Holding S2 for Second-hand re-calibration
S3 (is the lower button):
S3
● Press S3 once to show current Time Zone setting
● Hold the S3 button to show either AM or PM.
.
www.NewYorkStandardWatch.com
M43 multi-band version (1.0)
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fifth Avenue Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for NYSW Fifth Avenue Series

  • Page 1: Button Functions

    M43 multi-band version (1.0) . Introduction Congratulations on your recent purchase of the NYSW Radio Controlled Atomic Time Watch. Be sure to read the “Quick Set Up” manual before using the watch for the first time. The following instructions have more detailed information about our watches than the “Quick Set Up Guide”.
  • Page 2 NYSW Instruction Manual Fifth Avenue Series - 1310L-021GN (3 hands Analog-Digital Atomic Watch) M43 multi-band version (1.0) . Reception Status Check You can check your watch to see if it can get a signal or not. 1. Push S2 once while the watch is running regularly 2.
  • Page 3: Time Zone Setting

    NYSW Instruction Manual Fifth Avenue Series - 1310L-021GN (3 hands Analog-Digital Atomic Watch) M43 multi-band version (1.0) . Time Zone Setting Checking the Current Time Zone: Follow the steps to check the current Time Zone setting of your watch. 1. Press S3 once while the watch is running regularly. The second-hand will pause at the current Time Zone.
  • Page 4 NYSW Instruction Manual Fifth Avenue Series - 1310L-021GN (3 hands Analog-Digital Atomic Watch) M43 multi-band version (1.0) Table of World Time Zone against Second-Hand Position Time Zone Second-Hand Position London Second-hand point to (12 o’clock) Berlin, Paris, Madrid Second-hand point to (1 o’clock)
  • Page 5 NYSW Instruction Manual Fifth Avenue Series - 1310L-021GN (3 hands Analog-Digital Atomic Watch) M43 multi-band version (1.0) . Manual Signal Reception Your Atomic Watch is programmed to receive the signal at 3AM each morning automatically. If you want to manually receive the signal please follow the instructions below….
  • Page 6 NYSW Instruction Manual Fifth Avenue Series - 1310L-021GN (3 hands Analog-Digital Atomic Watch) M43 multi-band version (1.0) . Watch position for Radio Signal Reception Your watch should not be placed in either of the positions marked with the “X”. Depending on the material of...
  • Page 7 NYSW Instruction Manual Fifth Avenue Series - 1310L-021GN (3 hands Analog-Digital Atomic Watch) M43 multi-band version (1.0) Plastic Watch with Leather Band: As shown on Fig. C Put the watch face-up on a wooden table New York Standard Watch Company www.NewYorkStandardWatch.com...
  • Page 8: Troubleshooting

    NYSW Instruction Manual Fifth Avenue Series - 1310L-021GN (3 hands Analog-Digital Atomic Watch) M43 multi-band version (1.0) . TROUBLESHOOTING If the Watch is Not Receiving the Time Signal Reason for not being able to receive the Time Signal include: -Watch is not placed nearby a window in order to receive the signal -Being outside of USA, UK, Germany and Japan -Incorrectly positioning your watch during signal reception.
  • Page 9 NYSW Instruction Manual Fifth Avenue Series - 1310L-021GN (3 hands Analog-Digital Atomic Watch) M43 multi-band version (1.0) MPORTANT: If the watch does not run after a new battery is replaced the following initia tion has to be done. After the replacement battery is installed, please follow the procedure listed below: All hands (hour,minute and second hands) should be aligned to the 12 O’clock position (12:00:00) in order to...
