Browser Control

Information and control can also be available through the HTTP browser control menu.

In order to accomplish this, type: http://<the Monitor's IP address>/pd_index.html

Note that the LAN Power needs to be turned on in order for the display to be controlled while the units are off.

All displays are set to the IP address 192.168.0.10 out of the box

Communicating network PC needs to be on the same subnet as display that is being communicated with

NOTE:

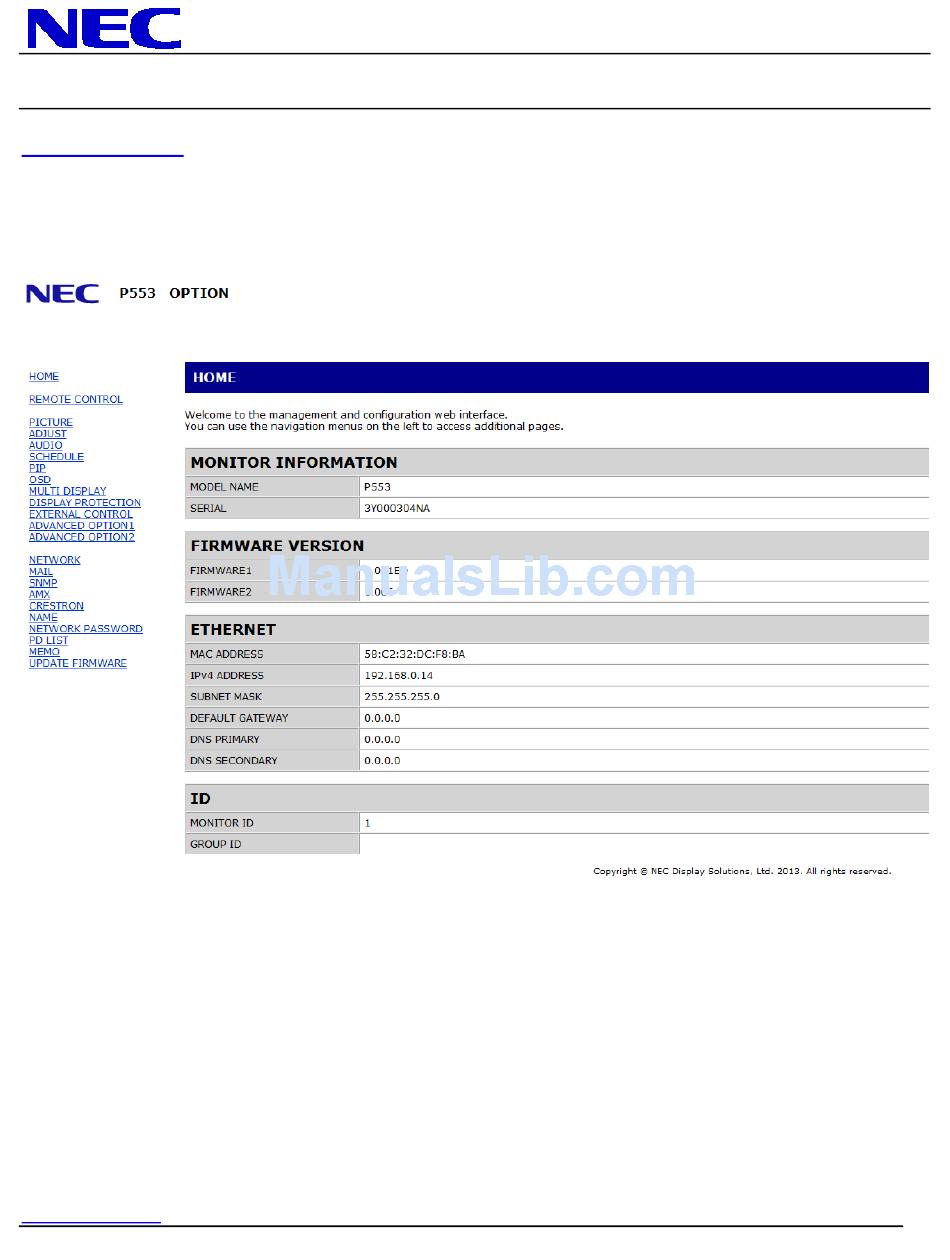

Menus on the left side of the above screenshot can be altered to control the display

Menu above is consistent with the X464UN even though it states P553 on top
