MODEL: PKH34
PK
transponder
BYPASS
MODEL: PKH34
HONDA / ACURA TRANSPONDER DATA
OVERRIDE INTERFACE (NO KEY REQUIRED)
INSTALLATION GUIDE

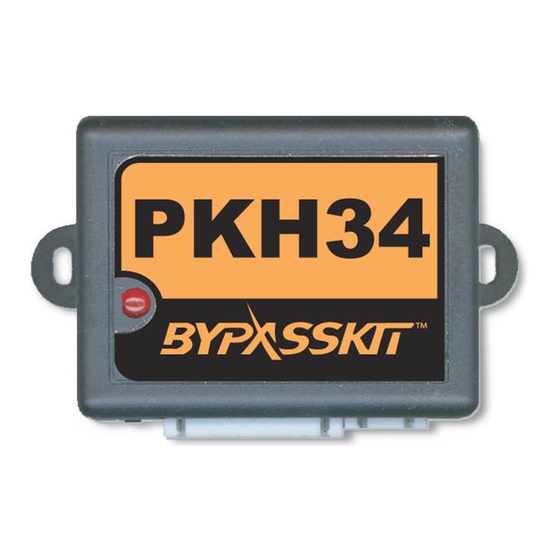

PKH34 is a fixed Honda and Acura Transponder Data Override Interface solution that works on
all 2005-09 Honda and Acura vehicles, including select 2001-2004 models. 100% compatible
with any remote start system, PKH34 is also the first BYPASSKIT fixed firmware solution to
add an enhanced data security override activation port (D2D). The D2D activation port takes
the PKH34 BYPASSKIT to another level of enhanced security when paired with any remote
start system using the D2D communication protocol. D2D (data to data) is the same
communication protocol used with the XPRESSKIT line of programmable vehicle modules,
however in the case of the PKH34 the data port is used solely as secure data activation input
when paired with a similarly equipped D2D remote start system. Security of the override
module is enhanced by disabling all analogue inputs whenever the module detects
communication with a D2D enabled remote start system. This prevents the override feature
from being activated by any other method other than the remote start system.
Enhanced D2D functionality provides a secure single wire data override
-
Compatible with any remote car starter
-
Compatible with manufacturer's anti-theft & security system
-
Maintains integrity of manufacturer's anti-theft immobilizer system
-
Compact design, easy to mount
-
No Key Required for operation (NKR)
-
Simple programming
-
All temperature operation
-
PRODUCT DESCRIPTION
PRODUCT FEATURES
† Honda and Acura are registered trademarks and property of their respective companies.
Rev.: 20110106
© 2008 Directed Electronics. All rights reserved.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Xpresskit PKH34
Summary of Contents for Xpresskit PKH34
- Page 1 XPRESSKIT line of programmable vehicle modules, however in the case of the PKH34 the data port is used solely as secure data activation input when paired with a similarly equipped D2D remote start system. Security of the override module is enhanced by disabling all analogue inputs whenever the module detects communication with a D2D enabled remote start system.
- Page 2 MODEL: PKH34 Rev.: 20110106 page 1 to 2 INSTALL “A”: Honda & Acura Type “C” Transponder Data Override Interface Remote Control System © 2008 Directed Electronics. All rights reserved.
- Page 3 MODEL: PKH34 Rev.: 20110106 page 2 to 2 © 2008 Directed Electronics. All rights reserved.
-
Page 4: Installation Notes
MODEL: PKH34 Rev.: 20110106 Section C INSTALL “A”: VEHICLE WIRING REFERENCE CHART VEHICLE DATA IGNITION GROUND SECURITY LIGHT Acura EL 1.7 Red/Blue Yellow/ Black Brown/ Yellow Blue/Orange 2001-2005 Pos.#2 Pos.#6 Pos.#1 Pos.#5 Brown/ Yellow Blue/Orange Green/White Acura MDX Pos.#1 Pos.#5 Pos.#2... - Page 5 MODEL: PKH34 Rev.: 20110106 INSTALL “B”: Honda & Acura Type “D” Transponder Data Override Interface Remote Control System Light Green Data Wire © 2008 Directed Electronics. All rights reserved.
- Page 6 MODEL: PKH34 Rev.: 20110106 © 2008 Directed Electronics. All rights reserved.
- Page 7 MODEL: PKH34 Rev.: 20110106 Section C INSTALL “B”: VEHICLE WIRING REFERENCE CHART VEHICLE DATA Acura CSX Light Green 2006-2009 Pos.#3 Acura MDX Light Green 2007-2009 Pos.#3 Acura RDX Light Green 2007-2009 Pos.#3 Acura TL Light Green 2009 Pos.#6 Acura TSX...
- Page 8 MODEL: PKH34 Rev.: 20110106 LIMITED ONE-YEAR CONSUMER WARRANTY For a period of ONE YEAR from the date of purchase of a Directed Electronics remote start or security product, Directed Electronics. (“DIRECTED”) promises to the original purchaser, to repair or replace with a comparable reconditioned piece, the security or remote start accessory piece (hereinafter the “Part”),...
