The Mobile Integration Systems
Platform: XK09
Firmware: DLPKHO
Update Alert: Firmware updates are posted to the web on a regular basis. We recommend
that you check for firmware and/or install guide updates prior to installing this product.

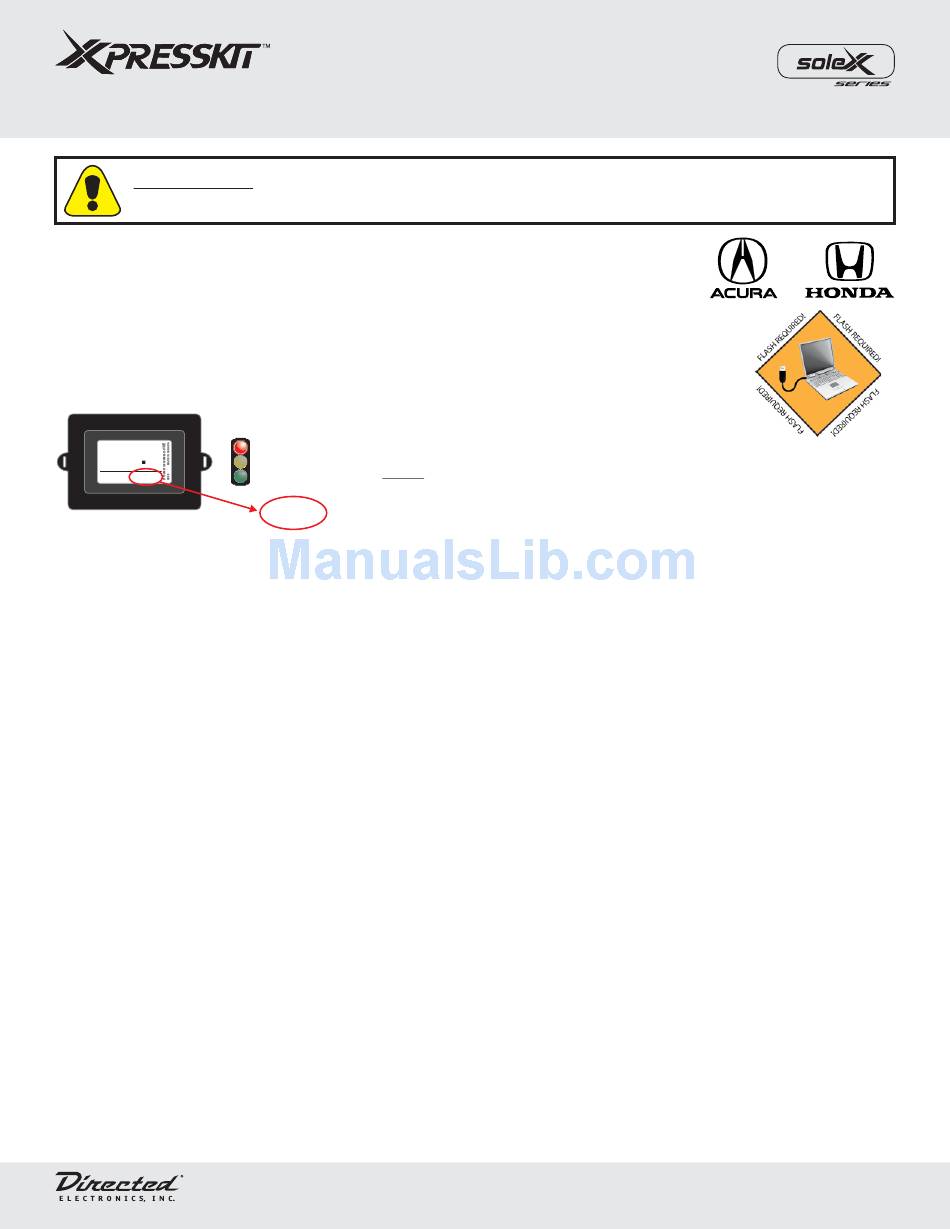

Installation Guide
The XK09-DLPKHO is a door lock with bypass or bypass only module that interfaces directly with
Honda and Acura to provide features compatible with sliding doors, motorized trunks/hatches, and
XK09
DLPKGM
LOT.168
H.2.S.x

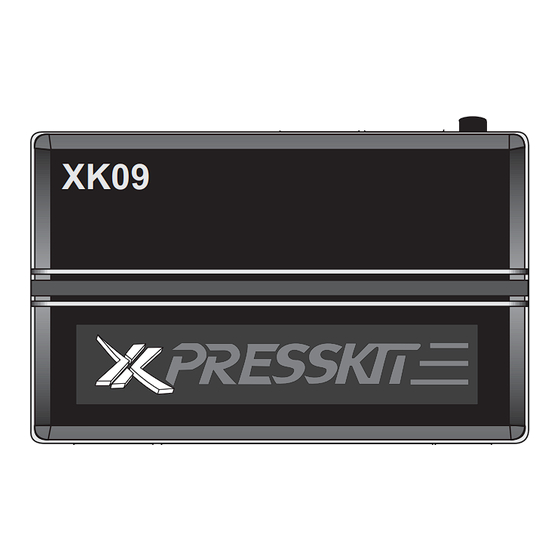

Underside of XK09 module
Index
Type 1.
........................................................................................................................................................................
Type 2.........................................................................................................................................................................
Type 3 - D2D...............................................................................................................................................................
Type 3 - W2W..............................................................................................................................................................
Type 4.........................................................................................................................................................................
Type 5.........................................................................................................................................................................
Type 6.........................................................................................................................................................................
Locating Components in the Acura TL (Type 6)..........................................................................................................
Type 7.........................................................................................................................................................................
Locating Components in the Acura ZDX (Type 7).......................................................................................................
Type 8.........................................................................................................................................................................
Type 9.........................................................................................................................................................................
Vehicle Wiring Reference Charts................................................................................................................................
Programming
Module Programming..................................................................................................................................................
Resetting the Module..................................................................................................................................................
LED Diagnostics & Troubleshooting............................................................................................................................
Limited One-Year Consumer Warranty........................................................................................................................
