Summary of Contents for Clare Controls CM-BT10-TXRX100

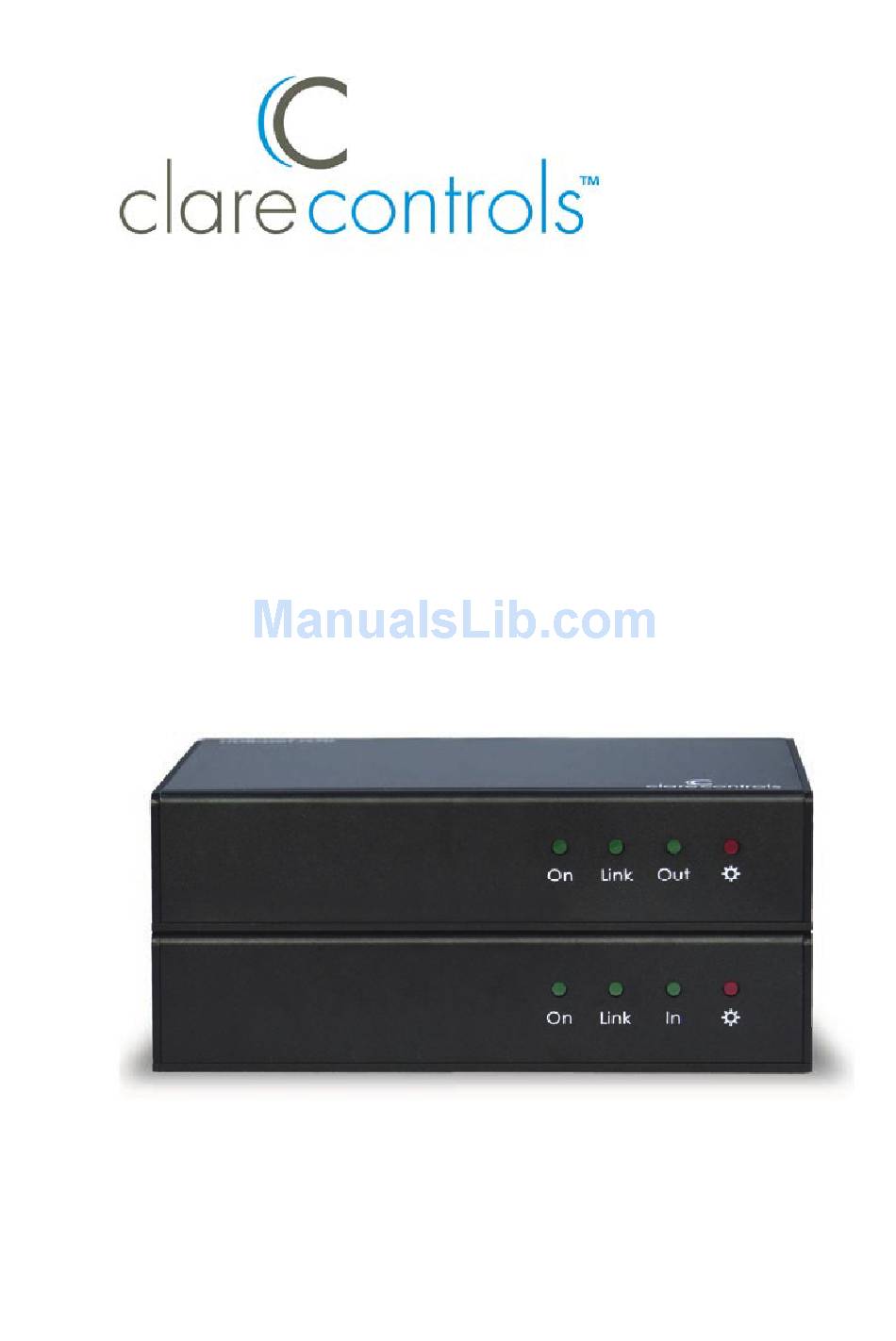

- Page 1 HDBaseT Extender Set 100m User Guide Model CM-BT10-TXRX100 Doc ID 2015-04-620 • Rev 03...
- Page 3 © 24APR15 Clare Controls, Inc. All rights reserved. This document may not be copied in whole or in part or otherwise reproduced without prior written consent from Clare Controls, Inc., except where specifically permitted under US and international copyright law.
-
Page 5: Table Of Contents
Content Limitation of liability...ii Introduction...1 Features...1 Package contents...1 Product appearance...2 Twisted pair cable connection...4 System connection...5 Usage precautions...5 Application examples...5 Connection procedure...6 Application...7 Specifications...8 Dimensions...9 Troubleshooting and maintenance...11 ... -
Page 6: Limitation Of Liability
In any event the total liability of Clare Controls, Inc. shall not exceed the purchase price of the product. The foregoing limitation will apply to the maximum extent permitted by applicable law, regardless of whether Clare Controls, Inc. -
Page 7: Introduction
Introduction HDBaseT Extender Set 100M is an HDMI/IR/RS-232 twisted pair extender that includes one HDMI transmitter and one HDMI receiver. It is a professional 1×1 extender, with a single CAT5e cable. The input HDMI signal can be transmitted long- distances, and the control signal (IR & RS-232) is capable of working bi-directionally. The HDBaseT Extender can also support PoC, and with its Ethernet ports, it also supports Internet access for use in a LAN. -
Page 8: Product Appearance
Product appearance Figure 1: The Tx100 transmitter (1) (2) (3) (4) (7) (8) (9) (10) (11) (1) ON Working status indicator of this device. When the transmitter is on and working properly, the green LED blinks. (2) LINK HDBaseT link status indicator, green LED. It remains illuminated when the device has a connection. - Page 9 Figure 2: The Rx100 receiver (1) (2) (3) (4) (7) (8) (9) (10) (11) (1) ON Working status indicator of this device. When the receiver is on and working properly, the green LED blinks. (2) LINK HDBaseT link status indicator, green LED. It remains illuminated when the device has a connection.
-
Page 10: Twisted Pair Cable Connection
Twisted pair cable connection The Cat5e/Cat6 terminations for HDBaseT devices should be a straight thru TIA/EIA T568B standard. TIA/EIA T568A standard is not recommended. Table 1: T568A and T568B cable standards TIA/EIA T568A TIA/EIA T568B Cable color Cable color green white orange white green orange... -
Page 11: System Connection
The Rx100 receiver works in conjunction with the Tx100 transmitter or an HDBaseT matrix switch, such as Clare Controls’ 4x4 Matrix Switch. By transmitting signals across reliable Cat5e/Cat6 cables, the video signal can be used at far greater distances from the source device than would be capable with traditional HDMI cables. -
Page 12: Connection Procedure
Figure 3: System diagram Connection procedure To connect the HDBaseT Extender Set 100m: Connect HDMI from the source (such as Blu-ray DVD) to the HDMI IN port of the transmitter using an HDMI cable. Connect the HDBT OUT port of the transmitter to the HDBT IN port of the receiver with a single CAT5e/CAT6 cable using TIA/EIA T568B terminations at each end. -
Page 13: Application
Connect the RS-232 port of the computer and the RS-232 port of transmitter or receiver using a RS-232 cable. You can use any one, as the RS-232 signal can be transmitted bi-directionally. Connect the 24 VDC power adapter. The adapter can supply enough power for all its PoC functions. -
Page 14: Specifications
Specifications Transmitter (Tx100) Receiver (Rx100) Input Input signal 1 HDMI, 1 IR and 1 RS-232 1 IR, 1 RJ-45 and 1 RS-232 Input connector 1 HDMI female 1 3.5 mm mini jack for IR in 1 3.5 mm mini jack for IR in 1 RJ-45 1 3P captive connector 1 3P captive connector... -
Page 15: Dimensions
Power supply Input: 100 to 240 VAC, 50/60 Hz, Output: 24 VDC, 1.25 A Power consumption 10 W Net weight 1.8 lb. (0.8 Kg) Note: All nominal levels are at ±10%. Dimensions Figure 4: Transmitter dimensions 30.01 mm 152.00 mm 13.50 mm HDBaseT .rx100 Link... - Page 16 Figure 5: Receiver dimensions 30.01 mm 13.50 mm 152.00 mm HDBaseT .rx100 HDBaseT .rx100 Link Ou t Ethe rne t HDBTIn HDM I Ou t IR In IR Ou t RS232 DC 24 V HDBaseT Extender Set 100m User Guide...
-
Page 17: Troubleshooting And Maintenance
IR signal problems: • When using a control system such as Clare Controls, Crestron, or URC, the 3.5 mm male mono to 3.5 mm male stereo adapter cable (included) must be used. Connect the male mono end to the control system. Connect the male stereo end to the CM-BT10-TX100. -
Page 18: Safety Operation
Safety operation To guarantee the reliable operation of the equipment and personal safety, please follow the procedures listed below. • The system must be grounded properly. Do not use two blades plugs. Ensure the supply voltage is in the correct range of 100 to 240 VAC, 50/60 Hz. •... -
Page 19: After-Sales Service
After-sales service • If there appears to be problems when using the device(s), refer to the “Troubleshooting and maintenance” section in this manual. Return shipping costs are not covered by this warranty. • You can contact Customer Support at http://support.clarecontrols.com. Please be ready to provide the following information.
