- Page 1 HDBaseT Compact Extender Set 70m User Guide Model HDBaseT-C.tx70 and HDBaseT-C.rx70 Doc ID 2015-07-918 • Rev 03...
- Page 3 Trademarks and patents HDBaseT Compact Extender Set 70m, Model HDBaseT-C.tx70 and HDBaseT-C.rx70 name is a trademark of Clare Controls, Inc. Other trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products.
- Page 4 Complete additional sections according to the governing laws and standards for the intended marketplace. EU directives 1999/5/EC (R&TTE directive): Hereby, Clare Controls, Inc. declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
-
Page 5: Table Of Contents
Content Safety precautions...ii Limitation of liability...iii Introduction...1 Features...1 Package contents...1 Product appearance...2 System connection...3 Usage precautions...3 Application examples...3 Connection procedure...4 Application...5 Twisted pair cable connection...5 Specifications...6 Supported resolution...7 Panel drawings...8 Troubleshooting and maintenance...9 Safety operation...10 After-sales service...11 HDBaseT Compact Extender Set 70m User Guide... -
Page 6: Safety Precautions
Do not burn or mix this device with general household waste. Treat the device as electrical waste Caution: The HDBaseT-C.tx70 and HDBaseT-C.rx70 must be used as a pair. Do not use the HDBaseT-C.rx70 separately or in combination with HDBaseT switches, as using it may cause damage to the unit. -
Page 7: Limitation Of Liability
In any event the total liability of Clare Controls, Inc. shall not exceed the purchase price of the product. The foregoing limitation will apply to the maximum extent permitted by applicable law, regardless of whether Clare Controls, Inc. - Page 8 HDBaseT Compact Extender Set 70m User Guide...
-
Page 9: Introduction

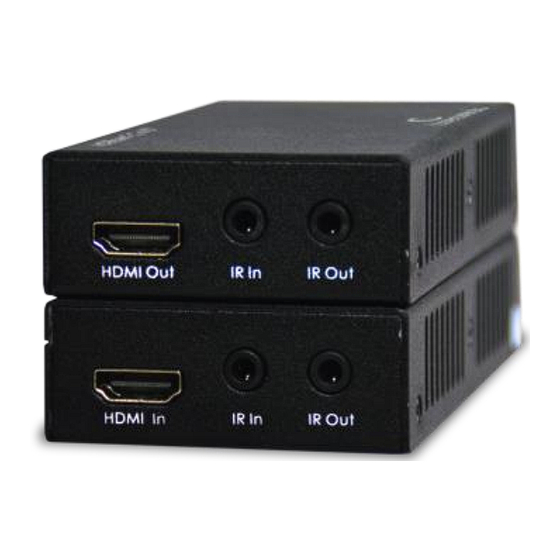

Introduction The extender set consists of a transmitter and receiver pair. HDMI signals are input into the transmitter and HDBaseT technology is used to transmit the signals to the receiver up to 230 ft. (70 m) via a Cat5e/Cat6 cable. The receiver then outputs the HDMI signal. Bi-directional IR is also transmitted across the Cat5e/Cat6 cable. -
Page 10: Product Appearance
HDBaseT to the transmitter unit for use at the source location. Note: When using a control system, such as Clare Controls, the adapter cable (included) must be used. The male mono end connects to the control system; the male stereo end connects to the HDBaseT-C.tx70. -
Page 11: System Connection
Cat5e/Cat6 cable. The following figures show you some application examples for the HDBaseT-C.tx70 and HDBaseT-C.rx70. Note: When using a control system, such as Clare Controls, Crestron, or URC, the 3.5 mm male mono to 3.5 mm male stereo adapter cable (included) must be used. The male mono end connects to the control system;... -
Page 12: Connection Procedure
Connect HDMI from the source (such as Blu-ray DVD) to the HDMI IN port of the transmitter using an HDMI cable. Connect the HDBT OUT port of the HDBaseT-C.tx70 to the HDBT IN port of the receiver with a single CAT5e/CAT6 cable using TIA/EIA T568B terminations at each end. -
Page 13: Application
Application The HDBaseT-C.tx70 and HDBaseT-C.rx70 extender pair is useful in any scenario when an HDMI signal (along with control signals) must be transmitted reliably across greater distances than is practical using traditional HDMI cables. They may be used in both residential and commercial applications when centrally locating the source equipment and displaying HD video in remote locations. -
Page 14: Specifications
Specifications HDBaseT-C.tx70 transmitter HDBaseT-C.rx70 receiver Input Input signal 1 HDMI and 1 IR 1 RJ45 and 1 IR Input connector HDMI female and 3.5 mm mini jack 3.5 mm mini jack and RJ-45 Video signal HDMI1.4 HDMI1.4 Audio Digital audio, transmit through HDMI... -
Page 15: Supported Resolution
1024 × 768 at 60 Hz 800 × 600 at 60 Hz 640 × 480 at 60 Hz Note: The HDBaseT-C.tx70 and HDBaseT-C.rx70 supports 4K and1080p 3D HDMI signal. Use HDMI cables compliant with HDMI1.4. HDBaseT Compact Extender Set 70m User Guide... -
Page 16: Panel Drawings
Panel drawings Figure 4: HDBaseT-C.tx70 transmitter (61 mm) 2.4 in. (12.5 mm) .49 in. Figure 5: HDBaseT-C.rx70 receiver (61 mm) 2.4 in. (12.5 mm) .49 in. HDBaseT Compact Extender Set 70m User Guide... -
Page 17: Troubleshooting And Maintenance
IR signal problems: When using a control system such as Clare Controls, the 3.5 mm male mono to 3.5 mm male stereo adapter cable (included) must be used. The male mono end connects to the control system; the male stereo end connects to HDBaseT-C.tx70. -
Page 18: Safety Operation
Do not place the device in a place that is abnormally hot or cold or does not have proper temperature control and ventilation. The HDBaseT-C.tx70 and HDBaseT-C.rx70 generate heat when operating. The environment should be well ventilated to prevent damage caused by overheating. ... -
Page 19: After-Sales Service
After-sales service If there appears to be problems when using the device(s), refer to the “Troubleshooting and maintenance” section in this manual. Return shipping costs are not covered by this warranty. You can contact Customer Support at http://support.clarecontrols.com. Please be ready to provide the following information.
