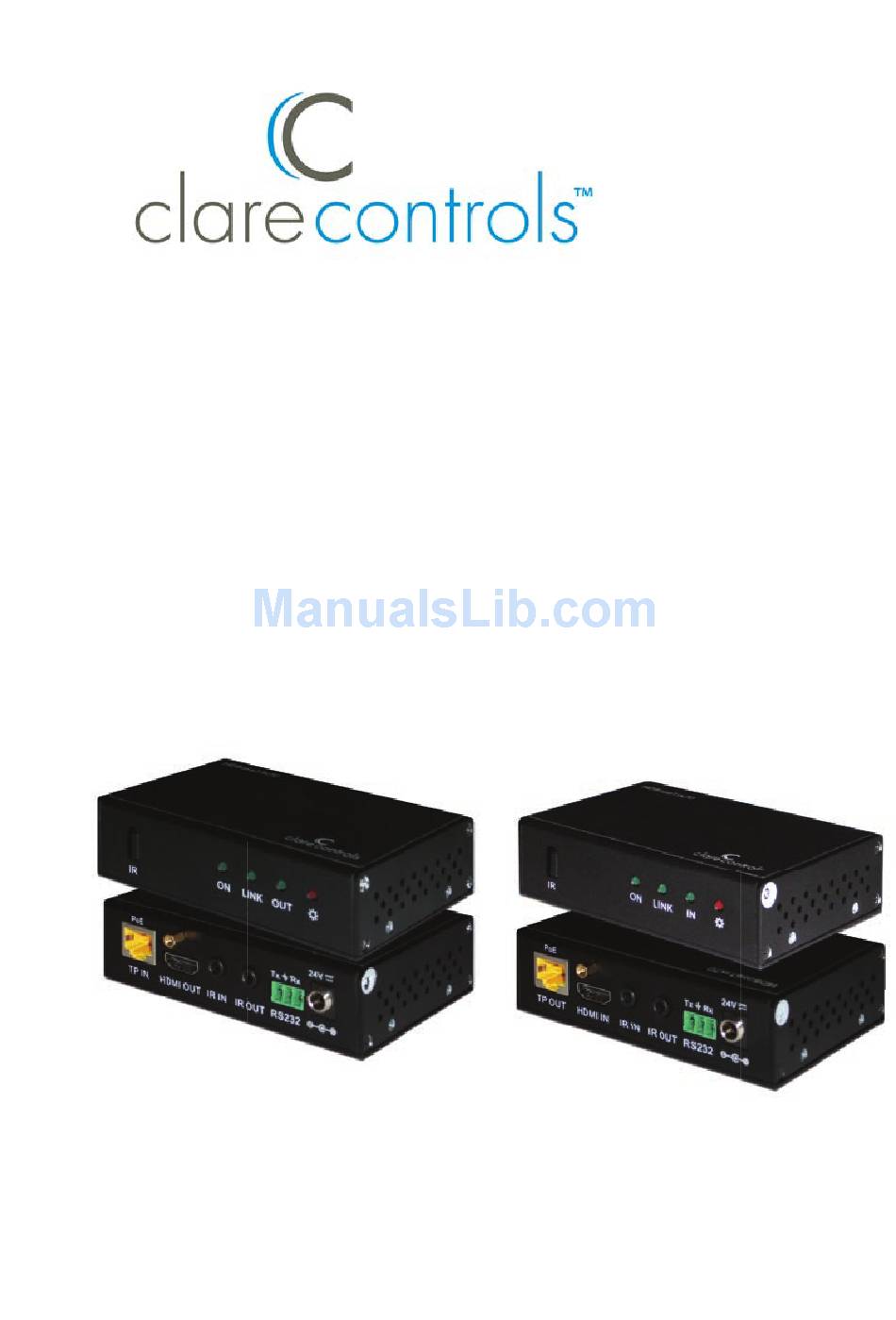

- Page 1 HDBaseT Extender Set 70m User Guide Model CM-BT10-TXRX70 Doc ID 2014-04-350 • Rev 03...
- Page 3 Clare Controls, Inc., except where specifically permitted under US and international copyright law. Trademarks and HDBaseT Extender Set 70m, Model CM-BT10-TXRX70 name is a patents trademark of Clare Controls, Inc. Other trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products.
-
Page 5: Table Of Contents
Content Limitation of liability...ii Introduction...1 Features...1 Package contents...1 Product appearance...2 System connection...4 Usage precautions...4 Application examples...4 Connection procedure...6 Application...6 Twisted pair cable connection...7 Specifications...8 Panel drawings...9 Troubleshooting and maintenance...10 ... -
Page 6: Limitation Of Liability
In any event the total liability of Clare Controls, Inc. shall not exceed the purchase price of the product. The foregoing limitation will apply to the maximum extent permitted by applicable law, regardless of whether Clare Controls, Inc. -
Page 7: Introduction
Introduction The extender set consists of a transmitter and receiver pair. HDMI signals are input into the transmitter and HDBaseT technology is used to transmit the signals to the receiver up to 230 ft. (70 m) via a Cat5e/Cat6 cable. The receiver then outputs the HDMI signal. Bi-directional IR and RS232 are also transmitted across the Cat5e/Cat6 cable. -
Page 8: Product Appearance
Notes When using a control system such as Clare Controls, Crestron, or URC, the 3.5 mm male mono to 3.5 mm male stereo adapter cable (included) must be used. The male mono end connects to the control system; the male stereo end connects to the CM-BT10-TX70. - Page 9 Figure 2: The HDBaseT Extender Set receiver (1) IR IR receiver. (2) ON Working status indicator of this device. When the CM-BT10-RX70 is on and working properly, the green LED blinks. (3) LINK HDBaseT link status indicator, green LED. Remains illuminated when there is a connection.
-
Page 10: System Connection
CM-BT10-TXRX70 extender set and/or the CM-BT10-RX70 receiver. Note: When using a control system, such as Clare Controls, Crestron, or URC, the 3.5 mm male mono to 3.5 mm male stereo adapter cable (included) must be used. The male mono end connects to the control system; the male stereo end connects to CM-BT10-TX70. - Page 11 Example 1: CM-BT10-TXRX70 - HDBaseT Extender Set Example 2: CM-MT4410-BT-70 with CM-BT10-RX70 HDBaseT Extender Set 70m User Guide...
-
Page 12: Connection Procedure
Only pins 2,3 & 5 are used on the DB9 (Rx, TX, Gnd). Application The CM-BT10-TXRX70 extender pair is useful in any scenario when an HDMI signal (along with control signals) must be transmitted reliably across greater distances than is practical using traditional HDMI cables. They may be used in both residential and commercial applications when centrally locating the source equipment and displaying HD video in remote locations. -
Page 13: Twisted Pair Cable Connection
Twisted pair cable connection The Cat5e/Cat6 terminations for HDBaseT devices should be a straight thru TIA/EIA T568B standard. TIA/EIA T568A standard is NOT recommended. Table 1: T568A and T568B cable standards TIA/EIA T568A TIA/EIA T568B Cable color Cable color green white orange white green orange... -
Page 14: Specifications
Specifications Transmitter (CM-BT10-TX70) Receiver (CM-BT10-RX70) Input Input signal 1 HDMI,1 IR & 1 RS232 1 IR, 1 RJ-45 and 1 RS232 Input connector HDMI male, 3.5 mm mini jack, 3p 3.5 mm mini jack, RJ-45, 3p captive screw connector captive screw connector Video signal HDMI1.4 HDMI1.4... -
Page 15: Panel Drawings
Panel drawings HDBaseT Extender Set 70m User Guide... -
Page 16: Troubleshooting And Maintenance
IR signal problems: • When using a control system such as Clare Controls, Crestron, or URC, the 3.5 mm male mono to 3.5 mm male stereo adapter cable (included) must be used. Connect the male mono end to the control system. -
Page 17: Safety Operation
Safety operation To guarantee the reliable operation of the equipment and personal safety, please follow the procedures listed below. • The system must be grounded properly. Do not use two blades plugs. Ensure the supply voltage is in the correct range of 100~240 VAC, 50/60 Hz. •... -
Page 18: After-Sales Service
After-sales service • If there appears to be problems when using the device(s), refer to the “Troubleshooting and maintenance” section in this manual. Return shipping costs are not covered by this warranty. • You can contact Customer Support at http://support.clarecontrols.com. Please be ready to provide the following information.
