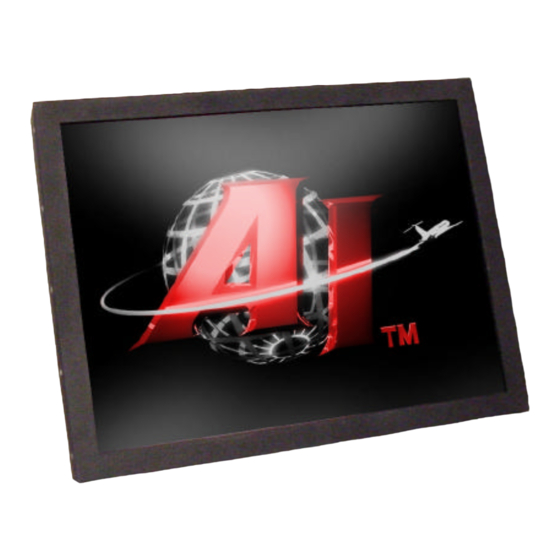

- Page 1 Installation Manual LCD-9201-101-x 20.1" LCD Monitor Document # 540322 (Unit shown without optional cover bezel) 7300 Industry Drive, North Little Rock, AR 72117 Phone: 501-955-2929 Fax: 501-955-2988 www.audiointl.com...
-
Page 2: Reference Documents
18-20 PROPRIETARY NOTICE: Despite any other copyright notice, this document and information disclosed herein contains confidential, proprietary designs owned by Audio International, Inc. Neither this document nor the data contained herein shall be reproduced, used, or disclosed to anyone without the written authorization of Audio International, Inc. -
Page 3: Table Of Contents
Audio International, Inc. LCD-9201-101-x Installation Manual Table of Contents Section Description Page General Information ……………………………………………. Introduction ……………………………………………………….. Purpose of the Equipment ………………………………………. Optional Equipment ……………. .………………………………. Application ……………………………………………………….. Installation ……………………………………………………….. Prior to Installation ……………………………………………….. Unpacking and Inspection ………………………………………. Cautions & Warnings …………………………………………….. -
Page 4: General Information
Also included are physical and electrical characteristics of the unit. Purpose of the Equipment Audio International’s LCD-9201-101-x is a flat panel LCD monitor with Composite NTSC/PAL/SECAM video, PC Graphic capabilities, and Serial Digital interface capabilities. It employs dual-pixel LVDS (Low Voltage Differential Signaling) for a high resolution (1600 x 1200 UXGA) display. -
Page 5: Application
LCD-9201-101-x Installation Manual Application Introduction The LCD-9201-101-x is a flat panel LCD monitor with Composite video, PC Graphic capabilities, and Serial Digital interface capabilities. If any one of these formats is applied to their respective inputs, the monitor will display that format. In the case that both Composite and VGA are applied, the monitor defaults to the VGA input. -
Page 6: Installation
• Environmental conditions (temperature, humidity, etc.) • Length of cable runs 3.1.2 The LCD-9201-101-x shall be installed to conform to the standards designated by the customer, installing agency, and existing conditions as to the unit location and type of installation. - Page 7 3.1.6 The monitor should be located as close to the source equipment as possible in order to reduce the possibility of noise introduced into the video. Refer to Section 6.0 for unit dimensions. 3.1.7 The LCD-9201-101-x is configured using the external menu selection switch, SP-LCD4. The switch utilizes a D-Subminiature connector.
-
Page 8: Unpacking And Inspection
Audio International, Inc. LCD-9201-101-x Installation Manual Unpacking and Inspection 3.2.1 Carefully open the packaging and remove the LCD-9201-101-x. Verify that all components have been included in the package per the packing list. Inspect the unit for damage. Retain the packing materials and packing list. -
Page 9: Wiring Requirements
(6) inches between the lines. 3.4.2 Power Wires Audio International recommends that power and ground wires be 22 AWG minimum. The chassis shall be electrically bonded to the airframe structure by a conductive mounting point with <0.1 O resistance using <50 O impedance cable. -
Page 10: Electrical Characteristics
NEMA WC 27500 or equivalent. 3.4.5 RGB Connections RGB wiring shall be in accordance with NEMA WC 27500 or equivalent. Electrical Characteristics 3.5.1 Electrical Specifications for LCD-9201-101-x: Electrical Power 2.0 A @ +28 VDC, max. Operating Voltage +18 to +32 VDC Range 20.01 (51.05 cm) - Page 11 Green Mounting Studs 6-32 x 0.75 inches long 3.5.3 The LCD-9201-101-x utilizes three (3) connectors. P1 is a 13-pin connector that provides power input, ground, video input, monitor on/off control and monitor status. The monitor on/off function (P1, Pin 5) is transition level sensitive.
-
Page 12: Mating Connector Information
Audio International, Inc. LCD-9201-101-x Installation Manual 3.5.6 The SP-LCD4 utilizes one (1) 9-pin connector that mates with P2 of the LCD-9201-101-x. This connector provides +28 VDC power input, ground, data bus connections, and data bus configuration ID connections. Mating Connector Information All wiring harnesses to the unit shall be supplied and fabricated by the installing agency. -
Page 13: Pinout Assignment Descriptions
Audio International, Inc. LCD-9201-101-x Installation Manual Pinout Assignment Descriptions 3.7.1 Pinout assignment for the LCD-9201-101-x is as follows: Pin # Description +28VDC Power Input Ground Reserved Monitor Status Gnd Output (Open collector Isolated) Monitor On/Off Gnd Input 6-10* Reserved Composite Video... -
Page 14: Sp-Lcd4 Configuration Overview
To access the Main Menu, press the “MENU 1” button, which will cause the Monitor setup menu to be displayed on the LCD-9201-101-x. To scroll through the setup modes, press the “MENU 2” button to scroll forward or the “MENU1” button to scroll back. -
Page 15: Instructions For Continued Airworthiness
Instructions for Continued Airworthiness Airworthiness Limitations No periodic scheduled maintenance or calibration is required for continued airworthiness of the LCD-9201-101-x. If the unit fails to perform to specifications, it must be removed and serviced by a qualified service facility. Document # 540322, Rev IR, 02/2006... -
Page 16: Cleaning Method
Audio International, Inc. LCD-9201-101-x Installation Manual Cleaning Method The LCD-9201-101-x should be cleaned at least once every three months or when excessive dust or dirt becomes apparent. Use a twin pack cleaning system that employs a wet pad pre-moistened with an Isopropyl Alcohol based cleaner/anti-static solution and a lint-free drying cloth. -
Page 17: General Troubleshooting Procedures
Audio International, Inc. LCD-9201-101-x Installation Manual General Troubleshooting Procedures • Verify power to the unit by rechecking +28 VDC power is applied to the proper pins on the unit. Use a voltmeter to verify correct level. • Remove power from the unit for at least one (1) minute and reapply power. -
Page 18: Specifications
Audio International, Inc. LCD-9201-101-x Installation Manual Specifications Unit Specifications for LCD-9201-101-x: Physical Specifications – LCD-9201-101-x Screen Size 20.01 (51.05 cm) diagonal Weight Approx. 12.85 lb / 8.26 kg Dimensions 18.0" x 2.12" x 14.0" (l x w x h) 45.7 cm x 5.38 cm x 35.6 cm Unit Specifications for SP-LCD4: Physical Specifications –... -
Page 19: Reference Drawings
Audio International, Inc. LCD-9201-101-x Installation Manual Reference Drawings LCD-9201-101-x The following diagrams show the unit dimensions, mounting locations, and connector locations for the LCD-9201-101-x. Document # 540322, Rev IR, 02/2006 Page 18 of 20... - Page 20 Audio International, Inc. LCD-9201-101-x Installation Manual Document # 540322, Rev IR, 02/2006 Page 19 of 20...
-
Page 21: Sp-Lcd4
Audio International, Inc. LCD-9201-101-x Installation Manual External Menu Switch The following diagrams show the unit dimensions and connector locations for the external menu selection switch, SP-LCD4. Document # 540322, Rev IR, 02/2006 Page 20 of 20...
