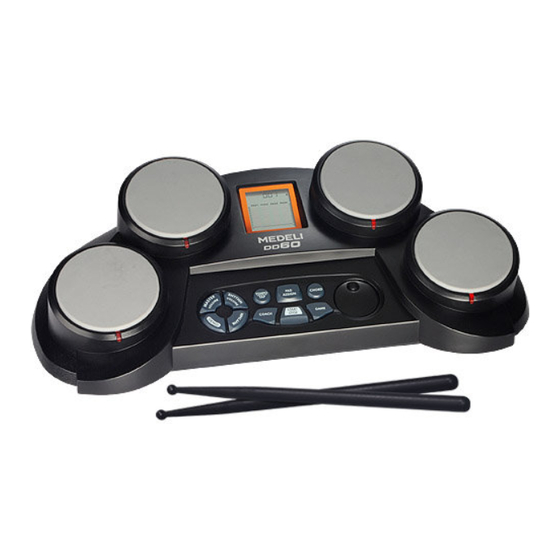

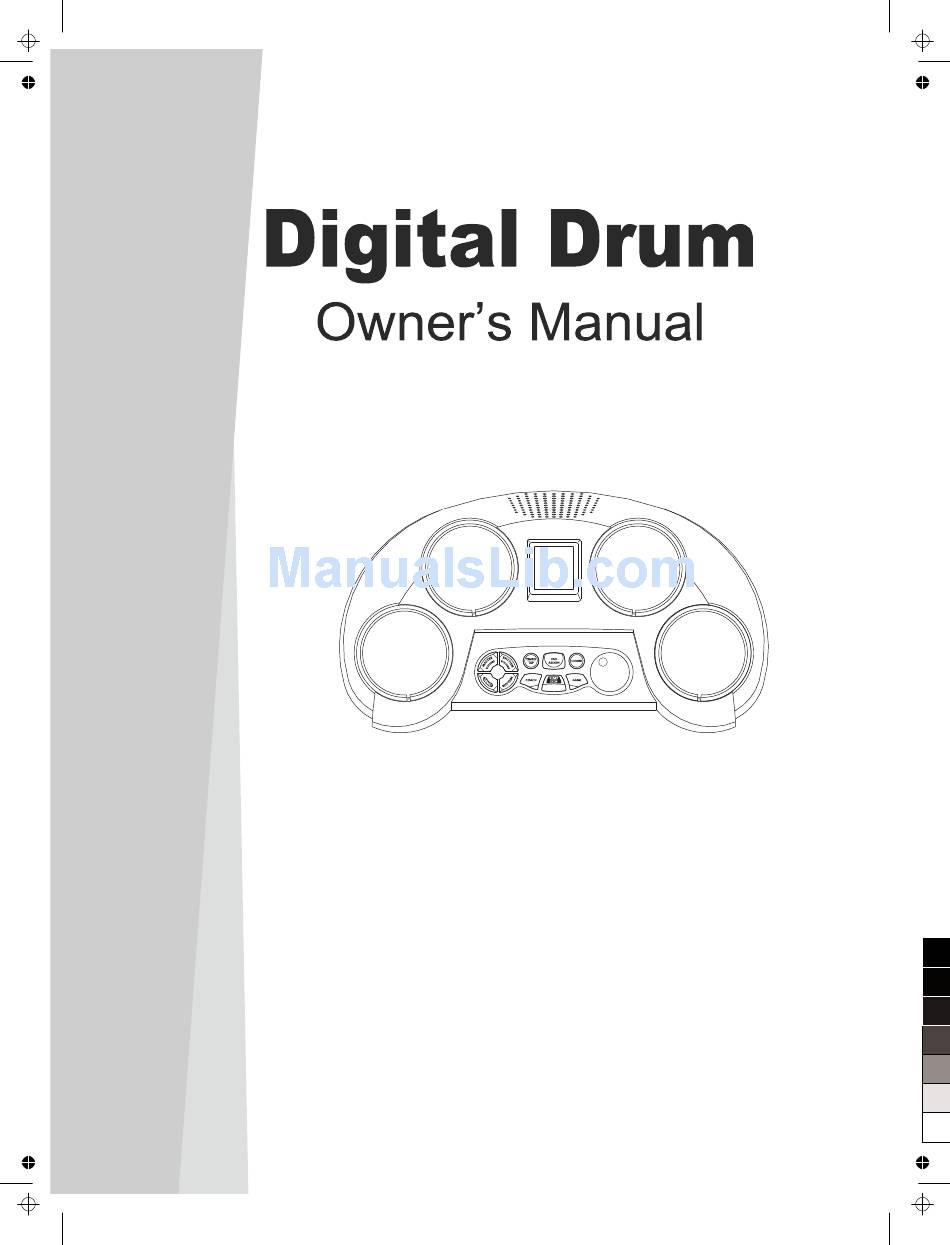

  • Page 1 AW_DD60_manual_G12_101029 2010 9:11:29...
  • Page 2 AW_DD60_manual_G12_101029 2010 9:11:32...

  • Page 3: Table Of Contents

    Setting Up Assign a Voice to Individual Pads.......10 Power Supply.............4 Using Headphones............ 5 Playing the Game How to Play?..............11 Control Panel.............6 Starting a New Game..........11 Front Panel ..............6 Rear Panel ..............6 Coach Let a Tutor Coach you..........12 Playing the Demo Song..........7 Specifications............

  • Page 4: Setting Up

    Setting Up Power Supply Your Digital Drum will run either from batteries or power adaptor. Follow the instructions below according to the power source you intend to use. Using an AC-Adaptor Connect the power adaptor to the DC IN jack located on the rear panel of the unit, and plug the AC power adaptor into an AC power AC power outlet.

  • Page 5: Using Headphones

    Setting Up Using Headphones An optional set of stereo headphones can be connected to the Headphones jack located on the rear panel. When a pair of headphones is connected to the jack, the internal speakers of the unit will switch off automatically, perfect for private practice or late night playing.

  • Page 6: Control Panel

    Control Panel Front Panel Front Panel Rhythm Assign Volume Master Tempo/ Volume Chord Coach Start/ Demo Game Dial Stop Rhythm Rear Panel Rear Panel Headphone Power jack switch jack AW_DD60_manual_G12_101029 2010 9:11:33...

  • Page 7: Playing The Demo Song

    Playing the Demo Song Your Digital Drum comes with a demo song for showing you the possibilities of the drum. To playback the demo song, follow the instruction below: 1 Turn on the power 、 Turn the [POWER] switch ON. The LCD display light up.

  • Page 8: Playing A Rhythm

    Playing a Rhythm Your Digital Drum features 50 different rhythms that can be used to provide accompaniment.Select one of the rhythm and listen to it. Selecting a Rhythm 1、Press the [RHYTHM] button Press the [RHYTHM] button, the currently selected song number will appear on the display.

  • Page 9: Tap Start

    Playing a Rhythm Tap Start The TAP START function allows you to set the song's overall tempo as well as start the accompaniment. The accompaniment will playback at the tempo with which the pads are struck. 1、Press the [TEMPO/TAP] button Press the [TEMPO/TAP] button, the current tempo will appear on the display.

  • Page 10: Play The Pads

    Play the Pads Pad Names Pad 2 Pad 3 Pad 4 Pad 1 Assign a Voice to Individual Pads The Digital Drum has a total of 70 percussion sounds and 10 sound effects that can be assigned to each of the 4 drum pads. 1、Select a Rhythm Rotate the DIAL to select a Rhythm that you want to assign the pads.

  • Page 11: Playing The Game

    Playing the Game How to Play? The Digital Drum's Game feature let the player learn and play a rhythm by following the dropping bars on the screen. When the dropping bars of the pad goes beyond the line at the bottom of the display, strike the corresponding pads.

  • Page 12: Coach

    Coach Let a Tutor Coach you This digital Drum has a Coach function. You can practice basic drum technic following 20 different Coach solo. Just like game, there is also falling bars telling you when to strike drum pads. 1、Press the [COACH] button press the [COACH] button,”...

  • Page 13: Specifications

    Specifications Pads: Touch Sensitive Drum Pads with Indication Lights Drum Voices: 70 Percussion Voices &10 Effect Voices Rhythms: Demo Song: Coach Songs: Panel Controls: POWER ON/OFF, MASTER VOLUME, RHYTHM VOLUME DEMO, RHYTHM, TEMPO/TAP, PAD ASSIGN, CHORD, COACH, START/STOP, GAME, DIAL Connectors: HEADPHONES 9V (AC Adaptor)

  • Page 14: Appendix

    Appendix Percussion Voice List Name Name Name Name BASS DRUM Tambourine 2 Analog Snare Rim CRASH Standard Kick 1 Analog Snare 2 Bango Hi Standard Crash 1 Analog Kick 1 House S nare Bango Low Standard Crash 2 Rock Kick HI-HAT Conga Open Standard Crash 3...

  • Page 15: Demo List

    Appendix Demo List Coach List Name Name Name Funk Latin 3 Rock Funk Rock 1 Latin 4 Conga Rock 2 Conga 1 Rock 3 Rock 4 Conga 2 Conga 3 Pop 1 Conga 4 Dance Pop 2 Dance 1 Pop 3 Dance 2 Pop 4 Dance 3...
  • Page 16 DD60_G11 AW_DD60_manual_G12_101029 2010 9:11:39...
