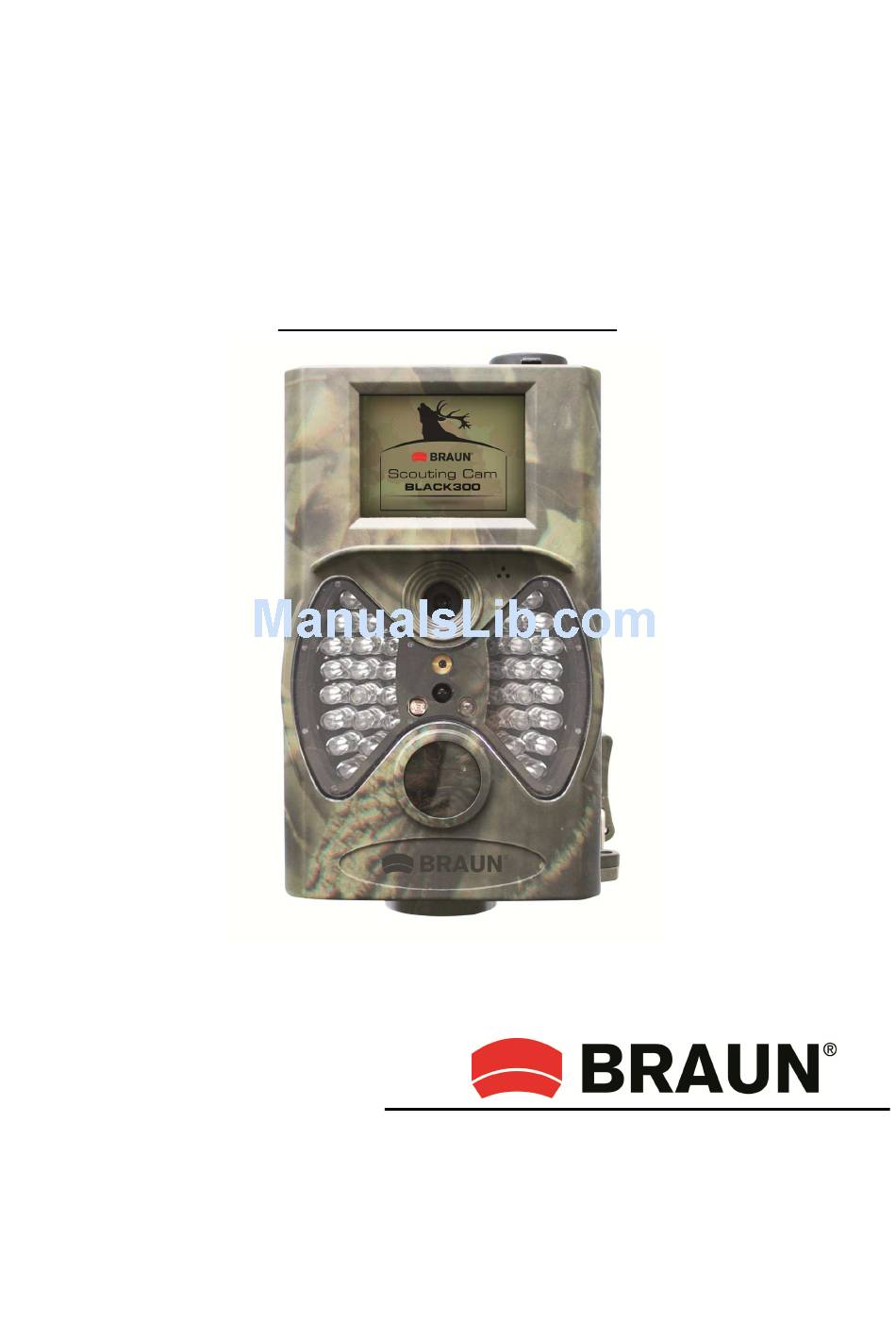

    Scouting Cam BLACK300 Instruction Manual BRAUN PHOTO TECHNIK GmbH Klingenhofstraße 72 90411 Nürnberg www.braun-phototechnik.de...
  • Page 2: Table Of Contents

    Inhalt 1. Caution ....................... 3 2. Instructions ......................4 2.1 Camera Body Interface ................. 4 2.2 Camera components and features ..............4 2.3 Remote Control ..................... 5 2.3.1 Navigating ....................5 2.3.2 Laster Pointer ..................5 2.4 Shooting Information Display ................ 5 2.5 Supported Format ..................
  • Page 3: Caution

    The Braun Photo Technik GmbH assumes no liability for violations against the Federal Data Protection Act and other legal regulations! Privacy of individuals must be preserved. Prepare your camera only at places where this is guaranteed.
  • Page 4: Instructions

    2. Instructions Thank you for purchasing BRAUN Scouting Cam BLACK300. This camera is a surveillance camera working automatically. It can be triggered at once by any movement of human (or animals) in a certain region of interested (ROI) monitored by...
  • Page 5: Remote Control

    7) Lens 8) 2 inch color LCD Display 9) Sound recorder 10) Lock 11) Power switch (ON, TEST, OFF) 12) Battery Depot 2.3 Remote Control The remote control is an input device of the camera and is primarily used for customer settings and password input.
  • Page 6: Supported Format

    3.Image Size 2.Camera Mode 4.Battery Level 1.SD Card 5.Date (M:D:Y) 6.Time (H:M:S) 7.Available Picture space 2.5 Supported Format Item Format Photo Video File Format FAT32 You don’t need to concern about the file system format of the camera unless you have problems with reading the SD-card by your other equipment.
  • Page 7: Insert The Sd-Card

    3.2 Insert the SD-card Insert SD-card into the card slot with marked side upwards. Please note that the SD-card can only be plugged in one direction. 3.3 Power on and Enter into the ON Mode Before switching on, please pay attention to the following: 1) Avoid temperature and motion disturbances that could be construed as animals or humans such as trees that are exposed to direct sunlight for much of the day or any other heat source.
  • Page 8: Power Off

    described in “Advanced Operations” chapter. 3.5 Power Off Slide the power switch to OFF position to power off the camera. Please note that even in the OFF mode, the camera still consumes certain power at µA level. 4. Advanced Operations From the basic operations of the camera in previous chapter, we know that the camera has three basic operation modes (Power switch): 1) OFF mode: Power switch is at OFF position (Right).
  • Page 9: Video Setting

    4.1.2 Video Setting 4.1.3 System Setting...
  • Page 10: Default

    4.1.4 Default Setting Default Items Mode Camera Camera, Video, Camera&Video Resolution (Camera) 12M, 8M, 5M Delay 1 Seconds 1-30 Seconds, 1-30 Minute Multi Single Single, 3, 6, 9 Pictures 100, 200, 400 Resolution (Video) 1080P 1080P, 720P, WVGA, QVGA Video Length 10s, 30s, 60s, 90s Date/Time Same as last time...
  • Page 11: Set Photo Size

    d) Press RIGHT to select SD Card. e) Press OK to choose Enter to enter into submenu. f) Press down to select OK. OK will be highlighted. g) Press OK to start formatting the SD-card. During formatting, the display screen will show a message “Please Wait”. h) Press MENU to cancel setting and return to info display.
  • Page 12: Set Multi

    4.1.11 Set Multi This parameter affects the number of pictures taken for each triggering in the camera mode. It has four values: “1 Photo”, “3 Photos” “6 Photos” and “9 photos”. Its default value is “1 Photo”. The following shows how to set photo burst to 3 Photos, provided that the previous option is 1 Photo: a) Press MENU to display the setting menu.
  • Page 13: Set Timer

    that previous option is 5 seconds. a) Press MENU to display the setting menu. b) Press DOWN to select Delay. c) Press RIGHT to enter in to the interval setting. d) Press DOWN to select 1 minute. e) Press OK to save the current setting, then press MENU to return to info display.
  • Page 14: Delete Photo Or Video

    on camera, TV monitor or Image viewer with TV-in connector. c) Press Left to start playing the video when viewing d) Press Left again to stop playing the video. e) Press UP to view the previous picture (or video) and DOWN for the next. f) Press OK to return to info display.
  • Page 15 camera, its screen is black. 6. The screen will light on after being finished 7. Plug out the SD card, then insert it into pc, delete the FW18NA.bin in the SD card.(If you don't do this, the camera will enter update mode when power on again).
