Matco Tools MaxMe Quick Start Manual

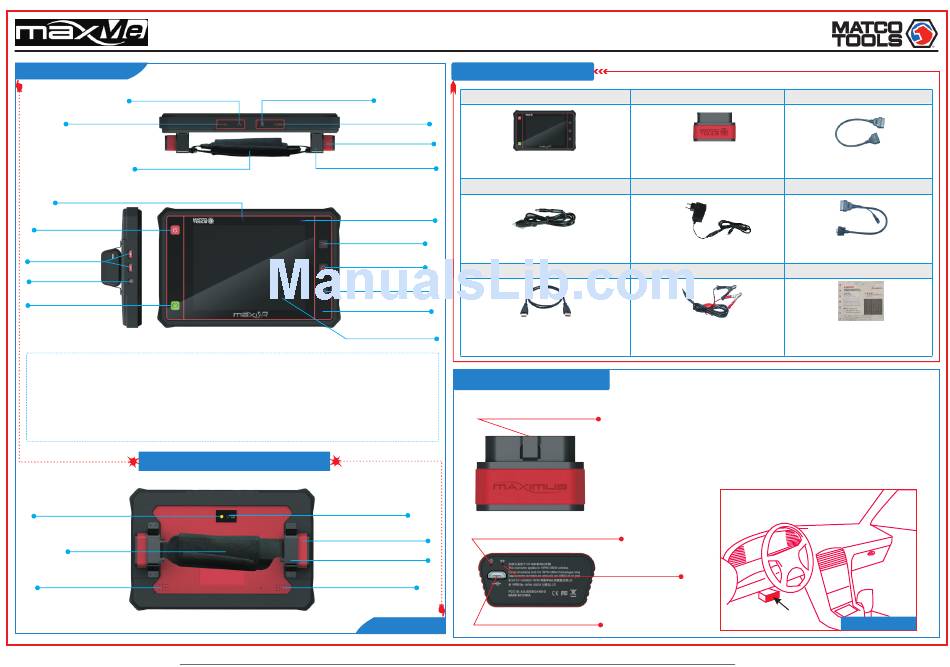

Quick Start Guide

Front & Side View
Headphone Jack
1
Micro USB Port
Strap
Front Camera
Screen Lock /
2
Power Button
Volume Button s
3
Reset Button
golo Button
(For quick access to
Instant Messaging
application)
*Notes:
1. The Micro USB port is used to charge MaxMe tablet.
2. It enables you to turn the MaxMe tablet on/off with long press, or lock the screen with short
press.
3. Press it to reset the MaxMe tablet.
4. Red means Charging, and Green means Fully Charged.
MaxMe Professional Tablet
Camera Flash
Strap
Audio Speaker
Pictures illustrated here are for reference purpose only and this Quick Start Guide is subject to change without notice.
Accessory Checklist
Micro SD Card Slot
Mini HDMI Port
Diagnostic Dongle
Diagnostic Dongle Slot
(For storing the diagnostic
dongle)
4
Charging Indicator
Back Button
via vehicle's cigarette lighter receptacle.)
Home Button
Task Switch Button
Microphone
IPS Touch Screen
Diagnostic Dongle
Rear Camera
Diagnostic Dongle
Diagnostic Dongle Slot
Audio Speaker
Rear View
MaxMe Tablet
(A device for accessing vehicle data.
(A professional tablet for showing test
For detailed non-16pin dongles,
results.)
please check the package box.)
Cigarette Lighter
(To supply power to non-16pin dongle
(To supply power to MaxMe tablet.)
HDMI Cable
(To provide power to non-16pin
(To connect to an external projector or
dongle through connection to the
monitor with HDMI interface.)
How to install the diagnostic dongle
1. Locate vehicle's DLC socket: it provides standard 16 pins and is
generally located on driver's side, about 12 inch away from the
OBD II 16 PIN connector
center of dashboard. See Figure DLC Location. In case no DLC is
found, please refer to Automobile Repair Manual;
2. Plug the dongle into the vehicle's DLC(It is suggested to use the
OBD II extension cable to connect the DLC and the dongle). For
vehicles with non-16PIN DLC, please choose the desired dongle.
Normally the power indicator of the diagnostic dongle will light up.
Communication indicator
Power indicator
Micro USB port
Diagnostic Dongle OBDII Extension Cable
(To connect the diagnostic dongle
for extension purpose.)
5V DC Out Power Adaptor OBDI Converter
(A converting cable for connecting
non-16 pin dongle.)
Battery Clamps Cable Password Envelope
(A piece of paper bearing S/N and
Verification Code, which is required
vehicle's battery.)
for your connector activation.)
Note: Remember to remove the
diagnostic dongle from the DLC
if it keeps unattended.
NEAR CENTER
OF DASH
DLC Location
