Page 1: User Manual

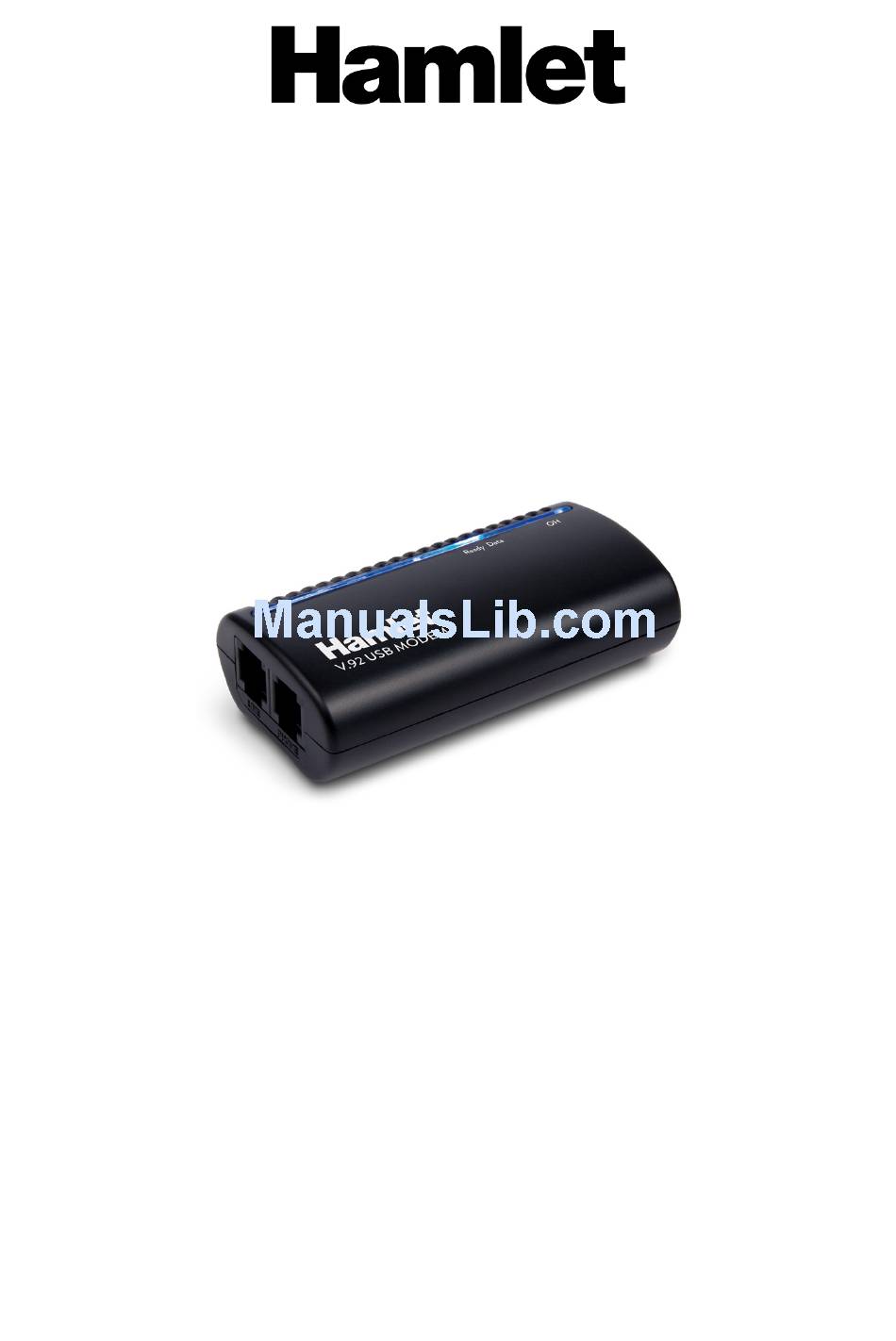

V.92 USB MODEM 56K USB Modem Fax User Manual HV92USB2 www.hamletcom.com... - Page 2 All trademarks and company names mentioned in this manual are used for description purpose only and remain property of their respective owners. Hamlet reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any...
- Page 3 Introduction This 56Kbps Voice/Fax/Data USB Modem connects your computer to Internet, all kinds of BBS, and other fax modems. This manual describes the features, and AT Commands. Line: Telephone line jack Phone: Phone jack Features & Specifications General Description • Use AGERE Olympia SV92U2 / 1040 chipset solution •...
- Page 4 FAX Modem • ITU-T V.17 , V.29 , V.27ter and 21 channel 2 . • TIA/EIA 578 Class 1 FAX send and receive speeds of 14400, 12000, 9600, 7200, 4800 or 2400bps VOICE / Audio Mode • TAM through the microphone / speaker interface on Audio Sound card ERROR Correction •...
-
Page 5: System Requirements
System Requirements • Computer with Pentium 200 MMX or higher processor • Windows 98/ME/2000/XP/Vista/7 Operating System • 20 MB Hard Disk free space or above • Sound card for voice features • 1 available USB port • CD-ROM drive Package Includes The box contains the following items: •... - Page 6 Installing the 56Kbps USB Modem 1. Turn off the System and unplug the AC power supply from the system. 2. Please connect USB modem and PC with USB cable. 3. Please connect 56Kbps USB modem to the telephone line and telephone set, as following procedures.
- Page 7 2. Please insert the USB 56Kbps modem Utility CD into your CD-ROM drive. 3. If AutoPlay window appears, click "Run autorun.exe". 4. The CD should auto-start, displaying the following windows. If it does not start properly, please click on Start – Run and type in X:\autorun.exe (where X is the letter of the CD-ROM drive).
- Page 8 7. Click "OK". 8. Click "OK". (For Windows 98 User only) 9. Browse to X:\Driver\WIN9X (where X is the letter of the CD-ROM drive) and then click "OK". (For Windows 98 user only) 10. Click "Install/Yes" to finish the installation. (For Windows 7 user only) Note: - If you can not perform these procedures smoothly as above, please perform the file directly: CD:\Autorun.exe (Where CD is the drive letter of your CD-ROM drive)
-
Page 9: Basic At Command Guide
Commands Most people use the communication software programs to tell modems what to do. Therefore, you may not use the commands in this chapter. However, if you prefer to communicate with your modem directly, you can type the commands described below. Here describes how to work in the terminal mode. - Page 10 B<value> — Communication Standard Setting Use this command to select the communication standard used by the soft modem. Result codes: • OK if <value> = 0–3, 15, 16. • ERROR if <value> ≠ 0–3, 15, 16. Command Function Selects CCITT V.22 mode when the modem is at 1200 bits/s.
- Page 11 E<value> — Echo Command Use this command to instruct the modem to echo characters sent to it. When the echo feature is selected, characters sent to the modem are sent back to the host and displayed on the monitor. Result codes: •...
- Page 12 M<value> — Speaker Control Use this command to turn the speaker on and off. Result codes: • OK if <value> = 0–3. • ERROR if <value> ≠ 0–3. Command Function Speaker is off. Speaker is on until the modem detects the carrier signal (default).
- Page 13 P — Select Pulse Dialing Use this command to configure the modem for pulse dialing. All subsequent D<dial string> commands use pulse dialing until either the T command or a tone dial modifier is received by the modem. Tone dialing is the default setting.
- Page 14 Z<value> — Reset and Recall Stored Profile Use this command to make the modem go on-hook and restore the profile saved by the last &W command. Note: Both Z0 or Z1 restore the same profile OK if <value> = 0–1. •...
-
Page 15: Troubleshooting
Troubleshooting This appendix contains information that will help you to solve some of the common problems you might encounter, while using this 56Kbps USB modem. For further assistance, contact your dealer. Modem does not respond to AT commands • There may be a COM port/IRQ conflict. Reconfigure the modem COM port address and IRQ line. -
Page 16: Regulatory Statements
Regulatory Statements EMC (TBR21) Notice This equipment has been tested and certified by EN55022 (EMI) / EN55024 (EMS) regulations. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
