Hamlet HRDSL524 User Manual

Adsl2+ ethernet modem internet router with 10/100 lan port interface
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

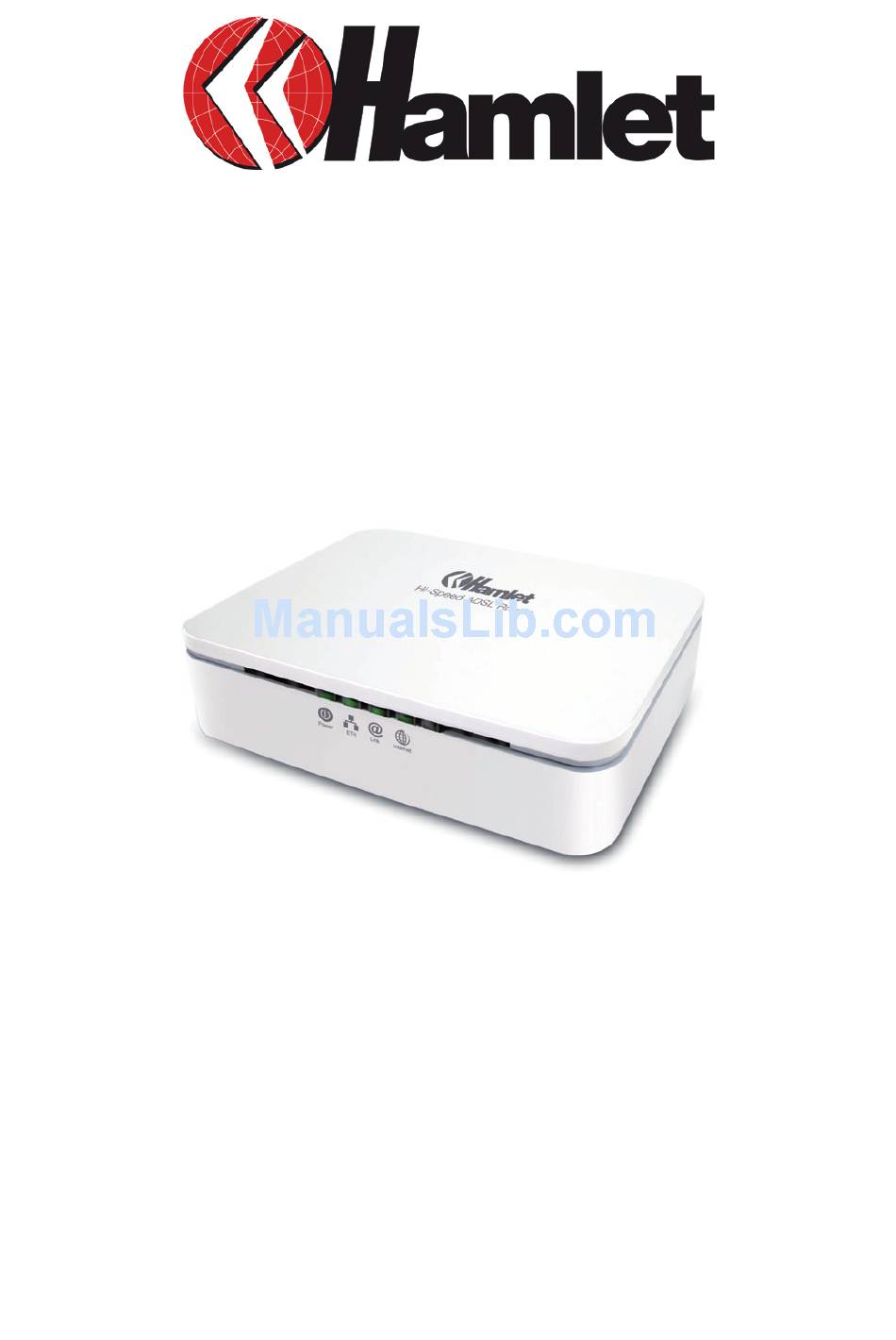

ADSL2+ Ethernet Modem
Internet Router with 10/100 LAN Port Interface
User Manual
HRDSL524
www.hamletcom.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HRDSL524 and is the answer not in the manual?

Questions and answers

Related Manuals for Hamlet HRDSL524

Summary of Contents for Hamlet HRDSL524

  • Page 1 ADSL2+ Ethernet Modem Internet Router with 10/100 LAN Port Interface User Manual HRDSL524 www.hamletcom.com...

  • Page 2: Table Of Contents

    INDEX 1. Introduction....................4 1.1 System Requirements ....................4 1.2 Package Contents ....................4 2. Specifications ....................5 2.1 LED Meaning......................6 2.2 Back Panel Connectors.................... 7 2.3 Factory Default Settings ................... 7 3. Hardware Requirements ................8 3.1 Setting up the Hardware Environment..............8 3.2 Powering on ADSL2+ Ethernet Modem..............
  • Page 3 HRDSL524 Dear Customer, thanks for choosing an Hamlet product. Please carefully follow the instructions for its use and maintenance and, once this item has run its life span, we kindly ask You to dispose of it in an environmentally friendly way, by putting it in the separate bins for electrical/electronic waste, or to bring it back to your retailer who will collect it for free.

  • Page 4: Introduction

    ADSL2+ Ethernet Modem HRDSL524 1. Introduction ADSL2+ Ethernet Modem is a low cost, high performance and high-speed device that provides a full rate ADSL2+ Ethernet Modem with the superb reliability and a complete solution for home and office router. ADSL2+ Ethernet Modem can have a maximum downstream data rate of up to 24Mbps and an upstream of up to 1Mbps.

  • Page 5: Specifications

    ADSL2+ Ethernet Modem HRDSL524 2. Specifications ADSL Standards supported • Compliant to ITU-T G.992.1 (G.dmt), G.992.2 (G.lite), G.992.3 (ADSL2), G.992.4 (splitterless ADSL2), G.992.5 (ADSL2+) for Annex A, B • G.lite (G.992.2) with line rate support of up to 1.5Mbps downstream and 512Kbps upstream.

  • Page 6: Led Meaning

    ADSL2+ Ethernet Modem HRDSL524 2.1 LED Meaning Your ADSL2+ Ethernet Modem has indicator lights. Please see below for an explanation of the function of each indicator light. Power indicator Ethernet Active indicator ADSL Link indicator Internet Active indicator LED function...

  • Page 7: Back Panel Connectors

    ADSL2+ Ethernet Modem HRDSL524 2.2 Back Panel Connectors The below table shows the function of each connector and switch of the ADSL2+ Ethernet Modem’s rear panel. Connector Description SWITCH Power Switch, which used to ON / OFF ADSL2+ Ethernet Modem...

  • Page 8: Hardware Requirements

    ADSL2+ Ethernet Modem HRDSL524 3. Hardware Requirements To use ADSL2+ Ethernet Modem, please have following hardware / accessories ready. • A PC with pre-installed Ethernet Adapter (Required) • 12V power adaptor (Included in the package) • RJ-45 Ethernet cable (Included in the package) •...

  • Page 9: Installation & Setup

    ADSL2+ Ethernet Modem HRDSL524 4. Installation & Setup Follow each step carefully and only go to the next step once you have completed the previous one. 4.1 Connection of ADSL2+ Ethernet Modem If you have an ISDN telephone line Connect the router as shown below.
  • Page 10 ADSL2+ Ethernet Modem HRDSL524 If you have a PSTN telephone line (normal analog line) Connect the router as shown below. Connect the supplied RJ45 Ethernet cable from your PC's Ethernet port to ADSL2+ Ethernet Modem's LAN Port. Connect the supplied RJ11 telephone cable from your home's telephone jack to the LINE port of the supplied ATF085A1R splitter.

  • Page 11: Configuration Procedures

    ADSL2+ Ethernet Modem HRDSL524 5. Configuration Procedures Before starting the ADSL2+ Ethernet Modem configuration, please kindly configure the PC computer as below, to have automatic IP address / DNS Server. For Windows 98SE / ME / 2000 / XP 1. Click on Start > Control Panel (in Classic View). In the Control Panel, double click on Network Connections to continue.
  • Page 12 ADSL2+ Ethernet Modem HRDSL524 3. Double click on Internet Protocol (TCP/ IP). 4. Check Obtain an IP address automatically and Obtain DNS server address automatically then click on OK to continue. 5. Click Show icon in notification area when connected (see screen image in 3. above)
  • Page 13 ADSL2+ Ethernet Modem HRDSL524 For Windows Vista-32/64 1. Click on Start > Control Panel > View network status and tasks. 2. In the Manage network connections, click on Manage network connections to continue.
  • Page 14 ADSL2+ Ethernet Modem HRDSL524 3. Single right click on Local Area connection, then click Properties. 4. The screen will display the information User Account Control and click Continue to continue. 5. Double click on Internet Protocol Version 4 (TCP/IPv4).
  • Page 15 ADSL2+ Ethernet Modem HRDSL524 6. Check Obtain an IP address automatically and Obtain DNS server address automatically then click on OK to continue.
  • Page 16 ADSL2+ Ethernet Modem HRDSL524 For Windows 7-32/64 1. Click on Start > Control Panel (in Category View) > View network status and tasks. 2. In the Control Panel Home, click on Change adapter settings to continue.
  • Page 17 ADSL2+ Ethernet Modem HRDSL524 3. Single right click on Local Area connection, then click Properties. 4. Double click on Internet Protocol Version 4 (TCP/IPv4).
  • Page 18 ADSL2+ Ethernet Modem HRDSL524 5. Check Obtain an IP address automatically and Obtain DNS server address automatically then click on OK to continue.

  • Page 19: Adsl2+ Ethernet Modem Configuration

    ADSL2+ Ethernet Modem HRDSL524 6. ADSL2+ Ethernet Modem Configuration Please insert the supplied CD into your CD-ROM drive. The CD should auto-start, displaying as below. Please click Run autorun.exe to continue. If your CD does not start automatically go to Windows Explorer, Select your CD drive and click autorun.exe.
  • Page 20 ADSL2+ Ethernet Modem HRDSL524 Enter the VPI, VCI, Username and Password your ISP (Internet Services Provider) provided, and Protocol mode. Please click Setup button, when the procedure is completed, it will start to configure the device for a while. Now, checking ADSL 2+ Router hardware connection, ADSL2+ settings, settings, and...
  • Page 21 ADSL2+ Ethernet Modem HRDSL524 Easy setup configuration completed. The connection to the Internet Service is ready to use. Click on Exit to exit this program. Click on Esci to exit this program. Now, the ADSL2+ Ethernet Modem has been configured completed, and suitable for...

  • Page 22: Introduction Of The Web Configuration

    2. Prepare your computer/computer network to connect to the ADSL2+ Ethernet Modem. 3. Launch your web browser. 4. Type "192.168.1.254". 5. A login window displays. Enter the user name (admin is the default), password (hamlet is the default) and press OK. 6. You should now see the “Status” screen.
  • Page 23 ADSL2+ Ethernet Modem HRDSL524 Quick Start You can use Quick Start to setup the router as follows, and the router will connect to the Internet via ADSL line. Click Quick Start to get into the quick setup procedure. Click RUN WIZARD to start up this procedure.
  • Page 24 ADSL2+ Ethernet Modem HRDSL524 Step 2 – Type in your new administrator's password then click Next to continue. Step 3 – Please click Next to setup your time zone. Step 4 – Please click Next to setup your Internet connection type. You can have this...
  • Page 25 ADSL2+ Ethernet Modem HRDSL524 Step 5 - Enter the connection information provided by your ISP and click Next. Step 6 - Enter the connection information provided by your ISP and click Next. Step 7 – Please click CLOSE to finish Quick Start.
  • Page 26 Internet. The synchronized clock in the router is used to recorded the security log and control client filtering. Admin Setting Go to Maintenance-> Administration to set a new username and password to restrict management access to the router. The default is admin (Username) and hamlet (Password).
  • Page 27 ADSL2+ Ethernet Modem HRDSL524 Firmware Update Go to Maintenance > Firmware to upgrade the firmware. The new firmware for your router can improve functionality and performance. Enter the path and name of the upgrade file then click the UPGRADE button below. You will be prompted to confirm the upgrade.
  • Page 28 ADSL2+ Ethernet Modem HRDSL524 System Reset Go to Maintenance > SysRestart to restart your system. In the event that the router stops responding correctly or in some way stops functioning, you can perform a reset. Your settings will not be changed.
  • Page 29 ADSL2+ Ethernet Modem HRDSL524 ADSL Status Go to Status > Device Info. The “ADSL Line Status” enables you to check the status of your ADSL connection including how fast data is being transferred.
  • Page 30 ADSL2+ Ethernet Modem HRDSL524 ADSL Statistics Go to Status > Statistics and select ADSL interface. You can see the traffic Statistics of ADSL interface. VC Configuration Go to Interface Setup > Internet. To add or delete ADSL VC configuration, these...
  • Page 31 ADSL2+ Ethernet Modem HRDSL524 WAN Configuration Go to Interface Setup > Internet. The router can be connected to your service provider in any of the following ways. Dynamic IP Address: Obtain an IP address automatically from your service provider. Static IP Address: Uses a static IP address. Your service provider gives a static IP address to access Internet services.
  • Page 32 ADSL2+ Ethernet Modem HRDSL524 WAN Status Go to Status > Device Info and select the Virtual Circuit to see the connection status.
  • Page 33 ADSL2+ Ethernet Modem HRDSL524 Go to Interface > LAN to enable DHCP server. Then you can set DNS server for the router. A Domain Name system (DNS) server is like an index of IP addresses and Web addresses. If you type a Web address into you browser, a DNS server will find that name in its index and find the matching IP address.
  • Page 34 ADSL2+ Ethernet Modem HRDSL524 DDNS Go to Access Management > DDNS to setup your DDNS parameters. Dynamic DNS allows you to update your dynamic IP address with one or many dynamic DNS services. So anyone can access your FTP or Web service on your computer using DNS-like address.
  • Page 35 ADSL2+ Ethernet Modem HRDSL524 CWMP Item Name Description CWMP Enable or Disable TR069 function Type ACS server’s URL User Name Type ACS server login username Password Type ACS server login password Path Type the path for Connection request Port Type the port for Connection request...
  • Page 36 ADSL2+ Ethernet Modem HRDSL524 LAN Configuration Go to Interface Setup > LAN. The “LAN Settings” option enables you to configure the LAN port. If the DHCP Relay is selected, the DHCP requests from local PCs are forward to the DHCP server runs on WAN side.
  • Page 37 ADSL2+ Ethernet Modem HRDSL524 IP Filtering Go to Access Management > IP Filtering to block some packets form WAN. The router provides extensive firewall protection by restricting connection parameters to limit the risk of intrusion and defending against a wide array of common hacker attacks. The user can set different IP filter rules of a given protocol (TCP, UDP or ICMP) and a specific direction (incoming, outgoing, or both) to filter the packets.
  • Page 38 ADSL2+ Ethernet Modem HRDSL524 ACL Setting Go to Access Management > ACL to enable remote management. The user may remotely access the ADSL Router once setting his IP as a Secure IP Address through selected applications. With the default IP 0.0.0.0, any client would be allowed to remotely access the ADSL Router.
  • Page 39 ADSL2+ Ethernet Modem HRDSL524 Virtual Server Go to Advanced Setup > NAT > Virtual Server to set virtual server as you need (known as Port Mapping).You can configure the router as a virtual server so that remote users accessing services such as the Web or FTP at your local site via public IP addresses can be automatically redirected to local servers configured with private IP addresses.
  • Page 40 ADSL2+ Ethernet Modem HRDSL524 DMZ Setting Go to Advanced Setup > NAT > DMZ to set DMZ parameters. If you have a local client PC that cannot run an Internet application properly from behind the NAT firewall, you can open the client up to unrestricted two-way Internet access by defining a virtual DMZ Host.
  • Page 41 ADSL2+ Ethernet Modem HRDSL524 Dynamic Routing Go to Interface Setup > Internet to select Dynamic Route as you need. The dynamic routing feature of the router can be used to allow the router to automatically adjust to physical changes in the network's layout. The router uses the dynamic RIP protocol.
  • Page 42 ADSL2+ Ethernet Modem HRDSL524 Routing Table Go to Advanced Setup > Routing to see the Routing Table. The Routing table allows you to see how many routings on your routing table and interface information. System Status Go to Status > Device Info to see the router's information. The System Status page shows...
  • Page 43 ADSL2+ Ethernet Modem HRDSL524 SNMP Go to Access Management > SNMP to setup SNMP feature. Simple Network Management Protocol is used for exchanging information between network device. Get Community: Select to set the password for the incoming Get- and GetNext requests from the management station.
  • Page 44 ADSL2+ Ethernet Modem HRDSL524 QoS Setting Go to Advanced Setup > QoS to setup Quality of Service features. This option will provide better service of selected network traffic over various technologies.
  • Page 45 ADSL2+ Ethernet Modem HRDSL524 VLAN Go to Advanced Setup > VLAN to enable VLAN features. Virtual LAN (VLAN) is a group of devices on one or more LANs that are configured so that they can communicate as if they were attached to the same wire, when in fact they are located on a number of different LAN segments.
  • Page 46 ADSL2+ Ethernet Modem HRDSL524 VLAN Group Go to Advanced Setup > VLAN > Define VLAN Group to setup VLAN group features. Firewall Go to Advanced Setup > Firewall to setup Firewall features. Select this option can automatically detect and block Denial of Service (DoS) attacks, such as Ping of Death, SYN...

  • Page 47: Universal Plug-And-Play (Upnp)

    ADSL2+ Ethernet Modem HRDSL524 8. Universal Plug-and-Play (UPnP) 8.1 Universal Plug and Play Overview Universal Plug and Play (UPnP) is a distributed, open networking standard that uses TCP/IP for simple peer-to-peer network connectivity between devices. An UPnP device can dynamically join a network, obtain an IP address, convey its capabilities and learn about other devices on the network.

  • Page 48: Configuring Upnp

    ADSL2+ Ethernet Modem HRDSL524 8.5 Configuring UPnP From the Site Map in the main menu, click UPnP under Access Management to display the screen shown next. The following table describes the labels in this screen. LABEL DESCRIPTION UPnP Select this checkbox to activate UPnP. Be aware that anyone could...

  • Page 49: Installing Upnp In Windows Example

    ADSL2+ Ethernet Modem HRDSL524 8.6 Installing UPnP in Windows This section shows how to install UPnP in Windows Me and Windows XP. 8.6.1 Installing UPnP in Windows Me Follow the steps below to install the UPnP in Windows Me. 1. Click Start and Control Panel. Double-click Add/Remove Programs.
  • Page 50 ADSL2+ Ethernet Modem HRDSL524 8.6.2 Installing UPnP in Windows XP Follow the steps below to install the UPnP in Windows XP. 1. Click Start and Control Panel. 2. Double-click Network Connections. 3. In the Network Connections window, click Advanced in the main menu and select Optional Networking Components.
  • Page 51 ADSL2+ Ethernet Modem HRDSL524 5. In the Networking Services window, select the Universal Plug and Play check box. 6. Click OK to go back to the Windows Optional Networking Component Wizard window and click Next.

  • Page 52: Using Upnp In Windows Xp Example

    ADSL2+ Ethernet Modem HRDSL524 8.7 Using UPnP in Windows XP This section shows you how to use the UPnP feature in Windows XP. You must already have UPnP installed in Windows XP and UPnP activated on ADSL2+ Ethernet Modem. Make sure the computer is connected to a LAN port of ADSL2+ Ethernet Modem. Turn on your computer and ADSL2+ Ethernet Modem.
  • Page 53 ADSL2+ Ethernet Modem HRDSL524 4. You may edit or delete the port mappings or click Add to manually add port mappings. 5. Select “Show icon in notification area when connected” option and click OK. An icon displays in the system tray.

  • Page 54: Web Configuration Easy Access

    ADSL2+ Ethernet Modem HRDSL524 8.8 Web Configuration Easy Access With UPnP, you can access the web-based configuration on ADSL2+ Ethernet Modem without finding out the IP address of ADSL2+ Ethernet Modem first. This comes helpful if you do not know the IP address of ADSL2+ Ethernet Modem. Follow the steps below to access the web configuration.
  • Page 55 ADSL2+ Ethernet Modem HRDSL524 4. An icon with the description for each UPnP-enabled device displays under Local Network. 5. Right-click on the icon for your ADSL2+ Ethernet Modem and select Invoke. The web configuration login screen displays. 6. Right-click on the icon for your ADSL2+ Ethernet Modem and select Properties. A...

  • Page 56: Troubleshooting

    ADSL2+ Ethernet Modem HRDSL524 9. Troubleshooting 9.1 Using LEDs to Diagnose Problems The LEDs are useful aides for finding possible problem causes. 9.1.1 Power LED The PWR LED on the front panel does not light up. STEPS CORRECTIVE ACTION Make sure that ADSL2+ Ethernet Modem’s power adaptor is connected to ADSL2+ Ethernet Modem and plugged in to an appropriate power source.

  • Page 57: Telnet

    ADSL2+ Ethernet Modem HRDSL524 9.2 Telnet I cannot telnet into ADSL2+ Ethernet Modem. STEPS CORRECTIVE ACTION Check the LAN port and the other Ethernet connections. Make sure you are using the correct IP address of ADSL2+ Ethernet Modem. Check the IP address of ADSL2+ Ethernet Modem.

  • Page 58: Login Username And Password

    LINK LED begins to blink, the defaults have been restored and ADSL2+ Ethernet Modem restarts. The default username is “admin”. The default password is “hamlet”. The Password and Username fields are case-sensitive. Make sure that you enter the correct password and username using the proper casing.

  • Page 59: Internet Access

    ADSL2+ Ethernet Modem HRDSL524 I cannot get a WAN IP address from the ISP. STEPS CORRECTIVE ACTION The ISP provides the WAN IP address after authenticating you. Authentication may be through the user name and password, the MAC address or the host name.

  • Page 60: Technology Glossary

    ADSL2+ Ethernet Modem HRDSL524 10. Technology Glossary 10Base-T An adaptation of the Ethernet standard for Local Area Network (LAN). 10Base-T uses a twisted pair cable with maximum length of 100 meters. ATM Adaptation Layer that defines the rules governing segmentation and reassembly of data into cells.
  • Page 61 ADSL2+ Ethernet Modem HRDSL524 File Transfer Protocol. The Internet protocol (and program) used to transfer files between hosts. IPoA (RFC 1577) Classical IP and ARP over ATM. Considers ATM configured as a Logic IP Sub-network (LIS) to replace Ethernet local LAN segments.
  • Page 62 ADSL2+ Ethernet Modem HRDSL524 RFC 1483 Multi-protocol encapsulation over AAL-5. Two encapsulation methods for carrying network interconnect traffic over ATM AAL-5. The first method allows multiplexing of multiple protocols over a single ATM virtual circuit. The protocol of a carried PDU is identified by prefixing the PDU by an IEEE 802.2 Logical Link Control (LLC) header.
