Summary of Contents for Numark NV

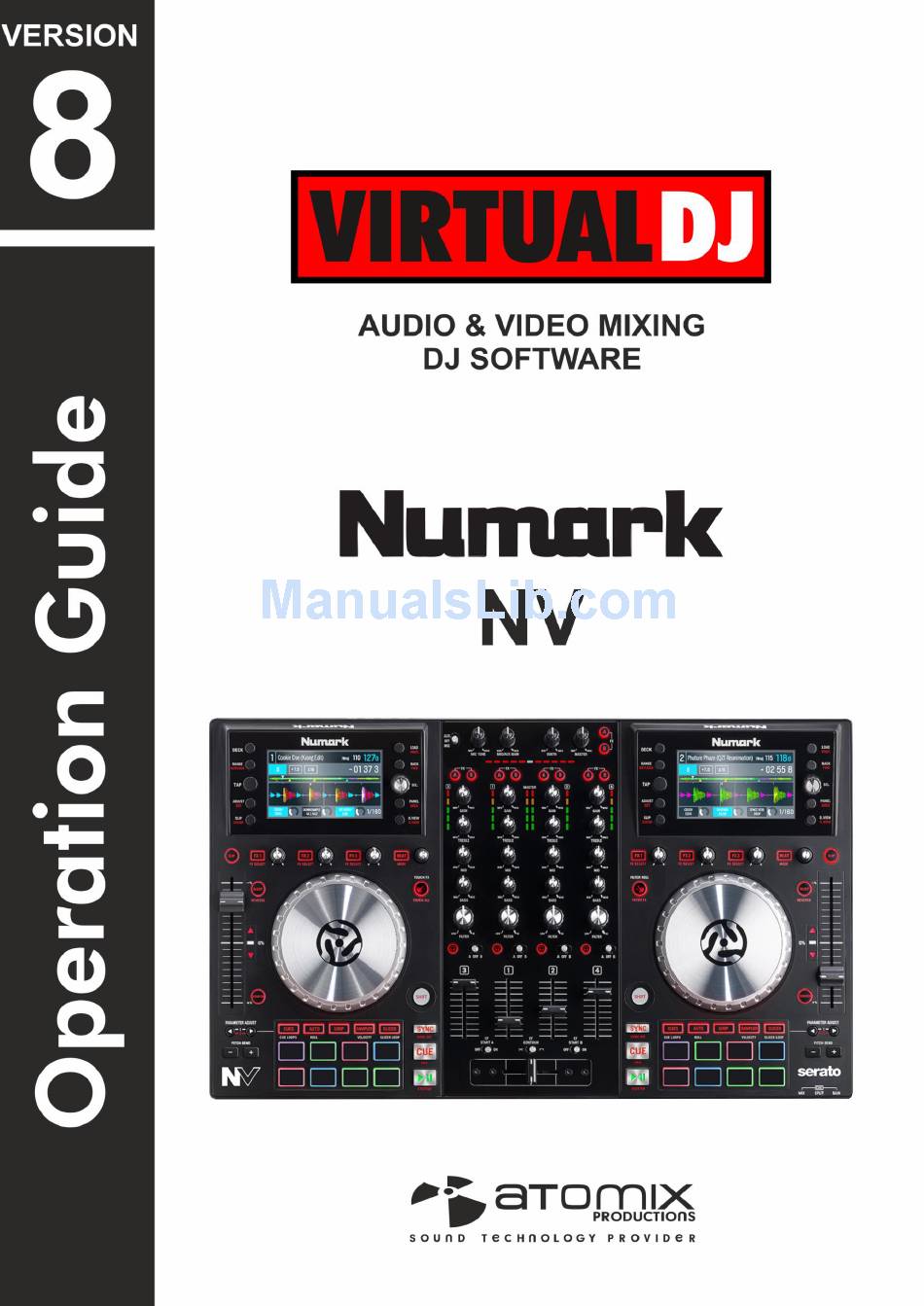

  • Page 1 VirtualDJ 8 – Numark NV...

  • Page 2: Table Of Contents

    Loop Roll mode ........................17 Manual Loop mode ......................18 Saved Loops mode ......................18 Sampler mode ........................19 Sampler Velocity mode ......................20 Slicer mode........................... 20 Slicer Hold mode ........................21 Inputs & Recording ........................ 21 VirtualDJ 8 – Numark NV...

  • Page 3: Installation

    Firmware & Drivers Windows & Mac No drivers are required to be installed and no firmware update is currently available. Numark NV is a USB Class compliant device, however always check the Numark website for any updated notifications http://www.numark.com/product/nv Simply connect the unit’s USB socket with a USB port of your computer, power on and let your Operating system to install the necessary drivers.

  • Page 4: Advanced Setup

    CONTROLLERS tab of Config as 3 devices (Numark NV for the main unit and 2 more for the Left and Right LCD Displays) and the “factory default” available/selected from the Mappings drop-down list for all 3 of them.

  • Page 5: Front Side - Headphones

    S. SHIFT. Press and hold this button to access secondary functions (in red lettering) of other controls on the NV. A. Front Side - Headphones 1. HEADPHONES SOCKET. Connect your 1/4" or 1/8" headphones to this output for cueing and mix monitoring.

  • Page 6: Rear Side - Connections

    While the power is switched off, plug the cable into NV first, and then plug the other end into a power outlet. Use the Power Switch to turn the NV on and off. Turn on the NV after all input devices have been connected and before you turn on amplifiers.
  • Page 7 (aka "EQ kill").* 21. EQ MID. Adjusts the middle (mid) frequencies of each mixer channel/deck. When Touch EQ Mode is activated, touching the knob will mute the corresponding channel's mid frequencies (aka "EQ kill").* VirtualDJ 8 – Numark NV...
  • Page 8 VirtualDJ GUI) 31. MASTER FX A/B : Use these buttons to display and control the Master Effects (Audio, Video and Video Transition) with the left (A) or/and right (B) Effects side of the NV (see Effects) VirtualDJ 8 – Numark NV...

  • Page 9: Deck Controls

    37. PITCH BEND. Press and hold down to temporary speed up/slow down the song while pressed. When released, the track playback will return to the speed designated by the Pitch Fader 38. PADS PARAMETER. Offer different functions depending on the selected PADs Mode. See Pads. VirtualDJ 8 – Numark NV...

  • Page 10: Effects

    Hold SHIFT down and then press the BEAT (46) button to toggle between the Single FX and Multi FX effects mode. Use the MASTER FX A and B buttons (31) to assign the left (A) or right (B) Effect unit to Master FX Effect mode. VirtualDJ 8 – Numark NV...
  • Page 11 Multi-FX Mode: The knobs control the 1 parameter of the selected Effect on FX Slot 1. Hold SHIFT down and then use this knob to control the 2 parameter of the selected Effect on FX Slot 1. VirtualDJ 8 – Numark NV...

  • Page 12: Other Controls & Display

    CBG to start moving from that point. 55. TAP. Manually adjust the tempo of the song. Tap this button at the same tempo as the track to help the software detect a different BPM reading (if needed). VirtualDJ 8 – Numark NV...
  • Page 13 The track's tempo will remain at the speed designated by the Pitch Fader 57. DECK. Swap Left decks (1 and 3) and Right Decks (2 and 4). The left side of the NV will control VirtualDJ decks 1 or 3, and the right side will control VirtualDJ decks 2 or 58.

  • Page 14: Display

    (Library – Songs List) 1. Deck: Indicates the number of the currently left/right selected deck of VirtualDJ controlled by the left/right side of the NV. Press the DECK button to switch between the decks. 2. Track Name: Displays the Title of the currently loaded track.
  • Page 15 14. Not used: Will always display 1. 15. Folders names Displays the name of the selected folder. In Songs List view, if the Sideview is selected, the name of the selected view will be displayed. VirtualDJ 8 – Numark NV...

  • Page 16: Pads

    Loop Press and hold SHIFT and then press a pad to delete its assigned Hot Cue Point. Use the PARAMETER < and > buttons (38) to half and double the size of the applied Loop. VirtualDJ 8 – Numark NV...

  • Page 17: Auto Loop Mode

    In this mode the PARAMETER (38) buttons have no functionality. The LCD screen displays the sizes of the assigned Loop Rolls for each pad and the size of the triggered Loop Roll as well on the Loop Box. VirtualDJ 8 – Numark NV...

  • Page 18: Manual Loop Mode

    (prepare) the Saved Loop. If the track’s position is before the Saved Loop point, the loop will be enabled but the track will not jump to that position (Prepare status). Use the same Pad to disable the Loop. VirtualDJ 8 – Numark NV...

  • Page 19: Sampler Mode

    Hold the SAMPLER mode button down and then use the BEATS encoder (44) to adjust the Master Output Volume of the Sampler. Hold SHIFT down and then press the SAMPLER mode button to record/stop recording the deck to a new Sample (led will blink fast while recording). VirtualDJ 8 – Numark NV...

  • Page 20: Sampler Velocity Mode

    Use the PARAMETER < and > buttons (38) to adjust the length of the Loop applied to the slice. Press SHIFT and then use the same PARAMETERS < and > buttons to adjust the step of the Slices. VirtualDJ 8 – Numark NV...

  • Page 21: Slicer Hold Mode

    If you wish to record both the software mix and the Inputs (Microphone and Line Ins) at the same time, you will need to: Route the Booth Output of the NV to a Line Input of a different sound card (could be the MIC/LINE Input of your computer’s built-in sound card) using suitable RCA...
  • Page 22 Numark NV product page: http://www.numark.com/product/nv Numark NV User Guide: http://www.numark.com/images/product_downloads/NV_- _User_Guide_-_v1.1.pdf Hardware Integration Department 2015 - ATOMIX PRODUCTIONS Reproduction of this manual in full or in part without written permission from Atomix Productions is prohibited. VirtualDJ 8 – Numark NV...
