Grant SV200 Quick Start Manual

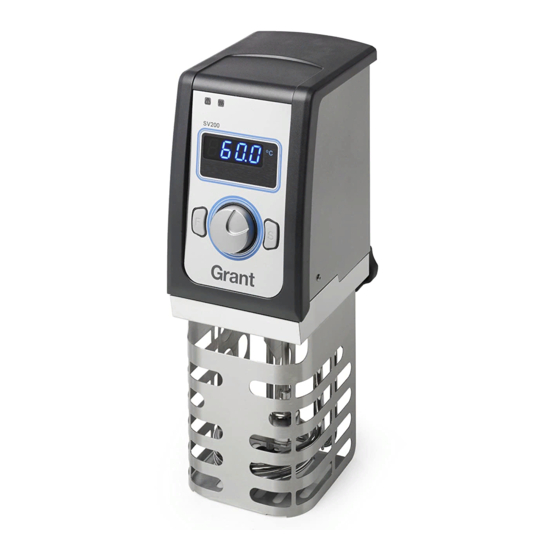

SV200 Universal stirred heater for sous vide cooking
Quick Start Guide

Important Safety Information


Read this quick start guide in full. Safety may be impaired if it is not followed.

Only connect to the voltage and frequency shown on the serial number plate. An earth is required.

The SV200 is designed for use with water only.

Safety can only be assured if the SV200 is clamped firmly to a vessel with suitable stability and robustness and
placed on a level non-combustible surface.

Ensure the SV200 is positioned so that the plug is easily accessible for disconnection.

Before moving or cleaning, allow the unit to cool down and disconnect from the power supply.

Do not use the SV200 to heat any material that could cause fire or any other hazard.

When using the SV200 at temperatures above 60˚C, use a cover where possible to avoid excessive evaporation.

The alarm light warns that the SV200 is in a state that could be cause harm. Care should be taken when
investigating the warning.
1
2
3

Setting the temperature

1. Press S: Display 2. Rotate dial to
will flash
Setting a countdown timer
1. Press F twice – the display will show "Cloc".
2. Press S to select.
3. Rotate dial to select "On". Press S to select. The dis-
play flashes with time (in minutes) rotate the dial to set
time required (1 to 6000min).
4. Press S to save. The display alternates between bath
temp and time remaining.
5. An alarm will sound when the countdown timer reaches
zero. "End" will be displayed. Press F or S to accept
Service Department,
Grant Instruments (Cambridge) Ltd
Shepreth, Cambridgeshire, SG8 6GB, UK
3. Press S to
desired temp store value
4

Features

1. Alarm Light
2. Display
3. F (function) Button
4. Heater On Light
5
5. S (select) Button
6
6. Dial
7. Clamp and cage
8. Float: low liquid level protection
7
8
Configuring and running a temperature preset
The SV200 contains three presets which can be configured to
commonly used temperatures.
To set a preset temperature:
1. Press F, rotate the dial until 't-1' is shown, press S to select.
2. Rotate the dial to define the temperature, press S to set.
Repeat for presets 2 and 3.
To run a preset:
1. Press F, rotate dial until required preset is displayed
2. Press S twice to begin running the preset
Clean the unit with a damp cloth, using only water. Do not
use chemical cleaning agents. Do not submerge unit in water.
Do not immerse or de-scale the clamp. Scale on the cage
and heater element can be removed using a chemical de-
scaling product designed for use on kitchen equipment with
metal parts. Warning: de-scaling products maybe toxic.
Follow manufacturers instructions.
Do not wash the clamp and cage in a dishwasher.
.
If anything is spilt into the equipment, disconnect it from the
power supply and have it checked by a competent person.
T: +44 (0)1763 260 811
F: +44 (0)1763 262 410

Cleaning

E: labservice@grantinstruments.com
W: www.grantinstruments.com
30449 V4 Mar 2013
