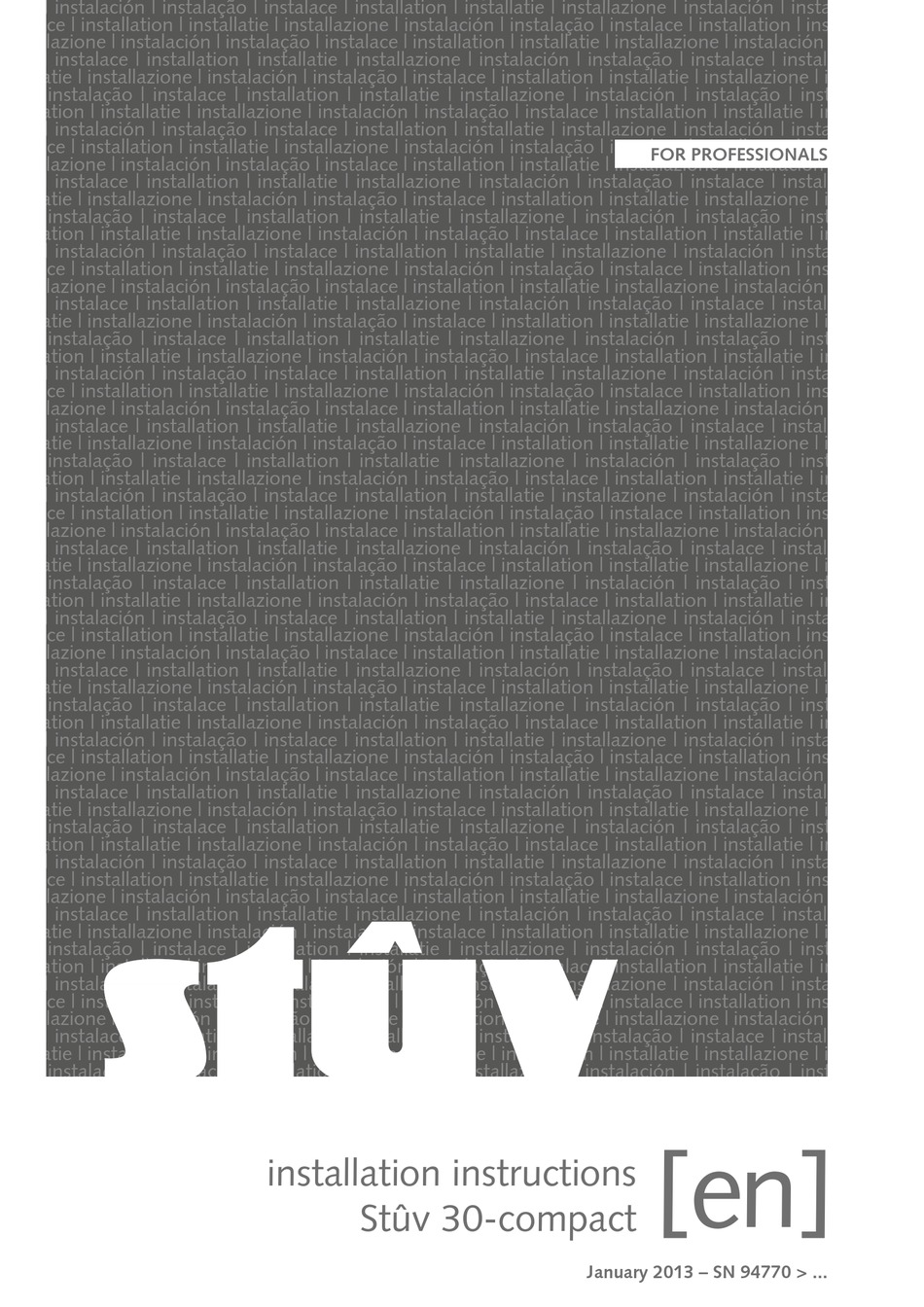

Stûv 30-compact

January 2013 – SN 94770 > ...

Table of Contents

Need help?

Do you have a question about the 30-compact and is the answer not in the manual?

Questions and answers

Summary of Contents for Stûv 30-compact

Page 1 | installazione | instalación | instalação | instalace | installation | installatie | installazione | instala- ción | instalação | instalace | installation | installatie | installazione | instalación | instalação | instalace | Stûv 30-compact January 2013 – SN 94770 > ...
Page 2: Table Of Contents
Connection to smoke flue Accessories for the connection to the smoke flue Directing the stove Final assembly Adjusting the minimum valve opening stop When installation of the stove is complete… CoNtACtS Stûv 30-compact - installation [en] - 01/13 SN 94770 - ...
Page 3: Presentation Of The Product
Average smoke temperature at rated power : 302°C Nominal heat power : 6 kW Efficiency : > 80% Particle emissions : 18 mg/Nm Please read the installation instructions and directions for use ! Stûv 30-compact - installation [en] - 01/13 SN 94770 - ...
Page 4 Minimum draught needed to obtain the rated calorific output 12 Pa 12 Pa 7 Pa Weight-flow ratio of smokes 4.9 g/s 4.6 g/s 33.6 g/s Average smoke temperature at rated power 325 °C 340 °C 180 °C Stûv 30-compact - installation [en] - 01/13 SN 94770 - ...
Page 5: Dimensions
[diagram 1/b] can be considerable. Whatever the direction of the rotating stove, ensure safe distances from ≥ 100* combustible materials are maintained. * safe distances from combustible materials Stûv 30-compact - installation [en] - 01/13 SN 94770 - ...
Page 6: The Clean Air Act 1993 And Smoke Control Areas
(local Any modification made to the system and national) and all standards may be dangerous and will invalidate (national and European). the guarantee. Stûv 30-compact - installation [en] - 01/13 SN 94770 - ...
Page 7: Preparation Of The Area
4 elbows (see table below). (risk of draughtback). They can affect the operation of the stove even if it is connected to an outside air inlet. Stûv 30-compact - installation [en] - 01/13 SN 94770 - ...
Page 8: Smoke Flue
Smoke flue take care to avoid heat loss ! Ensure the flue’s dimensions meet As the Stûv 30-compact is a highly local regulations and the applicable efficient stove, the smoke flue must If several flues are available : only use installation standards in line with good be of good quality.
Page 9: Holding Capacity Of The Structure
10 cm resistant to high temperatures. 0,4 x 2,5 tools 10 cm ph 2 0,4 x 2,5 0,4 x 2,5 ph 2 ph 2 8 & 13 Stûv 30-compact - installation [en] - 01/13 SN 94770 - ... 10 cm...
Page 10: Installation
Handle the system with care final position. when installing. If you are unable to transport the stove on its pallet to its final position, please observe the following unpacking instructions. Stûv 30-compact - installation [en] - 01/13 SN 94770 - ...
Page 11: Unpacking
Please note ! Never undo the two screws holding the support panel in place : it is factory adjusted and fixed [photo 5]. Stûv 30-compact - installation [en] - 01/13 SN 94770 - ...
Page 12: Removing The Exterior Parts Of The Stove
– open the door and undo the two nuts and bolts (M6x12 hexagonal heads) holding the hand-lift truck protection in place [photo 5 and 6]. – pick up the 2 nuts and close the door. Stûv 30-compact - installation [en] - 01/13 SN 94770 - ...
Page 13 [photo 8]. > remove the doors : half open them gently [photo 9], lift them off their hinges and slide them to the left [photo 10]. Stûv 30-compact - installation [en] - 01/13 SN 94770 - ...
Page 14: Unpacking The Interior Components Of The Stove
Tilt and gently slide the smoke deflector towards the back [photos 3 and 4]. Turn it clockwise to release the deflector and its control [photo 5]. Let the deflector drop down [photo 6]. Stûv 30-compact - installation [en] - 01/13 SN 94770 - ...
Page 15 > the back holder : remove the pressure screw keeping the deflector cradle in place [photo 13] and pull the back holder forwards [photo 14]. Tilt it towards the stove opening. Stûv 30-compact - installation [en] - 01/13 SN 94770 - ...
Page 16 [photo 16]. > the stove hearth holder : lift it up and tilt it by 90° [photos 17 and 18]. > the smoke deflector cradle [photos 19 to 21]. Stûv 30-compact - installation [en] - 01/13 SN 94770 - ...
Page 17: Final Positioning Of The Stove
50 cm. Cut it if necessary. > Connect the flue to the back of the stove (using 2 M5x6 hexagonal head screws and a size 8 spanner) [photo 6]. Stûv 30-compact - installation [en] - 01/13 SN 94770 - ...
Page 18 > Prepare the 2 panels by removing the lower pre-cut part (using a metal saw) [photo 13]. Smooth the panel edges with a half-moon file. > Put the stove in position [photo 14]. Stûv 30-compact - installation [en] - 01/13 SN 94770 - ...
Page 19: Levelling The Stove
> Adjust the last three feet. Note ! The holes in the lower ring can be used to fix the stove to the floor [photo 3]. Stûv 30-compact - installation [en] - 01/13 SN 94770 - ...
Page 20: Connection To Smoke Flue
Stûv offers a range of accessories for connecting the Stûv 30-compact to the smoke flue. – Recessable wall connector [photo 1], – Black duct ; straight and bent [photo 2]. Stûv 30-compact - installation [en] - 01/13 SN 94770 - ...
Page 21: Directing The Stove
> 180° rotation when the stove is placed along a wall [diagram 4]. > 270° rotation when the stove is placed in front of a corner or a pillar [diagram 5]. Stûv 30-compact - installation [en] - 01/13 SN 94770 - ...
Page 22 (continued) Smoke connection going upwards with outside air inlet at the back [diagram 6] > 90° rotation : only configuration possible in this case [diagram 7 and photo 8]. Stûv 30-compact - installation [en] - 01/13 SN 94770 - ...
Page 23 > for 180° [photo 5] > for 270° [photo 6] 90° Please note ! Ensure that you fix the stop the right way around (look closely at the photos). 180° 270° Stûv 30-compact - installation [en] - 01/13 SN 94770 - ...
Page 24: Final Assembly
[photo 7]. Then fix the upper part of the panels by screwing them into place (using 4 M5x8 hexagonal head screws) [photo 8]. Stûv 30-compact - installation [en] - 01/13 SN 94770 - ...
Page 25: Adjusting The Minimum Valve Opening Stop
– keeps the glass door clean. AttENtIoN ! In smoke control areas The air control stop must be set so that it cannot be closed beyond the position between 3 and 4.[diagram 4] Stûv 30-compact - installation [en] - 01/13 SN 94770 - ...
Page 26: When Installation Of The Stove Is Complete
When the fire is lit for the first time, it may give off some smoke and odours : ventilate the room well. Consult the instructions for use. Stûv 30-compact - installation [en] - 01/13 SN 94770 - ...
Page 29 ADDRESS WHERE WORkS WERE CARRIED OUT ........POST CODE .................... TOWN/PLACE ..................COUNTRY ....................INStALLAtIoN ENgINEEr COMPANY ....................Your StûV StoVE 30-CoMPACt SERIAL N° ....................DATE OF INSTALLATION ................ FLuE ChArACtErIStICS HEIGHT OF FLUE IN M ................DIAMETER OF FLUE IN MM ..............
Page 31 T +372 56 249 004 - www.tulering.ee Peacock trading Estate, Goodwood Rd Slipgatan 2 – 117 39 Stockholm S050 4NT Eastleigh – Hampshire T 0707 883 53 – www.eldoform.se T 0870 727 0105 jetmastersales@aol.com www.jetmaster.co.uk Stûv 30-compact - installation [en] - 01/13 SN 94770 - ...
Page 32 | instalación | instalação | instalace | installation | installatie | installazione | instalación | instalação | instalace | installation | installatie | installazione | instalación | instalação | instalace | installation | installatie Stûv 30-compact | installazione | instalación | instalação | instalace | installation | installatie | installazione | instalación | insta- lação | instalace | installation | installatie | installazione | instalación | instalação | instalace | installation |...
