Use and Care Manual
Induction
_JENN-AIR
1
RadiantCooktop
, _ _E_ _ ou_ s T_E_.
_o_• N_0_. ,,50_ i
L
1
p.-

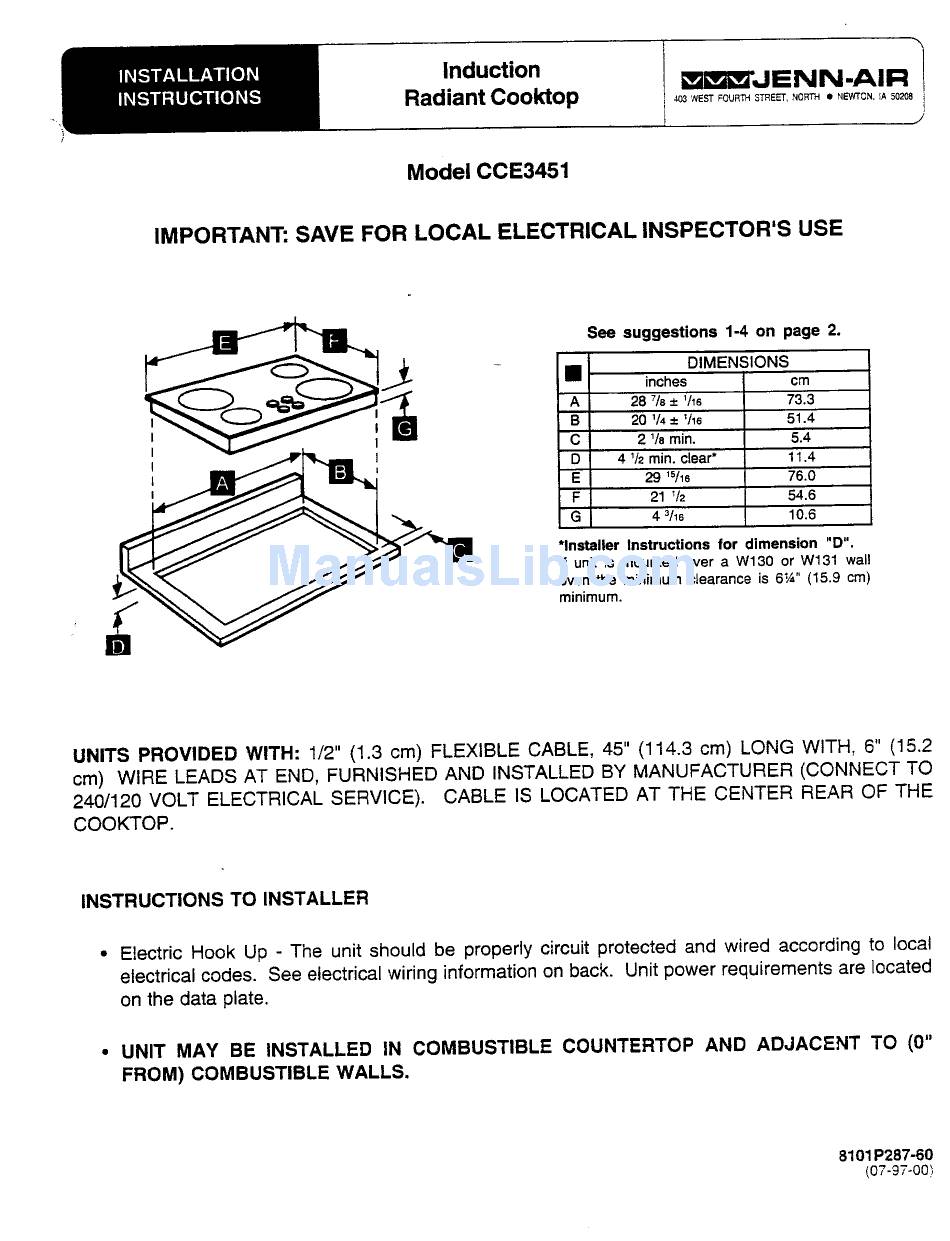

INSTALLATION
INSTRUCTIONS
Model CCE3451
IMPORTANT:SAVE FOR LOCAL ELECTRICALINSPECTOR'SUSE
See suggestions
1-4 on page 2.
-
DIMENSIONS
' •
inches
cm
A
28
7/8 "k 1/16
73.3
B
20 1/4=l: ' /16
51.4
C
2 1/8rain.
5.4
D
4 1/2rain.clear*
11.4
E
29 W16
76.0
F
21 V2
54.6
G
4 3/16
10.6
*installer Instructions for dimension "D".
If unit is mountedover a W130 or W131 wall
oven the minimumclearance is 61/_ " (15,9 cm)
minimum.
UNITS PROVIDED WITH: 1/2" (1.3 cm) FLEXIBLE CABLE, 45" (114.3 cm) LONG WITH, 6" (15.2
cm) WIRE LEADS AT END, FURNISHED AND INSTALLED BY MANUFACTURER (CONNECT TO
240/120 VOLT ELECTRICAL SERVICE).
CABLE IS LOCATED AT THE CENTER REAR OF THE
COOKTOP.
INSTRUCTIONS TO INSTALLER
• E!ectric Hook Up - The unit should be properly circuit protected and wired according to local
electrical codes. See electrical wiring information on back. Unit power requirements are located
on the data plate.
• UNIT MAY BE INSTALLED IN COMBUSTIBLE COUNTERTOP AND ADJACENT TO (0"
FROM) COMBUSTIBLE WALLS.
8101 P287-60
(07-97-00)
