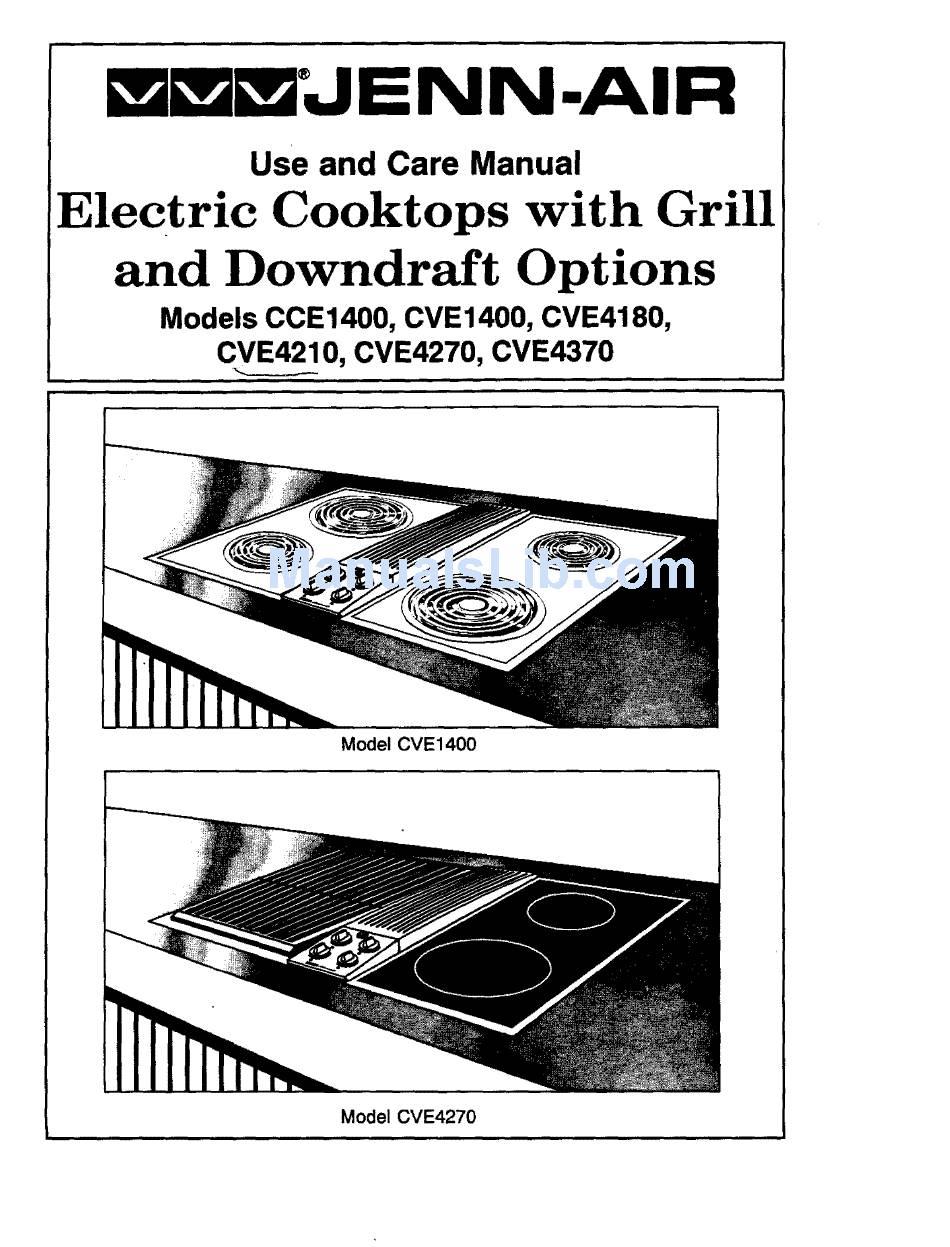

Use and Care Manual
mmmJENN-AIR
Use and Care Manual
Electric
Cooktops
with
Grill
and Downdraft
Options
Models CCE1400, CVE1400, CVE4180,
CVE4210, CVE4270, CVE4370
Model CVE1400
Model CVE4270
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Jenn-Air CCE1400
Summary of Contents for Jenn-Air CCE1400
- Page 1 mmmJENN-AIR Use and Care Manual Electric Cooktops with Grill and Downdraft Options Models CCE1400, CVE1400, CVE4180, CVE4210, CVE4270, CVE4370 Model CVE1400 Model CVE4270...
-
Page 2: Read Before Operating
Do not repair or replace any part of the appliance unless specifically recommended in this manual. All other servicing should be referred to an authorized Jenn-Air Service Contractor. Flammable materials should not be stored near surface units. Do not use water on grease fires. Smother fire orflame or use dry chemical or foam-type extinguisher. - Page 3 Do not cook on glass-ceramic cooking surface if the cooktop is broken. Cleaning solutions and spillovers may penetrate the broken cooktop and create a shock hazard. Contact an authorized Jenn-Air Service Contractor. Clean glass-ceramic cooktops with caution. If wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid steam burns.
- Page 4 Should you have any questions about using your Jenn-Air cooktop or need a use and care manual for your cooktop cartridge, write to us at...
- Page 5 The built-in ventilation system removes cooking vapors, odors and smoke from foods prepared on the cooktop, grill and grill accessories. Regular use of this system will insure a more comfortable and less humid kitchen which is free of heavy cooking odors and fumes that normally create a frequent need for cleaning...
- Page 6 The infinitesurfacecontrolsprovideflexibilityin settingselectionwhen usingthe cook- top or grill. i To Set Control s J • Since the controls are a push-turn type, they must be pushed down before turn- ing. To set (from the OFF position), push down on control knob and turn in either direction to desired setting.
- Page 7 Cooktop cartridges can be installed in most cooktops. Cartridge options include conventional coil, halogen, radiant, or solid element. [ To Install Cartridges 1. If the grill grates, element, and/or grill-rocks are in place, remove before installing a cooktop cartridge. Clean basin pan of any grease accumulation. (See page 16 for cleaning recommendations.) 2.
- Page 8 To achieve optimum cooking performance, use heavy gauge, f/at, smooth bottom cookpots that conform to the diameter of the element (no more than one inch overhang). Proper cookpots will minimize cooking times, use less electricity, cook food more evenly and require less water or oil. Cookpots with thin, uneven bottoms do not adequately conduct heat from the element to the food in the cookpots which results in hot spots, burned or underdone food.
- Page 9 [ ImproPer C0okware I • Do not use cookware that extends more than 1 inch beyond the edge of the element. • Do not use a small cookpot on a large element. Not only can this cause the element to require more energy and time, but it can also result in spillovers burning onto the element which cause extra effort in cleaning.
- Page 10 It has a flat bottom and is designed to be used on the small element. • Large stockpots and canners should be used with Jenn-Air's "Big-pot" canning element only (Model A145A). The use of large pans on the large element on Hi for extended periods of time can cause damage to the cooktop, discolor chrome drip pans, shorten the life of the etement, as well as trap excess heat inside the cooktop.
- Page 11 [ Follow These Procedures When Canning • Bring water to boil atHi setting; after boiling has begun, reduce heat to lowest setting that will maintain boiling. • Make certain canner fits over center of surface unit. • Flat-bottomed canners give the best canning results. •...
- Page 12 The grill accessory consists of two black grill grates, a grill element and two grill-rocks [ To Install Grill ] 1. Before installing grill components, be certain surface controls are OFF. 2. Place the two grill-rocks into an empty basin pan with their handles running parallel to the front of the cooktop.
- Page 13 I Using the Grill Before the first use, wash your new grill grates in hot soapy water, rinse and dry. Then "season" the surface by wiping on a thin coating of cooking oil. Remove excess oil by wiping again with another paper towel. This procedure should be repeated when either: a) cleaning in the dishwasher since the detergent may remove seasoning, or b) anytime a surgar-based marinade (for example, barbecue sauce) is going to be used.
- Page 14 i,, ,,,i i,,,,,,,,, I Grill Guid e J Preheat grill on Hi, 5 minutes, for best flavor. Type Setting Cooking Time Procedure Steak (1/2 - 3/4") 9 to 12 minutes Tum after 5 to 6 minutes. Rare Medium 12 to 19 minutes Tum after 6 to 9 minutes.
- Page 15 [Grilling Tips i With your Jenn-Air grill and accessories, literally any food you've considered "at its best" when prepared outdoors can now be prepared indoors with less fuss and great flavor. The following suggestions are good rules to follow and will increase your enjoyment of the equipment.
- Page 16 [ Cleaning the Grill Be sure the grill is coo] and controls are OFF. Grill Grates: These are made from cast aluminum and are coated with the Excalibur_ nonstick finish. • After the grill grates have cooled, wipe off grates with a paper towel. Wash cool grates IMMERSE...
- Page 17 Zud, Bar Keepers Friend, or Luneta (Jenn-Air Model A912, Part No. 712191 ). With a sponge or cloth, rub cleanser with the grain to avoid streaking the surface. Rinse well, buff dry; polish with a glass cleaner...
- Page 18 I Porcelainized Steel Cooktop • Wash cool cooktop with warm soapy water and rinse. Polish with a dry cloth. • To clean stubborn spots, clean with Cook'top Cleaning Creme (Part No. 20000001) and a sponge. Do not use abrasive or caustic cleaning agents which may permanently damage the finish.
- Page 19 Jenn-Air's ventilation system is designed to capture both cooking fumes and smoke while grilling, if the system does not, these are some ducting installation situations check: • 6" diameter round or 3 1/4" x 10" rectangular ducting should be used.
- Page 20 Grill Cover Griddle Grill Accessory Model Model A341 A158 Model A302 Attractive grillcover Grill accessory includes Self-draining griddle protects grill when grill-rocks, Energy- makes many favorite not in use. Tex- foods easier to fix. Saver grill element, tured steel with two black nonstick grill Family-sized surface lets...
- Page 21 Wok Accessory Canning Element Model AO142 Model A145A Ideal for stir-frying, steaming, Special canning element plugs into braising, and stewing. Wok conventiona/ coi/cooktop/cartridge nonstick finish, wood handles, raising the heating element above the cooking surface. Allows use of cover, steaming rack, rice paddles oversized utensils and those with and cooking tips.
- Page 22 Refer to WARRANTY for further information of owner's responsibilities for warranty service. • if the dealer or service company cannot resolve the problem, write to Jenn-Air Customer Assistance, c/o Maytag Customer Service, P.O. Box 2370, Cleveland,...
