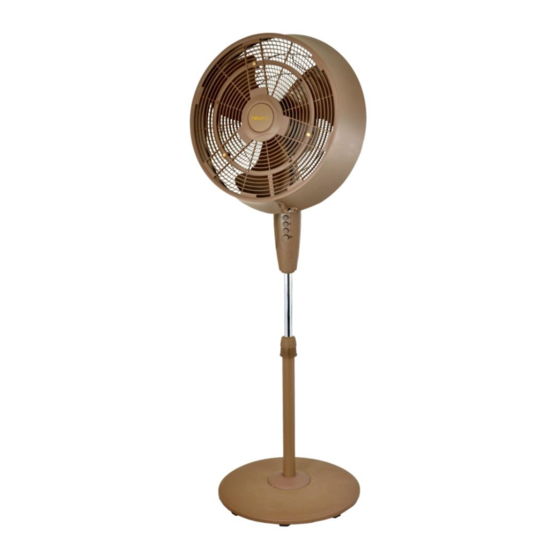

- Page 1 AF-520 16” Outdoor Misting Fan OWNERS MANUAL Read and save these instructions.
- Page 2 Count on NewAir. As a proud NewAir owner, welcome to our family. There are no robots here, real people shipped your product and real people are here to help you.
-
Page 3: Table Of Contents
Operating Instructions ..............8 Fan-Only Operation ..............8 Misting ..................8 Cleaning & Maintenance..............8 Misting Nozzel Maintenance ............ 9 Storage ..................9 Troubleshooting ................10 Limited Manufacturer’s Warranty ..........11 SPECIFICATIONS AF-520 ODEL 120V OLTAGE 0.45A URRENT 60Hz REQUENCY OWER... -
Page 4: Safety Information & Warnings
Do not use any appliance with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair. Children should be supervised to ensure they do not play with the appliance. Keep cord away from traffic areas to avoid risk of tripping. http://www.NewAir.com... -
Page 5: Parts List
PARTS LIST A. Front grille Motor housing Q. External pole B. Blade cap Push button R. Misting line C. Fan blade K. Thumb screw Filter washer D. Plastic sleeve Power cord T. Valve Plastic nut M. Waterproof cover U. Screws (pre- Rear grille N. -
Page 6: Assembly Instructions
Slide the fan blade (C), with the hollow interior of the blade facing towards the rear grille, onto the motor shaft. Secure the fan blade onto the motor shaft by turning the blade cap counterclockwise until it is firmly in place http://www.NewAir.com... -
Page 7: Final Assembly - Fig. 4
Mount the front grille (A) with the logo in the proper direction and secure the front grille and the rear grille together by fastening eight grille clips. Secure the screw. FINAL ASSEMBLY – FIG. 4 Loosen the thumb screw (K) by turning it counterclockwise. Always keep the water proof cover (M) even with the height adjustment knob (P) when adjusting the internal pole (O). -
Page 8: Operating Instructions
Turn the lever to the left to temporarily shut down the mist. CLEANING & MAINTENANCE The fan requires little maintenance. Do not try to fix it by yourself. Refer it to qualified service personnel if service is needed. Disconnect from the electric socket during cleaning or assembly. http://www.NewAir.com... -
Page 9: Misting Nozzel Maintenance
To ensure adequate air circulation to the motor, keep the vents at the rear of the motor housing clear of dust, fluff, etc. Unplug the fan before using a vacuum cleaner to clean the grilles. It should not be necessary to disassemble the fan to clean it. -
Page 10: Troubleshooting
Nozzles are The nozzles are clogged. Clean the clogged nozzles on leaking or the front of the fan as dripping. described under “Cleaning & Maintenance.” http://www.NewAir.com... -
Page 11: Limited Manufacturer's Warranty
When making a warranty claim, please have the original bill of purchase with purchase date available. Once confirmed that your appliance is eligible for warranty service, all repairs will be performed by a NewAir™ authorized repair facility. The purchaser will be responsible for any removal or transportation costs.
