Summary of Contents for NewAir NMF8K7BK00

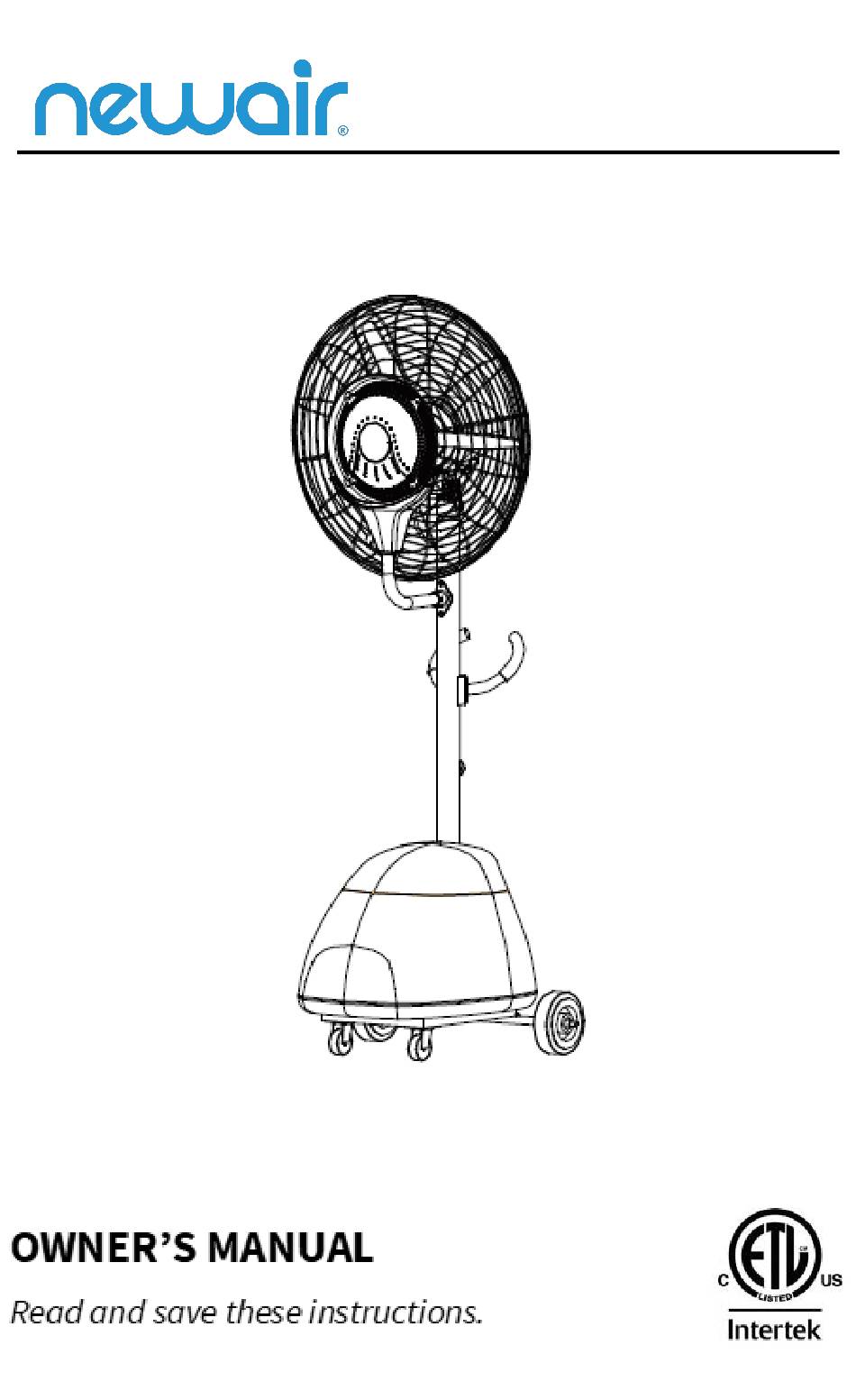

- Page 1 SKU: NMF8K7BK00 26" Outdoor Misting Fan Manual v1.0...
-
Page 2: Table Of Contents
Safety Information & Warnings ................4 Parts List ....................... 6 Assembly Instructions ..................9 Operating Instructions ..................15 Cleaning And Maintenance ................16 Troubleshooting ....................17 Limited Manufacturer’s Warranty ..............18 SPECIFICATIONS NMF8K7BK00 ODEL 120V ATED OLTAGE 300W ATED OWER... -
Page 3: Register Your Product Online
REGISTER YOUR PRODUCT ONLINE Register Your NewAir Product Online Today! Take advantage of all the benefits product registration has to offer: Service and Support Diagnose troubleshooting and service issues faster and more accurately Recall Notifications Stay up to date for safety, system updates and recall notifications... -
Page 4: Safety Information & Warnings
Do not run the power cord under mats or carpeting and do not cover the power cord with runners. Arrange the power cord away from room traffic where it can be tripped over. • Do not operate this misting fan in the presence of flammable substances, explosives or corrosive material. newair.com... - Page 5 This product is not a toy, small children should always be under strict adult supervision if operating this appliance. • Allow damaged supply cords to be replaced by the manufacturer, a service agent or a similarly qualified person to avoid hazard to yourself. SAVE THESE INSTRUCTIONS newair.com...
-
Page 6: Parts List
21. Ball valve 8. Flexible tube 22. Water tank cover 9. Plug 23. Tank cart 10. Misting motor 24. Wheel 11. Front grill 25. Caster 12. Blade 26. Water pump 13. Rear grill 27. Water tank 14. Fan motor newair.com... - Page 7 7. The pump is fully insulated and enclosed with a protective structure for safe operation. 8. Easy to use with three adjustable speeds and left and right oscillation function. 9. Designed for cooling large areas such as patios, factories, manufacturing facilities, garages, athletic fields, greenhouses, livestock breeding farms and more. newair.com...
- Page 8 WIRING DIAGRAM newair.com...
-
Page 9: Assembly Instructions
4. Align the holes on the pole with the four holes on the cart. 5. Using the bolts, washers, and nuts removed in step 1, screw the stand pole into the tank cart. 6. Make sure the stand pole is securely screwed onto the cart before proceeding to the next step. newair.com... - Page 10 2. Insert the blue tube and black tube into the round hole of the front cover. Insert the blue tube into the water pump connector. Ensure that the tubes in the stand pole don’t bend or twist once inserted. 3. Mount the front cover onto the stand pole and fix with screws. newair.com...
- Page 11 U-groove hole in front of the stand pole. Plug the three-pin plug into the three-pin socket. 6. Connect the two tubes. Make sure each tube matches with its same color tube. 7. Plug the four-pin plug into the four-pin socket. Mount the side panel and connector. newair.com...
- Page 12 3. Ensure the pump tube, water recycling tube and pump power cord get through U-groove of tank cover and get securely suctioned to the bottom of the water tank. 4. Pull the fan power cord out of the tank bottom. 5. Mount the handle on the stand pole. newair.com...
- Page 13 3. Press misting button to run misting motor and water pump, and check if the misting motor, misting plate and water pump operate correctly. 4. Turn ball valve from "off" to "on” and observe the misting adjustment function. 5. Adjust the oscillation screw, and check if the oscillation function works smoothly. newair.com...
- Page 14 newair.com...
-
Page 15: Operating Instructions
When using the handcart, please lock the front cartwheel to avoid slipping. To move the handcart, loosen the front cartwheel lock. • Clean the water tank before using and take out the water pump before cleaning the water tank. newair.com... -
Page 16: Cleaning And Maintenance
5. To ensure smooth unit oscillation, apply grease or oil to the rotary part of the mechanism every 6 months. 6. For long storage periods clean unit and cover entirely to avoid dust or dirt accumulation. newair.com... -
Page 17: Troubleshooting
3. The valve is open. 1. Reduce the water supply Water supply is too by turning the valve Mist output is too strong. handle counterclockwise. strong. Fan speed is in high 2. Set the fan speed to low setting. setting. newair.com... -
Page 18: Limited Manufacturer's Warranty
When making a warranty claim, please have the original bill of purchase with purchase date available. Once confirmed that your appliance is eligible for warranty service, all repairs will be performed by a NewAir™ authorized repair facility. The purchaser will be responsible for any removal or transportation costs.
