Stand: Mai-07 325 497 03
Operating Instructions
Radio-repeater plug

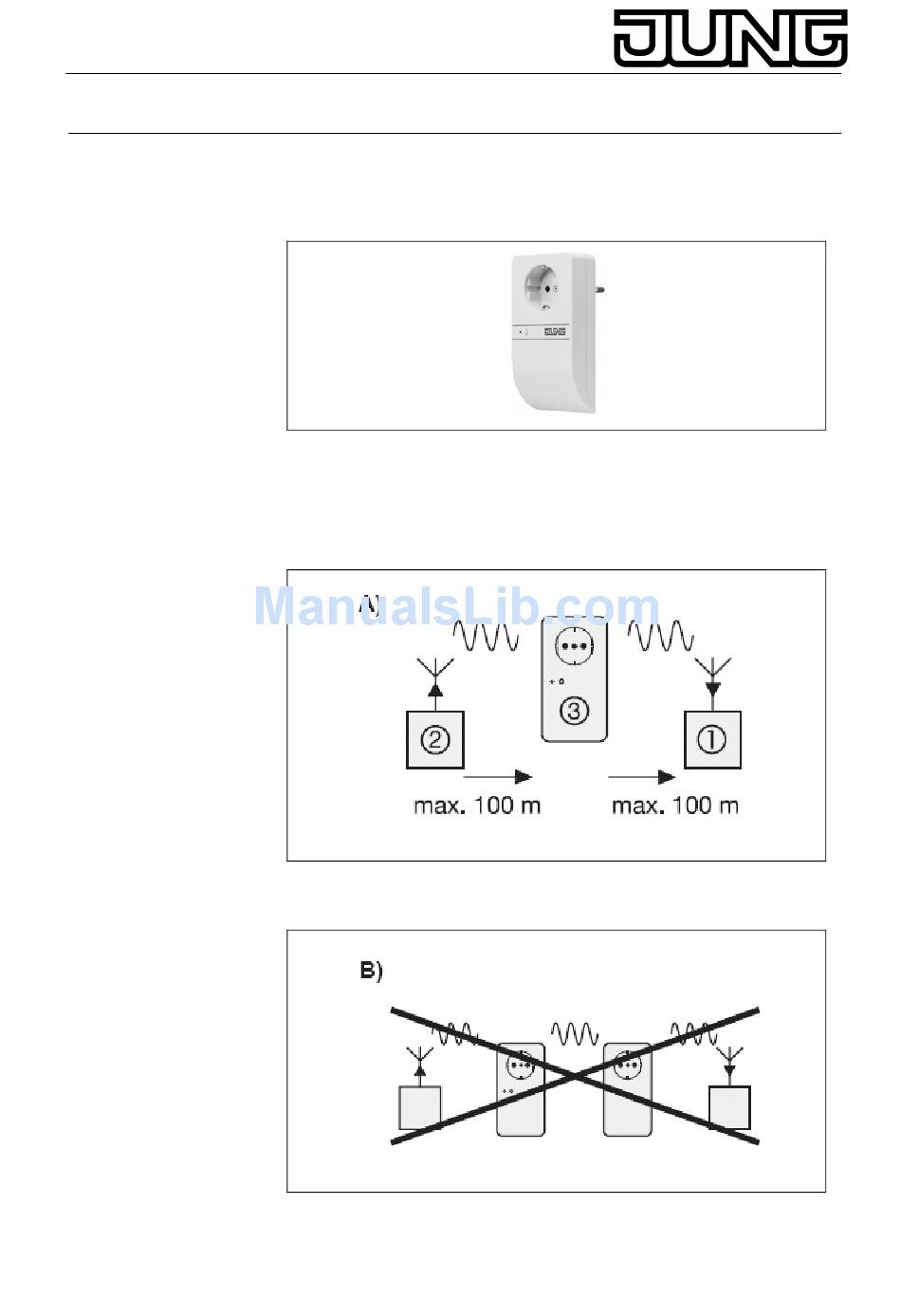

1. Function

The use of a repeater extends the radius of action of the Radio
Management System by approx. 100 m (free field). Repeater (1) receives
radio telegrams from a radio transmitter (2) and repeats them. The
telegrams are received and evaluated by a radio receiver (3) (Fig. A).
It is not possible to connect repeaters in cascade, i. e. telegrams sent by a
repeater will not be repeated by another repeater (Fig. B).
You can install several repeaters within a system, e. g. two repeaters ((4) +
(5)) transmit to one radio actuator (6) (Fig. C).
Radio-repeater plug
Ref.-no.: 100 FR SG
