Radio Management
Repeater
Repeater
Art.-No.: 100 FR
Operationsmanual
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
The radio communication takes place via a non-exclusively available transmission path,
and is therefore not suitable for safety-related applications, such as emergency stop and
emergency call.
Do not shorten, extend or strip the antenna. Device can be damaged.
These instructions are an integral part of the product, and must remain with the end
customer.

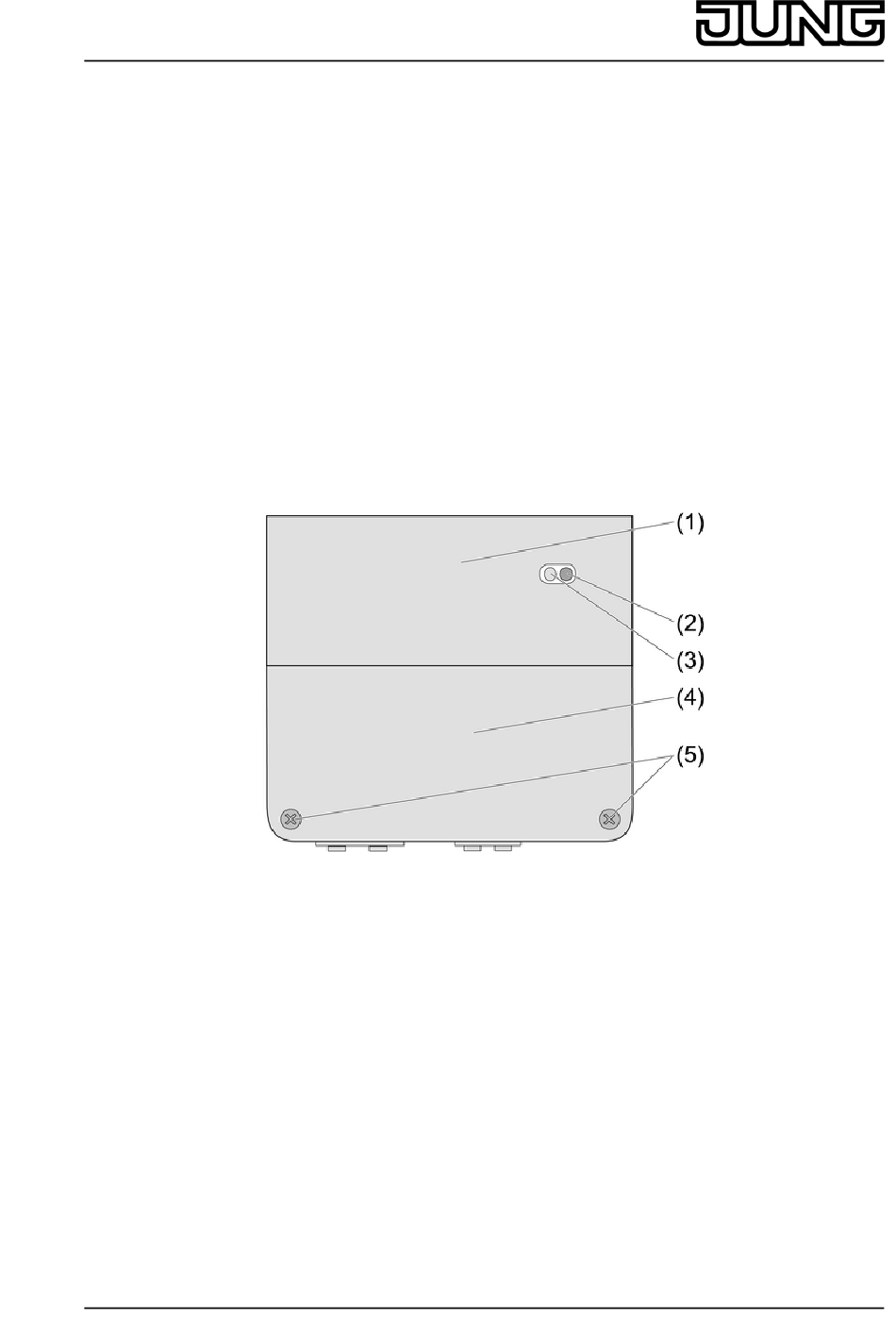

2 Device components
(1) Repeater
(2) LED, red
(3) LED, green
(4) Housing lid
(5) Screws
3 Function
System information
By statute, the reception characteristics and the antenna cannot be changed.
The device may be operated in all EU and EFTA countries.
The declaration of conformity can be viewed on our website.
The range of a radio system from the transmitter to the receiver depends on various
circumstances.
The range of the system can be optimised by selecting the optimal installation location, taking
into account the structural circumstances.
32530513
J:0082530513
picture 1
1/6
20.07.2010
Advertisement
Table of Contents
Related Manuals for Jung 100 FR
Summary of Contents for Jung 100 FR
- Page 1 Radio Management Repeater Repeater Art.-No.: 100 FR Operationsmanual 1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons. Failure to observe the instructions may cause damage to the device and result in fire and other hazards.
- Page 2 Radio Management Repeater picture 2: Reduced range due to structural obstacles Example of penetration of various materials: Material Penetration Wood, Plaster, Plasterboard approx. 90% Brick, Chipboard approx. 70% Reinforced concrete approx. 30% Metal, Metal grid approx. 10% Rain, Snow approx. 1-40% Intended use Device for receiving and repeating radio telegrams Extending the range of radio transmitters...
- Page 3 Radio Management Repeater Several repeaters can be installed in a single system, e.g. two transmitters A + B transmit to a single actuator C (picture 3) Indication of the operating states via 2 LEDs: Red LED lights up briefly: receiving a telegram Green and red LEDs light up briefly: a taught telegram is being relayed Red LED flashes continuously: repeater is in programming mode picture 4...
- Page 4 Radio Management Repeater picture 5 Fasten repeater with 2 screws (6). Break out cable entry (10) and insert mains cable (9). Connect mains cable to the repeater. Teach transmitter into repeater (see Commissioning chapter). Fasten housing lid with screws. Routing the antenna out of the housing i Only permitted with protection rating IP 20.
- Page 5 We provide a warranty as provided for by law. Please send the unit postage-free with a description of the defect to our central customer service office: ALBRECHT JUNG GMBH & CO. KG Service Center Kupferstr. 17-19 D-44532 Lünen Service-Line: +49 (0) 23 55 .
- Page 6 Radio Management Repeater ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 D-58579 Schalksmühle Telefon: +49.23 55.8 06-0 Telefax: +49.23 55.8 06-1 89 E-mail: mail.info@jung.de Internet: www.jung.de www.jung-katalog.de 32530513 20.07.2010 J:0082530513...
