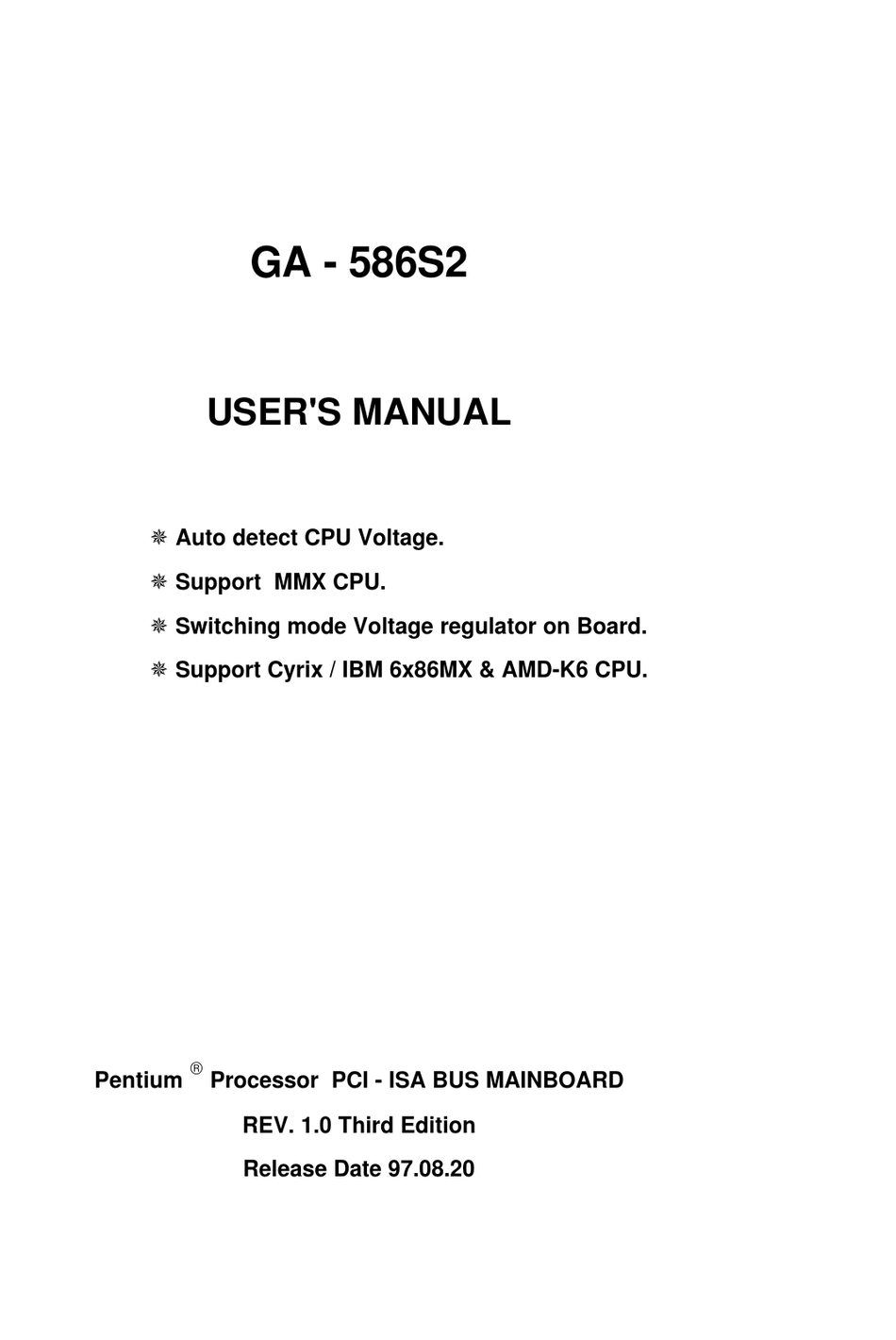

GA - 586S2
USER'S MANUAL
¯ Auto detect CPU Voltage.
¯ Support MMX CPU.
¯ Switching mode Voltage regulator on Board.
¯ Support Cyrix / IBM 6x86MX & AMD-K6 CPU.
®
Pentium
Processor PCI - ISA BUS MAINBOARD
REV. 1.0 Third Edition
Release Date 97.08.20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GA - 586S2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gigabyte GA - 586S2

Summary of Contents for Gigabyte GA - 586S2

  • Page 1 GA - 586S2 USER'S MANUAL ¯ Auto detect CPU Voltage. ¯ Support MMX CPU. ¯ Switching mode Voltage regulator on Board. ¯ Support Cyrix / IBM 6x86MX & AMD-K6 CPU. ® Pentium Processor PCI - ISA BUS MAINBOARD REV. 1.0 Third Edition...
  • Page 2 GA-586S2 Quick Installation Guide: SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8 ® 1. Pentium Processor 90 MHz OFF OFF OFF OFF OFF ® 2. Pentium Processor 100 MHz OFF OFF OFF OFF OFF OFF ® 3. Pentium Processor 120 MHz OFF OFF OFF OFF ®...

  • Page 3: Table Of Contents

    Table of Contents 20. AMDK5-PR166 OFF OFF OFF SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8 21. AMD-K6/166 (2.9V) OFF OFF 22. AMD-K6/180 (2.9V) OFF OFF 23. .AMD-K6/200 (2.9V) OFF OFF OFF OFF 24. AMD-K6/233 (3.2V) OFF OFF OFF OFF OFF 25.
  • Page 4 GA-586S2 ® 1. Pentium Processor 90 MHz Pentium Processor 90 MHz ® Pentium Processor 100 MHz...
  • Page 5 Table of Contents Pentium Processor 100 MHz ® Pentium Processor 120 MHz Pentium Processor 120 MHz ® Pentium Processor 133 MHz...
  • Page 6 GA-586S2 Pentium Processor 133 MHz ® Pentium Processor 150 MHz Pentium Processor 150 MHz ® Pentium Processor 166 MHz...
  • Page 7 Table of Contents Pentium Processor 166 MHz ® Pentium Processor 180 MHz Pentium Processor 180 MHz ® Pentium Processor 200 MHz...
  • Page 8 GA-586S2 Pentium Processor 200 MHz Intel MMX-150 MHz Intel MMX-150 MHz 10. Intel MMX-166 MHz...
  • Page 9 Table of Contents Intel MMX-166 MHz 11. Intel MMX-200 MHz Intel MMX-200 MHz 12. Intel MMX-233 MHz...
  • Page 10 GA-586S2 Intel MMX-233 MHz 13. P54CT-150 MHz P54CT-150 MHz 14. P54CT-166 MHz...
  • Page 11 Table of Contents P54CT-166 MHz 15. P54CTB-150 MHz P54CTB-150 MHz 16. P54CTB-166 MHz...
  • Page 12 GA-586S2 P54CTB-166 MHz 17. P54CTB-180 MHz P54CTB-180 MHz 18. P54CTB-200 MHz...
  • Page 13 Table of Contents P54CTB-200 MHz 19. AMDK5-PR133 AMDK5-PR133 20. AMDK5-PR166...

  • Page 14: Amdk5-Pr166 Off On

    GA-586S2 AMDK5-PR166 21. AMD-K6/166 (2.9V) AMD-K6/166 (2.9V) 22. AMD-K6/180 (2.9V)
  • Page 15 Table of Contents AMD-K6/180 (2.9V) 23. AMD-K6/200 (2.9V) AMD-K6/200 (2.9V) 24. AMD-K6/233 (3.2V)

  • Page 16: Cyrix/ Ibm 6X86-120 Mhz-Pr150

    GA-586S2 AMD-K6/233 (3.2V) 25. Cyrix / IBM 6x86-120 MHz-PR150+ Cyrix / IBM 6x86-120 MHz-PR150+ 26. Cyrix /IBM 6x86-133 MHz-PR166+...

  • Page 17: Cyrix/ Ibm 6X86-150 Mhz-Pr200

    Table of Contents Cyrix / IBM 6x86-133 MHz-PR166+ 27. Cyrix /IBM 6x86-150 MHz-PR200+ Cyrix / IBM 6x86-150MHz-PR200+ 28. Cyrix / IBM 6x86L-PR150+ (2.8V)

  • Page 18: Cyrix/ Ibm 6X86L-Pr166+ (2.8V) Off On

    GA-586S2 Cyrix / IBM 6x86L-PR150+ (2.8V) 29. Cyrix / IBM 6x86L-PR166+ (2.8V) Cyrix / IBM 6x86L-PR166+ (2.8V) 30. Cyrix / IBM 6x86L-PR200+ (2.8V)
  • Page 19 Table of Contents Cyrix / IBM 6x86L-PR200+ (2.8V) 31. Cyrix / IBM 6x86MX-PR166 (60x2.5 2.9V) Cyrix / IBM 6x86MX-PR166 (60x2.5 2.9V) 32. Cyrix / IBM 6x86MX-PR200 (66x2.5 2.9V)

  • Page 20: Cyrix/Ibm 6X86Mx-Pr200 Off On

    GA-586S2 Cyrix / IBM 6x86MX-PR200 (66x2.5 2.9V) 33. Cyrix / IBM 6x86MX-PR200 (75x2 2.9V) Cyrix / IBM 6x86MX-PR200 (75x2 2.9V) 34. Cyrix / IBM 6x86MX-PR233 (66x3 2.9V)

  • Page 21: Cyrix/Ibm 6X86Mx-Pr233

    Table of Contents Cyrix / IBM 6x86MX-PR233 (66x3 2.9V) 35. Cyrix / IBM 6x86MX-PR233 (75x2.5 2.9V) Cyrix / IBM 6x86MX-PR233 (75x2.5 2.9V)
  • Page 22 GA-586S2 II. Quick Installation Guide of Jumper setting: PWR : Power / Key-Lock Connector Pin No. Function LED anode (+) LED cathode (-) Key Lock SPK : Speaker Connector Function Pin No. Data...
  • Page 23 Table of Contents TD : Turbo LED Connector Function Pin No. LED anode (+) LED cathode (-) TB : Turbo Switch Connector Function Reserved.
  • Page 24 GA-586S2 RST : Reset Switch Open : Normal operation. Close : For hardware reset system. GD : Green Function LED Function Pin No. LED anode (+) LED cathode (-)
  • Page 25 Table of Contents GN : Green Function Switch Open : Normal operation. Close One Time : For system entering Green mode. HD : IDE Hard Disk Active LED Pin No. Function LED anode (+) LED cathode (-)
  • Page 26 GA-586S2 FAN1 : CPU Cooling Fan Power Connector Pin No. Function +12V J6 : USB Port Function Pin No. SBD1- SBD0+ SBD1+ SBD0-...
  • Page 27 Table of Contents J2 : PS/2 Mouse RED LINE J1 : Keyboard Connector Pin No. Function Key Clock. Key Data...
  • Page 28 GA-586S2 J5 : COM A RED LINE J4 : COM B RED LINE...
  • Page 29 Table of Contents J3 : LPT PORT RED LINE P1 : Power Connector Pin No. Function Power Good signal VCC (+5V) 2,10,11,12 +12V -12V 5,6,7,8...
  • Page 30 GA-586S2 JP2 : FLOPPY PORT RED LINE CON1 : For Primary IDE port RED LINE...
  • Page 31 Table of Contents CON2 : For Secondary IDE port RED LINE...
  • Page 32 GA-586S2 SW : For CPU INT./EXT.FREQ. 60 MHz 66 MHz Speed AUTO 2.0 V x 1.5 2.1 V 2.2 V 2.3 V 2.4 V x 2.5 2.5 V 2.6 V 2.7 V 2.8 V x 3.5 2.9 V 3.0 V 3.1 V 3.2 V x 4.5...
  • Page 33 Table of Contents III. Top Performance Test Setting: Users have to modify the value for each item in chipset features as follow: Note:60ns EDO-60ns DRAM is necessary for top performance setting. Chipset features setup ROM PCI / ISA BIOS CHIPSET FEATURES SETUP AWARD SOFTWARE, INC.
  • Page 34 GA-586S2 The author assumes no responsibility for any errors or omissions which may appear in this document nor does it make a commitment to update the information contained herein. ¯THIRD-PARTY BRANDS AND NAMES ARE THE PROPERTY OF THEIR RESPECTIVE OWNERS. AUGUST 20, 1997 Taipei, Taiwan...
  • Page 35 Table of Contents TABLE OF CONTENTS INTRODUCTION................1-1 1.1. PREFACE .................. 1-1 1.2. KEY FEATURES ................ 1-1 1.3. PERFORMANCE LIST ............... 1-2 1.4. BLOCK DIAGRAM ..............1-3 1.5. INTRODUCE THE PCI - BUS ............. 1-4 1.6. FEATURES ................1-4 SPECIFICATION ................2-1 2.1.
  • Page 36 GA-586S2 4.3. GETTING HELP................. 4-3 4.3.1. Main Menu............... 4-3 4.3.2. Status Page Setup Menu / Option Page Setup Menu ..4-3 4.4. THE MAIN MENU............... 4-3 4.5. STANDARD CMOS SETUP MENU..........4-5 4.6. BIOS FEATURES SETUP ............4-10 4.7. CHIPSET FEATURES SETUP............ 4-14 4.8.

  • Page 37: Introduction

    1. INTRODUCTION 1.1. PREFACE Welcome to use the GA - 586S2 motherboard. The motherboard is a Pipeline 512 KB CACHE Pentium ® Processor based PC / AT compatible system with ISA bus and PCI Local Bus, and has been designed to be the fastest PC / AT system.

  • Page 38: Performance List

    GA-586S2 Supports USB port & PS/2 Mouse port. 1.3. PERFORMANCE LIST The following list of performance data is the testing results of some popular benchmark testing programs. These data are just referred by users, and there is no responsibility for different testing data values gotten by users.

  • Page 39: Block Diagram

    Introduction 1.4. BLOCK DIAGRAM PBSRAM Host Address Host Data Bus Tag RAM MD Bus 244 x 2 (optional) MA Bus DRAM SiS Chip Master IDE USB x 2 GPIO Keyboard BIOS (optional) 245 x 4 ISA Bus PCI Bus Device Device Device Device...

  • Page 40: Introduce The Pci - Bus

    GA-586S2 1.5. INTRODUCE THE PCI - BUS Connecting devices to a CPU local bus can dramatically increase the speed of I/O-bound peripherals with only a slight increase in cost over traditional systems. This price / Performance point has created a vast market potential for local bus products.

  • Page 41: Specification

    Specification 2. SPECIFICATION 2.1. HARDWARE Pentium ® Processor 90 - 233 MHz, MMX, P54CT, • − P54CTB, AMDK5(PR133 / PR166), AMD-K6 (166 / 180 / 200 (2.9V) / 233 (3.2V) ), Cyrix / IBM 6 x 86 ( PR150+ / PR166+ / PR200+), Cyrix / IBM 6x86L (PR150+/ PR166+/ PR200+( 2.8V)), Cyrix / IBM 6x86MX (PR166 (60x2.5 2.9V) / PR200 (66x2.5 2.9V) (75x2 2.9V)/ PR233 (66x3 2.9V) (75x2.5...

  • Page 42: Software

    GA-586S2 • − Supports 2 16550 COM ports. (Using IRQ4, 3) I/O PORTS − Supports 1 EPP/ECP LPT port. (Using IRQ7 or 5 and DMA3 or 1) − Supports 1 1.44/2.88 MB Floppy port. (Using DMA2 & IRQ6) − Supports PS/2 Mouse. (Using IRQ12 ) •...

  • Page 43: Hardware Installation

    Specification 3. HARDWARE INSTALLATION 3.1. UNPACKING The mainboard package should contain the following: • The GA - 586S2 mainboard. • USER’S MANUAL for mainboard. • Cable set for IDE & Floppy . The mainboard contains sensitive electric components which can be easily damaged by static electricity, so the mainboard should be left in its original packing until it is installed.

  • Page 44: Mainboard Layout

    GA-586S2 3.2. MAINBOARD LAYOUT SWITCH +12V FAN1 BIOS PSL4 PSL3 GA-586S2 PSL2 PSL1 POWER COMA COMB FLOPPY SDM2 IDE2 IDE1 SDM1 Keyboard SIM2 SIM1 CON2 CON1 ×Figure 3.1Ø 3.3. QUICK REFERENCE FOR JUMPERS & CONNECTORS J2,3,4,5,JP2,CON1,CON2 I/O Ports Connector For PS/2 Mouse port For LPT port.
  • Page 45 Specification PWR : Power /Key-LocK Connector Pin No. Function LED anode (+). LED cathode (-). Key Lock SPK : Speaker Connector Pin No. Function VCC. Data. TD : Turbo LED Connector Pin No. Function LED anode(+). LED cathode(-). TB : Turbo Switch Connector Function Reserved.
  • Page 46 GA-586S2 GN : Green Function Switch Pin No. Function Open Normal operation. Close For system entering Green mode. HD : IDE Hard Disk Active LED Pin No. Function LED anode(+). LED cathode(-). LED cathode(-). LED anode(+). FAN : CPU Cooling FAN Power Connector Pin No.

  • Page 47: Dram Installation

    Specification SW: CPU INT./ EXT. FREQ. RATIO AUTO 2.0 V SW 1 2.1 V 2.2 V 2.3 V 2.4 V 2.5 V x 1.5 2.6 V 2.7 V x 2.5 2.8 V 2.9 V x 3.5 3.0 V 3.1 V x 4.5 3.2 V 3.3 V...
  • Page 48 GA-586S2 For the DRAM installation position, please refer to Figure 3.1. Note that the Pin 1 of SIMM module must match with the Pin 1 of SIMM socket when the DRAM SIMM module is installed. Insert the DRAM SIMM module into the SIMM socket at 45 degree angle. If there is a wrong direction of Pin 1, the DRAM SIMM module couldn't be inserted into socket completely.
  • Page 49 Specification SIMM 1/2 DIMM1 DIMM2 TOTAL 16MB * 2pcs. 40MB 16MB 32MB 48MB 4MB * 2pcs. 32MB 48MB 8MB * 2pcs. 16MB 16MB 48MB 16MB * 2pcs. 48MB 8MB * 2pcs. 32MB 48MB 16MB * 2pcs. 16MB 48MB 4MB * 2pcs. 16MB 32MB 56MB...
  • Page 50 GA-586S2 SIMM 1/2 DIMM1 DIMM2 TOTAL 32MB * 2pcs. 32MB 96MB 32MB * 2pcs. 32MB 104MB 32MB * 2pcs. 16MB 32MB 112MB 64MB * 2pcs. 128MB 32MB * 2pcs. 32MB 32MB 128MB 64MB 64MB 128MB 64MB * 2pcs. 136MB 64MB * 2pcs. 16MB 144MB 64MB * 2pcs.

  • Page 51: Sram Installation

    Specification 3.5. SRAM INSTALLATION Sync. SRAM (Pipeline Burst SRAM) If Sync SRAM Chip is installed, it consists of Pipeline Burst 1 Pc 64 K x 64 512KByte. There is no jumper for cache size setting. 3.6. CPU INSTALLATION AND JUMPERS SETUP The system speed depends on the frequency of CLOCK GENERATOR.

  • Page 52: Speaker Connector Installation

    GA-586S2 3.8. SPEAKER CONNECTOR INSTALLATION There is always a speaker in AT system for sound purpose. The 4 - Pins connector SPK is used to connect speaker. The speaker can work well in both direction of connector when it is installed to the connector SPK on mainboard.

  • Page 53: Green Function Installation

    Specification 3.13. GREEN FUNCTION INSTALLATION There are two jumpers for the purpose of power saving, GN and GD, to indicate the power saving function . The GD is a indicator (green LED) for green function. If the green LED is OFF, the system is in normal operation. If the green LED is blinking, the system is in green mode.

  • Page 55: Bios Configuration

    GA-586S2 4. BIOS CONFIGURATION Award's BIOS ROM has a built-in Setup program that allows users to modify the basic system configuration. This type of information is stored in battery-backed CMOS SRAM so that it retains the Setup information when the power is turned off. 4.1.

  • Page 56: Control Keys

    BIOS Configuration 4.2. CONTROL KEYS Up arrow Move to previous item. Down arrow Move to next item. Left arrow Move to the item in the left hand. Right arrow Move to the item in the right hand. Esc key Main Menu - Quit and not save changes into CMOS Status Page Setup Menu and Option Page Setup Menu - Exit current page and return to Main Menu.

  • Page 57: Getting Help

    GA-586S2 4.3. GETTING HELP 4.3.1. Main Menu The on-line description of the highlighted setup function is displayed at the bottom of the screen. 4.3.2. Status Page Setup Menu / Option Page Setup Menu Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item.
  • Page 58 BIOS Configuration Figure 4.1: Main Menu • Standard CMOS setup This setup page includes all the items in a standard compatible BIOS. • BIOS features setup This setup page includes all the items of Award special enhanced features. • Chipset features setup This setup page includes all the items of chipset special features.

  • Page 59: Standard Cmos Setup Menu

    GA-586S2 Automatically configure hard disk parameter. • Save & exit setup Save CMOS value changes to CMOS and exit setup. • Exit without save Abandon all CMOS value changes and exit setup. 4.5. STANDARD CMOS SETUP MENU The items in Standard CMOS Setup Menu (Figure 4.2) are divided into 9 categories.
  • Page 60 BIOS Configuration • Date The date format is <day>, <date> <month> <year>. Press <F3> to show the calendar. The day, from Sun to Sat, determined by the BIOS and is display-only date The date, from 1 to 31 (or the maximum allowed in the month) month The month, Jan.
  • Page 61 GA-586S2 CYLS. number of cylinders HEADS number of heads PRECOMP write precomp LANDZONE landing zone SECTORS number of sectors If a hard disk has not been installed select NONE and press <Enter>. • Drive A type / Drive B type The category identify the types of floppy disk drive A or drive B that has been installed in the computer.
  • Page 62 BIOS Configuration Both Drive A & B are 3 mode Floppy Drive. • Video The category detects the type of adapter used for the primary system monitor that must match your video display card and monitor. Although secondary monitors are supported, you do not have to select the type in setup.
  • Page 63 GA-586S2 The category is display-only which is determined by POST (Power On Self Test) of the BIOS. Base Memory The POST of the BIOS will determine the amount of base (or conventional) memory installed in the system. The value of the base memory is typically 512 K for systems with 512 K memory installed on the motherboard, or 640 K for systems with 640 K or more memory installed on the motherboard.

  • Page 64: Bios Features Setup

    BIOS Configuration DOS uses this area to load device drivers to keep as much base memory free for application programs. Most use for this area is Shadow RAM. 4.6. BIOS FEATURES SETUP ROM PCI / ISA BIOS BIOS FEATURES SETUP AWARD SOFTWARE, INC.
  • Page 65 GA-586S2 Enabled Activate automatically when the system boots up causing a warning message to appear when anything attempts to access the boot sector or hard disk partition table. Disabled No warning message appears when anything attempts to access the boot sector or hard disk partition table. •...
  • Page 66 BIOS Configuration disk (C) drive and floppy disk drive. D,A,SCSI System will first search for hard disk (D) drive then floppy disk drive and SCSI drive. E,A,SCSI System will first search for hard disk (E) drive then floppy disk drive and SCSI drive. F,A,SCSI System will first search for hard disk (F) drive then floppy disk drive and SCSI drive.
  • Page 67 GA-586S2 • Boot Up NumLock Status The default value is On. Keypad is number keys. Keypad is arrow keys. • Security option The default value is Setup. Setup The system will boot and access to Setup will be denied if the correct password is not entered at the prompt.

  • Page 68: Chipset Features Setup

    BIOS Configuration It determines whether video BIOS will copied to RAM, however, it is optional from chipset design. Video Shadow will increase the video speed. The default value is Enable. Enabled Video shadow is enabled. Disabled Video shadow is disabled. •...
  • Page 69 GA-586S2 • Auto Configuration The default value is Enabled Enabled Enabled Auto Configuration Disabled Disabled Auto Configuration. • L2 (WB) Tag bit Length The default value is 8bits 7bits L2 (WB) Tag bit Length to 7 bits. 8bits L2 (WB) Tag bit Length to 8 bits. •...
  • Page 70 BIOS Configuration • CAS# Pulse Width (EDO) The default value is 1T. CAS# Pulse Width (EDO) to 1T. CAS# Pulse Width (EDO) to 2T. • RAMW# Assertion Timing The default value is 3T RAMW# Assertion Timing to 2T. RAMW# Assertion Timing to 3T. •...
  • Page 71 GA-586S2 • SDRAM Wait State Control The default value is 1WS. 0 WS SDRAM Wait State Control to 0WS. 1 WS SDRAM Wait State Control to 1WS. • Enhanced Memory Write The default value is Disabled. Enabled Enabled Enhanced Memory Write . Disabled Disabled Enhanced Memory Write.
  • Page 72 BIOS Configuration • Memory Hole at 15M-16M The default value is Disabled . Disabled Normal Setting. Enabled Set Address=15-16MB relocate to ISA BUS. • Refresh Cycle Time (us) The default value is 15.6us 15.6 Set DRAM Refresh rate to 15.6us. 62.4 Set DRAM Refresh rate to 62.4us.

  • Page 73: Power Management Setup

    GA-586S2 • CPU to PCI Post Write The default value is Disabled. Set CPU to PCI Post Write to 3T. Set CPU to PCI Post Write to 4T. Disabled Disabled CPU to PCI Post Write. • ISA Bus Clock Frequency The default value is PCICLK/4.
  • Page 74 BIOS Configuration The default value is Enabled. Enabled Enable Green function. Disabled Disable Green function. Please disable Green Function for Non-S CPU in OS/2, Unix, Window NT & Novell system. • Video off Method The default value is DPMS Supported. V/H SYNC+Blank BIOS will turn off V/H-SYNC when gets into Green mode for Green monitor power saving.
  • Page 75 GA-586S2 • COM Ports Activity The default value is Enabled. Disabled Disable COM Ports Activity. Enabled Enable COM Ports Activity. • LPT Ports Activity The default value is Enabled. Disabled Disable LPT Ports Activity. Enabled Enable LPT Ports Activity. • HDD Ports Activity The default value is Enabled.

  • Page 76: Pnp/Pci Configuration

    BIOS Configuration 4.9.PNP/PCI CONFIGURATION ROM PCI / ISA BIOS PNP/PCI CONFIGURATION AWARD SOFTWARE, INC. Resources Controlled By : Manual Reset Configuration Data : Disabled IRQ-3 assigned to : Legacy ISA IRQ-4 assigned to : Legacy ISA IRQ-5 assigned to : PCI/ISA PnP IRQ-7 assigned to : Legacy ISA IRQ-9 assigned to...

  • Page 77: Load Bios Defaults

    GA-586S2 4.10. LOAD BIOS DEFAULTS ROM PCI / ISA BIOS COMS SETUP UTILITY AWARD SOFTWARE, INC. STANDARD CMOS SETUP INTEGRATED PERIPHERALS BIOS FEATURES SETUP SUPERUSER PASSWORD CHIPSET FEATURES SETUP USER PASSWORD POWER MANAGEMENT SETUP IDE HDD AUTO DETECTION PNP/PCI CONFIGURATION SAVE &...

  • Page 78: Load Setup Defaults

    BIOS Configuration 4.11. LOAD SETUP DEFAULTS ROM PCI / ISA BIOS COMS SETUP UTILITY AWARD SOFTWARE, INC. STANDARD CMOS SETUP INTEGRATED PERIPHERALS BIOS FEATURES SETUP SUPERUSER PASSWORD CHIPSET FEATURES SETUP USER PASSWORD POWER MANAGEMENT SETUP IDE HDD AUTO DETECTION PNP/PCI CONFIGURATION SAVE &...

  • Page 79: Integrated Peripherals

    GA-586S2 4.12. INTEGRATED PERIPHERALS ROM PCI / ISA BIOS INTEGRATED PERIPHERALS AWARD SOFTWARE, INC. Internal PCI/IDE : Both USB Controller : Disable IDE Primary Master PIO : Auto USB Keyboard Support : Disable IDE Primary Slave PIO : Auto IDE Secondary Master PIO : Auto IDE Secondary Slave PIO : Auto...
  • Page 80 BIOS Configuration • IDE Primary Master PIO (for onboard IDE 1st channel). The default value is Auto. Auto BIOS will automatically defect the IDE HDD Accessing mode. Mode0~4 Manually set the IDE Accessing mode. • IDE Primary Slave PIO (for onboard IDE 1st channel). The default value is Auto.
  • Page 81 GA-586S2 • Primary Slave UltraDMA (for onboard IDE 1st channel). The default value is Auto. Auto BIOS will automatically set the IDE HDD to Ultra DMA/33 Mode. Disabled Disable Ultra DMA HDD Function. • Secondary Master UltraDMA (for onboard IDE 2nd channel). The default value is Auto.
  • Page 82 BIOS Configuration • Onboard FDD Controller The default value is Enabled. Enabled Enable onboard FDD port. Disabled Disable onboard FDD port. • Onboard Serial Port 1 The default value is COM1/3F8. COM1/3F8 Enable onboard Serial port A and address is 3F8. COM2/2F8 Enable onboard Serial port A and address is 2F8.
  • Page 83 GA-586S2 • Onboard Parallel Mode The default value is SPP. Using Parallel port as Normal Printer Port. EPP/SPP Using Parallel port as Enhanced Parallel Port / Normal Printer Port. ¯ Using Parallel port as Extended Capabilities Port. ECP/EPP Using Parallel port as Extended Capabilities Port ¯...

  • Page 84: Supervisor / User Password

    BIOS Configuration 4.13. SUPERVISOR / USER PASSWORD When you select this function, the following message will appear at the center of the screen to assist you in creating a password. ENTER PASSWORD ROM PCI / ISA BIOS COMS SETUP UTILITY AWARD SOFTWARE, INC.

  • Page 85: Ide Hdd Auto Detection

    GA-586S2 PASSWORD DISABLED If you select System at Security Option of BIOS Features Setup Menu, you will be prompted for the password every time the system is rebooted or any time you try to enter Setup. If you select Setup at Security Option of BIOS Features Setup Menu, you will be prompted only when you try to enter Setup.
  • Page 86 BIOS Configuration 4-32...

  • Page 87: Save & Exit Setup

    GA-586S2 4.15. SAVE & EXIT SETUP ROM PCI / ISA BIOS COMS SETUP UTILITY AWARD SOFTWARE, INC. STANDARD CMOS SETUP INTEGRATED PERIPHERALS BIOS FEATURES SETUP SUPERUSER PASSWORD CHIPSET FEATURES SETUP USER PASSWORD POWER MANAGEMENT SETUP IDE HDD AUTO DETECTION PNP/PCI CONFIGURATION SAVE &...

  • Page 88: Exit Without Saving

    BIOS Configuration 4.16. EXIT WITHOUT SAVING ROM PCI / ISA BIOS CMOS SETUP UTILITY AWARD SOFTWARE, INC. STANDARD CMOS SETUP INTEGRATED PERIPHERALS BIOS FEATURES SETUP SUPERUSER PASSWORD CHIPSET FEATURES SETUP USER PASSWORD POWER MANAGEMENT SETUP IDE HDD AUTO DETECTION PNP/PCI CONFIGURATION SAVE &...

  • Page 89: At Technical Information

    AT Technical Information 5. AT TECHNICAL INFORMATION 5.1. I/O BUS CONNECTOR PIN OUT 5.1.1. ISA SLOT PIN OUT -I/O CH CHK RESET SD07 SD06 IRQ9 SD05 SD04 DRQ2 SD03 -12V SD02 SD01 +12V SD00 -I/O CH RDY -SMEMW -SMEMR SA19 -IOW SA18 -IOR...

  • Page 90: Pci - Bus Slot Pin Out

    GA-586S2 5.1.2. PCI - BUS SLOT PIN OUT -12V +12V INTA# INTB# INTC# INTD# PST#1 PST#2 RST# GNT# REQ# AD_31 AD_30 SBO# AD_29 SERR# AD_28 AD_27 AD_26 CBE#1 AD_15 AD_25 AD_14 AD_24 AD_13 CBE#3 IDSEL AD_12 AD_11 AD_23 AD_10 AD_22 AD_09 AD_21 AD_20...

  • Page 91: I/O & Memory Map

    AT Technical Information 5.2. I/O & MEMORY MAP MEMORY MAP: [0000000-009FFFF] System memory used by DOS and application program. [00A0000-00BFFFF] Display buffer memory for VGA/ EGA/CGA/MONOCHROME adapter. [00C0000-00DFFFF] Reserved for I/O device BIOS ROM or RAM buffer. [00E0000-00EFFFF] Reserved for PCI device ROM. [00F0000-00FFFFF] System BIOS ROM.
  • Page 92 GA-586S2 NMI: Parity check error IRQ (H/W): 0 System TIMER interrupt from TIMER-0 1 KEYBOARD output buffer full 2 Cascade for IRQ 8-15 3 SERIAL port 2 4 SERIAL port 1 5 PARALLEL port 2 6 FLOPPY DISK adapter 7 PARALLEL port 1 8 RTC clock 9 Available 10 Available...

  • Page 93: Rtc & Cmos Ram Map

    AT Technical Information 5.5. RTC & CMOS RAM MAP RTC & CMOS: Seconds Second alarm Minutes Minutes alarm Hours Hours alarm Day of week Day of month Month Year Status register A Status register B Status register C Status register D Diagnostic status byte Shutdown byte FLOPPY DISK drive type byte...

  • Page 95: Appendix A: Post Message

    GA-586S2 APPENDIX A: POST MESSAGE When the BIOS encounters an error that requires the user to correct something, either a beep code will sound or a message will be displayed in a box in the middle of the screen and the message PRESS F1 TO CONTINUE, CTRL-ALT-ESC OR DEL TO ENTER SETUP will be shown in the information box at the bottom.
  • Page 96 Appendix A: Post Message Ö DISKETTE DRIVES OR TYPES MISMATCH ERROR - RUN SETUP Type of diskette drive installed in the system is different from the CMOS definition. Run Setup to re-configure the drive type correctly. Ö DISPLAY SWITCH IS SET INCORRECTLY Display switch on the motherboard can be set to either monochrome or color.
  • Page 97 GA-586S2 Ö ERROR INITIALIZING HARD DISK CONTROLLER Cannot initialize controller. Make sure the cord is correctly and firmly installed in the bus. Be sure the correct hard drive type is selected in Setup. Also check to see if any jumper needs to be set correctly in the hard drive.
  • Page 98 Appendix A: Post Message Ö MEMORY SIZE HAS CHANGED SINCE LAST BOOT Memory has been added or removed since the last boot. In EISA mode use Configuration Utility to re-configure the memory configuration. In ISA mode enter Setup and enter the new memory size in the memory field.
  • Page 99 GA-586S2 Ö Should Have ISA Board But Not Found PLEASE RUN EISA CONFIGURATION UTILITY The board installed is not responding to the ID request, or no board ID has been found in the indicated slot. When this error appears, the system will boot in ISA mode, which allows you to run the EISA Configuration Utility.

  • Page 101: Appendix B: Post Codes

    Appendix B: Post Codes APPENDIX B: POST CODES EISA POST codes are typically output to port address 300h. ISA POST codes are typically output to port address 80h. POST Name Description Turn Off Chipset OEM Specific-Cache control. Cache Processor Test 1 Processor Status (1 FLAGS) Verification.
  • Page 102 GA-586S2 Setup low memory Early chip set initialization. Memory presence test. OEM chip set routines. Clear low 64 K of memory. Test first 64 K memory. Early Cache Cyrix CPU initialization. Initialization Cache initialization. Setup Interrupt Initialize first 120 interrupt vectors with Vector Table SPURIOUS_INT-HDLR and initialize INT 00h-1Fh according to INT_TBL.
  • Page 103 Appendix B: Post Codes Test Stuck NMI Verify NMI can be cleared. Bits (Parity/IO Check) Display CPU clock. 1B-1E Reserved Set EISA Mode If EISA non-volatile memory checksum is good, execute EISA initialization. If not, execute ISA tests an clear EISA mode flag. Test EISA Configuration Memory Integrity (checksum &...
  • Page 104 GA-586S2 Reserved Reserved 48-4D Reserved Manufacturing Reboot if Manufacturing POST Loop pin is set. POST Loop or Otherwise display any message (i.e., any non-fatal Display Messages error that was detected during POST) and enter Setup. Security Check Ask password security (optional). Write CMOS Write all CMOS values back to RAM and clear screen.

  • Page 105: Appendix C: Bios Default Drive Table

    Appendix C: BIOS Default Drive Table APPENDIX C: BIOS DEFAULT DRIVE TABLE Type Size Cylinders Heads Sectors Write / Land Example Model (MB) Precomp Zone 10 MB TEAC SD510 MMI 112, 5412 20 MB Seagate ST225, ST4026 31 MB 62 MB 47 MB 20 MB 65535...
  • Page 106 GA-586S2 69 MB 65535 Maxtor2140, Priam S14 41 MB Maxtor2190, Priam S19 68 MB 65535 Maxtor1085 Micropolis1325 53 MB Maxtor1105, 1120, 4780 94 MB 1024 65535 1024 Maxtor1170 128 MB 1024 65535 1024 CDC9415 43 MB 1024 1024 1024 10 MB 77 MB 1024 65535...

  • Page 107: Appendix D: Problem Sheet

    Appendix D: Problem sheet APPENDIX D: PROBLEM SHEET 1. Customer Data Tel. No. Name Fax. No. Address Purchase Date 2. Mainboard Date Rev. No. Model NO. Serial No. 3. System Configuration CPU Type: CPU Brand: CPU Speed: q 16 q 32 MB DRAM Type: q 80 q 70...

  • Page 109: Appendix E: Fcc Document

    GA-586S2 APPENDIX E: FCC DOCUMENT FCC Compliance Statement: DECLARATION OF CONFORMITY Per FCC Part 2 Section 2. 1077(a) This equipment has been tested and found to comply with limits for a Class B digital device , Responsible Party Name: G.B.T. INC. pursuant to Part 15 of the FCC rules.
