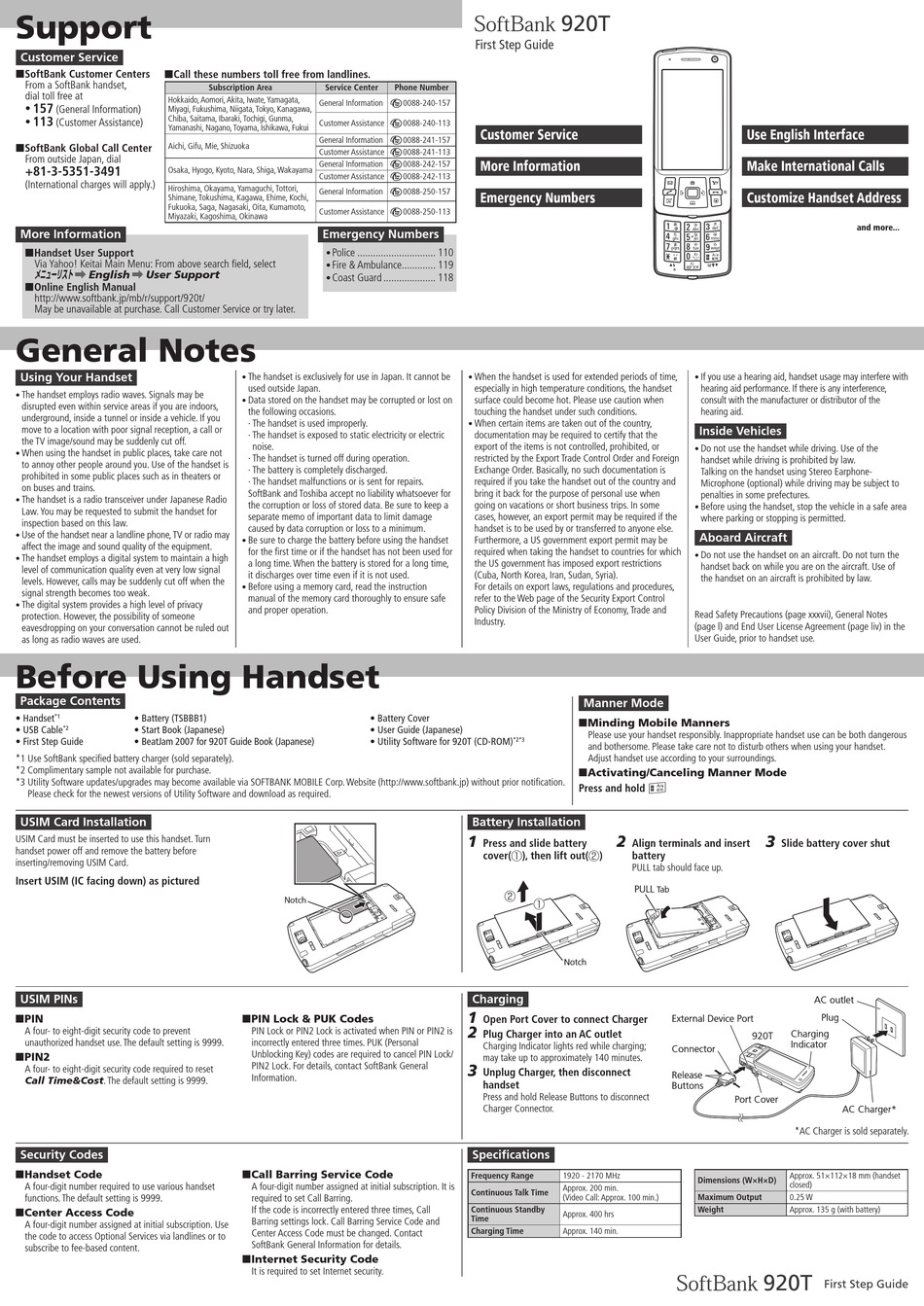

SoftBank 920T Manual

Support
Customer Service
■ SoftBank Customer Centers
■ Call these numbers toll free from landlines.
From a SoftBank handset,
dial toll free at
Hokkaido, Aomori, Akita, Iwate, Yamagata,
157
•
(General Information)
Miyagi, Fukushima, Niigata, Tokyo, Kanagawa,
Chiba, Saitama, Ibaraki, Tochigi, Gunma,
113
•
(Customer Assistance)
Yamanashi, Nagano, Toyama, Ishikawa, Fukui
■ SoftBank Global Call Center Aichi, Gifu, Mie, Shizuoka
From outside Japan, dial
+81-3-5351-3491
Osaka, Hyogo, Kyoto, Nara, Shiga, Wakayama
(International charges will apply.)
Hiroshima, Okayama, Yamaguchi, Tottori,
Shimane, Tokushima, Kagawa, Ehime, Kochi,
Fukuoka, Saga, Nagasaki, Oita, Kumamoto,
Miyazaki, Kagoshima, Okinawa

More Information

■ Handset User Support
Via Yahoo! Keitai Main Menu: From above search field, select
] English ] User Support
■ Online English Manual
http://www.softbank.jp/mb/r/support/920t/
May be unavailable at purchase. Call Customer Service or try later.

General Notes

Using Your Handset
The handset employs radio waves. Signals may be
•
disrupted even within service areas if you are indoors,
underground, inside a tunnel or inside a vehicle. If you
move to a location with poor signal reception, a call or
the TV image/sound may be suddenly cut off.
When using the handset in public places, take care not
•
to annoy other people around you. Use of the handset is
prohibited in some public places such as in theaters or
on buses and trains.
The handset is a radio transceiver under Japanese Radio
•
Law. You may be requested to submit the handset for
inspection based on this law.
Use of the handset near a landline phone, TV or radio may
•
affect the image and sound quality of the equipment.
The handset employs a digital system to maintain a high
•
level of communication quality even at very low signal
levels. However, calls may be suddenly cut off when the
signal strength becomes too weak.
The digital system provides a high level of privacy
•
protection. However, the possibility of someone
eavesdropping on your conversation cannot be ruled out
as long as radio waves are used.
Before Using Handset
Package Contents
*1
• Handset • Battery (TSBBB1)
*2
• USB Cable • Start Book (Japanese)
• First Step Guide • BeatJam 2007 for 920T Guide Book (Japanese)
*1 Use SoftBank specified battery charger (sold separately).
*2 Complimentary sample not available for purchase.
*3 Utility Software updates/upgrades may become available via SOFTBANK MOBILE Corp. Website (http://www.softbank.jp) without prior notification.
Please check for the newest versions of Utility Software and download as required.
USIM Card Installation
USIM Card must be inserted to use this handset. Turn
handset power off and remove the battery before
inserting/removing USIM Card.
Insert USIM (IC facing down) as pictured
USIM PINs
■ PIN
A four- to eight-digit security code to prevent
unauthorized handset use. The default setting is 9999.
■ PIN2
A four- to eight-digit security code required to reset
Call Time&Cost. The default setting is 9999.
Security Codes
■ Handset Code
A four-digit number required to use various handset
functions. The default setting is 9999.
■ Center Access Code
A four-digit number assigned at initial subscription. Use
the code to access Optional Services via landlines or to
subscribe to fee-based content.
Subscription Area Service Center
General Information
Customer Assistance
General Information
Customer Assistance
General Information
Customer Assistance
General Information
Customer Assistance
Emergency Numbers
Police .............................. 110
•
Fire & Ambulance............. 119
•
Coast Guard .................... 118
•
The handset is exclusively for use in Japan. It cannot be
•
used outside Japan.
Data stored on the handset may be corrupted or lost on
•
the following occasions.
· The handset is used improperly.
· The handset is exposed to static electricity or electric
noise.
· The handset is turned off during operation.
· The battery is completely discharged.
· The handset malfunctions or is sent for repairs.
SoftBank and Toshiba accept no liability whatsoever for
the corruption or loss of stored data. Be sure to keep a
separate memo of important data to limit damage
caused by data corruption or loss to a minimum.
Be sure to charge the battery before using the handset
•
for the first time or if the handset has not been used for
a long time. When the battery is stored for a long time,
it discharges over time even if it is not used.
Before using a memory card, read the instruction
•
manual of the memory card thoroughly to ensure safe
and proper operation.
• Battery Cover
• User Guide (Japanese)
• Utility Software for 920T (CD-ROM)
Notch Notch
■ PIN Lock & PUK Codes
PIN Lock or PIN2 Lock is activated when PIN or PIN2 is
incorrectly entered three times. PUK (Personal
Unblocking Key) codes are required to cancel PIN Lock/
PIN2 Lock. For details, contact SoftBank General
Information.
■ Call Barring Service Code
A four-digit number assigned at initial subscription. It is
required to set Call Barring.
If the code is incorrectly entered three times, Call
Barring settings lock. Call Barring Service Code and
Center Access Code must be changed. Contact
SoftBank General Information for details.
■ Internet Security Code
It is required to set Internet security.
920T
First Step Guide
Phone Number
0088-240-157
0088-240-113
Customer Service
0088-241-157
0088-241-113
0088-242-157 More Information
0088-242-113
0088-250-157
Emergency Numbers
0088-250-113
When the handset is used for extended periods of time,
•
especially in high temperature conditions, the handset
surface could become hot. Please use caution when
touching the handset under such conditions.
When certain items are taken out of the country,
•
documentation may be required to certify that the
export of the items is not controlled, prohibited, or
restricted by the Export Trade Control Order and Foreign
Exchange Order. Basically, no such documentation is
required if you take the handset out of the country and
bring it back for the purpose of personal use when
going on vacations or short business trips. In some
cases, however, an export permit may be required if the
handset is to be used by or transferred to anyone else.
Furthermore, a US government export permit may be
required when taking the handset to countries for which
the US government has imposed export restrictions
(Cuba, North Korea, Iran, Sudan, Syria).
For details on export laws, regulations and procedures,
refer to the Web page of the Security Export Control
Policy Division of the Ministry of Economy, Trade and
Industry.
*2*3
Battery Installation
1
Press and slide battery
cover( ), then lift out( )
Notch Notch
Charging
1
Open Port Cover to connect Charger
2
Plug Charger into an AC outlet
Charging Indicator lights red while charging;
may take up to approximately 140 minutes.
3
Unplug Charger, then disconnect
handset
Press and hold Release Buttons to disconnect
Charger Connector.
Specifications
Frequency Range 1920 - 2170 MHz
Approx. 200 min.
Continuous Talk Time
(Video Call: Approx. 100 min.)
Continuous Standby
Approx. 400 hrs
Time
Charging Time Approx. 140 min.
Use English Interface
Make International Calls
Customize Handset Address
If you use a hearing aid, handset usage may interfere with
•
hearing aid performance. If there is any interference,
consult with the manufacturer or distributor of the
hearing aid.
Inside Vehicles
Do not use the handset while driving. Use of the
•
handset while driving is prohibited by law.
Talking on the handset using Stereo Earphone-
Microphone (optional) while driving may be subject to
penalties in some prefectures.
Before using the handset, stop the vehicle in a safe area
•
where parking or stopping is permitted.
Aboard Aircraft
Do not use the handset on an aircraft. Do not turn the
•
handset back on while you are on the aircraft. Use of
the handset on an aircraft is prohibited by law.
Read Safety Precautions (page xxxvii), General Notes
(page l) and End User License Agreement (page liv) in the
User Guide, prior to handset use.
Manner Mode
■ Minding Mobile Manners
Please use your handset responsibly. Inappropriate handset use can be both dangerous
and bothersome. Please take care not to disturb others when using your handset.
Adjust handset use according to your surroundings.
■ Activating/Canceling Manner Mode
Press and hold #
2
Align terminals and insert
battery
PULL tab should face up.
PULL PULL Tab Tab
External Device Port External Device Port
920T 920T
Connector Connector
Release Release
Buttons Buttons
Port Cover Port Cover
Dimensions (W×H×D)
Maximum Output
Weight
and more...
3
Slide battery cover shut
AC outlet AC outlet
Plug Plug
Charging Charging
Indicator Indicator
AC Charger* AC Charger*
*AC Charger is sold separately.
Approx. 51×112×18 mm (handset
closed)
0.25 W
Approx. 135 g (with battery)
920T
First Step Guide
