- Page 1 Automatic Pool Cleaner Installation and Operating Instructions Please pass these instructions on to the operator of this equipment. E-mail: sales@davey.com.au Website: davey.com.au...
-
Page 2: Table Of Contents
Automatic Pool Cleaner Congratulations on the purchase of your Davey LeafWIZARD automatic ® pool cleaner. Your new LeafWIZARD has been designed to keep your ® swimming pool clean and free of dust, leaves and debris, whilst you simply relax and enjoy swimming in a clean pool! INDEX: Packing List .................... -
Page 3: Flow Rate Requirement

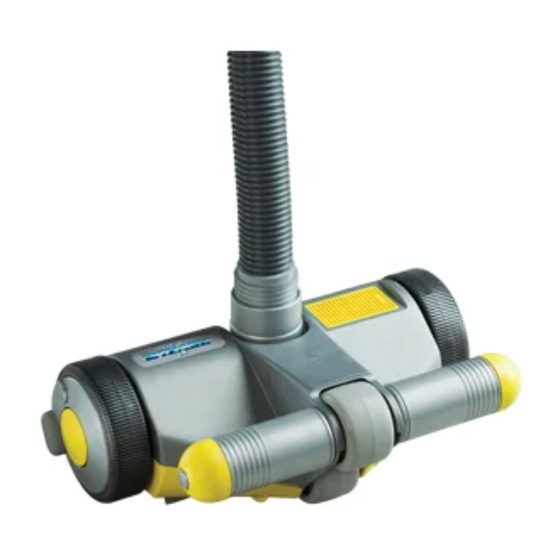

3. Flipper Wheel: This wheel includes the “flipper arm” and reverses randomly to turn the LeafWIZARD around. ® 4. Flipper Arm: is designed to lift and reverse the LeafWIZARD away ® from obstacles on the pool floor. 5. Powered Rollers: The three powered rollers assist in overcoming obstacles which are commonly found in swimming pools such as main drains, transition ledges and convex curves on steps or swim-outs. -
Page 4: Step1: Pre-Installation Of Your Leafwizard
SPEED CONTROL VALVE Step 1: Pre-installation of your LeafWIZARD Pool Cleaner ® Before you begin to install the LeafWIZARD it is important you have a basic understanding of how the pool water flows from the skimmer, through the pool pump and filter returning to the pool. Below is a diagram of a typical pool with standard equipment showing how the water usually flows. If you are still unsure, simply refer to your local Davey Dealer for assistance. -
Page 5: Step 2: Prepare Your Pool For The Leafwizard
1. Firmly connect the Main hose sections together with enough lengths to reach from the skimmer box to the furthest point in the pool, plus an additional 1-2 lengths. NOTES: a. If you require extra lengths, please contact your LeafWIZARD ® dealer. See Spare Parts section for part code. - Page 6 Unit 3. Attach the last (male) end of the hose to the speed control valve by simply pushing the hose firmly over the hard spigot end of the valve. 4. Submerge the LeafWIZARD head unit under water (while the pump is ® OFF) and rotate it to release any air in the head.
-
Page 7: Step 4: Starting The Leafwizard
TIP: The LeafWIZARD can continue to operate effectively at speeds as low as 6-7 metres per minute. DO NOT exceed 24 rpm of the left hand drive wheel. - Page 8 2. If after adjusting the vacuum opening the LeafWIZARD is still travelling ® too slowly, the speed can be increased by changing the position of the red turbine throttle located under the grill to 4 or 5. The factory setting is 3.
-
Page 9: Caring For Your Leafwizard
® this will introduce air to the pump and cause it to lose Prime. 2. Put any oil, grease or other lubricants on the LeafWIZARD Body or ® moving parts. Water is the only lubricant required. -
Page 10: Maintenance & Service Tips
Maintenance & Service Tips Operating Time: It is good practice to operate your LeafWIZARD for the ® amount of time required to clean your pool only, to maximise the life of the product. Flipper Arm: The flipper arm boot should be replaced when worn to prevent damage to the pool surface and to ensure best turning performance. -
Page 11: Troubleshooting
Troubleshooting Problem 1: LeafWIZARD slows down or stops: ® Cause Solution / Action Clear skimmer and pump baskets Ensure the cleaner hose is assembled tightly Ensure the filter is clean / backwashed Ensure the vacuum plate is correctly seated Not enough Ensure the speed control valve is seated correctly in... -
Page 12: Accessories
Troubleshooting continued Problem 3: LeafWIZARD operates with wheel off the ground or floats off ® the pool floor: Forward speed Fine tune as per instructions too fast Pool in excess Add an extra length of hose of 2m deep Weights are not Add hose weight to leader hose, and ensure lead... -
Page 13: Spare Parts
Spare Parts Part Davey Code Replacement Main Hose x 1M 401628 Replacement Leader Hose x 1M (Dark Grey) 401813 Pair of LeafWIZARD Standard Tyres (Dark Grey) plus ® 401805 flipper boot Pair of LeafWIZARD High Profile Tyres Plus Flipper Boot 401806 ® Hose Weight M5963 Hose Protector... - Page 14 NOTES _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________...
- Page 15 NOTES _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________...
-
Page 16: Davey Water Products Guarantee
Davey Dealer from which you purchased the Davey product. Alternatively you can phone our Customer Service line on 1300 367 866 in Australia, or 0800 654 333 in New Zealand, or send a written letter to Davey at the address listed below.
