- Page 1 EcoSalt ™ Salt Water Pool Systems INSTALLATION & OPERATING INSTRUCTIONS Includes Guarantee & Terms & Conditions Model BMSC Series IMPORTANT: PLEASE READ THIS DOCUMENT CAREFULLY. Please pass these instructions on to the operator of this equipment. email: sales@davey.com.au web: davey.com.au...
- Page 2 EcoSalt ™ Salt Water Pool Systems Congratulations! You are now the proud owner of the renowned EcoSalt Salt Water ™ Chlorinator. Please read all information in this manual carefully before installing or operating your EcoSalt Salt Water Pool Chlorinator. ™ INDEX Page 2 Packing List...
-
Page 3: Important Notice
IMPORTANT NOTICE: FACTORS THAT WILL IMPROVE THE PERFORMANCE & LIFE OF YOUR SALT WATER CHLORINATOR PLEASE READ THIS BEFORE OPERATING YOUR CHLORINATOR POOL BUILDERS: Please cover this information with your customer during the new pool “Hand over Session” Salt Water Chlorinators are a valuable piece of pool sanitising equipment and must be cared for to get the best performance and life span from it. - Page 4 Note: The Chlorinator is not intended for use by young children or infirm persons without supervision. Please ensure that young children are supervised to ensure that they do not play with the Chlorinator. Power connections and wiring must be carried out by an authorised electrician. INSTALLATION INSTRUCTIONS FOR ECOSALT ™...
-
Page 5: Pre - Start Up Procedure

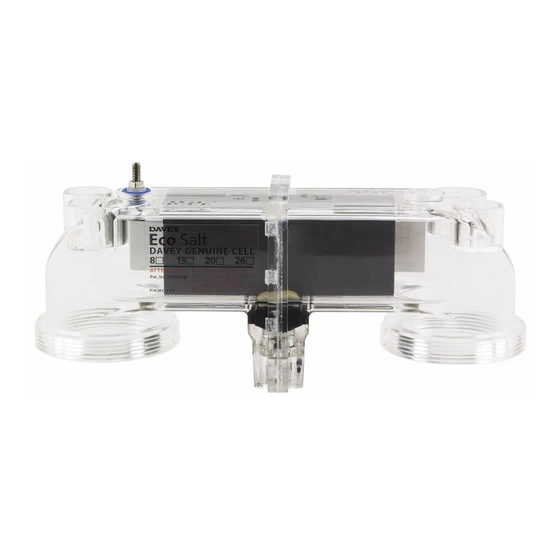

CONNECTING THE ELECTROLYTIC CELL TO THE POWER SUPPLY: The EcoSalt™ uses a reverse polarity electrolytic cell for low maintenance operation. The EcoSalt™ Power Supply is fitted with a flexible lead terminated with connectors. These must be correctly fitted to the connections on the underside of the cell. Fit black connectors to the outer titanium rods. Fit the white connector to the middle titanium rod. -
Page 6: Control Panel Layout
CONTROL PANEL LAYOUT OPERATION LED SANITISER OUTPUT DIAL POLARITY INDICATOR FUSE 8:00 SELECTOR SWITCH Once the salt level in the pool is correct the Unit may be switched On. Note: Once the unit starts there is a short time delay until the cell operates to ensure the filtration system is primed with water) At this point the Operation LED should be Green;... - Page 7 EcoSalt SPECIAL FEATURES: ™ SYSTEM CONTROL (SANITISER OUTPUT DIAL): The System Control varies the amount of time the Cell operates during the filtration cycle. The System Control will not vary the electrical current supplied to the Cell. As an example, if one filtration cycle is set at 5 hours, and the System Control is set to 80%, then the total amount of time the Cell will operate during the 5-hour cycle will be 4 hours.
-
Page 8: Automatic Time Clock Operation
AUTOMATIC TIME CLOCK OPERATION: The digital timer includes a backlit Liquid Crystal Display which displays time of day in 12-Hour format with AM / PM indication and a selector switch position indicator. The digital timer has up and down buttons for incremental settings. - Page 9 Set the completion time of the first run time sequence Select the Set Timer 1- OFF position on the selector switch. A Set Timer 1- OFF number ‘3’ will appear on the left of the screen. This time is factory pre-set to 8am. Proceed as per (a) in the ‘Set Clock’...
-
Page 10: Safety Notice
SAFETY NOTICE IMPORTANT Certain local electrical regulations state “If the supply cord is damaged, it must be replaced by a special cord available from the manufacturer or its service agent”. MAINTENANCE OF POWER SUPPLY: Little or no maintenance is normally required with the exception of replacing blown Fuses. These Fuses can be sourced from your local EcoSalt Dealer. -
Page 11: Day To Day Operation
METHOD 2 As an alternative, an approved commercial Cell cleaning solution can be used a number of times effectively. When clean the Cell should be rinsed thoroughly and the connections should be dried carefully to avoid connector corrosion. It should not take longer than a few minutes to clean, if it does the Cell should be cleaned more frequently. -
Page 12: Chlorine Production
If you run your chlorinator for 24 hours a day, or for long periods, the Cell life will be greatly reduced. It is important that the correct model EcoSalt has been installed on your pool. Many models are available from Davey ™... -
Page 13: General Information
Please note that chlorinator cell life can be increased with shorter running times during winter and lower output settings. Davey recommends that a chlorinator is run for between 6 - 8 hours a day during summer, and 4 hours during winter. -
Page 14: Troubleshooting
TROUBLE SHOOTING: No Chlorine Production - Check for Low Chlorine Production - Check for 1. Main power outlet switched off 1. Dirty Cell - clean if required 2. Chlorinator not plugged into main outlet 2. Filter needs back washing 3. Pump not plugged into Chlorinator 3. - Page 15 • Page 15 •...
