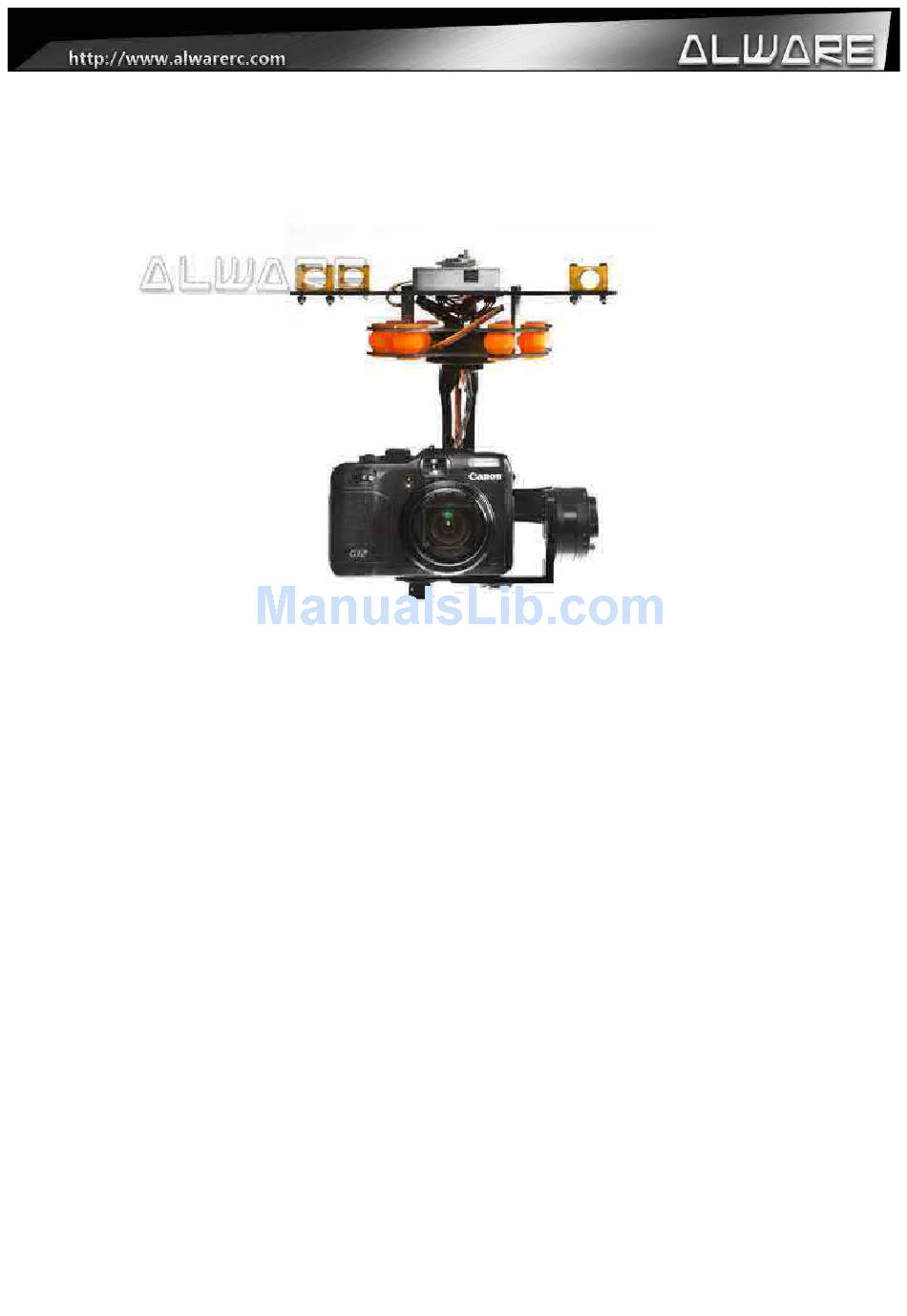

- Page 1 Senrigan GP-55 3-Axis Brushless Gimbal (For 600 -1000 Size Multicopter) Instruction Manual v1.1 12 February 2014...
-
Page 2: Table Of Contents
Content 1. Introduction …................3 -Features -Specification -Included 2 . Check list …................4 3 . Equipment Required For Assembly …..........6 4 . Assembly steps …..............7 5 . Tuning Tips (when necessary............7 6 . End of manual …..............15... -
Page 3: Introduction
The lower the weight, the longer the flying time you can achieve. Differ than others, the motors and Gimbal Controller of Senrigan GP-55 Brushless Gimbal have been well test a nd tuned of the PID parameter for NEX N5/ N7 Cameras in the factory before selling. So no worries about the s etting or PID tuning of the Brushless Gimbal. -
Page 4: Check List
2. Check List Please Check the Follow parts. Open box. Senrigan GP-55 3-Axis Brushless Gimbal packing box. Damper plate up *1 Top plate *1 Damper plate down *1 (with big circle in Hex cap screws *4 the middle.) Motor *3... - Page 5 Black Pieces *4 Black gimbal piece *6 Camera nut *1 Alu rods *4 Scew pack *1 Boom mount yellow piece set *4 GP55 main control board with case *1 Hex screws *8 Cable *1 M3 self-nuts *8 IMU cable *1 IMU with sticker *1 Update: V2 PCB and IMU Version...
-
Page 6: Equipment Required For Assembly
3. Equipment Required For Assembly Sony Nex 5 / or Sony Nex 7 DJI S800 EVO kit / or Alware Cyclone X8 Octocopter 2S 800Mah (or above) battery with JST connector... -
Page 7: Assembly Steps
4 , Assembly Step : **Always apply little amount of Threadlock when installing metal parts. Use M3x5mm screw only, screw longer M2.5x6mm Hex Cap Screw then 5mm will damaged the motor! M3x5mm Hex Cap Screw M2.5x6mm Hex Cap Screw... - Page 8 M2.5x6mm Phillip Flat Screw Use M3x5mm screw only, screw longer M3x5mm Hex Cap Screw then 5mm will damaged the motor!
- Page 9 M2.5x6mm Hex Cap Screw M2.5x6mm Phillip Flat Screw Use M3x5mm screw only, screw longer then 5mm will damaged the motor!
- Page 10 M3x5mm Hex Cap Screw M3x6mm Hex Cap Screw...
- Page 11 Pan(Yaw): Motor A Wiring of Motor wires. IMU cable is not Roll: Motor B suggested to pass through the motors. Pitch(Tilt) : Motor C This may affect the performance of the gimbal. Install the main control case on the X mount (M2x16mm Hex Cap Screw).
-
Page 12: Camera
V2 PCB Connection Diagram for . V2 PCB can be stick on the mounting frame with some double side tape will be fine. Install four set yellow boom mount on IMU board stick under the Camera plate. the X mount. (M2.5x23mm Hex Cap Screw) - Page 13 For NEW IMU Cable, follow the specific connection direction. Insert all wire to main control board. Pan motor insert direct to main control board. Link up the X mount with alu rods. (M3x6mm Hex Cap Screw)
- Page 14 The Pan(+-360 degree) and Tilt(+45-90 degree) axis of GP-55 can be controlled by using any two Free channels of your receiver. Finish assembly. Mount GP-55 to the Multicopters.
-
Page 15: Tuning Tips
Tuning Tips Specification for the Alexmos Controller with GP-55 Gimbal (V2 New Version): Board: version 1.0 (8 bits) Firmware: 2.40 b7 Tuning Software: (Alexmos) SimpleBGC GUI 2.40 b7 GP-55 included Licensed BaseCam SimpleBGC Controller (Starting from version 2.1, firmware upgrade is possible from GUI.) Alexmos websize dowlond 2.40 b7 http://www.basecamelectronics.com/files/SimpleBGC_GUI_2_40b7.zip User manual: SimpleBGC_manual_2_4_eng... - Page 17 ============================================================================== Specification for the Simple Brushless Gimbal Controller with GP-55 Gimbal (First Version): Board: version 1.0+3a Firmware: 2.2 b2 Tuning Software: SimpleBGC GUI 2.2b2 GP-55 included Licensed BaseCam SimpleBGC Controller (Starting from version 2.1, firmware upgrade is possible from GUI.) Alexmos websize dowlond 2.2b2 http://www.basecamelectronics.com/files/v10/SimpleBGC_GUI_2_2b2.zip User manual: SimpleBGC_manual_2_2_eng.pdf...
-
Page 19: End Of Manual
End of Manual...
