esotec Napoli LED Instruction Manual

Instruction manual
Solar pond pump set
Napoli LED, Napoli LED top and Siena LED
These instructions relate ONLY to this product and contain important informa-
tion for using the product for the first time. Please keep these instructions for
later reference and should always accompany the product in the event of trans-
ference to a new user.

1. Introduction

Dear Costumer, thank you for purchasing the solar pump kit.
With this solar pump kit you purchased a product manufactured according to the cur-
rent state of technology.
This product fulfils all requirements of the valid European and national regula-
tions. The conformity was proved. The relevant declarations and documentati-
on are deposited with the manufacturer.
To maintain this state and guarantee a safe operation, you as the user will have to fol-
low this operating manual!
!

2. Safety Instructions

- In case of damages caused by not following
this operating manual, the warranty rights
will expire! We exclude liability for any
consequential damages!
- We exclude liability for property or
personal damages caused by inappropriate
handling or not following the safety instructions.
- In these cases any guarantee rights will expire.
Due to safety and admission reasons (CE) it is not allowed to arbitrarily reconstruct
and/or change the solar pump kit.
Therefore, please keep to the operating manual.
The accident prevention rules of the association of the industrial trade cooperative
association for electric plants and working material are to be considered in industrial
environments

3. Appropriate Use

- The pumping system is designed for the outdoor use in garden ponds. The accu-
mulator storage is charged during sunshine. The solar pump may be switched
"on" and "off" via a switch. An LED-display informs you about the charge condi-
tion of the accumulator.
- Direct solar radiation is required for the correct function.
- The pumping system is characterized by its easy assembly. Tools are not requi-
red for the assembly.
- The pump must not be used for the raising of drinking water.
- The performance may be adjusted via a controller on the pump.
- In order to avoid any disturbing gurgling, simply attach fewer standpipes to the
pump.
- In order to safely interrupt the pumping it is required to interrupt the cable connec-
tion between solar module and pump.

4. Assembly/installation and start of operation

For the details of assembly/installation and start of operation, please see the instruc-
tion manuals of the accumulator box and the pond pump.

5. Service and Maintenance

In order to preserve the performance of the pump, it is required to wash out the pump
and its parts with warm water depending on the pollution of the water.
For directions for the service and maintenance of the pump and accumulator storage,
please see the instruction of the pump and accumulator storage.
Occasionally wipe the solar module clean with a soft and slightly moistened cloth.
Note: Before carrying out operations on the pump, interrupt the plug connection bet-
ween pump and battery pack in order to avoid any unintentional starting during the
operations.

6. Technical Data

GB
Solar pumping system
- System voltage:
Solar module
- Nominal power:
- Nominal voltage:
- Nominal current:
- Open-circuit voltage:
- Short-circuit current:
- Projection system:
- Temperature range:
- Dimensions:

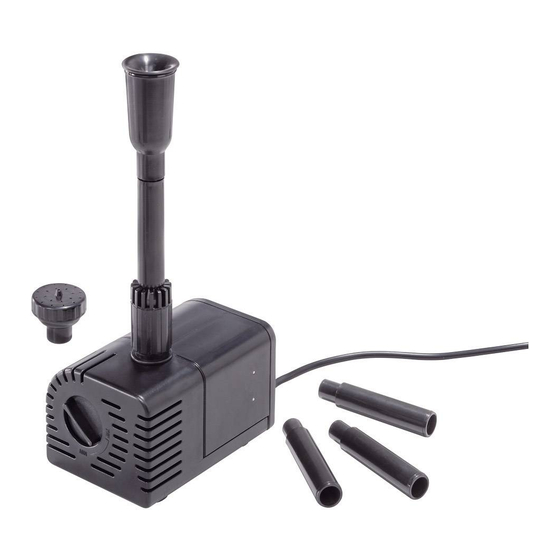

Water pump:
- Operating voltage:
- Power consumption (12/24V):
- Max. delivery height (12/24V):
- Delivery rate (12/24V):
- Protection system:
- Temperature range:
- Dry running:
Accumulator storage:
- Accumulator (lead gel):
- Output voltage:
- Runtime with fully charged
accumulator:
- Max. module capacity:
- Max. output current:
Attention: Do not put the housing into the blazing sun! Overheating risk!
LED Light ring:
- Illuminants:
- Operating voltage:
- Protection class:
- Operating temperature range:
Note: Protect the pump from frost!
In cold winter months, it is required to take the pump out of the water and store it in
a warm place. The solar module may be left outside during the winter.
7. Safety Instructions:
DANGER for children! Keep children away from swallowable small parts (ascending
pipe and sprinklers) and the packaging material. Danger of suffocation!
WARNING: risk of stumbling! Lay the connecting cable so that it will not become a
trip hazard!
CAUTION Material damage! When setting up the solar module without module brak-
ket, please pay attention to an adequate stability. The solar module may be damaged
in case of tipping or in case of an impact of a foreign object.
Disposal instruction for electric appliances:
Dear customer, if you want to get rid of the article, please dispo-
se it according to the current regulations. The municipal authori-
ty will provide you with information.
Customer support:
If you have problems or questions regarding this product, simply contact us!
Monday to Friday 8 am to 12 noon and 1 pm to 4 pm.
By phone: 09605-92206-27
By e-mail for ordering spare parts: ersatzteil@esotec.de
By e-mail for questions about the product: technik@esotec.de
Product manufacturer item No.:
solar pump system Napoli LED: 101773
solar pump system Napoli LED top: 101776
solar pump system Siena LED: 101780
Manufacturer:
esotec GmbH
Gewerbegebiet Weberschlag 9
D-92729 Weiherhammer
Tel.-Nr: +49 (0)9605-92206-28
Fax.-Nr: +49 (0)9605-92206-10
e-mail:info@esotec.de
Internet: www.esotec.de
Additional parts:
5 m extender cable for water pump and solar module: 101738
5 m extender cable for fountain light: 101740
Copyright esotec GmbH
Napoli LED Napoli LED top
12 -24 VDC 12 -24 VDC
10 Wp 20 Wp
17,5 V 17 V
580 mA 1,2 A
21,6 V 21 V
680 mA 1,32 A
IP 65 IP 65
-30°C to +75°C -30°C to +75°C
440 x 255 x 25 mm 530 x 360 x 25 mm 530 x 360 x 25 mm
12 to 24 V DC 12 to 24 V DC
3 W/ 12 W 3 W/ 12 W
0,8 m/ 2 m 0,8 m/ 2 m
470 l/h/ 750 l/h 470 l/h/ 750 l/h
IP 68 IP 68
+4 to +40°C +4 to +40°C
dry protected dry protected
12V/ 7Ah 12V/ 7Ah
12 to 24 VDC 12 to 24 VDC
max. 13 h max. 13 h
20 Wp (36 cells) 20 Wp (36 cells)
800 mA 800 mA
6 LEDs 6 LEDs
12 to 24 VDC 12 to 24 VDC
IP 68 IP 68
+4 to +40°C +4 to +40°C
Siena LED
12 -24 VDC
20 Wp
17 V
1,2 A
21 V
1,32 A
IP 65
-30°C to +75°C
12 to 24 V DC
5 W/ 22 W
0,9 m/ 2,8 m
900 l/h/ 1500 l/h
IP 68
+4 to +40°C
dry protected
12V/ 7Ah
12 to 24 VDC
max. 6 h
20 Wp (36 cells)
800 mA
6 LEDs
12 to 24 VDC
IP 68
+4 to +40°C
