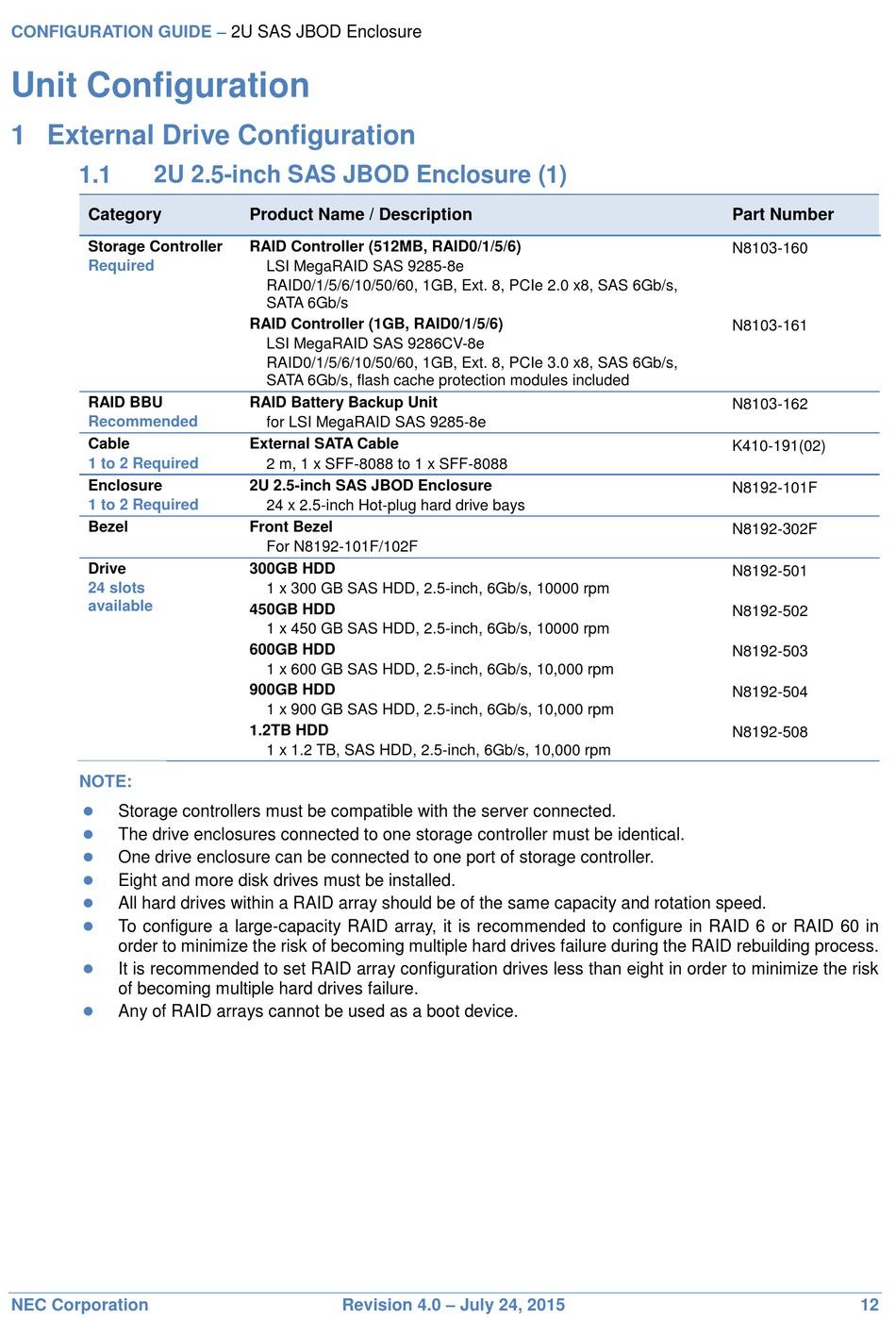

CONFIGURATION GUIDE

Unit Configuration

1 External Drive Configuration

1.1
2U 2.5-inch SAS JBOD Enclosure (1)
Category
Storage Controller
Required
RAID BBU
Recommended
Cable
1 to 2 Required
Enclosure
1 to 2 Required
Bezel
Drive
24 slots
available
NOTE:
Storage controllers must be compatible with the server connected.
The drive enclosures connected to one storage controller must be identical.
One drive enclosure can be connected to one port of storage controller.
Eight and more disk drives must be installed.
All hard drives within a RAID array should be of the same capacity and rotation speed.
To configure a large-capacity RAID array, it is recommended to configure in RAID 6 or RAID 60 in
order to minimize the risk of becoming multiple hard drives failure during the RAID rebuilding process.
It is recommended to set RAID array configuration drives less than eight in order to minimize the risk
of becoming multiple hard drives failure.
Any of RAID arrays cannot be used as a boot device.
NEC Corporation
2U SAS JBOD Enclosure
Product Name / Description
RAID Controller (512MB, RAID0/1/5/6)
LSI MegaRAID SAS 9285-8e
RAID0/1/5/6/10/50/60, 1GB, Ext. 8, PCIe 2.0 x8, SAS 6Gb/s,
SATA 6Gb/s
RAID Controller (1GB, RAID0/1/5/6)
LSI MegaRAID SAS 9286CV-8e
RAID0/1/5/6/10/50/60, 1GB, Ext. 8, PCIe 3.0 x8, SAS 6Gb/s,
SATA 6Gb/s, flash cache protection modules included
RAID Battery Backup Unit
for LSI MegaRAID SAS 9285-8e
External SATA Cable
2 m, 1 x SFF-8088 to 1 x SFF-8088
2U 2.5-inch SAS JBOD Enclosure
24 x 2.5-inch Hot-plug hard drive bays
Front Bezel
For N8192-101F/102F
300GB HDD
1 x 300 GB SAS HDD, 2.5-inch, 6Gb/s, 10000 rpm
450GB HDD
1 x 450 GB SAS HDD, 2.5-inch, 6Gb/s, 10000 rpm
600GB HDD
1 x 600 GB SAS HDD, 2.5-inch, 6Gb/s, 10,000 rpm
900GB HDD
1 x 900 GB SAS HDD, 2.5-inch, 6Gb/s, 10,000 rpm
1.2TB HDD
1 x 1.2 TB, SAS HDD, 2.5-inch, 6Gb/s, 10,000 rpm
Revision 4.0 – July 24, 2015
Part Number
N8103-160
N8103-161
N8103-162
K410-191(02)
N8192-101F
N8192-302F
N8192-501
N8192-502
N8192-503
N8192-504
N8192-508
12
