iLumin Revio Installation Manual

Introduction
Welcome
The iLumin Revio wall station from Cooper Controls
artfully combines understated elegance with high func-
tionality. Barely larger than a standard switchplate, this
sleek, backlit panel allows you to instantly call up pre-
programmed lighting scenes. The rotary dial can be used
to adjust the intensity of a chosen scene. An optional
infra-red remote control allows similar functionality from
anywhere within the room via the detector built into the
front panel of the Revio wall station. All control signals
are transmitted to the source controller(s) using robust
iCANnet connections. A range of standard insert sheets
are available or custom versions can be created, as nec-
essary.
Controls
Scene selection
• Press a scene button to select a scene (the button will
illuminate).
• Turn the rotary dial to raise or lower the scene level.
• Use the on/off button (in the center of the rotary dial)
to switch all lights off (the function of the button can
also be altered to affect only certain areas). When the
button is pressed again, the last selected scene will be
resumed.
Zone function
Where certain buttons are programmed to control zones:
• Press a zone button to select a zone (the button will
flash).
• Turn the rotary dial to raise or lower the zone level.
• Use the on/off button to switch the zone on and off.
• Press a scene button to override previous zone set-
tings, unless ignore has been programmed for that
particular zone.
• The zone function will timeout after ten seconds.
Cleaner switch
On the underside of the front cover, there is a small con-
cealed press switch. Press the switch to isolate the scene
selectors for ten seconds. This action also sends a 'hello'
message to the network to assist with device identifica-
tion - this does not interfere with the operation of the wall
station or the rest of the system.
Revio wall station
Installation guide

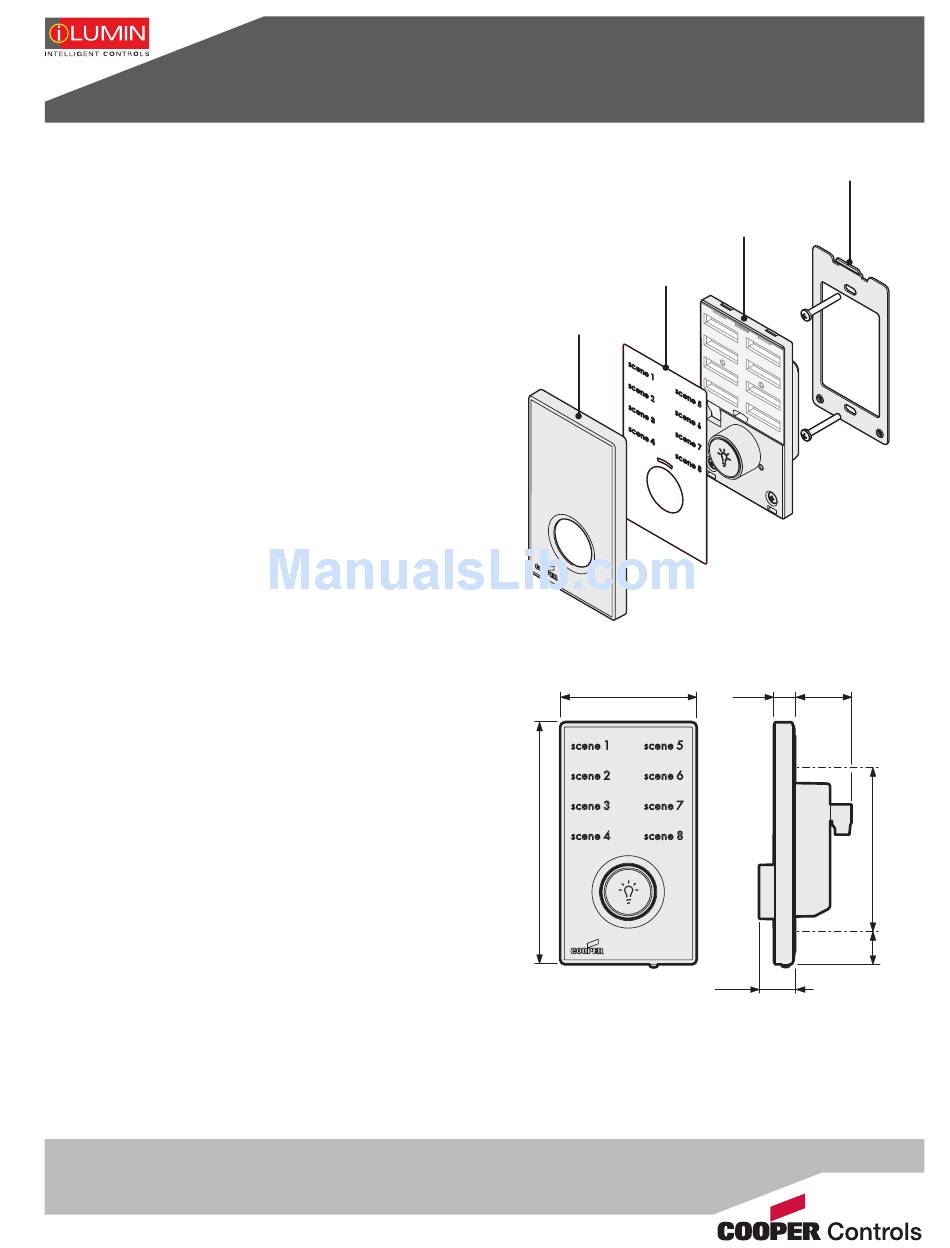

Supplied parts
Insert sheet
Front cover
Dimensions
2.75 in.
(70 mm)
4.84 in.
(123 mm)
The Revio wall station is intended to fit into a single gang
wall box with a minimum internal depth of 2 in. (51 mm).
Rear chassis plate
Main body
0.43 in. 1.41 in.
(11 mm) (36 mm)
3.26 in.
(83 mm)
0.65 in.
(17 mm)
1.37 in.
(35 mm)
