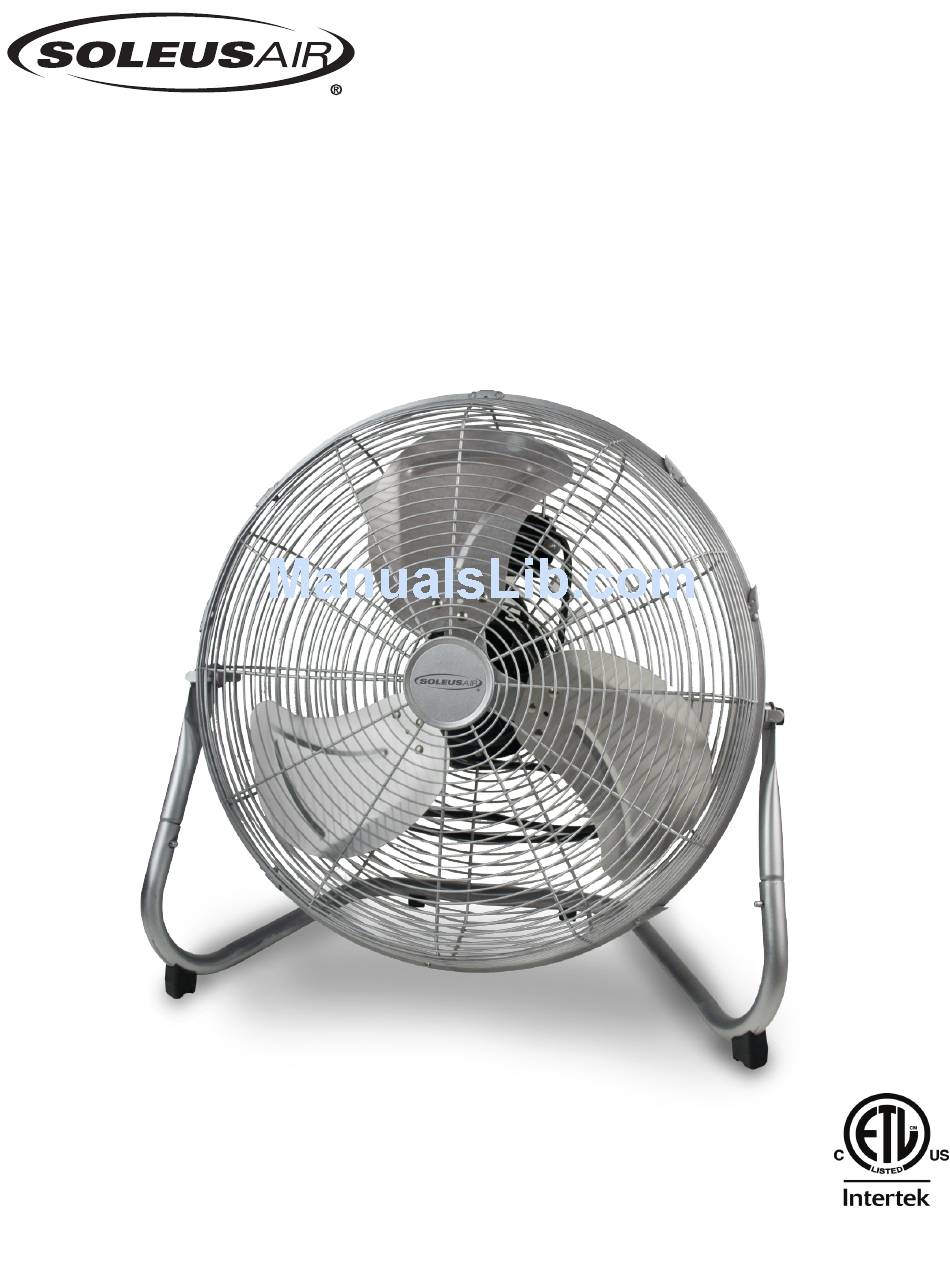

Page 1: Operating Instructions

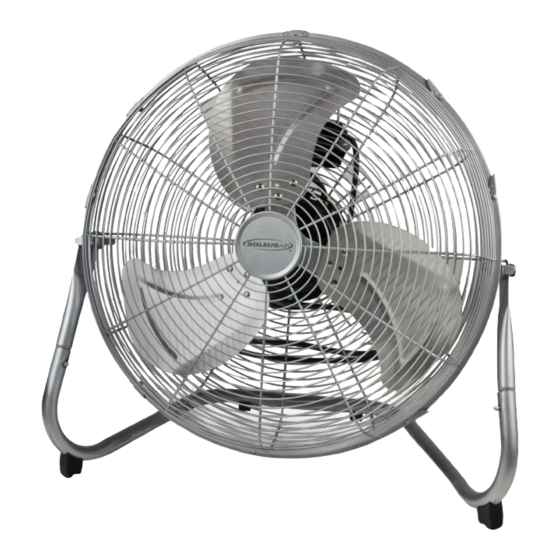

20” High Velocity Fan with 135° Tilt Head Model No.: FF-50-A Operating Instructions 4002234 V.140311... -
Page 2: Important Instructions
Thank you for choosing a Soleus Air High Velocity Fan. This owner’s manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the operational aspects of your new fan. -
Page 3: Technical Specifications
THREE BLADE SAFETY PLUG WARNING This fan is for use on 120 volts. The cord has a plug as shown in A. An adapter as shown in C is available for connecting three-blade grounding-type plugs to two-slot receptacles. The grounding lug ex- tending from the adapter must be connected to a per- manent ground such as a properly grounded outlet box. - Page 4 This product employs overload protection (fuse). A blown fuse indicates an overload or short-circuit situation. If the fuse blows, unplug the product from the outlet. Replace the fuse per the instructions below and check the product. If the replacement fuse blows, a short-circuit may be present and the product should be discarded or returned to an authorized service facility for examination and/or repair.
- Page 5 PRODUCT DIAGRAM & ASSEMBLY 1. In this box you will find: 1 - Fan head, 1 - Cradle Base 2. To assemble the fan, align the cradle base to the ends of the support bracket attached to the fan. 3. Insert support bracket into opening of cradle base. Press the spring button down to allow it to insert into opening of cradle base.
- Page 6 OPERATING INSTRUCTIONS 1. Set the fan on a stable, level surface. Turn the fan on by turning the control dial located on the back of the fan to the LOW, MED, or HIGH speed positions. To Adjust Airflow Upward or downward: Tilt fan head to the desired angle. This high velocity fan can be used alone or in conjunction with air conditioning.
- Page 7 One Year Limited Warranty Soleus Home Comfort warrants the accompanying Soleus Air High Velocity Fan to be free of defects in material and workmanship for the applications specified in its operation instruction for a period of ONE (1) year from the date of original retail purchase in the United States.
Need help?
Do you have a question about the FF-50-A and is the answer not in the manual?
Questions and answers
I need to oil this **** but cannot locate the "oil ways" on the front and rear shell as referenced in the instructions, where I can insert the oil.
