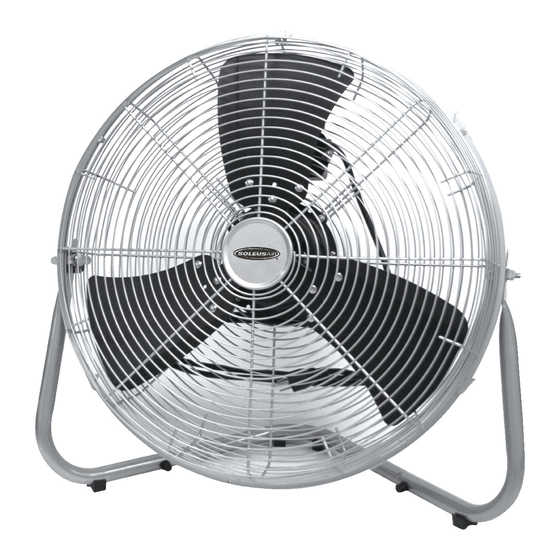

20" high velocity fan with 120° tilt head

Advertisement

Quick Links

20" High Velocity Fan
with 120° Tilt Head
Model No.: FF1-50-53
Operating Instructions
3081955

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FF1-50-53 and is the answer not in the manual?

Questions and answers

Summary of Contents for Soleus Air FF1-50-53

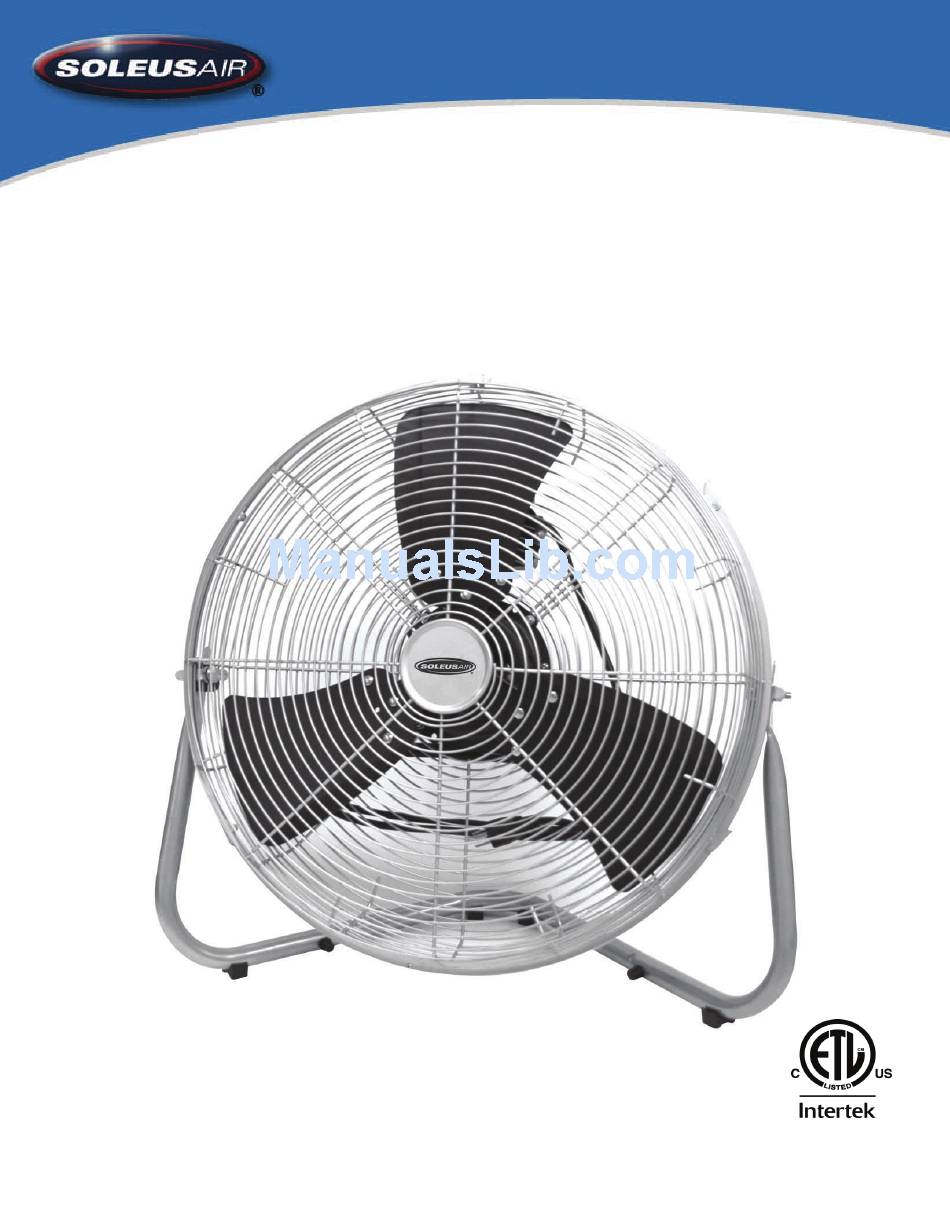

  • Page 1 20” High Velocity Fan with 120° Tilt Head Model No.: FF1-50-53 Operating Instructions 3081955...
  • Page 2: Important Instructions

    Thank you for choosing a Soleus Air High Velocity Fan. This owner’s manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the operational aspects of your new fan.
  • Page 3: Technical Specifications

    THREE BLADE SAFETY PLUG WARNING This fan is for use on 120 volts. The cord has a plug as shown in A. An adapter as shown in C is available for connecting three-blade grounding-type plugs to two-slot receptacles. The grounding lug ex- tending from the adapter must be connected to a per- manent ground such as a properly grounded outlet box.
  • Page 4 This product employs overload protection (fuse). A blown fuse indicates an overload or short-circuit situation. If the fuse blows, unplug the product from the outlet. Replace the fuse per the instructions below and check the product. If the replacement fuse blows, a short-circuit may be present and the product should be discarded or returned to an authorized service facility for examination and/or repair.
  • Page 5 PRODUCT DIAGRAM & ASSEMBLY 1. In this box you will find: 1 - Fan head with Legs attached, 2 - Base Screws, 1 - Base Connector, and 1 - Tilt Knob 2. To assemble the fan, connect the Base Connector to the ends of the legs attached to the fan.
  • Page 6 OPERATING INSTRUCTIONS 1. Set the fan on a stable, level surface. Turn the fan on by turning the control dial located on the back of the fan to the LOW, MED, or HIGH speed positions. To Adjust Airflow Upward or downward: Tilt fan head to the desired angle. This high velocity fan can be used alone or in conjunction with air conditioning.
  • Page 7 CLEANING & MAINTENANCE 1. Turn the fan off and unplug the unit. 2. Wipe the fan down with a damp cloth for most efficient operation. 3. Air dry the fan completely before use. 4. Never use abrasive cleaning agents or solvents. This may cause damage or deterioration to the surface of the unit.
  • Page 8 One Year Limited Warranty Soleus International Inc. warrants the accompanying Soleus Air High Velocity Fan to be free of defects in material and workmanship for the applications specified in its operation instruction for a period of ONE (1) year from the date of original retail purchase in the United States.
