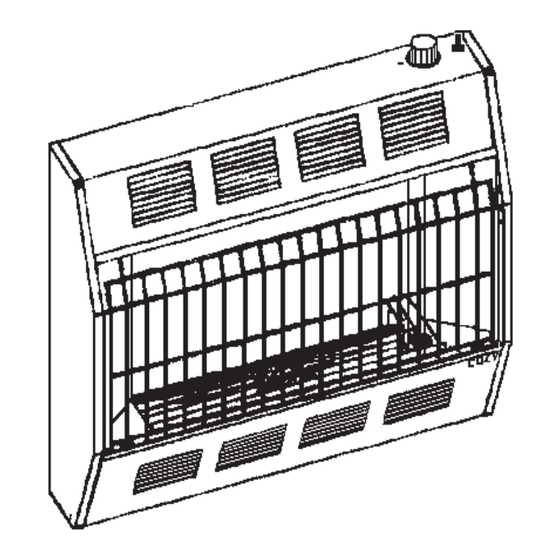

COZY BFT101 Installation And Operation Instructions Manual

Blue flame vent free heaters
Hide thumbs Also See for BFT101:
Table of Contents

Advertisement

Quick Links

See also: Installation Instructions and Operating Manual
R
TYPE GAS
NATURAL GAS
PROPANE GAS
WARNING: If the information in this manual is not
followed exactly, a fire or explosion may result causing
property damage, personal injury, or loss of life.
-
Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
-
WHAT TO DO IF YOU SMELL GAS:
• • • • • Do not try to light any appliance.
• • • • • Do not touch any electrical switch; do not use any
phone in your building.
• • • • • Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• • • • • If you cannot reach your gas supplier, call the fire
department.
-
INSTALLATION AND SERVICE MUST BE
PERFORMED BY A QUALIFIED
INSTALLER, SERVICE AGENCY OR THE
GAS SUPPLIER.
This is an unvented gas fired heater. It uses air (oxygen) from the room in which it is installed. Provisions
for adequate combustion and ventilation air must be provided. See Pg. 4 & 5.
This unit is for residential use only and is not approved for installation in greenhouses,or
environments involving dusty, wet, corrosive, or explosive conditions. Such conditions will
invalidate the warranty and may create unsafe conditions.
This appliance may be installed in an aftermarket, permanently located, manufactured (mobile) home,
where not prohibited by local codes. This appliance is only for use with the type of gas indicated on the
rating plate. This appliance is not convertible for use with other gases.
Installation, maintenance, service, troubleshooting and repairs must be performed by a qualified service
agency. MR./MRS. HOMEOWNER, DO NOT attempt any of these procedures yourself as this could
expose you to property damage, personal injury or loss of life and will invalidate all warranties.
VENT FREE HEATERS
INSTALLATION AND
OPERATION INSTRUCTIONS
P/N 88950 / REV. MARCH 2013
MODEL NUMBERS
BFT101
BFT201
BFT102
BFT202
BLUE FLAME
BFT301
BFT302
INSTALLER: Leave this manual
with the appliance.
CONSUMER: Retain this
manual for future reference.
INSTALLER MUST SHOW
HOMEOWNER PROPER
LIGHTING AND OPERATION
OF HEATER. HAVE THEM
COMPLETE AND RETURN
THE WARRANTY CARD.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BFT101 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for COZY BFT101

Summary of Contents for COZY BFT101

  • Page 1 BLUE FLAME VENT FREE HEATERS INSTALLATION AND OPERATION INSTRUCTIONS P/N 88950 / REV. MARCH 2013 MODEL NUMBERS TYPE GAS NATURAL GAS BFT101 BFT201 BFT301 PROPANE GAS BFT102 BFT202 BFT302 WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury, or loss of life.

  • Page 2: Table Of Contents

    WARNING: Improper installation, adjustment, alteration, service or maintenance can cause property damage, personal injury or loss of life. Refer to the owner’s information manual provided with this appliance. Installation and service must be performed by a qualified installer, service technician or the gas supplier.

  • Page 3: Specifications

    OPERATION The Cozy thermostatically controlled units offer the additional benefit of automatically cycling the heating to maintain just the right room temperature. VENTFREE GAS ROOM HEATERS ARE DESIGNED STRICTLY FOR “SUPPLEMENTAL”...

  • Page 4: Fresh Air For Combustion Venti

    STEP 2. Divide area cubic feet by 50. EXAMPLE: 2,812.5 ÷ 50 = 56.25. Multiply this number by 1,000 for total Btu input room can support. E XAMPLE: 56.25 x 1,000 = 56,250 Btu. STEP 3. List all gas burning appliances in this area and total the combined Btu input. EXAMPLE: Cozy vent free heater…………………….. 20,000 Btu Gas water heater…………………………..

  • Page 5: Installation

    FRESH AIR FOR COMBUSTION, VENTILATION AND HEAT DISTRIBUTION - CONT’D. STEP 4. Compare the total Btu the area can support (from Step 2) to the total Btu in the area the heater will be installed (from Step 3). If the total from Step 2 is larger this is considered an unconfined space, if Btu total from Step 3 is larger this is considered a confined space and provisions must be made for additional combustion and ventilation air.

  • Page 6: Clearances

    INSTALLATION - CONTINUED Protect heater from wind, high traffic areas, and drafts (such as doorways, locations that get direct air from a ceiling fan, etc.) as this will cause nuisance pilot outage. All models may be wall mounted using the factory supplied (standard) wall mounting bracket. Additionally all models may be installed freestanding, by adding the optional VF-FSK Floor Stand Kit and using an approved, fire resistant floor mat (available from factory).
  • Page 7 Page 7...
  • Page 8 TABLE 1 – first stage pipe sizing PROPANE GAS 10 PSIG Inlet with a 1 PSIG Pressure Drop Maximum capacity of pipe or tubing, in thousands of BTU/hr. of L.P. Gas Size of Pipe LENGTH OF PIPE OR TUBING, FEET* Or Copper Tubing, Inches Copper...

  • Page 9: Wall Mount

    INSTALLING HEATER WALL MOUNT BFT20 & BFT30 WALL MOUNT (BFT10) STEP 1. Remove wall mounting bracket from back of STEP 1. Remove wall mounting bracket from back of heater. heater. STEP 2. Locate two studs. STEP 2. Locate wall stud. STEP 3.

  • Page 10: Gas Connection

    Orifice change must be done by a qualified installer or service technician. SPECIFIC ELEVATION Model No. 0 to 2,000 - 4,000 - 6,000 - 8,000 - 2,000’ 4,000’ 6,000’ 8,000’ 10,000’ NATURAL GAS BFT101 1.55 mm BFT201 BFT301 L.P. GAS BFT102 BFT202 BFT302 Page 10...

  • Page 11: Lighting Instructions

    BFT101, BFT201, BFT301 - NATURAL GAS / BFT102, BFT202, BFT302 - L.P. GAS FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.

  • Page 12: Proper Operation

    PROPER OPERATION ODS / PILOT FLAME The pilot pressure has been pre-set at the factory and with proper supply pressure will provide a safe, reliable ignition source. See Figure 7. INCORRECT - INCORRECT - OXYGEN CORRECT LOW PRESSURE LEVEL DROPPING FIGURE 7 BURNER FLAME All orificing and pressure setting was done at the factory and, with correct supply pressure will provide a...

  • Page 13: Maintenance

    MAINTENANCE The entire heater should be checked and cleaned by a qualified service technician before the start of each heating season. More frequent cleaning may be required due to excessive lint conditions from carpeting, bedding material, etc. CABINET To clean the cabinet and hearth and jamb assemblies of your heater, turn off and allow to cool, then wipe with a soft damp cloth.

  • Page 14: Blower Instructions

    BLOWER INSTRUCTIONS INSTALLING THE VFB BLOWER (BFT201 / BFT202, BFT301 / BFT302 MODELS ONLY) STEP 1. Remove blower assembly from shipping carton. STEP 2. Insert blower assembly into upper back of heater (See Figure 11). STEP 3. Secure blower to heater using three #8 screws (provided) through holes pre-punched in heater back. STEP 4.

  • Page 15: Trouble Shooting Guide

    TROUBLE SHOOTING GUIDE (for use by a qualified installer or service technician) SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION No spark at ODS 1. Ignitor wire off ODS or Piezo. 1. Check and re-attach ignitor wire. 2. Ignitor wire shorting out on casing. 2.

  • Page 16: Parts List

    For prompt parts service, contact the wholesaler from which you purchased your Cozy heater. NOTE: parts & schematic drawings on current models are shown at www.cozyheaters.com.
  • Page 17 ATTN: CONTRACTORS AND SERVICE TECHNICIANS, we only sell parts through our wholesalers, but the prices listed above are for your convenience. For prompt parts service, contact the wholesaler from which you purchased your Cozy heater. NOTE: Parts & schematic drawings on current models are shown at www.cozyheaters.com.

  • Page 18: Warranty

    Cozy Gas Fired Counterflow Furnace 10 Years 10 Years Cozy Gas Fired Counterflow Direct Vent Furnace 10 Years 10 Years Cozy Gas Fired Mobile Home Direct Vent Furnace 10 Years 10 Years Cozy Gas Fired Hi-Efficient Direct Vent Wall Furnace 10 Years 10 Years...
