Apache STORM Operator's Manual

Battery Status
Full -Batteries OK
Half -Initial Warning
Outline - Approx.30 Minutes Remaining
Flashing -Change Batteries
Displayed for 3 seconds after power-up.
Move clamp position
Offset on-grade clamp position - clamp
position is sensed automatically and
displayed. Offset clamp position moves
the on-grade location to allow more grade
information to be displayed above grade.
This is useful in applications where going
below grade is not required, i.e. driving
stakes down to grade.
Rod Clamp
1
2
3
1. Captive Rod Clamp Screw - attaches to the back of detector.
2. Alignment Points (2) - help secure and align rod clamp.
3. Level Vial - verifies that the rod is plumb.
4.Clamping Screw Knob - secures clamp to rods by moving the
traveling jaw. Clockwise tightens; Counterclockwise loosens.
5. Reference Bar - top of bar is aligned with on-grade.
6. Traveling Jaw - moving jaw grips tightly to rods.
7. Reversible Face - slanted face for round and oval rods; flat face
for rectangular and square rods.
Made in USA
www.trimble.com/environment/summary.html
Contact details for Northern America:
Apache Technologies, Inc
8261 State Route 235, Dayton, OH 45424 USA
Phone: (937) 482-0200, Fax: (937) 482-0030
www.apache-laser.com

Specifications

Working Radius (Laser dependent):
1 m - 460 m (3 ft - 1500 ft)
Laser Detection Height: 127 mm (5'')
Numeric Readout Height: 102 mm (4'')
Accuracy (Dead band):
Ultra Fine 0.5 mm 0.02 in
Super Fine 1.0 mm 0.05 in
Fine 2.0 mm 0.10 in
Medium 5.0 mm 0.20 in
Coarse 10.0 mm 0.50 in
Calibration 0.1 mm 0.01 in
Reception Angle: ± 45° minimum
Detectable Spectrum: 610 nm ... 780 nm
Beeper Volumes: Loud = 110 dBA
Medium = 95 dBA
Low = 65 dBA
LED Grade Indicators: Front, Green on-grade,
Red Hi/Low
Power Supply: 2 x 1.5 Volt "AA" batteries
Battery Life: 60+ hours
Automatic Shut Off: Selectable, 30 min, 24 h, Off
Environmental: Waterproof, Dustproof to IP67
Weight without clamp: 371 g (13.1 oz.)
Dimensions without
clamp: 168 x 76 x 36 mm
(6.6" x 3.0" x 1.4")
Operating Temperature: -20°C...+60°C (-4°F... +140°F)
Storage Temperature: -40°C...+70°C (-40°F...+158°F)
*Specifications subject to change without notice.
7
Warranty
6
Apache Technologies, Inc. STORM Laserometer and clamp are warranted
to be free of defects in material and workmanship for a period of three
5 years. This warranty period is thirty-six months from the date the product is
delivered from the dealer to the purchaser or is put into service by a dealer
as a demonstration unit or rental unit. In addition to the basic warranty
above, Apache Technologies may choose to repair or replace, at its discre-
4
tion, any STORM Laserometer, in the event of a failure for any reason,
during the warranty period.
A Warranty Registration Card must be filled out properly and on file with
Apache Technologies.
Any evidence of misuse, alteration, or an attempt to repair products by un-
authorized personnel, or use of parts other than those provided by Apache
Technologies automatically voids the warranty. Competitor purchased and
tested units are excluded from this warranty.
The user of the product is expected to follow all operating, maintenance
and care instructions.
Apache Technologies liability under this warranty is limited to repairing or
replacing any product returned to its factory for that purpose. The foregoing
states the entire liability of Apache Technologies regarding the purchase
and use of its product and they shall not be held responsible for any conse-
quential loss or damage of any kind.
This warranty is in lieu of all other warranties, expressed or implied, and
constitutes all of Apache Technologies liability with respect to merchandise
sold by it.
For Europe & Mediterranean area:
Apache Technologies Europe
GmbH Langenberger Str. 590,D-45277 Essen
Fon +49 (201) 177 68 15, Fax +49 (201) 177 6825
www.apache-laser.de

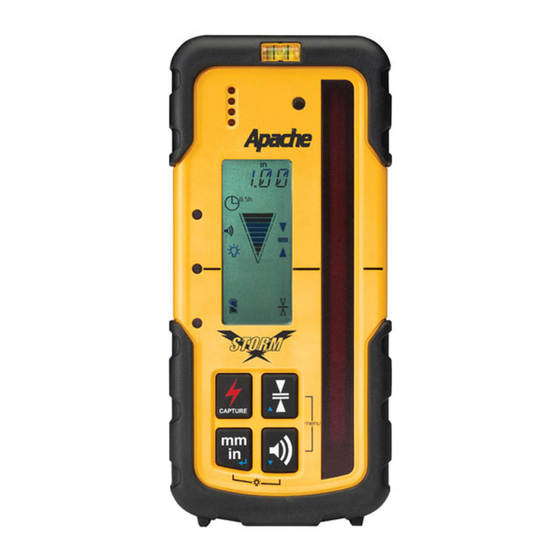

Operator's Manual
STORM Laserometer
4
1/32 in
1/16 in
1/8 in
3
1/4 in
1/2 in
1/64 in
2
1
1. Keypad - Power, Accuracy, Units & Volume switches.
2. LED-Display - Green for on-grade & Red for high / low
3. Beeper output - Fast, solid & slow audible signal.
4. Bubble Vial - aids in keeping Laserometer level.
5. Anti-strobe sensor - Reduces false indication from
strobe lights.
6. SuperCell Reception Window - 5 in / 127 mm of height.
7. Front LCD - Displays elevation, settings and status.
8. On-grade Mark - Aligned with laser center on-grade
reading.
Installing the Batteries
1. Open the battery door using a coin or similar pry device to
release the battery door tab.
2. Insert two AA batteries noting the plus (+) and minus (-)
diagrams inside the battery housing.
3. Close the battery door. Push down until it "clicks" into
the locked position.
5
13
6
12
7 11
8 10
9
Front view
9. Battery Door & Latch for two "AA" batteries.
10. Marking Notch (3.15 in / 80 mm from top).
11. Captive Screw Thread, Center on-grade clamp position.
12. Captive Screw Thread, Offset on-grade clamp position.
13. Clamp Guides - Dimples align rod clamp.
14. Serial Number / ID Label.
15. Rear LCD - repeats indications of front LCD.
16. Rubber over mold - Protects the unit from drops.
14
15
16
Rear view
P/N ATI 400043-02 Rev D
