Garden Treasures PG167H-A User Manual

Gas patio heater
Hide thumbs
Table of Contents

Advertisement

Quick Links

Garden Treasures® is a registered trademark
of LF, LLC. All Rights Reserved.
ATTACH YOUR RECEIPT HERE
Serial Number
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 8 p.m., EST, Monday - Friday.
EB14168

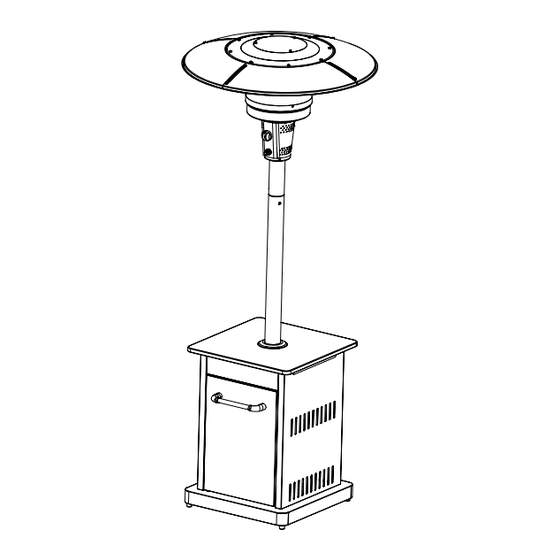

GAS PATIO HEATER
Purchase Date
1
ITEM #0574424
MODEL #PG167H-A
Français p. 21
Español p. 42

Advertisement

Table of Contents
loading

Related Manuals for Garden Treasures PG167H-A

Summary of Contents for Garden Treasures PG167H-A

  • Page 1 ITEM #0574424 GAS PATIO HEATER MODEL #PG167H-A Français p. 21 Español p. 42 Garden Treasures® is a registered trademark of LF, LLC. All Rights Reserved. ATTACH YOUR RECEIPT HERE Serial Number Purchase Date Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-800-643-0067, 8 a.m.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Product Specifications…….....................3 Package Contents……......................4 Hardware Contents……......................5 Preparation……..……….......................5 Safety Information……......................6 Assembly Instructions…….....................8 Operating Instructions……....................15 Care and Maintenance……....................16 Troubleshooting……......................18 Warranty……........................18 Replacement Parts List……....................19     DANGER WARNING FOR YOUR SAFETY Do not store or use gasoline or other If you smell gas: flammable vapors and liquids in the 1.

  • Page 3: Product Specifications

    PRODUCT SPECIFICATIONS Certification Height Overall 86.6 inches Reflector Diameter 31.5 inches Rated Heat Input 45,000 BTU/HR Fuel Propane-LP Gas Supply 20-Lb LP-Gas Cylinder Manifold Pressure 11 inches W.C. Injector Size (Diameter) 2.07 mm Safety Features Thermocouple & Tilt Switch Gas Supply Pressure Max 150 PSI, Min 5 PSI...

  • Page 4: Package Contents

    PACKAGE CONTENTS PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY Top Dome Screw Sheath KD Dome Door Handle Bezel Burner Assembly Door Handle Pole Assembly Rear Panel Deck Ring Right Panel Assembly Table Tank Holder Table Support Bracket Door Beam Table Rack Base Assembly Left Panel Assembly Cover...

  • Page 5: Hardware Contents

    HARDWARE CONTENTS M6 Spring M6 x 16 mm M6 Washer M6 Nut M6 x 30 mm Battery Washer Bolt Qty. 4 Qty. 4 Bolt Qty. 1 Qty. 4 Qty. 20 Qty. 4 M5 x 8 mm M5 Washer M5 Nut Wing Nut Bolt Qty.

  • Page 6: Safety Information

    SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. · CALIFORNIA PROPOSITION 65 WARNING: Chemicals known to the state of California to cause cancer, birth defects or other reproductive harm are created by combustion of propane. ·...
  • Page 7 SAFETY INFORMATION · The cylinder used must include a collar to protect the cylinder valve. · Installation and repair should be done by qualified service person; the heater should be inspected before use and at least annually by a qualified service person. ·...

  • Page 8: Assembly Instructions

    ASSEMBLY INSTRUCTIONS 1. Attach left panel assembly (I) to base assembly (R) using M6 x 16 mm bolts (AA). Note: Do not tighten M6 x 16 mm bolt (AA) completely until after sliding the left panel assembly (I) enough that the bolt rests in the narrow end of the keyslot.
  • Page 9 ASSEMBLY INSTRUCTIONS 4. Attach door handle bezel (L) on both sides of the door handle (M). Insert screw sheaths (K) into the holes on the backside of door assembly (J). Then, attach door handle assembly to door assembly (J) using M6 x 16 mm bolts (AA) through the screw sheaths (K) and into the preassembled door handle bezels (L) on door handle (M).
  • Page 10 ASSEMBLY INSTRUCTIONS 7. Open door assembly (J). Then, from inside, secure pole assembly (D) to table rack (H) using M6 x 30 mm bolts (DD), M6 washers (BB), M6 spring washers (CC) and M6 nuts (EE). Hardware Used M6 Washer M6 Washer 18X6.5X1.5 M6 Stretchy Washer M6 Spring Washer...
  • Page 11 ASSEMBLY INSTRUCTIONS 9. Insert the deck ring (E) over the pole assembly (D) so it rests on top of table (F). 10. From inside the cabinet, secure the left end of the tank holder (P) into the holder preassembled on left panel assembly (O).
  • Page 12 ASSEMBLY INSTRUCTIONS 11. Insert reflector spacers (JJ) into the top of burner assembly (C). 12. Thread regulator assembly preassembled to burner assembly (C) C 15 through the pole assembly (D). Once the burner assembly (C) rests on pole assembly (D), secure with M5 x 8 mm bolts (GG).
  • Page 13 ASSEMBLY INSTRUCTIONS Attach KD domes (B) using M5 x 8 mm bolts (GG), M5 nuts (HH) and M5 washers (II). Then, complete dome assembly by attaching top dome (A) to KD domes (B) with M5 x 8 mm bolts (GG), M5 nuts (HH) and M5 washers (II).
  • Page 14 ASSEMBLY INSTRUCTIONS 15. To install the battery (FF), unscrew the igniter cap preassembled to burner assembly (C). Insert battery (FF) into the igniter, ensuring the positive "+" end faces outward. Then replace the igniter cap. Igniter Igniter 16. Connect preassembled regulator assembly from burner assembly (C) to a 20-lb.

  • Page 15: Operating Instructions

    OPERATING INSTRUCTIONS Checking for Leaks a. Make leakage solution by mixing 1-part liquid dish soap and 3-parts water. b. Spoon or brush several drops (or use squirt bottle) of the solution onto the gas hose/regulator and regulator/cylinder and hose connections. c.

  • Page 16: Care And Maintenance

    OPERATING INSTRUCTIONS In any case of failure of normal ignition, please use the ignition bar with a match to reach the burner for ignition through the hole on the bottom of burner diffuser. Insert the match from the back side of the burner assembly where is opposite to the control panel.
  • Page 17 CARE AND MAINTENANCE Cleaning · Wipe surfaces clean with mild dish detergent or baking soda. · For stubborn surfaces use a citrus-based degreaser and a nylon scrubbing brush. · Rinse clean with water. Note: While cleaning the unit, be sure to keep the area around the burner dry at all times. Do not submerge the control valve assembly.

  • Page 18: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Burner doesn’t light. 1. Gas pressure is low. 1. Turn the gas cylinder valve “OFF” 2. The orifice is blocked. and replace the cylinder. 3. Control knob is not in “ON” 2. Clear blockage. position.

  • Page 19: Replacement Parts List

    REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 1-800-643-0067, 8 a.m. - 8 p.m., EST, Monday - Friday...

  • Page 20: Cover

    Table Rack 5203090 Tip Cushion 2404076 Left Panel Assembly 5203091 Weight Plate 2406533 Spring Sheath 2306703 Cover 3106103 0574424 Door Hardware Pack 5203215 Screw Sheath 2100481 Printed in China Garden Treasures® is a registered trademark of LF, LLC. All Rights Reserved.
