Garden Treasures® is a registered trademark
of LF, LLC. All Rights Reserved.
ATTACH YOUR RECEIPT HERE
Serial Number
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 8 p.m., EST, Monday - Friday.
AB15414
Purchase Date
1
ITEM #0743019

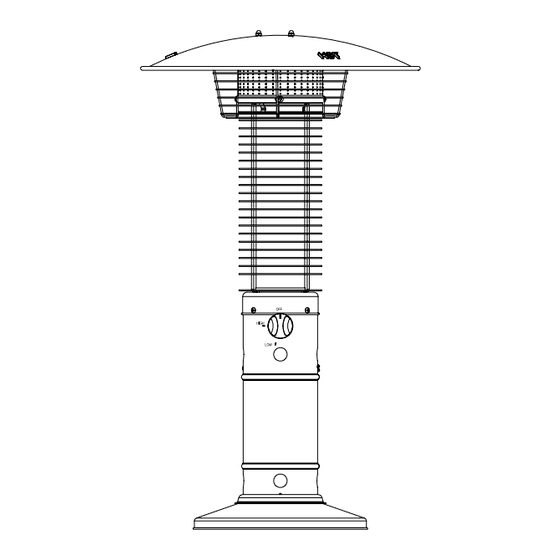

TABLETOP GAS
PATIO HEATER
MODEL #PG169T-C
Français p. 17
Español p. 33
Advertisement
Table of Contents
Related Manuals for Garden Treasures PG169T-C
Summary of Contents for Garden Treasures PG169T-C
- Page 1 ITEM #0743019 TABLETOP GAS PATIO HEATER MODEL #PG169T-C Français p. 17 Garden Treasures® is a registered trademark of LF, LLC. All Rights Reserved. Español p. 33 ATTACH YOUR RECEIPT HERE Serial Number Purchase Date Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-800-643-0067, 8 a.m.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Product Specifications…….....................3 Package Contents……......................4 Hardware Contents……......................5 Preparation……..……….......................5 Safety Information……......................5 Assembly Instructions…….....................7 Operating Instructions……....................10 Care and Maintenance……....................12 Troubleshooting……......................14 Warranty……........................15 Replacement Parts List……....................16 DANGER WARNING FOR YOUR SAFETY Do not store or use gasoline or other If you smell gas: flammable vapors and liquids in the 1. -
Page 3: Product Specifications
PRODUCT SPECIFICATIONS Certification Height Overall 37 inches Reflector Diameter 20.4 inches Rated Heat Input 15,000 BTU/HR Fuel Propane-LP Gas Supply 1-Lb LP-Gas Cylinder Manifold Pressure 11 inches W.C. Injector Size (Diameter) 1.16 mm Safety Features Tilt Switch & Thermocouple Gas Supply Pressure Max 150 PSI, Min 5 PSI... -
Page 4: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY Reflector Wire Guard Assembly Top Wire Guard Housing Assembly Emitter Assembly Plastic Ring Glass Cap Base Glass Tube Cover Black Silicone Ring... -
Page 5: Hardware Contents
HARDWARE CONTENTS Long Bolt Acorn Nut Short Bolt Qty. 4 Qty. 3 Qty. 10 PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. - Page 6 SAFETY INFORMATION · Use this appliance in outdoor areas described below: (a) With walls on all sides, but at least one permanent opening at ground level and no overhead cover. (b) Within a partial enclosure that includes overhead cover and no more than two walls. These walls may be parallel, or at right angles to each other.
-
Page 7: Assembly Instructions
SAFETY INFORMATION · Clothing or other flammable materials should not be hung on the heater, or placed on, under or near the heater. · Children and adults should be alerted to the hazards of high surface temperatures and should stay away from the item to avoid burns or clothing ignition. CAUTION ·... - Page 8 ASSEMBLY INSTRUCTIONS 2. Attach the wire guard assembly (G) to the housing assembly (H) using short bolts (CC). Hardware Used Short Bolt 3. Place black silicone ring (F) to the bottom of glass tube (E). Insert glass tube into the preassembled wire guard assembly (G), then tighten the glass cap (D) onto the wire guard assembly (G) with the short bolts (DD).
- Page 9 ASSEMBLY INSTRUCTIONS 5. Attach reflector preassembled spacers on the emitter assembly (C) using acorn nuts (AA). Hardware Used Acorn Nut 6. Open the door on the housing assembly (H), then turn the connection end of the preassembled regulator to face outward. Attach LP-gas tank...
-
Page 10: Operating Instructions
OPERATING INSTRUCTIONS Before Lighting The item was designed and approved for OUTDOOR USE ONLY. DO NOT use it inside a building, garage or any other enclosed area. Make sure surrounding areas are free of combustible materials, gasoline and other flammable vapors or liquids. - Page 11 OPERATING INSTRUCTIONS 6.. Once burner is lit, rotate control knob to desired heating level. If you experience any issues while attempting to light the item, turn off the heater and gas supply and refer to TROUBLESHOOTING on page 14. 7. Visually check the burner flame against the illustrations: 1) Flame should be slight blue at the bottom and strong yellow at the top.
-
Page 12: Care And Maintenance
OPERATING INSTRUCTIONS Turning Off 1. Rotate gas control knob to “OFF” position. Note: Burner will likely make a slight popping sound when extinguished. 2. Disconnect LP-gas tank after use. Rotate LP-gas tank to horizontal position, unscrew it counterclockwise until it is loose. Store the LP-gas tank in a proper location. - Page 13 CARE AND MAINTENANCE Maintenance Make sure you perform the following maintenance activities on a regular basis: · Keep exterior surfaces clean. · Air flow must be unobstructed. Keep controls, burner and circulating air passageways clean. Signs of possible blockage include: Gas odor with extreme yellow tipping of flame.
-
Page 14: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Burner doesn’t stay 1. Thermocouple and tilt switch 1. Press down and rotate the control lit. are broken. knob, holding it down for at least 30 seconds, then release. If the burner doesn't stay lit, contact customer service at 1-800-643-0067, 8 a.m. -
Page 15: Warranty
WARRANTY The appliance has been manufactured under the highest standards of quality and workmanship. We warrant to the original consumer/purchaser that all aspects of this product will be free of defects in material and workmanship for one (1) year from the date of purchase. A replacement for any defective part will be supplied free of charge for installation by the consumer. -
Page 16: Replacement Parts List
2406517 Black Silicone Ring 2406518 Shroud Cover 5203226 Housing Assembly 0743019-01 Door 5203232 Knob 2100462 Plastic Ring 2100061 Base 0574422-19 Cover 3106159 Hardware Pack 5206332 Printed in China Garden Treasures® is a registered trademark of LF, LLC. All Rights Reserved.
