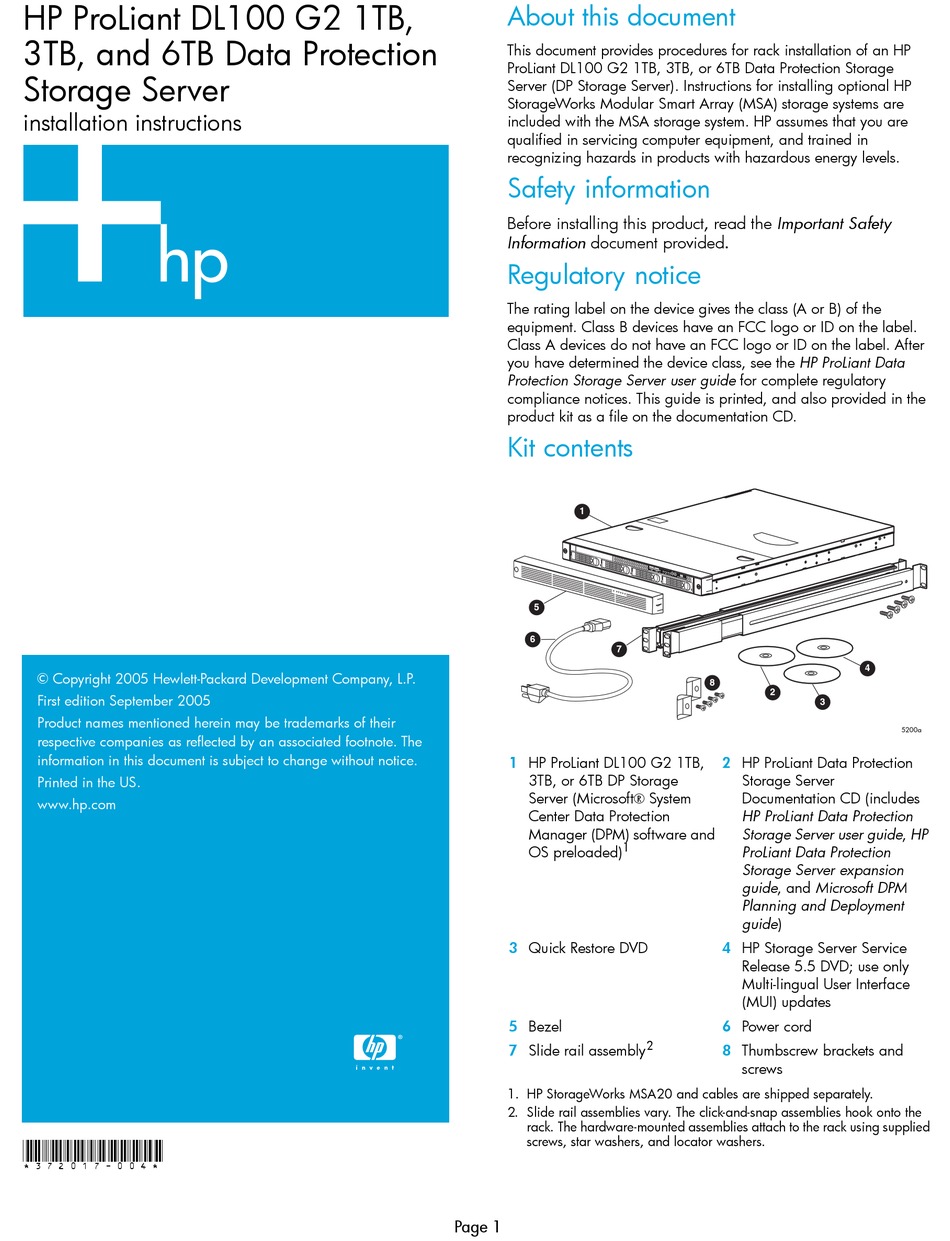

HP ProLiant DL100 G2 1TB,
3TB, and 6TB Data Protection
Storage Server

installation instructions

© Copyright 2005 Hewlett-Packard Development Company, L.P.
First edition September 2005
Product names mentioned herein may be trademarks of their
respective companies as reflected by an associated footnote. The
information in this document is subject to change without notice.
Printed in the US.
www.hp.com
*372017-004*
About this document
This document provides procedures for rack installation of an HP
ProLiant DL100 G2 1TB, 3TB, or 6TB Data Protection Storage
Server (DP Storage Server). Instructions for installing optional HP
StorageWorks Modular Smart Array (MSA) storage systems are
included with the MSA storage system. HP assumes that you are
qualified in servicing computer equipment, and trained in
recognizing hazards in products with hazardous energy levels.

Safety information

Before installing this product, read the Important Safety
Information document provided.
Regulatory notice
The rating label on the device gives the class (A or B) of the
equipment. Class B devices have an FCC logo or ID on the label.
Class A devices do not have an FCC logo or ID on the label. After
you have determined the device class, see the HP ProLiant Data
Protection Storage Server user guide for complete regulatory
compliance notices. This guide is printed, and also provided in the
product kit as a file on the documentation CD.

Kit contents

1
5
6
7
1
HP ProLiant DL100 G2 1TB,
3TB, or 6TB DP Storage
Server (Microsoft
®
Center Data Protection
Manager (DPM) software and
1
OS preloaded)
3
Quick Restore DVD
5
Bezel
7
Slide rail assembly
1. HP StorageWorks MSA20 and cables are shipped separately.
2. Slide rail assemblies vary. The click-and-snap assemblies hook onto the
rack. The hardware-mounted assemblies attach to the rack using supplied
screws, star washers, and locator washers.
Page 1
8
2
3
2
HP ProLiant Data Protection
Storage Server
System
Documentation CD (includes
HP ProLiant Data Protection
Storage Server user guide, HP
ProLiant Data Protection
Storage Server expansion
guide, and Microsoft DPM
Planning and Deployment
guide)
4
HP Storage Server Service
Release 5.5 DVD; use only
Multi-lingual User Interface
(MUI) updates
6
Power cord
2
8
Thumbscrew brackets and
screws
4
5200a
