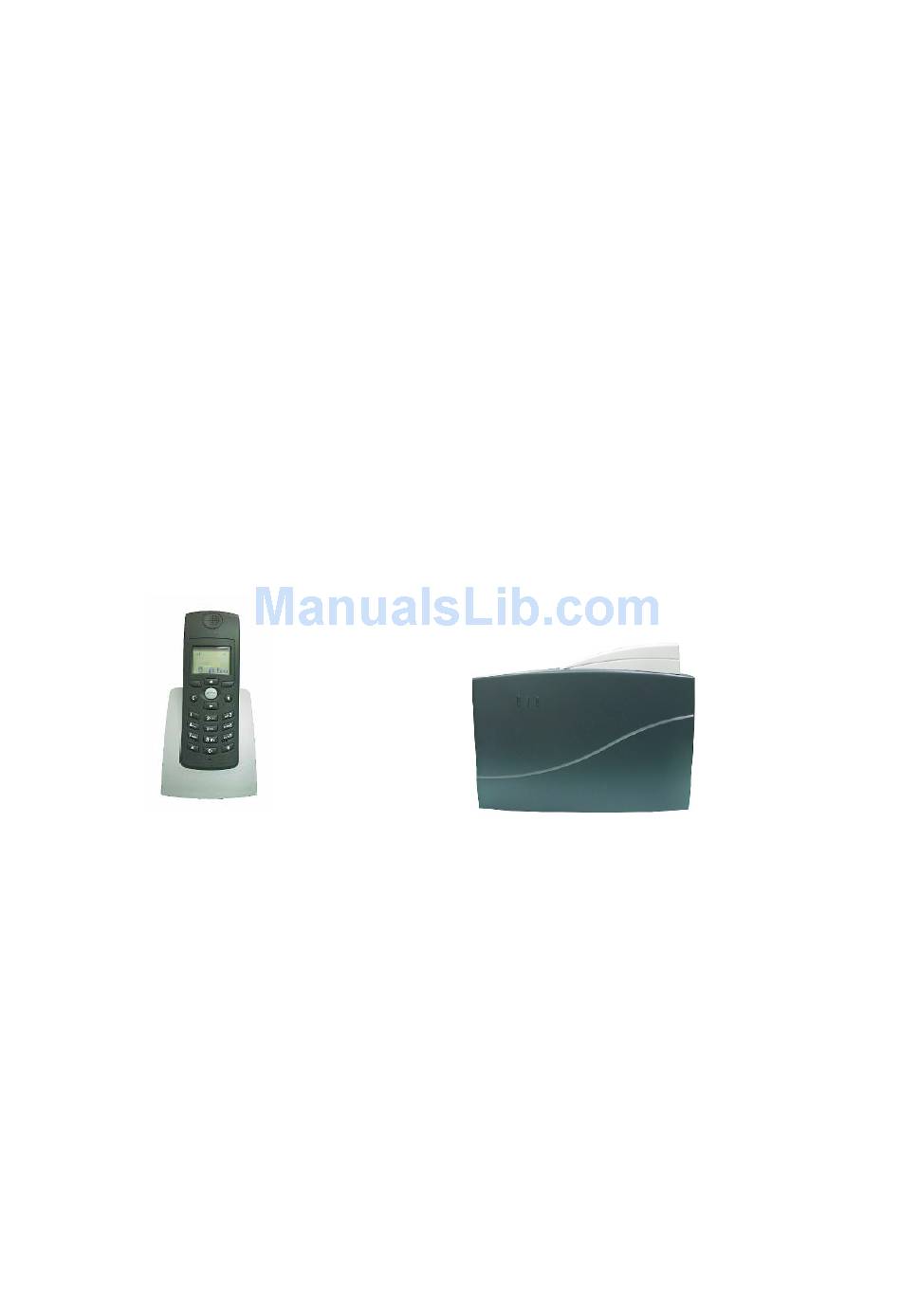

  • Page 1 User Manual for the DC 209 2 Line / 9 Handset Telephone System Aristel Networks Pty Ltd Unit 1, 25 Station Street Notting Hill. Victoria. 3168 Telephone: 03 8542 2300 Facsimile: 03 9542 3299 Version 1.3 February 2004...

  • Page 3: Table Of Contents

    HYPER-LINKED CONTENTS 1. GENERAL ........................3 2. INSTALLATION......................4 2.1. Charger ........................4 2.2. Batteries in Handset ....................4 2.3. Base Station Front and Rear..................5 2.4. Handset Keypad ...................... 7 2.5. Using the Menu: ...................... 7 2.6. Handset Display Language..................8 3.
  • Page 4 6. PHONEBOOK ......................15 6.1. Using the Alphanumerical Keypad ............... 15 6.2. Adding an Entry to the Phonebook ............... 15 6.3. Changing a Number and/or Name in Phonebook..........16 6.4. Reading the Phonebook List ................. 16 6.5. Erasing One Number and/or Name from the Phonebook ........16 6.6.

  • Page 5: General

    Important note: not all the functions of this DECT System can be used if you use a handset other than the Aristel DECT System handset. To have the best performance from this DECT System, we recommend using only the Aristel DECT System handsets.

  • Page 6: Installation

    2. INSTALLATION 2.1. Charger Before you use the telephone for the first time, you must make sure the batteries are charged for 15 hours. If you don’t do this, the telephone may not function to its full range potential. Installation of the charger: - Plug one end of the adapter into a power outlet and the other end into the adapter jack on the side of the charger.

  • Page 7: Base Station Front And Rear

    2.3. Base Station Front and Rear LINE2 LINE1 POWER Version 1.3 February 2004...
  • Page 8 NOTE! Aux input is connected to line 1 and can be used to connect a modem, fax, or ordinary handset type phone. If the Aux input is using line 1, then line 1 will not be available to the system until the Aux call has ended. Base Station setup Plug one end of the adapter into the power outlet and the other end into the adapter jack on the bottom of the base.

  • Page 9: Handset Keypad

    2.4. Handset Keypad Handset Key / LCD displays brief overview : OK / Intercom Redial Phone book Menu On / Off / Talk Signal Strength Flash / Recall Mute / Delete / Cancel Ringer Off Battery Mute ＊ Lower case selected Baby call/Hot Call Menu Speak Phone...

  • Page 10: Handset Display Language

    2.6. Handset Display Language You can select one of three different display languages. They are English, German and Italian. - Press Menu key when the handset is in standby mode.. - Select HS SETTING by using the UP and DOWN keys - Press OK key to confirm.

  • Page 11: Getting Started

    3. GETTING STARTED Before you start working with this DECT System, you need to make some minimum settings to utilize the DECT System functions. Please do these settings first. This handset can then be used as a receptionist handset 3.1. Ringing Priority (by default, all handsets will ring simultaneously) On an external call, this priority handset will ring for the pre-programmed ring cycles before the other handsets ring.

  • Page 12: Handset Group

    - Select the desired priority by using the UP and DOWN keys - Press OK to confirm.- 3.3. Handset Group You can set a group of handsets to ring and answer the assigned external line when an incoming external call is on the line. Please note: When a handset is assigned by Ringing Priority to ring on the restricted line, it always completes Ringing Priority first.

  • Page 13: Handset Operation

    4. HANDSET OPERATION 4.1. Switching the Handset On/Off To switch off the handset, press and hold the Line button for 2 seconds in the standby mode. To switch on the handset press and hold the Line button again for 2 seconds. When the handset is switched off, no calls can be made or received.

  • Page 14: Answering An Incoming Phone Call

    The call has now been transferred. 4.4.3 Making a Hands Free Phone Call With the Aristel DC209 handset you can make handsfree phone calls. Press the Line button , during conversation, for minimum 2 seconds. You can now make the conversation handsfree via the built-in speaker and microphone.

  • Page 15: Deactivating The Microphone (Mute)

    4.6. Deactivating the Microphone (Mute) It is possible to mute the microphone during a conversation: • Press C button to mute the microphone, Mute indicator appears on display. • Press C button again to activate the microphone. Mute indicator will disappear. 4.7.

  • Page 16: Call Transfer, On Hold, Toggle And Three Party Conference

    5. Call Transfer, On Hold, Toggle and Three Party Conference 5.1. Call on Hold To put a call on hold during conversation, press OK/INTERCOM key If you want to retrieve the call on hold, press OK/INTERCOM key again. If you press Line key after external call on hold, the external call will call back. 5.2.

  • Page 17: Phonebook

    6. PHONEBOOK 6.1. Using the Alphanumerical Keypad Use the alphanumerical keypad to enter text. To select a letter, press the corresponding button. Eg. if you press numerical button ‘5’, the first character (J) will be displayed. Press it multiple times if you want to select another character under this button.

  • Page 18: Changing A Number And/Or Name In Phonebook

    6.3. Changing a Number and/or Name in Phonebook Press Menu key when the unit is in standby mode.. - Select PHONE BOOK by using the UP and DOWN keys - Press OK key to confirm. - Select EDIT by using the UP and DOWN keys - Press OK key to confirm.

  • Page 19: Handset Settings

    7. HANDSET SETTINGS 7.1. Key Lock - Press MENU key when the handset is in standby mode.. - Select KEY LOCK by using the UP and DOWN keys - Press OK key to confirm The display shows “LOCKED”. The keypad is now locked. After press DOWN key and OK key , the keypad will be released.

  • Page 20: Enable/Disable The Hot Call/Baby Call Function

    7.4. HOT CALL/Baby Call Function Note: Baby/Hot call function cannot be used in handsfree mode. If you enable this function, the programmed number will be dialed automatically when any key is pressed. All other functions of the keypad will be disabled until Baby Call has been cancelled. - Press MENU key when the handset is in standby mode..

  • Page 21: Set Pin Code

    7.7. Set PIN Code To change default handset PIN code. - Press MENU key when the handset is in standby mode.. - Select HS SETTING by using the UP and DOWN keys - Press OK to confirm. - Select SET PINCODE by using the UP and DOWN keys - Press OK to confirm.

  • Page 22: To Answer Call Using Anykey

    7.9. To Answer Call Using Anykey - Press MENU key when the handset is in standby mode.. - Select HS SETTING by using the UP and DOWN keys - Press OK to confirm. - Select ANYKEY TALK by using the UP and DOWN keys - Press OK to confirm.

  • Page 23: Subscribe / Unsubscribe A Handset

    If you want to subscribe a new handset on the DECT PABX station or when you have unregistered a handset and need to subscribe it again, you must first use any of the already-registered Aristel DECT PABX handsets to grant the new handset registration. Please Note: Other manufacturer’s handsets do not grant Handset registration. Only the already-registered Aristel handsets are able to grant new handset registration.

  • Page 24: To Register A Dect System Handset To The Dect System

    If you want to subscribe a new handset on the DECT PABX station or when you have unregistered a handset and need to subscribe it again, you must first use any of the already-registered Aristel DECT PABX handsets to grant the new handset registration. Step 8.1.1 Press MENU key when the handset is in standby mode.

  • Page 25: To Change The Previously Assigned Handset No

    8.3. To Change the Previously Assigned Handset No. To change the previously assigned handset No., you will have to unsubscribe the handset from the DECT System and re-subscribe the handset with a desired new handset assignment number. 8.4. Selecting a Base Station If a handset is subscribed to different base stations, the different base set can be selected.

  • Page 26: To Set Pause Time

    - Select the desired RECALL TIME/FLASH time by using UP and DOWN keys - Press OK key to conform. 9.3. To Set Pause Time (default value is 3 Seconds) You can set Pause time to 1sec, 2sec, 3sec, 4sec, Press MENU key when the handset is in standby mode.

  • Page 27: Least Cost Route

    9.5. Least Cost Route LCR can be programmed for:- service provider (digits to be inserted), Code (override code), PABX code (O/G access) and Router (On/Off). Press MENU key when the handset is in standby mode. Select BS SETTING by using the UP and DOWN keys and press OK key - Enter the Base Pin code MASTER PIN (Default is 1590) - Press OK key...

  • Page 28: Technical Data

    10.TECHNICAL DATA • Standard: DECT ( Digital Enhanced Cordless Telecommunications ) GAP ( Generic Access Profile ) • Frequency range: 1880 ~~ 1900 MHz (BW=20MHz) 1920 ~~ 1940 MHz (BW=20MHz) • RF channels: 10 channels • Channel Bandwidth: 1.728 • Modulation: GFSK •...
