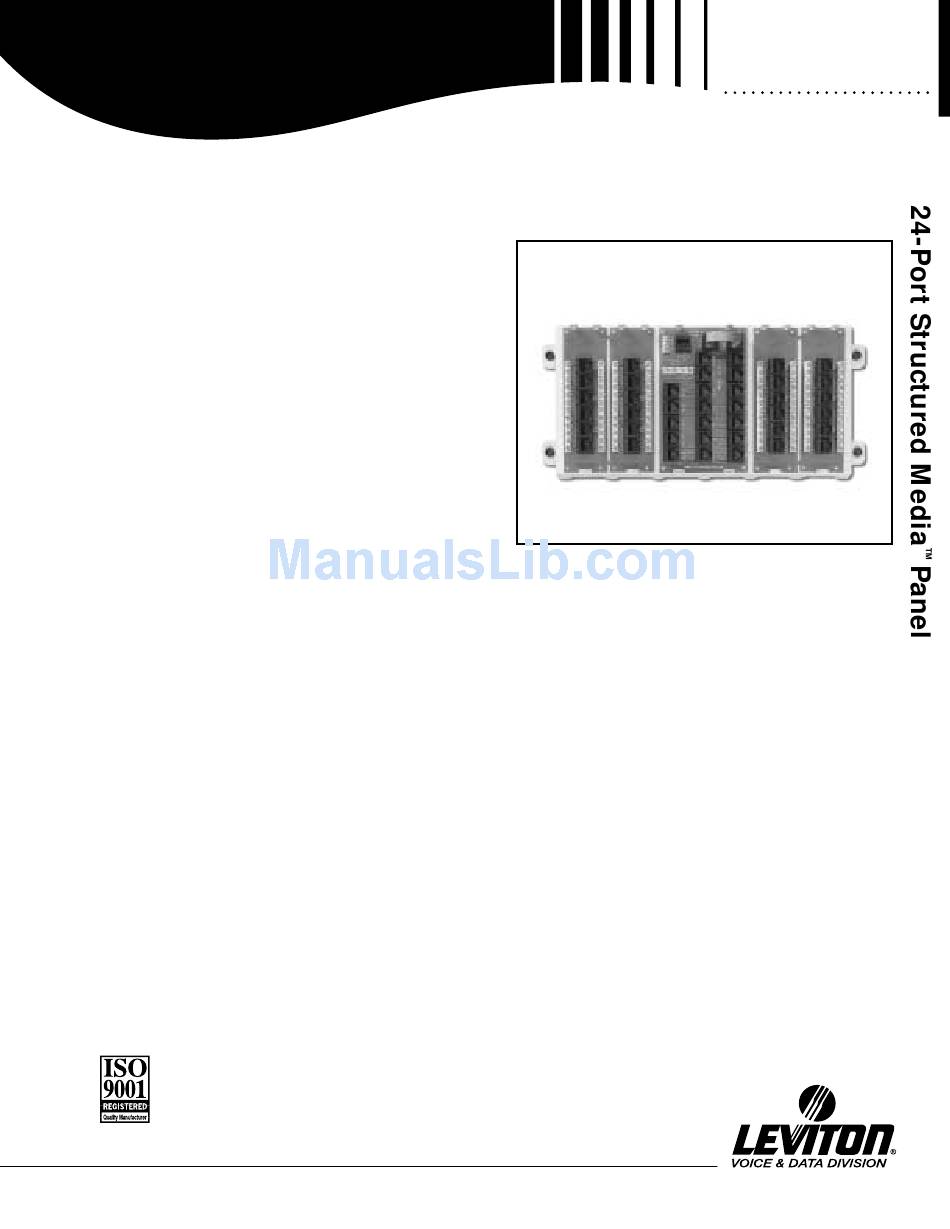

Leviton 24-Port Structured Media Panel 47603-24P Specifications

Component
Specifications

APPLICATION

Leviton's 24-Port Structured Media™ Panel combines a Telephone
Line Distribution Module and four Category 5e Voice and Data
Boards in a dedicated bracket for multi-line systems and expanded
home networking. Provides two to four lines of service to up to 19
connections. Distribute "Line 1" service to up to 12 different
connections; distribute four-line service to up to eight different
connections. Route voice and data services to up to 24 remote
locations via Category 5e Voice & Data modules. Link with other
distribution panels or boards to expand the system.

STANDARDS COMPLIANCE

Meets all applicable standards: cULus Listed; TIA/EIA-568A and FCC
Part 68 compliant.

PHYSICAL SPECIFICATIONS

Materials: Bracket:
ABS plastic, white.
Telephone Line Distribution Module:
Printed circuit board with 19 8P8C jacks for 2- or
4-line distribution , one test port, one
auxiliary disconnect port, one 110-IDC, and an
optional security system punchdown.
Category 5e Voice and Data Boards (4):
Printed circuit boards with six Category 5e ports
and six 110-IDCs.
Dimensions: Bracket:
Telephone Line Distribution Module:
Category 5e Voice and Data Board:
WARRANTY INFORMATION
• Two-year limited product warranty.
For ELECTRONIC Typical Specs see (.TXT) file on disk.
For Applications Engineering Support – Call 1-425-485-4288; in USA call 1-800-824-3005
Spec sheets and updates are also available at www.levitonvoicedata.com.
2222 – 222nd St. SE • Bothell, WA 98021 USA • Tel: 1-800-722-2082 / 1-425-485-4288 • Fax: 1-425-483-5270 • Int'l Fax: 1-425-485-9170 • GSA# GS-35F-4785G
24-Port Structured Media
6.13"H x .13.30"W x 2.01"D
5.8"H x 3.5"W x .063"D
2.24"H x 6.57"W x 1.96"D
™ Panel
See ELECTRONIC FILES for CAD files (.DXF, .DWG, MS-DOS.EPS) on disk

DESIGN CONSIDERATIONS

• Fits easily into any Leviton Structured Media enclosure, or
used as a stand-alone unit.
• Determine outlet locations and carefully plan cable routing to
ensure the selected panel satisfies requirements. Additional
Category 5e Voice and Data Boards available separately.
• Isolated RJ-45 jack and punchdown security interface.
• Modular RJ-45 jacks and 4-pair 110-type IDC punchdowns.
• Use provided 8P8C patch cord to link the Telephone Line
Distribution Module to media distribution boards. Use high-
speed UTP cable to route data, phone, fax or modem signals.

TYPICAL SPECIFICATION

The 24-Port Structured Media Panel shall meet all applicable
standards: cULus Listed; TIA/EIA-568A and FCC Part 68
compliant. The panel shall include a plastic mounting bracket,
Telephone Line Distribution Module, and four Category 5e Voice
and Data Boards. It shall fit into any Leviton Structured Media
enclosure, or be used as a stand-alone unit. The panel shall
feature an RJ-45 port on the Telephone Line Distribution Module
providing isolated circuitry for a security system. A two-year
limited warranty shall be provided by the manufacturer.
Part Number
3880-DIN
47603-24P
