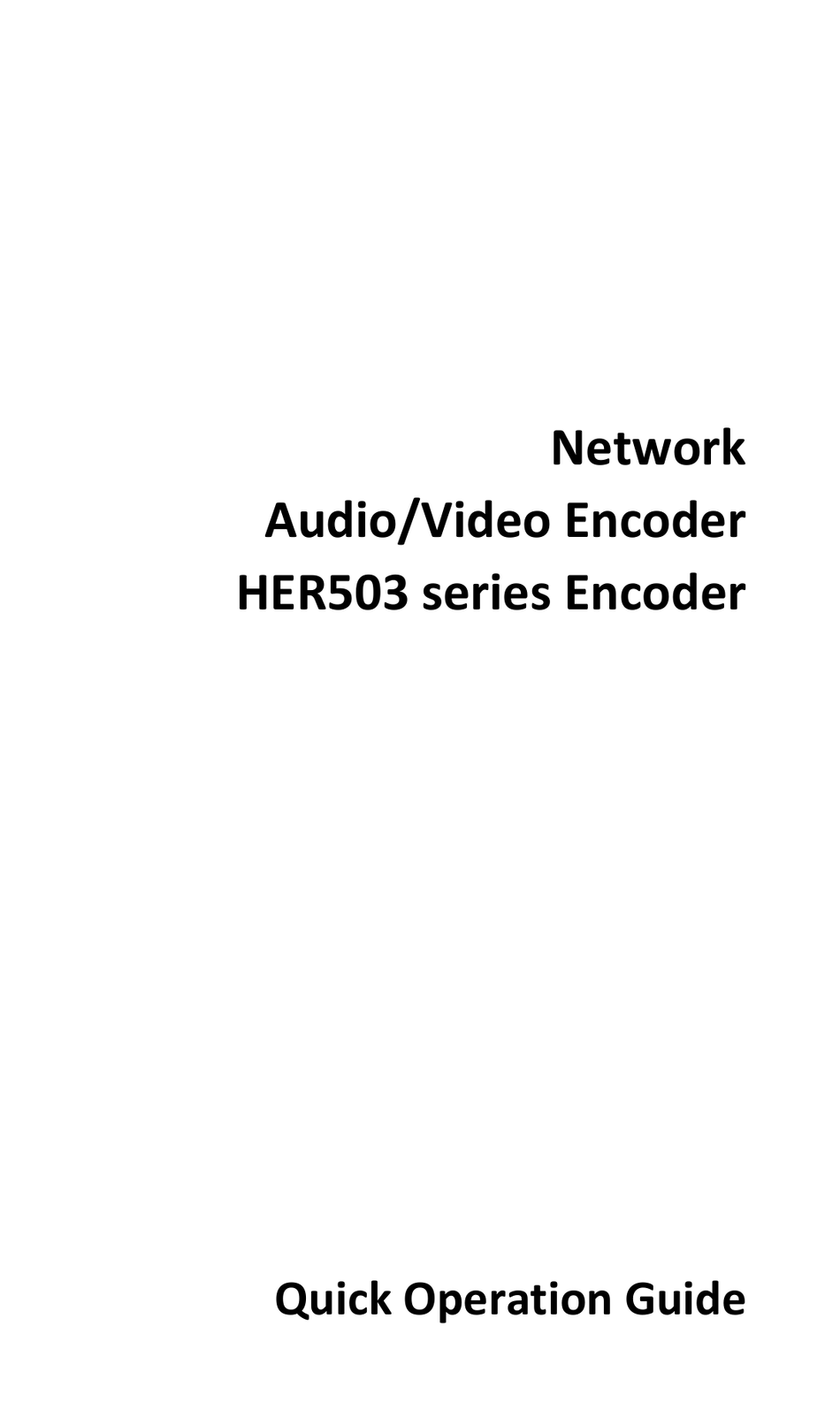

  • Page 1                 Network    Audio/Video Encoder    HER503 series Encoder                   Quick Operation Guide                                 ...

  • Page 2: Pre-Installation

    Installation Pre-Installation The HER503 Series Audio/Video Encoder is a highly advanced surveillance equipment that should be installed with care. Please take into consideration the following precautionary steps before installation of the Encoder. 1. Keep all liquids away from the Encoder.
  • Page 3 Take out the HDD data line from the accessories box. Plug one end of the data line to the circuit board and the other end to the data line port of HDD. Connect the power cord to HDD in the same way. Replace the cover and then tighten the screws on both sides and rear panel of the device.

  • Page 4: Front Panel

    Front Panel HER503-1: Description of front panel: Item Description POWER LED Indicator Light in red when the device is powered on; light in orange when the SD card is inserted. VIDEO IN BNC connector for video input. LINE IN 3.5mm interface for two-way audio input or audio input; connect to audio input device or active pick-up, microphone, etc.
  • Page 5 HER503-8: Description of front panel: Indicator Description POWER Lights in red when the device is powered on. STATUS Lights in red when data is being read from or written to HDD. Valid for SATA model. Tx/Rx 1. Does not light when the network is not connected; 2.

  • Page 6: Rear Panel

    Rear Panel HER503-1: Description of rear panel: Item Description ALARM IN /OUT Relay alarm input/output. The alarm output terminal provides no JP2 pin. Note: RS-485 RS-485 serial interface; connect to pan/tilt unit, speed dome, etc. 10M/100Mbps adaptive Ethernet interface (PoE). The right LED indicator lights in green when the network cable is connected, and the left LED indicator blinks in orange when data is transmitting / receiving.
  • Page 7 RS-485 RS-485 serial interface; connect to pan/tilt unit, speed dome, etc. RESET Restore the factory default settings by holding the RESET button for more than 15 seconds after the device is turned on. microSD microSD interface for data storage. 10M/100Mbps adaptive Ethernet interface (PoE). The right LED indicator lights in green when the network cable is connected, and the left LED indicator blinks in orange when data is transmitting / receiving.
  • Page 8 HER503-16: Description of rear panel: Item Description VIDEO IN BNC connectors for video input. LINE IN 3.5mm two-way audio interface; connect to active pick-up, microphone, etc. AUDIO OUT 3.5mm audio output interface; connect to audio output device, e.g., loudspeaker, etc. AUDIO IN Line input interface for audio input.
  • Page 9 Specification HER503 Series: Model HER503-1 HER503-4 HER503-8 HER503-16 Video H.264/MPEG4/MPEG2/MJPEG Compression 1-ch 4-ch 8-ch 16-ch Video input BNC (1.0 Vp-p, 75 Ω) Audio Video/ G.711u Compression Audio 1-ch 4-ch 8-ch 16-ch input 1-ch, 3.5mm interface Audio Input (2.0 Vp-p, 1 kΩ) Line input interface (2.0 Vp-p, 1 kΩ)

  • Page 10: Configuring Network Parameters

    Configuring Network Parameters Purpose: If you don’t know the IP address of the decoder and this is not the first time you use the decoder, you can use SADP (IP finder) software or the Serial port tools to find out the IP address of the decoder and to configure the IP address or other network parameters of it.
  • Page 11 Enter the password of the admin account of the device in the Password field and click to save the changes. Access to HER503 Series by Client Software Click Start All Programs iVMS-4200 Client to start the client software. After successful login, you can enter the following main interface of the client software.

  • Page 12: Adding Device

    Adding Device Steps: Click Control Panel > Device Management to enter the Device Management page: Click the Add button to enter the Add Device interface: Edit a nickname for the device and input the IP address, port number (default: 8000), login user name (default: admin) and password (default: 12345) of the device.
  • Page 13 You can click the buttons on the toolbar to operate in the live view mode, e.g., capture picture, start/stop recording, two-way audio, PTZ control (with PTZ camera connected to the encoder), digital zoom, open/close audio, play back video files, etc. Please refer to the User Manual of iVMS-4200 Client Software for the detailed information.
  • Page 14 Internet Explorer 6/7/8/9 and above, Firefox 3.5 and above, Chrome 8 and above, Safari 5.0.2 and above. Open WEB browser, input the IP address of HER503 series (e.g., http://192.0.0.64) and then press the Enter key on PC. The login interface is displayed.

  • Page 15: Operating Ptz Control

    Before you start: Make sure the encoder is connected with the camera/dome which supports PTZ function. Connect the R+ and terminals of the pan/tilt unit or speed dome to RS-485 T+ and RS-485 T- terminals of the HER503 series respectively.
  • Page 16 Button Description Zoom in/out Focus near/far Iris open/close Lighter on/off Wiper on/off Adjust speed of pan/tilt movement (level 1~ 7 is selectable) Recording Before you start Make sure the Encoder is connected with HDD (for SATA model) or network disk, and the HDD or network disk has been initialized for the first time to use.
  • Page 17 Configure All Day or Customized Period Record: If you want to configure the all-day recording, please check the All Day checkbox. If you want to record in different time sections, check the Customize checkbox. Set the Start Time and End Time of each period. The time of each period can’t be overlapped.
  • Page 18 Click the camera from the device list for playback. Select the date from the calendar and click Search. Click the button to play the video file searched on the current date. Use the buttons on the toolbar to operate in playback mode Button Operation Button...
  • Page 19 Purpose: The operation, alarm, exception and information of the device can be stored in log files, which can be viewed and exported at any time. Before you start The Log function can be realized only when the Encoder is connected with HDD (for SATA model) or network disk.
