  • Page 1 User Manual v.1.6 HWS-01HD series Content 1/27...

  • Page 2: Table Of Contents

    PREFACE............................3 PRODUCT SPECIFICATIONS ....................... 3 III. PRODUCT INSTALLATION....................... 6 ......................6 ARDWARE NSTALLATION IP A ..........................6 SSIGNMENT ........................8 ONITOR ETTING : ......................9 NSTALL CTIVE CONTROL LIVE VIDEO ..........................11 HWS-01HD CONFIGURATION....................13 ............................. 13 YSTEM ..........................15 ETWORK ..........................

  • Page 3: Preface

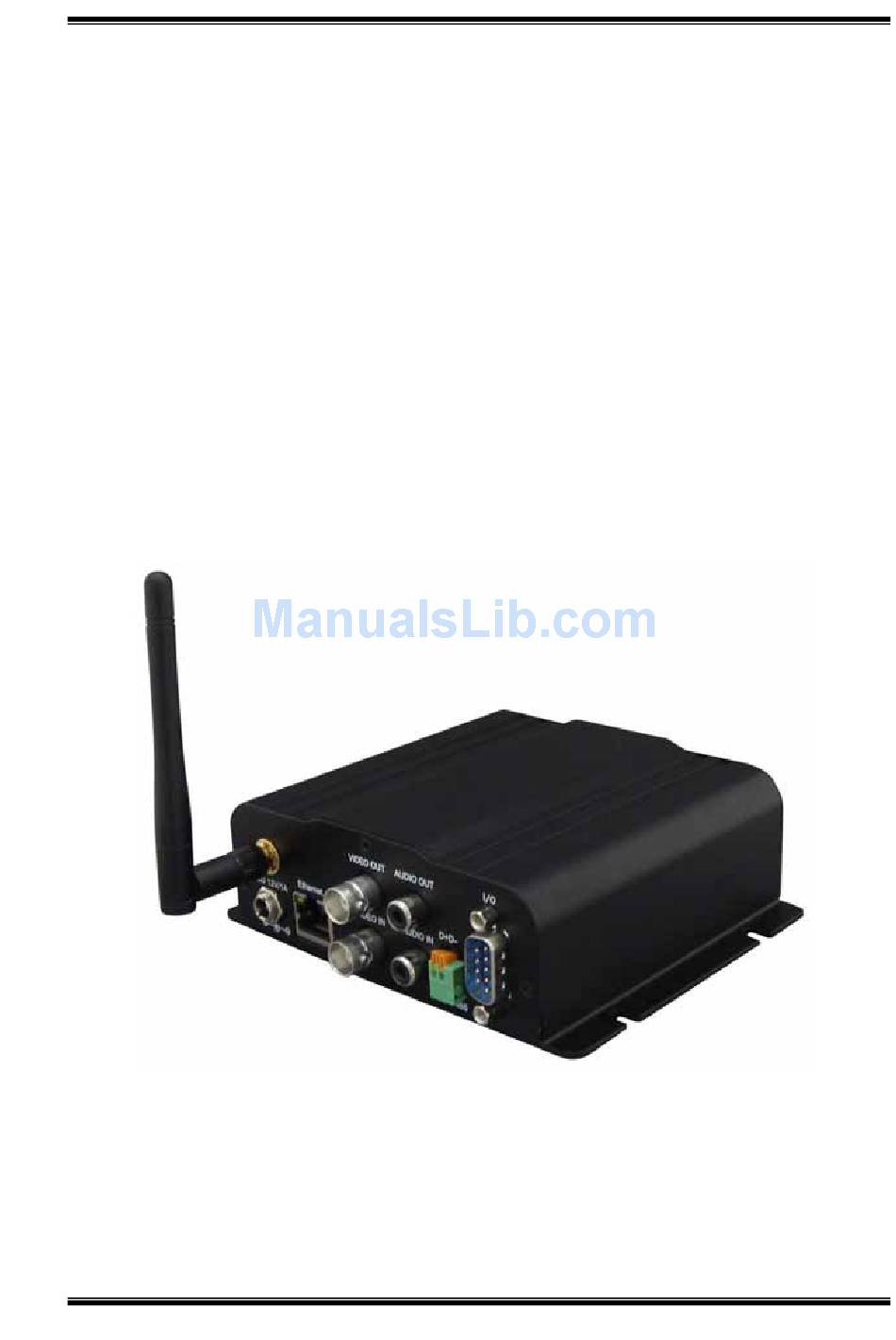

    I. Preface HWS-01HD is a 1 channel video server. It builds in web server. User views real-time video via IE browser. HWS-01HD supports MPEG-4 and M-JPEG video compression which provides smooth and high quality video. The video can be stored in the SD card, and can be playback remotely. HWS-01HD is an easy-to-use video server which can connect any kind of analogue camera to fit the customer’s need.
  • Page 4 Product Specifications Hardware ARM 9 ,32 bit RISC 64MB Video in/ out 1 in/ 1 out, BNC connector Audio in/ out 1 in/ 1 out 2 in/ 4 out RS-485 1, for PTZ control Power Consumption DC 12V, 1A, 4W Dimensions 134mm (W) x 42mm (L) x 107mm (D) Network...
  • Page 5 Web browsing requirement Windows 2000, XP, 2003, IE 6 or above Hardware Suggested Intel-C 2.0G, RAM: 512MB, Graphic card: 64MB Minimum Intel-C 1.6G, RAM: 256MB, Graphic card: 32MB 5/27...

  • Page 6: Product Installation

    III. Product Installation A. Hardware Installation Connect power adaptor Connect Ethernet cable iii. Set up the network configurations according to the network environment. For further explanation, please refer to chapter VI, “Network Configuration for HWS-01HD”. B. IP Assignment Use the software, “IP Installer” to assign the IP address of HWS-01HD. 6/27...
  • Page 7 The software is in the attached software CD. There are two languages for the IP installer IPInstallerCht.exe: Chinese version IPInstallerEng.exe: English version iii. There are 3 kinds of IP configuration. Fixed IP (Public IP or Virtual IP) DHCP (Dynamic IP) Dial-up (PPPoE) Execute IP Installer For Windows XP SP2 user, it may popup the following message box.

  • Page 8: Monitor Setting

    vii. IP Installer searches all the IP cameras which connect to the intranet and lists on the left side of the IP Installer. Just click the “Search Device” to re-search again. viii. Click one of the IP camera listed on the left side. The network configuration of this IP camera will show on the right side.

  • Page 9: Install Active Xcontrol

    D. Install ActiveX control: For the first time to view the camera video via IE, it will ask you to install the ActiveX component. If the installation failed, please check the security setting for the IE browser. Tools Internet Options… Security Tab Custom Level…...
  • Page 10 When popup the following dialogue box, click “Yes”. 10/27...

  • Page 11: Live Video

    IV. Live Video Start a IE browser, type the IP address of the IP camera in the address field. It will show the following dialogue box. Key-in the user name and password. The default user name and password are “admin” and “admin”. When connect to the HWS-01HD。The following GUI shows.
  • Page 12 : Get into the administration page : Video Snapshot Shows how many people connect to this IP camera Show system time, video resolution, and video refreshing rate HWS-01HD supports 2-way audio. Click the “Chatting” check box. The you can use microphone which connect to the PC to talk to server side, which is HWS-01HD side.

  • Page 13: Hws-01Hd Configuration

    V. HWS-01HD Configuration Click to get into the administration page. Click to back to the live video page. A.System i、 System Information Set up the camera name, select language, and set up the camera time. Server Name: This is the Camera name. This name will show on the IP Installer.
  • Page 14 Server time setting: Use NTP or Input Date & Time manually. ii、 User Management HWS-01HD supports three different users, administrator, general user, and anonymous user. 14/27...

  • Page 15: B.network

    Anonymous User Login: Yes: Allow anonymous login No: Need user name & password to access this IP camera Add user: Type the user name and password, then click “Add/Set”. Click “edit” or “delete” to modify the user. iii、 System update: To update the firmware online, click “Browse…”...
  • Page 16 Static IP：Type IP address, subnet mask, gateway, and DNS manually. DHCP：Using DHCP, HWS-01HD will get all the network parameters automatically. 1.1.1 PPPoE: Select “Enabled” to use PPPoE. Key-in Username and password for the ADSL connection. Send mail after dialed: When connect to the internet, it will send a mail to a specific mail account.
  • Page 17 Enable this service Key-in the DynDNS server name, user name, and password. Set up the IP refreshing rate. Click “Apply” Camddns service: Key-in user name. Click “Apply”. DDNS Status Updating: Information update Idle: Stop service 17/27...
  • Page 18 DDNS registration successful, can now log by http://<username>.ddns.camddns.com: Register successfully. Update Failed, the name is already registered: The user name has already been used. Please change it. Update Failed, please check your internet connection: Network connection failed. Update Failed, please check the account information you provide: The server, user name, and password may be wrong.

  • Page 19: Multimedia

    C.Multimedia i、 Image Setting Adjust “Brightness”, “Contrast”, “Hue”, “Saturation” and “AE Reference” to get clear video. ii、 Video Setting Basic Mode: 19/27...
  • Page 20 Resoultion: There are 3 resolutions to choose. Full D1 – 720X480 (NTSC), 720X576 (PAL) CIF – 352X240 (NTSC), 352X288 (PAL) QCIF – 176X120 (NTSC), 176X144 (PAL) Quality: There are 5 levels to adjust, The higher the quality is, the bigger the file size is. Video System: Please select 60 (Hz) if you are in America, Taiwan…...

  • Page 21: Event

    There are CBR﹝Constant Bit Rate﹞ and VBR﹝Variable Bit Rate﹞to use. CBR；64Kbps~4Mbps。 VBR：Q=3~30。 Video Frame Rate The video refreshing rate per second. It means "Group of Pictures". The higher the GOP is, the better the quality is. iii、 Audio: HWS-01HD supports 2-way audio. For IP camera to local PC, select “Enable”...
  • Page 22 Motion Detection HWS-01HD allows 3 areas motion detection. When motion is triggered, it can send the video to some specific mail addresses, transmit the video to remote ftp server, and save video to local SD card. To set up the motion area, click “Area Setting”. Using mouse to drag the area.
  • Page 23 ii、 I/O Setting HLC-830 supports 2 input/ 4 output. When input is triggered, it can send the video to some specific mail addresses, transmit the video to remote ftp server, trigger the relay, and save video to local SD card. iii、...
  • Page 24 Playback: It will show the capacity of the SD card. Click the date listed on this page. It will show the list of the video. The video format is AVI. Click the video to start Microsoft Media Player to play it. To delete the video, check it, then click Del.

  • Page 25: Network Configuration

    The Pre/ Post Alarm are adjustable in HWS-01HD. VI. Network Configuration Configuration 1: Internet Access: ADSL or Cable Modem IP address: One real IP or one dynamic IP Only HWS-01HD connects to the internet For fixed real IP, set up the IP into HWS-01HD. For dynamic IP, start PPPoE.

  • Page 26: Factory Default

    Internet Access: ADSL or Cable Modem IP address: More than one real IP or one dynamic IP HWS-01HD and PC connect to the internet Device needed: Switch Hub For fixed real IP, set up the IP into HWS-01HD and PC. For dynamic IP, start PPPoE.

  • Page 27: Package Contents

    Press and hold the button in the back of HWS-01HD. Power on the camera. Don’t release the button during the system booting. It will take around 30 seconds to boot the camera. Release the button when camera finishes proceed. Re-login the camera using the default IP (http://192.168.1.200), and user name (admin), password (admin).
