ADJ PROFSLED 140 Operating Instructions

Model: PROFSLED 140
SPECIFICATIONS:
LED: 140W
Voltage: 100V ~ 240V 50~60Hz
Fuse: 4A
Power Consumption: 190W
Ventilation: Fan Cooling
Working Position: Any
Weight: 16.75 lbs./7.5 kg.
Size: 13" x 18" x 13"
328 x 452 x 325mm
Beam Angel: 14 - 26 Degrees
American DJ
Caution!
Always disconnect from main
power before servicing unit. Remember to
always replace with same fuse.
CAUTION! WARNING! The top of unit gets ex-
tremely hot, watch where you rest your hands,
or objects that can melt or burn.
Thank you for purchasing this American DJ®
product. For your convenience this lighting
effect is ready to be used, there is no assembly
required. Please read the following instructions
before installing or using your new unit.
Operating Instructions:

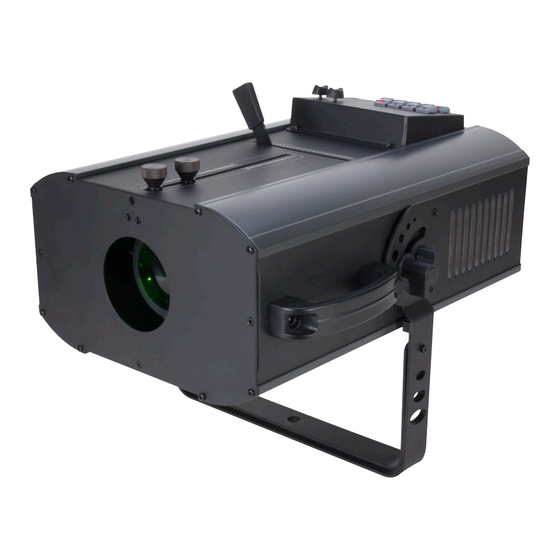

Unit is ready to be hung or set on a Tripod. The
PROFSLED 140 features a bright 140 watt LED,
dual focusing knobs for precise, full focusing, a
iris control slide at top of unit can also blackout.
It has 7 colors to choose from including a Warm
White color and Cool White color. The unit also
include a master dimming fader and a strobe
control fader. Optional LTS-5 tripod stand sold
seperately.
Notice: When unit is brand new smoke may
emit from the inside of unit. This is the paint
on the inside burning off. There is no prob-
lem with the unit, this is normal.
The fuse is located above the power cord. First
unplug the unit from its powe source. Then using
either a flathead or phillips screwdriver, unscrew
and remove the fuse holder. Replace the fuse
with the correct fuse.
®
