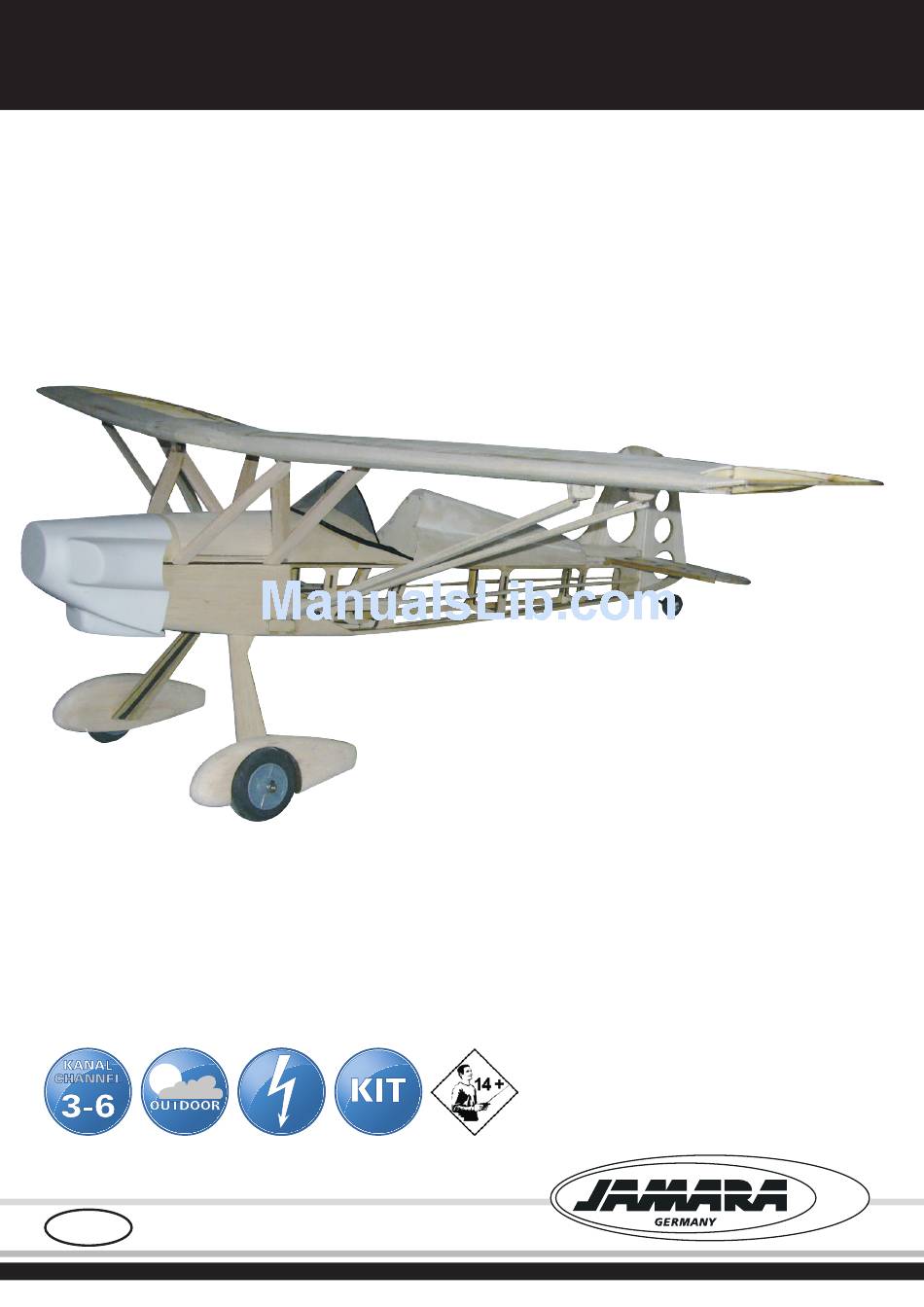

- Page 1 Starlet Instruction 00 6140 Ord. No. It‘s not a toy!
-
Page 2: Table Of Contents
Content Safety Information Set-up General Information Recommended Accessories Technical data | Box contents | Highlights Plans 15 - 19 Building the Model 3 - 13 Safety Information Important Information for use of batteries and battery packs This model is not a toy! Suitable for people over 14 year. -
Page 3: General Information
General Information Attention! As the company JAMARA e. K. has no influence over the use, main- In some countries it is a legal requirement to carry third par- tenance or conditions under which our products will operate, we accept no responsibility for any damage caused be it of a physical, ty indemnity insurance when operating a radio controlled financial or theoretical nature. - Page 4 Insert further ribs and glue together. The construction is turned. Servo/ battery board and motor sup- port are mounted. !!Adhere to right angle and make sure nothing is displaced!! The motor support already has a side pull and drop installed. The fuselage rib and fuselage belts are glued.
- Page 5 The frame for the battery cover are assembled as shown. For it The half-rib is now glued to the fuselage. to fit nicely we recommend to glue it later on once the fuselage is completed. The baldachin support is mounted from the shown parts. The slat for wire guidance is glued into place The baldrachin is made of 4 long wire pieces and 2 diagonal The 4 long wires are glued into the groove and fixed with the...
- Page 6 Plank fuselage with 1.5 mm balsa… … underside with 2 mm balsa. The fuselage top is planked with 1.5 mm at the front. The fuselage back is planked with 1.5 mm balsa and at the top it is rounded with 4 mm balsa leftovers. 4 mm balsa sanded.
- Page 7 The transition from fuselage to empennage is now completed. 4 mm balsa is glued to the fuselage frontal. !!Do not let glue drop on the empennage dummy!! Glue a place holder made of 4 mm balsa leftovers together and lay on fuselage. Do not glue it to the fuselage. The balsa pieces are sanded incl.
- Page 8 The support is inserted into the fuselage and the wing is put on The wire is bent according to plan… top. The support is taken out at a later stage. It was made to fit and position the wing supports on fuselage/ wing. …...
- Page 9 The undercarriage cover is made of 3 layers of balsa. The first Pants made of 4 x 6 mm balsa (image without 2 mm side pieces). layer is cut out of 1.5 mm balsa with overlap. For filling in width, 3 mm balsa is used.
- Page 10 Now everything is fixed by glueing all parts together. You can The tailing edge is mounted out of 3 parts. also use the plan to do so but a straight line with a right angle is efficient. Only glue parts together which are aligned. The aileron ledge is glued.
- Page 11 The servo frame is glued together. And the cover scrued. One left and right wheel arch is glued together. Wheel arches are glued and the leading edge is also glued. Trailing edge and ribs are supported with small balsa triangles. Upper planking of wings with the leading edge...
- Page 12 Both wing parts are now glued to the holm. The curved edge is adjusted to fit the planking with balsa lefto- vers. Sand edge once finished. The wing is now fitted and the baldachin is aligned. Clamps and alu angles are glued at first. The alu angles are used in the wings 8 times.
-
Page 13: Set-Up
Also for the outer braces alu angles are glued into the pocket. Made from 1.5 mm balsa leftovers a “frame” is made for the rud- der horn so the foil does not crinkle. Servo mounting. Finished model Set-up Aileron: 10 mm Ausschlag Elevator: 10 mm deflexion Side rudder:... -
Page 14: Recommended Accessories
Recommended Accessories No.13 2217 No.08 1925 No.34 0056 No.14 1368 Motor A2217/8-BI Controller Xetronic 25A Propeller Battery APC elektro 9 x 6 LiPoStar Turbo 1800mAh 3N No.17 4412 No.17 7312 4 x Servos Tail Skid wheel steerable XT-9 25 mm complete... -
Page 15: Plans
Plane - The original sized plan can be found on the DVD Starlet... - Page 16 Plane - The original sized plan can be found on the DVD Module Starlet...
- Page 17 Plane - The original sized plan can be found on the DVD Module Starlet 1SV...
- Page 18 Plane - The original sized plan can be found on the DVD Undercarriage 17,50...
- Page 19 Plane - The original sized plan can be found on the DVD Brace...
- Page 20 We will include a catalogue for your attention with the next order placed by your dealer. Newsletter You can receive up-to-date news through our newsletter. If you are interested, plese apply for the Jamara Newsletter. Your E-mail-Address ______________________________________________________ JAMARA e.K.
