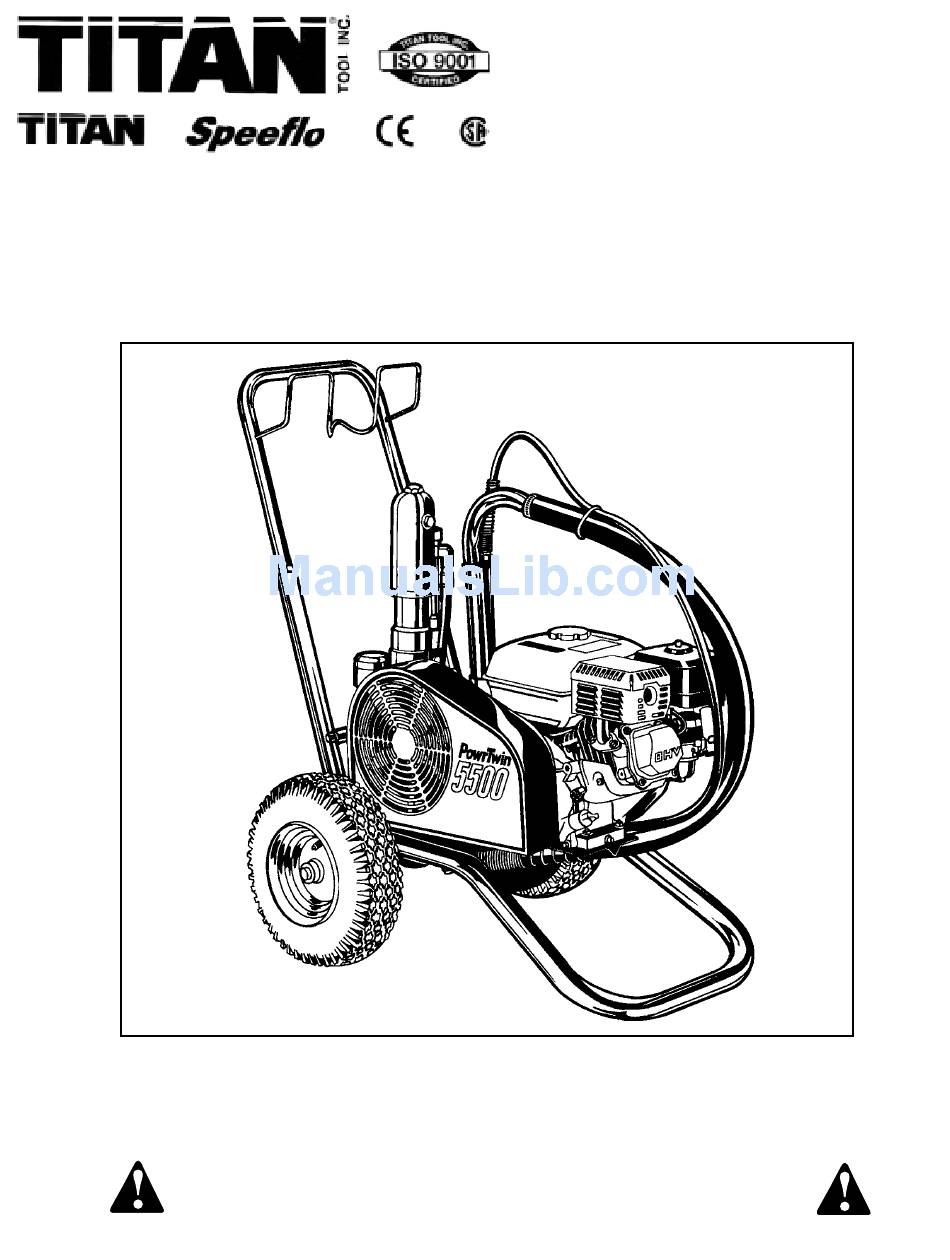

OWNER'S MANUAL
FOR PROFESSIONAL
USE ONLY
313 - 1018
0199
DO NOT USE EQUIPMENT BEFORE READING THIS MANUAL
PowrTwin 5500™
PowrTwin 5500™ Airless Sprayer
WARNING HIGH PRESSURE DEVICE
Model Number 449-700 Gas
Model Number 449-704 DC Electric
Model Number 449-706 AC Electric
This manual contains important warnings and instructions.
Please read and retain for reference. Never operate this unit unless it is properly grounded.
Advertisement
Table of Contents
Related Manuals for Titan Tool PowrTwin 5500 449-700 Gas
Summary of Contents for Titan Tool PowrTwin 5500 449-700 Gas
- Page 1 OWNER'S MANUAL FOR PROFESSIONAL USE ONLY 313 - 1018 0199 DO NOT USE EQUIPMENT BEFORE READING THIS MANUAL PowrTwin 5500™ PowrTwin 5500™ Airless Sprayer WARNING HIGH PRESSURE DEVICE Model Number 449-700 Gas Model Number 449-704 DC Electric Model Number 449-706 AC Electric This manual contains important warnings and instructions.
-
Page 2: Table Of Contents
Table of Contents Parts List, Drawings and Service Instructions Model Descriptions / Major Components ......16 Specifications . - Page 3 CAUTION: DO NOT use this equipment to spray water or acid. CAUTION: Do not lift by cart handle when loading or unloading. WARNING LABELS Your sprayer has the English language Warning Label shown on Page 5 in the location indicated below. If you require this label in French, German, or Spanish, or require additional English labels, order directly from Titan free of charge.
- Page 4 DO NOT USE EQUIPMENT BEFORE READING THIS SECTION WARNING HIGH PRESSURE SPRAY CAN CAUSE SERIOUS INJURY Maximum Working Pressure 3300 psi, 228 bar An airless spray gun requires that fluid be the following: plug is necessary, do not connect the ground- introduced to it at very high pressure.
- Page 5 NO USE EL EQUIPO ANTES DE LEER ESTA SECCION ADVERTENCIA LA ROCIADURA A PRESION ALTA PUEDE CAUSAR LESION GRAVE. Presión de Trabajo Máxima 3300 libras por pulgada cuadrada (psi), 228 bar Una pistola rociadora sin aire requiere que se le 4) Antes de lavar el sistema, siempre quite la un circuito de tensión nominal de 120 voltios y introduzca líquido a presión muy alta.
- Page 6 NE PAS UTILISER LE MATERIEL AVANT D’AVOIR LU CETTE SECTION ATTENTION! LES PULVERISATEURS A HAUTE PRESSION PEUVENT PROVOQUER DE SERIEUSES LESIONS Pression de travail maximale: 3300 psi — 228 bar Le liquide introduit dans un pistolet pulvérisateur soupape de surpression. règlements locaux.
-
Page 7: Specifications
SET UP 5. Fill the Wet-Cup 1/2 full with Titan/Speeflo's Piston Lube, Part No. 700-925, supplied by the factory. This extends packing life. WARNING: READ, UNDERSTAND AND FOLLOW ALL WARN- 6. Electric Models - Use a 20 amp service outlet. Always locate INGS ON PAGES 4 - 7 BEFORE STARTING OR OPERATING the AC electric model within 10 to 15 feet of the service outlet. -
Page 8: Startup
Gasolines containing alcohol: ination of the sprayed material. If you decide to use a gasoline containing alcohol (gasohol), be sure its octane rating is at least as high as that recommended by If you are spraying a water based latex, flush with warm, soapy Honda. -
Page 9: Maintenance
MAINTENANCE HYDRAULIC SYSTEM IMPORTANT INFORMATION: Use of Titan/Speeflo's Coolflo™ Hydraulic Fluid is mandatory in the PowrTwin 5500™ hydraulic system. Do not use any other hydraulic fluid. Use of any other hydraulic fluid will seriously damage hydraulic system and void warranty. 1. - Page 10 HYDRAULIC MOTOR & FLUID PUMP SERVICE See Page 22 for maintenance and service instructions on the reci- procating hydraulic motor and Page 26 for the fluid pump. BASIC ENGINE MAINTENANCE • For detailed engine maintenance and technical specifications refer to the separate Honda engine manual. •...
-
Page 11: Powrtwin
PowrTwin 5500™ Major Components GAS MODELS GAS MODELS ITEM PART HONDA HONDA DESCRIPTION 449-700 449-709 235-143 Motor/Pump Assembly Hydraulic System Cart Assembly 506-130 Convertokit, 5.5 HP, Honda, Gasoline 930-515 Filter Assembly, Outlet Manifold 840-211 Bleed Line Assembly w/Valve 103-826 Syphon Hose Assembly, 1"... - Page 12 PowrTwin 5500™ DC - Electric Convertokits DC - ELECTRIC CONVERTOKITS 508-211 508-205 508-210 115 V 220 V ITEM PART 115 V DESCRIPTION 978-350 Motor, DC-Electric, 2 HP, 50 / 60 Hz, 115 V 978-351 Motor, DC-Electric, 2 HP, 50 / 60 Hz, 220 V 978-384 Motor, DC-Electric, 2 HP, 50 / 60 Hz, 115 V CSA approved...
- Page 13 PowrTwin 5500™ Electric Convertokits - Service Instructions WARNING: Before servicing the electric motor, follow the Pressure Relief Procedure on Page 10. Once you have completed this procedure, unplug the power supply cord. Failure to reduce pressure can result in serious injury. Observe all warnings. Note: Brushes should be replaced when they are worn to less than 1/2 inch.
-
Page 14: Hydraulic Motor
PowrTwin 5500™ Hydraulic Motor ITEM PART solvent and will severely damage seals and O-Rings of the DESCRIPTION QUANTITY hydraulic motor. 235-018 Retainer, Trip 141-007 O-Ring 325-005 Spring, Trip Gently push the Spool Sleeve Set (5) into Cylinder Head (11) using 569-016 Ball, SS a nylon driver and a rubber mallet until sleeve has reached its full... -
Page 15: Warranty
PowrTwin 5500™ Fluid Pump Service Instructions IMPORTANT: USE OF NON-SPEEFLO MANUFAC- TURED SERVICE PARTS MAY VOID WARRANTY. ASK FOR ORIGINAL PARTS MADE BY SPEEFLO FOR BEST SERVICES. The 143 Series Pump should receive a routine servicing after approximately 1,000 hours of use. Earlier servicing is required if there is excessive leakage from the top packing or if pump strokes become faster on one stroke or the other. - Page 16 Inlet Accessories 840-211 BLEED LINE ASSEMBLY WITH VALVE ITEM PART Hoses and Valves DESCRIPTION QUANTITY 944-620 Bleed Valve 103-111 Bleed Line Assembly 539-078 Hose Assembly 103-117 Tube 944-620 BLEED VALVE ASSEMBLY ITEM PART DESCRIPTION QUANTITY 944-005 Knob 860-721 Nut, Lock 944-023 Valve Stem 944-004...
- Page 17 The terms of this warranty con- by Titan Tool Inc. Titan Tool Inc. shall not be liable for damage or wear stitute purchaser's sole and exclusive remedy. In no case shall Titan caused by incompatibility with Titan Tool Inc.
